Beverage Air BB72HC-1-G-PT-S Refrigerated Back Bar Pass-Thru Storage Cabinet

SKU#: BB72HC-1-G-PT-S
Made in USA
Free Freight?
Quick Ship
$7,165.90
$6,252.98
or enjoy small payments $134.38/mo.
Lease Payment Calculate
Product Protection
Product Protection
Starting at
Reward Points
Reward Points
You will earn 7166
  • 2023 model, meets the newest EPA and DOE codes.

Beverage Air BB72HC-1-G-PT-S Specifications

Number of Kegs3 Kegs
Interior ConstructionShelves
ConstructionStainless and Galvanized Steel
Cabinet TypeStorage Cabinets
BrandBeverage Air
Refrigerant TypeR-290
Made inUSA
CertificationscULus
Door StyleSwing
Control TypeManual
Number of Doors6
Capacity22.1 cu. ft.
ColorStainless Steel
Door TypeGlass
Sections3
Voltage115 Volts
Width (in)72
Height (in)34
Depth (in)27.38
Weight420.00

Additional Information on Beverage Air BB72HC-1-G-PT-S

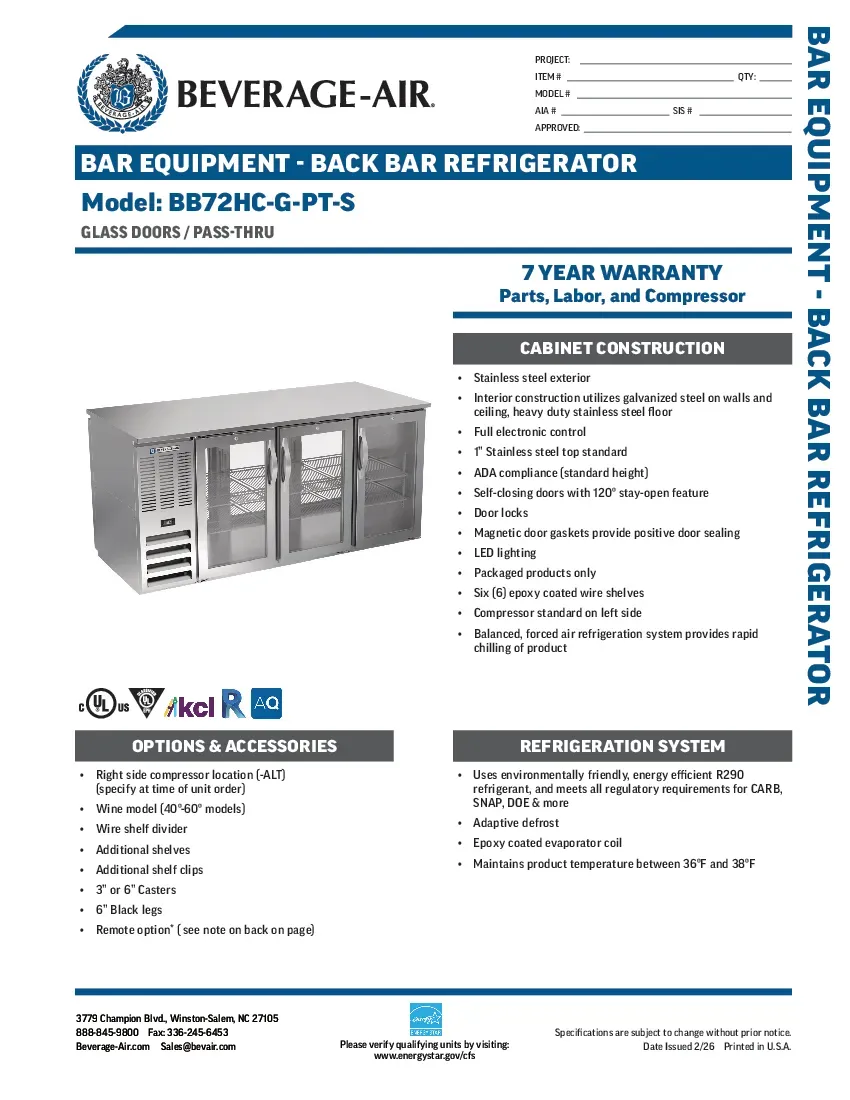

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Beverage Air BB72HC-1-G-PT-S Certifications

cULus

cULus

UL (Underwriters Laboratories) approval for the US and Canada

UL

UL

UL has tested representative samples of this product and determined that the product meets specific, defined requirements.

UL EPH

UL EPH

Certifies that the goods conform to public health and environmental quality compatibility requirements.

UL EPH Classified

UL EPH Classified

This product complies with UL EPH standards and meets ANSI/NSF requirements.

UL-Sanitation

UL-Sanitation

This item has been tested and meets the sanitation hazard standards imposed by the Underwriters Laboratories (UL).

Beverage Air BB72HC-1-G-PT-S Description

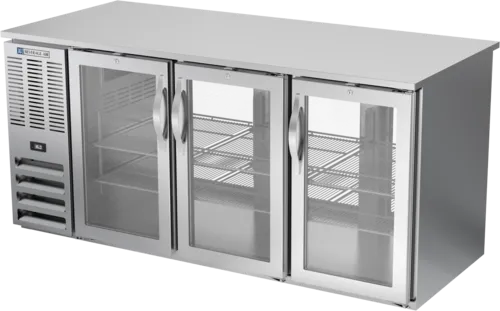

Refrigerated Back Bar Pass-Thru Storage Cabinet, three-section, 72"W, 34" H, 22.1 cu. ft. capacity, (6) glass doors with locks, (6) epoxy coated steel shelves, (3) 1/2 barrel kegs, LED interior lighting with manual on/off switch, galvanized sub-top, galvanized steel interior with stainless steel floor, stainless steel exterior, right-mounted self-contained refrigeration, R290 Hydrocarbon refrigerant, 1/3 HP, cULus, UL EPH Classified, UL-Sanitation, Made in USA

If your establishment needs a refrigeration solution for drinks that allows access from either side of the bar the Beverage Air BB72HC-1-G-PT-S Refrigerated Back Bar Storage Cabinet is a good solution. Three glass doors on either side allow items to be seen clearly and easily accessed. With 22.1 cu. ft. this unit has plenty of storage capacity, The interior can also hold three ½ kegs.

The reach-in sections have self-closing doors to keep them from being left ajar and come standard with a lock for security. Inside each section are two epoxy-coated wire shelves are included to maximize the usable space. When users need to access multiple items the doors have a stay-open feature. To ensure an airtight seal, the doors feature a magnetic gasket. The interior is kept evenly cooled with the forced-air refrigeration system. This also allows items to be cooled down quickly if necessary.

At the heart of the refrigeration system is a ⅓  HP compressor producing 1942 BTU/hr, the compressor can be installed on the right or left side of the unit. An epoxy coated-coated evaporator coil will make sure the refrigeration system will provide efficient cooling for many years. The temperature is maintained at between 36ºF and 38ºF efficiently by the fully electronic controls on this model. The non-electric automatic defrost cycle keeps the unit running efficiently without downtime. R290 refrigerant is eco-friendly and provides efficient cooling while meeting all regulations.

The unit comes prewired from the factory with an 8-foot power cord and a NEMA 5-15P plug set to easily connect it to a standard outlet with 115v/60/1-ph power.

Beverage Air BB72HC-1-G-PT-S Refrigerated Back Bar Pass-Thru Storage Cabinet

Add even more style to your bar area with the organized Beverage Air BB72HC-1-G-PT-S Refrigerated Back Bar Pass-Thru Storage Cabinet. This backbar storage cabinet is 34 inches tall, 72 inches wide, and 25 inches deep.

Standard Features:
  • Cabinet Construction
    • LED lighting
    • Self-closing doors
    • Full electronic control
    • Field reversible doors
    • Galvanized sub-top standard
    • Black or stainless steel exterior
    • Heavy duty stainless steel floor
    • Stay-open feature & lock standard
    • Two (2) epoxy coated shelves per section, standard
    • Magnetic door gaskets provide positive door sealing
    • Interior construction utilizes galvanized steel on walls and ceiling
    • Compressor available on left or right, specify at time of unit order
  • Refrigeration System
    • Epoxy coated evaporator coil
    • Automatic, non-electric evaporator
    • Balanced forced-air refrigeration system provides rapid chilling of product
    • Refrigeration system uses R290 refrigerant to comply with all environmental concerns
  • Options & Accessories
    • Wire shelf dividers
    • 2” Stainless steel top
    • Foot pedal door opener
    • Solid or sliding glass doors
    • Food rated models available
    • 3”-6” casters or 6” black legs
    • Wine model (40º-60º models)
  • Electrical Connection
    • Units pre-wired at factory and include 8’ long cord and plug set.

Options for Beverage Air BB72HC-1-G-PT-S

Export crating
Wine thermostat
Stainless steel options
Delivery
Refrigeration
What is included
  • Voltage: 115v/60/1-ph, 3.1 amps, cord with NEMA 5-15P
  • Warranty: 7 year parts & labor and 7 year compressor warranty (excludes maintenance items)
