Ice Machine Selection Guide: Manitowoc, Scotsman, and Ice-o-Matic

Ice Machine Selection Guide: Manitowoc, Scotsman, and Ice-o-Matic

Manitowoc, Scotsman, and Ice-O-Matic are some of the biggest names in commercial ice-making. These companies offer a variety of powerful and easy-to-operate commercial ice makers to produce any type of ice your facility needs. If you are in the market for a new commercial ice maker, use this guide to find the right one for you.

1 - Select the ice type you need for your facility. Manitowoc, Scotsman, and Ice-O-Matic commercial ice makers produce the same three types of ice cubes, albeit with different names and slight differences in size. Nugget, flake, and gourmet commercial ice makers are also available while Manitowoc also offers the larger ice cube and gourmet ice called Regular and Large Gourmet, respectively.

2 - Determine how much ice you are required to produce per day. Commercial Ice makers from Manitowoc, Scotsman, and Ice-O-Matic can supply as little as 58 lbs to a whopping 3,200 lbs of ice. Countertop, undercounter, and modular units are available. There are also specialty modular commercial ice makers designed specifically for unique environments and use such as ice-making near saltwater or in tandem with beverage service.

Ice TypeManitowocIce-O-MaticScotsman

Half Cube

Half Cube

Undercounter (up to 325 lbs)

Modular (up to 996 lbs)

High-Volume Modular (up to 3,200 lbs)

Specialty (Marine and Beverage)

Half-Dice
3/8" x 1 1/8" x 7/8"
Half Cube
3/8" x 7/8" x 7/8"
Small Cube
3/8" x 7/8" x 7/8"

Cube

Cube

Undercounter (up to 356 lbs)

Modular (up to 937 lbs)

High-Volume Modular (up to 3,000 lbs)

Specialty (Marine and Correctional)

Dice
7/8" x 7/8" x 7/8"
Full Cube
7/8" x 7/8" x 7/8"
Medium Cube
7/8" x 7/8" x 7/8"

Gourmet

Gourmet

Undercounter (up to 189 lbs)

Modular (up to 800 lbs)

Gourmet
1 3/8" x 1 3/8"
Gourmet
1"x 1 1/8"x 1 1/4"
Gourmet
1" x 1 1/8" x 1 1/4"

Nugget

Nugget

Undercounter (up to 300 lbs)

Countertop (up to 500 lbs)

Modular (Up to 956 lbs)

High-Volume Modular (up to 2,185 lbs)

Nugget
3/8" to 1/2"
Pearl
1/2" x 3/8"
Pearl
3/5" x 5/16" x 3/8"

Flake

Flake

Undercounter (up to 440 lbs)

Modular (up to 940 lbs)

High-Volume Modular (up to 2,460 lbs)

FlakeFlakeFlake

Large Cube

Large Cube

Undercounter (up to 278 lbs)

Modular (up to 845 lbs)

High-Volume Modular (up to 1,800 lbs)

Regular Cube
1 1/8" x 1 1/8" x 7/8"
Grande
1 1/4" x 1 1/8" x 7/8"
N/A

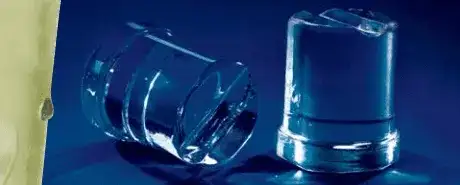

Large Gourmet

Large Gourmet

Undercounter (up to 306 lbs)

Large Gourmet
2" x 1 1/2" x 1 3/4"
N/AN/A


HALF-CUBE ICE MACHINES

NOTE: Water-cooled commercial ice makers can consume upwards of 200 gallons of water a day. This type of commercial ice makers is generally recommended for facilities located in an environment that is too hot for an air-cooled machine. Hot environments can also benefit from a remote system where the compressor and condenser are placed in another room or outside although this will require the services of a refrigeration technician.

Recommendation: The production level of commercial ice maker depends a lot on water temperature. If water is very warm, there is going to be a difference in how much ice it can produce. You need to have cold water and normal ambient temperature to ensure maximum output. A heat exchanger like the System IV ChillTech is a great way to do just that. You can expect a 20% increase in the amount of ice you make for lower energy consumption.

Undercounter Ice Machines

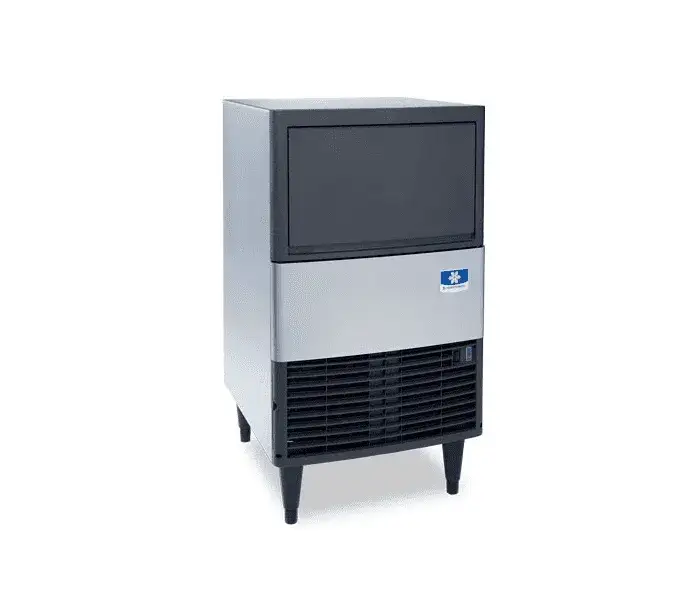

NEO® 140

Dimensions: 26"W x 28.5"D x 38.5"H

Storage Bin Capacity: 90 lbs

AIR-COOLED
ModelBrandIce TypeMax Production

UYF-0140A

manitowoc

Half-Dice

137 lbs. 24/HR

ICEU150

Dimensions: 24.54"W x 26.27"D x 39"H

Storage Bin Capacity: 70 lbs

WATER-COOLED
ModelBrandIce TypeMax Production

ICEU150HW

ice-o-maticHalf-cube

185 lbs. 24/HR

AIR-COOLED
ModelBrandIce TypeMax Production

ICEU150HA

(Energy Star)

ice-o-maticHalf-cube

185 lbs. 24/HR

NEO® 140/190

Dimensions: 26"W x 28.5"D x 38.5"H

Storage Bin Capacity: 90 lbs

AIR-COOLED
ModelBrandIce TypeMax Production

UYF-0190A

manitowoc

Half-Dice

193 lbs. 24/HR

NEO® 240

Dimensions: 26"W x 28.5"D x 38.5"H

Storage Bin Capacity: 90 lbs

Voltage: 115v/60/1-ph

AIR-COOLED
ModelBrandIce TypeMax Production

UYF-0240W

Manitowoc

Half-Dice

207 lbs. 24/HR

WATER-COOLED
ModelBrandIce TypeMax Production

UYF-0240A

Manitowoc

Half-Dice

219 lbs. 24/HR

NEO® 240

Manitowoc UYP0240A NEO?® Undercounter Ice Maker

Dimensions: 26"W x 28.5"D x 38.5"H

Storage Bin Capacity: 90 lbs

Voltage: 230v/50/1-ph

AIR-COOLED

Model

Brand

Ice Type

Max Production

UYP0240A

Manitowoc

Half-Dice

219 lbs. 24/HR

ICEU220

Dimensions: 24.54"W x 26.27"D x 39"H

Storage Bin Capacity: 70 lbs.

AIR-COOLED
ModelBrandIce TypeMax Production

ICEU220HA

(Energy Star)

ice-o-maticHalf-cube

238 lbs. 24/HR

ICEU226

Dimensions: 24.54"W x 26.27"D x 39"H

Storage Bin Capacity: 70 lbs.

WATER-COOLED
ModelBrandIce TypeMax Production

ICEU226HW

ice-o-maticHalf-cube

232 lbs. 24/HR

AIR-COOLED
ModelBrandIce TypeMax Production

ICEU226HA

(Energy Star)

ice-o-maticHalf-cube

241 lbs. 24/HR

ICEU220

Dimensions: 24.54"W x 26.27"D x 39"H

Storage Bin Capacity: 70 lbs.

WATER-COOLED
ModelBrandIce TypeMax Production

ICEU220HW

ice-o-maticHalf-cube

251 lbs. 24/HR

CU3030

Dimensions: 30"W x 30"D x 33"H

Storage Bin Capacity: 110 lbs.

AIR-COOLED
ModelBrandIce TypeMax Production

CU3030SA-6

230/50/1

Small Cube

287 lbs. 24/HR

NEO® 310

Dimensions: 30"W x 28.5"D x 38.5"H

Storage Bin Capacity: 90 lbs

Voltage: 115v/60/1-ph

AIR-COOLED

Model

Brand

Ice Type

Max Production

UYP0310A

Manitowoc

Half-Dice

290 lbs. 24/HR

NEO® 310

Dimensions: 30"W x 28.5"D x 38.5"H

Storage Bin Capacity: 90 lbs

AIR-COOLED
ModelBrandIce TypeMax Production

UYF-0310A

Manitowoc

Half-Dice

290 lbs. 24/HR

WATER-COOLED
ModelBrandIce TypeMax Production

UYF-0310W

Manitowoc

Half-Dice

293 lbs. 24/HR

ICEU300

Dimensions: 30.34"W x 29.97"D x 39"H

Storage Bin Capacity: 97 lbs.

AIR-COOLED
ModelBrandIce TypeMax Production

ICEU300HA

ice-o-maticHalf-cube

309 lbs. 24/HR

IYT0300

(Bin sold separately)


Dimensions: 30"W x 24.5"D x 16.5"H

Recommended Bin: D-400

AIR-COOLED

 Model

BrandIce Type

Max Production

IYT0300A

ManitowocHalf-Dice

310 lbs. 24/HR

WATER-COOLED

Model

BrandIce Type

Max Production

IYT0300W

ManitowocHalf-Dice

310 lbs. 24/HR

CU3030

Dimensions: 30"W x 30"D x 33"H

Storage Bin Capacity: 110 lbs.

AIR-COOLED
ModelBrandIce TypeMax Production

CU3030SA-1

(Energy Star)

Small Cube

313 lbs. 24/HR

CU3030SA-32

208-230/60/1

Small Cube

313 lbs. 24/HR

ICEU305

ICE-O-Matic ICEU300HW 30" Half-Dice Ice Maker With Bin, Cube-Style - 300-400 lb/24 Hr Ice Production, Water-Cooled, 115 Volts

Dimensions: 30.34"W x 29.97"D x 39"H

Storage Bin Capacity: 97 lbs.

WATER-COOLED
ModelBrandIce TypeMax Production

ICEU300HW

ice-o-maticHalf-cube

356 lbs. 24/HR

Modular Ice Machines

CIM0330

ICE-O-Matic CIM0330HA 30.25" Half-Dice Ice Maker, Cube-Style - 300-400 lb/24 Hr Ice Production, Air-Cooled, 115 Volts

Dimensions: 22.25"W x 24.25"D x 21.25"H

AIR-COOLED
ModelBrandIce TypeMax Production

CIM0330HA

ice-o-maticHalf-cube

313 lbs. 24/HR

CIM0320/0325/0326

Dimensions: 22.25"W x 24.25"D x 21.25"H

AIR-COOLED
ModelBrandIce TypeMax Production

CIM0320HA

ice-o-maticHalf-cube

313 lbs. 24/HR

WATER-COOLED
ModelBrandIce TypeMax Production

CIM0320HW

ice-o-maticHalf-cube

316 lbs. 24/HR

CIM0330

Dimensions: 30.25"W x 24.25"D x 21.25"H

WATER-COOLED
ModelBrandIce TypeMax Production

CIM0330HW

ice-o-maticHalf-cube

316 lbs. 24/HR

IYP0320

Manitowoc IYP0320A 22" Half-Dice Ice Maker, Cube-Style - 300-400 lb/24 Hr Ice Production, Air-Cooled, 230 Volts

Dimensions: 22"W x 24.5"D x 21.5"H

Recommended Bin/s: D-320/D-420

*Bin sold separately

AIR-COOLED

Model

BrandIce Type

Max Production

IYP0320A

ManitowocHalf-Dice

320 lbs. 24/HR

CIM0320/0325/0326

Dimensions: 22.25"W x 24.25"D x 21.25"H

AIR-COOLED
ModelBrandIce TypeMax Production

CIM0326HA

ice-o-maticHalf-cube

330 lbs. 24/HR

C0322AC

Dimensions: 22"W x 24"D x 23"H

Recommended Bin/s: B322S

AIR-COOLED
ModelBrandIce TypeMax Production

C0322SA-1

(Energy Star)

115/60/1

Small Cube

356 lbs. 24/HR

C0322WC

Dimensions: 22"W x 24"D x 23"H

Recommended Bin/s: B322S

WATER-COOLED
ModelBrandIce TypeMax Production

C0322SW-1

115/60/1

Small Cube

366 lbs. 24/HR

C0330AC

Dimensions: 30"W x 24"D x 23"H

Recommended Bin/s: B330P/B530S/B530P

AIR-COOLED
ModelBrandIce TypeMax Production

C0330SA-1

(Energy Star)

115/60/1

Small Cube

400 lbs. 24/HR

C0330WC

Dimensions: 30"W x 24"D x 23"H

Recommended Bin/s: B330P/B530S/B530P

WATER-COOLED
ModelBrandIce TypeMax Production

C0330SW-1

115/60/1

Small Cube

420 lbs. 24/HR

CIM0430/435

Dimensions:30.25"W x 24.25"D x 21.25"H
AIR-COOLED
ModelBrandIce TypeMax Production

CIM0430HA

(Energy Star)

ice-o-maticHalf-cube

435 lbs. 24/HR

WATER-COOLED
ModelBrandIce TypeMax Production

CIM0430HW

ice-o-maticHalf-cube

460 lbs. 24/HR

IYP0500

Manitowoc IYP0500A 30" Half-Dice Ice Maker, Cube-Style - 400-500 lbs/24 Hr Ice Production, Air-Cooled, 230 Volts

Dimensions: 30"W x 24"D x 21.5"H

Recommended Bin/s: D-400/D-570

*Bin sold separately

 AIR-COOLED

Model

BrandIce Type

Max Production

IYP0500A

ManitowocHalf-Dice

440 lbs. 24/HR

iT0420 INDIGO NXT

Dimensions:22"W x 24.5"D x 21.5"H

Recommended Bin: D-320

Recommended Ice Dispenser: SPA-160

AIR-COOLED
ModelBrandIce TypeMax Production

IYT0420A

(Energy Star)

Manitowoc

Half-Dice

460 lbs. 24/HR

CIM0430/0436/0435

Dimensions: 30.25"W x 24.25"D x 21.25"H

AIR-COOLED
ModelBrandIce TypeMax Production

CIM0436HA

(Energy Star)

ice-o-maticHalf-cube

465 lbs. 24/HR

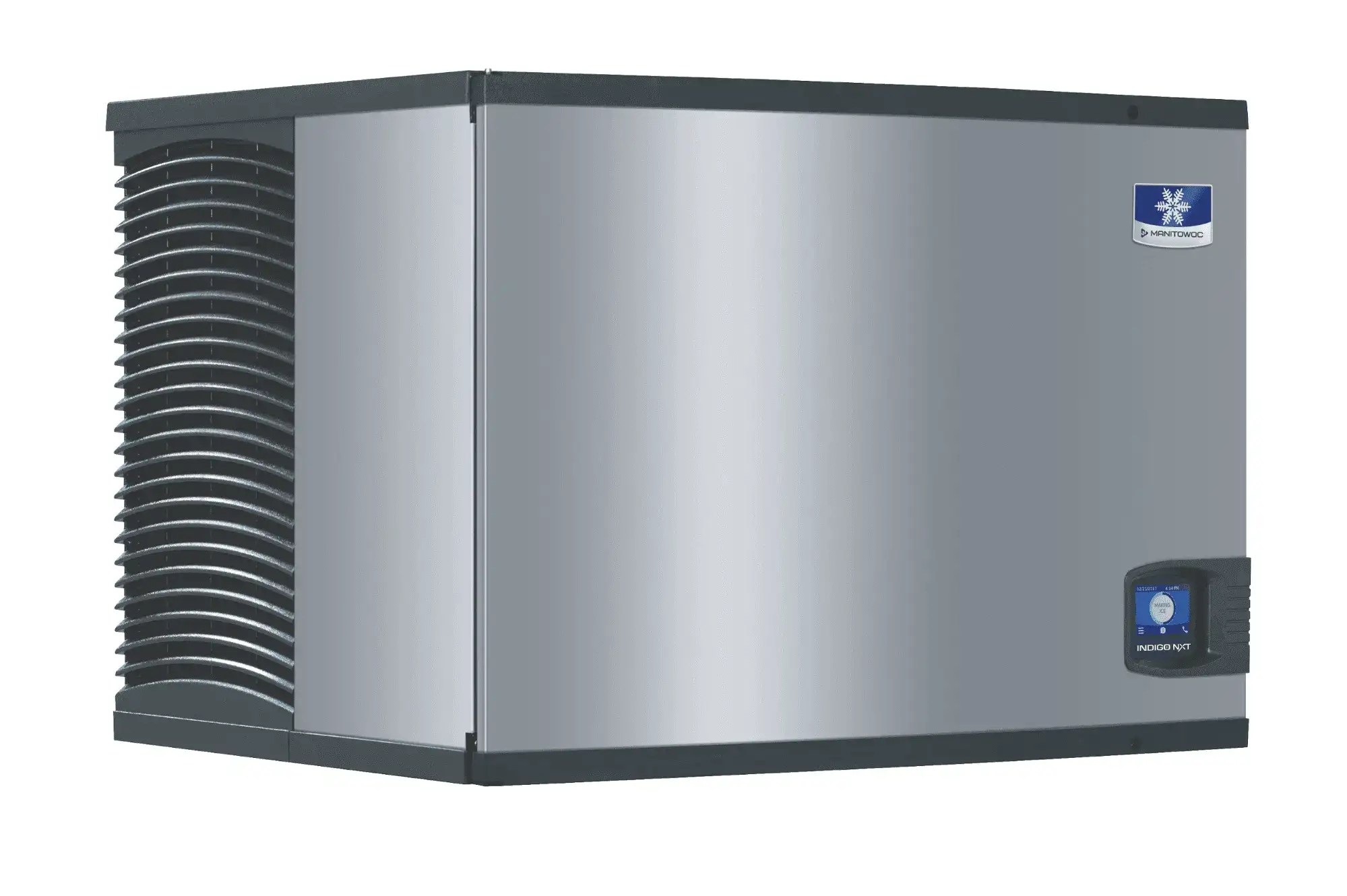

iT0450 INDIGO NXT

Dimensions: 30"W x 24"D x 21.5"H

Recommended Bin:D-400

WATER-COOLED
ModelBrandIce TypeMax Production

IYT0450W

Manitowoc

Half-Dice

470 lbs. 24/HR

C0522AC

Dimensions: 22"W x 24"D x 23"H

Recommended Bin/s: B322S

AIR-COOLED
ModelBrandIce TypeMax Production

C0522SA-6

230/50/1

Small Cube

471 lbs. 24/HR

C0522SA-1

115/60/1

Small Cube

475 lbs. 24/HR

C0522SA-32

208-230/60/1

Small Cube

475 lbs. 24/HR

C0530AC

Dimensions: 30"W x 24"D x 23"H

Recommended Bin/s:B330P/B530S/B530P

AIR-COOLED
ModelBrandIce TypeMax Production

C0530SA-6

230/50/1

Small Cube

477 lbs. 24/HR

C0522WC

Dimensions: 22"W x 24"D x 23"H

Recommended Bin/s: B322S

WATER-COOLED
ModelBrandIce TypeMax Production

C0522SW-1

115/60/1

Small Cube

480 lbs. 24/HR

C0522SW-32

208-230/60/1

Small Cube

480 lbs. 24/HR

iT0420 INDIGO NXT

Dimensions: 22"W x 24.5"D x 21.5"H

Recommended Bin: D-320

Recommended Ice Dispenser: SPA-160

WATER-COOLED
ModelBrandIce TypeMax Production

IYT0420W

Manitowoc

Half-Dice

490 lbs. 24/HR

iT0450 INDIGO NXT

Dimensions: 30"W x 24"D x 21.5"H

Recommended Bin: D-400

AIR-COOLED
ModelBrandIce TypeMax Production

IYT0450A

(Energy Star)

Manitowoc

Half-Dice

490 lbs. 24/HR

CIM0436

Dimensions: 30.25"W x 24.25"D x 21.25"H

WATER-COOLED
ModelBrandIce TypeMax Production

CIM0436HW

ice-o-maticHalf-cube

500 lbs. 24/HR

C0530WCRC

Dimensions: 30"W x 24"D x 23"H

Recommended Bin/s:B330P/B530S/B530P

WATER-COOLED
ModelBrandIce TypeMax Production

C0530SW-1

115/60/1

Small Cube

500 lbs. 24/HR

REMOTE-COOLED
(Requires ERC111-1 Condenser)
ModelBrandIce TypeMax Production

C0530SR-1

115/60/1

Small Cube

500 lbs. 24/HR

IYF0500

Manitowoc IYF0500N 30" Half-Dice Ice Maker, Cube-Style - 500-600 lb/24 Hr Ice Production, Air-Cooled, 115 Volts

Dimensions: 30"W x 24"D x 21.5"H

Recommended Bin/s: D-400/D-570

*Bin sold separately

REMOTE-COOLED

Model

Brand

Ice Type

Max Production

IYF0500N

Manitowoc

Half-Dice

525 lbs. 24/HR

C0530AC

Dimensions: 30"W x 24"D x 23"H

Recommended Bin/s:B330P/B530S/B530P

AIR-COOLED
ModelBrandIce TypeMax Production

C0530SA-1

(Energy Star)

115/60/1

Small Cube

525 lbs. 24/HR

C0530SA-32

(Energy Star)

208-230/60/1

Small Cube

525 lbs. 24/HR

CIM0530/0535

Dimensions: 30.25"W x 24.25"D x 21.25"H

REMOTE-COOLED
(Requires RCA-1061 Condenser)
ModelBrandIce TypeMax Production

CIM0530HR

ice-o-maticHalf-cube

525 lbs. 24/HR

AIR-COOLED
ModelBrandIce TypeMax Production

CIM0535HA

ice-o-maticHalf-cube

529 lbs. 24/HR

CIM0535

Dimensions: 30.25"W x 24.25"D x 21.25"H

WATER-COOLED
ModelBrandIce TypeMax Production

CIM0535HW

ice-o-maticHalf-cube

531 lbs. 24/HR

iT0500 INDIGO NXT

Dimensions: 30"W x 24"D x 21.5"H

Recommended Bin: D-570

WATER-COOLED
ModelBrandIce TypeMax Production

IYT0500W

Manitowoc

Half-Dice

535 lbs. 24/HR

AIR-COOLED
ModelBrandIce TypeMax Production

IYT0500A

(Energy Star)

Half-Dice

550 lbs. 24/HR

CIM0520/0525/0526

Dimensions: 22.25"W x 24.25"D x 21.25"H

AIR-COOLED
ModelBrandIce TypeMax Production

CIM0526HA

ice-o-maticHalf-cube

555 lbs. 24/HR

WATER-COOLED
ModelBrandIce TypeMax Production

CIM0525HW

ice-o-maticHalf-cube

555 lbs. 24/HR

iT0620 INDIGO NXT

Dimensions: 22"W x 24.5"D x 21.5"H

Recommended Bin: D-420

Recommended Ice Dispenser: SFA-191

WATER-COOLED
ModelBrandIce TypeMax Production

IYT0620W

Half-Dice

560 lbs. 24/HR

CIM0520/0525/0526

Dimensions: 22.25"W x 24.25"D x 21.25"H

AIR-COOLED
ModelBrandIce TypeMax Production

CIM0520HA

ice-o-maticHalf-cube

561 lbs. 24/HR

CIM0530/0535

Dimensions: 30.25"W x 24.25"D x 21.25"H

AIR-COOLED
ModelBrandIce TypeMax Production

CIM0530HA

ice-o-maticHalf-cube

561 lbs. 24/HR

iT0620 INDIGO NXT

Dimensions: 22"W x 24.5"D x 21.5"H

Recommended Bin: D-420

Recommended Ice Dispenser: SFA-191

AIR-COOLED
ModelBrandIce TypeMax Production

IYT0620A

(Energy Star)

Half-Dice

575 lbs. 24/HR

CIM0520

ICE-O-Matic CIM0520HW 22.25" Half-Dice Ice Maker, Cube-Style - 500-600 lb/24 Hr Ice Production, Water-Cooled, 115 Volts

Dimensions: 22.25"W x 21.25"D x 24.25"H

WATER-COOLED
ModelBrandIce TypeMax Production

CIM0520HW

ice-o-matic

Half-cube

586 lbs. 24/HR

CIM0530

ICE-O-Matic CIM0530HW 30.25" Half-Dice Ice Maker, Cube-Style - 500-600 lb/24 Hr Ice Production, Water-Cooled, 115 Volts

Dimensions: 30.25"W x 24.25"D x 21.25"H



WATER-COOLED

Model

Brand

Ice Type

  Max Production

CIM0530HW

ice-o-matic

Half-cube

586 lbs. 24/HR

CIM0636/0635

Dimensions: 30.25"W x 24.25"D x 21.25"H

AIR-COOLED
ModelBrandIce TypeMax Production

CIM0636HA

ice-o-maticHalf-cube

600 lbs. 24/HR

C0630WCRC

Dimensions: 30"W x 24"D x 23"H

Recommended Bin/s:B530P/B530S/B842S

REMOTE-COOLED
(Requires ERC311-32 Condenser)
ModelBrandIce TypeMax Production

C0630SR-32

(Energy Star)

208-230/60/1

Small Cube

614 lbs. 24/HR

CIM0636

Dimensions: 30.25"W x 24.25"D x 21.25"H

REMOTE-COOLED
(Requires RCA-1061 Condenser)
ModelBrandIce TypeMax Production

CIM0636HR

(Energy Star)

ice-o-maticHalf-cube

615 lbs. 24/HR

WATER-COOLED
ModelBrandIce TypeMax Production

CIM0636HW

ice-o-maticHalf-cube

620 lbs. 24/HR

C0630WCRC

Dimensions: 30"W x 24"D x 23"H

Recommended Bin/s:B530P/B530S/B842S

WATER-COOLED
ModelBrandIce TypeMax Production

C0630SW-32

208-230/60/1

Small Cube

633 lbs. 24/HR

QUIETQUBE IYF0600C

Manitowoc IYF0600C 30" Half-Dice Ice Maker, Cube-Style - 600-700 lbs/24 Hr Ice Production, Air-Cooled, 115 Volts


Recommended Bin: D-400/D-570

REMOTE-COOLED

Model

Brand

Ice Type

Max Production





C0630AC

Dimensions: 30"W x 24"D x 23"H

Recommended Bin/s: B530P/B530S/B842S

AIR-COOLED
ModelBrandIce TypeMax Production

C0630SA-32

208-230/60/1

Small Cube

640 lbs. 24/HR

IYF0600

Manitowoc IYF0600N 30" Half-Dice Ice Maker, Cube-Style - 600-700 lbs/24 Hr Ice Production, Air-Cooled, 208-230 Volts

Dimensions: 30"W x 24"D x 21.5"H

Recommended Bin/s: D-400/D-570

REMOTE-COOLED

Model

Brand

Ice Type

Max Production

IYF0600N

(Energy Star)

Half-Dice

642 lbs. 24/HR

C0630AC

Dimensions: 30"W x 24"D x 23"H

Recommended Bin/s:B530P/B530S/B842S

AIR-COOLED
ModelBrandIce TypeMax Production

C0630SA-6

230/50/1

Small Cube

660 lbs. 24/HR

IYT0750

Manitowoc IYT0750A 30" Half-Dice Ice Maker, Cube-Style - 700-900 lb/24 Hr Ice Production, Air-Cooled, 208-230 Volts

Dimensions: 30"W x 24"D x 21.5"H

Recommended Bin/s: D-400/D-570

*Bin sold separately

AIR-COOLED

Model

Brand

Ice Type

Max Production

IYT0750A

Half-Dice

715 lbs. 24/HR

iT0900 INDIGO NXT

Dimensions: 30"W x 24.5"D x 26.5"H

Recommended Bin: D-570

WATER-COOLED
ModelBrandIce TypeMax Production

IYT0900W

Half-Dice

722 lbs. 24/HR

C0722

Dimensions: 22"W x 24"D x 29"H

Recommended Bin/s: B842S/B948S

AIR-COOLED
ModelBrandIce TypeMax Production

C0722SA-6

230/50/1

Small Cube

725 lbs. 24/HR

C0722SA-32

208-230/60/1

Small Cube

758 lbs. 24/HR

IYT0750


Dimensions: 30"W x 24"D x 21.5"H

Recommended Bin/s: D-400/D-570

*Bin sold separately

WATER-COOLED

Model

Brand

Ice Type

Max Production

IYT0750W

(Energy Star)

Half-Dice

740 lbs. 24/HR

C0830AC

Dimensions: 30"W x 24"D x 29"H

Recommended Bin/s:B530P/B530S/B842S

AIR-COOLED
ModelBrandIce TypeMax Production

C0830SA-6

230/50/1

Small Cube

792 lbs. 24/HR

EH222

Dimensions: 22"W x 16.5"D x 29"H

Recommended Bin/s:BH1100BB/BH1100SS

Recommended Dispenser/s:ID200/ID250/ID150/ABS

REMOTE-COOLED
(Requires ECC0800-3/ECC0800-6for 850 lbs
or ECC1410-32/ECC1410-3for 1,030 lbs)
ModelBrandIce TypeMax Production

EH222SL-6

230/50/1

Small Cube

800 lbs. 24/HR

EH222SL-1

(Energy Star)

115/60/1

Small Cube

850-1,030 lbs. 24/HR

QUIETQUBE IYF0900CManitowoc IYF0900C 30" Half-Dice Ice Maker, Cube-Style - 700-900 lb/24 Hr Ice Production, Air-Cooled, 115 Volts

Dimensions: 30"W x 24.5"D x 26.5"H

Recommended Bin: D-570

REMOTE-COOLED

Model

Brand

Ice Type

Max Production

IYF0900C

Half-Dice

816 lbs. 24/HR

iF0900 INDIGO NXT

Dimensions: 30"W x 24.5"D x 26.5"H

Recommended Bin: D-570

REMOTE-COOLED
(use with JCF-0900 Condensing Unit)
ModelBrandIce TypeMax Production

IYF-0900N

Half-Dice

855 lbs. 24/HR

C0830WCRC

Dimensions: 30"W x 24"D x 29"H

Recommended Bin/s:B530P/B530S/B842S

REMOTE-COOLED

(Use with ERC311-32 Condenser)

ModelBrandIce TypeMax Production

C0830SR-32

(Energy Star)

208-230/60/1

Small Cube

870 lbs. 24/HR

iT0900 INDIGO NXT

Dimensions: 30"W x 24.5"D x 26.5"H

Recommended Bin: D-570

AIR-COOLED

ModelBrandIce TypeMax Production

IYT0900A

(Energy Star)

Half-Dice

865 lbs. 24/HR

CIM0826/0825

Dimensions: 22.25"W x 24.25"D x 26.9"H

AIR-COOLED
ModelBrandIce TypeMax Production

CIM0826HA

ice-o-maticHalf-cube

896 lbs. 24/HR

CIM0836/0835

Dimensions: 30.25"W x 24.25"D x 26.9"H

AIR-COOLED
ModelBrandIce TypeMax Production

CIM0836HA

ice-o-maticHalf-cube

896 lbs. 24/HR

WATER-COOLED
ModelBrandIce TypeMax Production

CIM0836HW

ice-o-maticHalf-cube

896 lbs. 24/HR

CIM0835HW

ice-o-maticHalf-cube

901 lbs. 24/HR

iF0900 INDIGO NXT

Dimensions: 30"W x 24.5"D x 26.5"H

Recommended Bin: D-570

AIR-COOLED

ModelBrandIce TypeMax Production

IYF-0900A

Half-Dice

901 lbs. 24/HR

C0830AC

Dimensions: 30"W x 24"D x 29"H

Recommended Bin/s:B530P/B530S/B842S

AIR-COOLED
ModelBrandIce TypeMax Production

C0830SA-3

208-230/60/3

Small Cube

905 lbs. 24/HR

C0830SA-32

(Energy Star)

208-230/60/1

Small Cube

905 lbs. 24/HR

CIM0836/0835

Dimensions: 30.25"W x 24.25"D x 26.9"H

REMOTE-COOLED
(Use with RCA-2061 Condenser)
ModelBrandIce TypeMax Production

CIM0836HR

ice-o-maticHalf-cube

906 lbs. 24/HR

C1030AC

Dimensions: 30"W x 24"D x 29"H

Recommended Bin/s:

B842S/B948S/BH1100BB/BH1100SS

AIR-COOLED
ModelBrandIce TypeMax Production

C1030SA-6

230/50/1

Small Cube

915 lbs. 24/HR

CIM1136/1135/1137

Dimensions: 30.25"W x 24.25"D x 26.9"H

AIR-COOLED
ModelBrandIce TypeMax Production

CIM1137HA

ice-o-maticHalf-cube

917 lbs. 24/HR

CIM0826


Dimensions: 22.25"W x 24.25"D x 26.9"H

REMOTE-COOLED

Model

BrandIce Type

Max Production

CIM0826HR

ice-o-maticHalf-cube

922 lbs. 24/HR

WATER-COOLED

Model

BrandIce Type

Ma Production

CIM0826HW

ice-o-maticHalf-cube

922 lbs. 24/HR

C0830WCRC

Dimensions: 30"W x 24"D x 29"H

Recommended Bin/s:B530P/B530S/B842S

WATER-COOLED
ModelBrandIce TypeMax Production

C0830SW-32

208-230/60/1

Small Cube

924 lbs. 24/HR

CIM1136/1135/1137

Dimensions: 30.25"W x 24.25"D x 26.9"H

AIR-COOLED
ModelBrandIce TypeMax Production

CIM1136HA

ice-o-maticHalf-cube

932 lbs. 24/HR

CIM1126

ICE-O-Matic CIM1126HR 22.25" Half-Dice Ice Maker, Cube-Style - 900-1000 lbs/24 Hr Ice Production, Air-Cooled, 208-230 Volts

Dimensions: 22.25"W x 24.25"D x 26.9"H


REMOTE-COOLED

Model

BrandIce Type

Max Production

CIM1126HR

ice-o-maticHalf-cube

968 lbs. 24/HR




CIM1136/1135/1137

Dimensions: 30.25"W x 24.25"D x 26.9"H

WATER-COOLED
ModelBrandIce TypeMax Production

CIM1136HW

ice-o-maticHalf-cube

968 lbs. 24/HR

REMOTE-COOLED
(Use with RCA-2061 Condenser)
ModelBrandIce TypeMax Production

CIM1136HR

ice-o-maticHalf-cube

968 lbs. 24/HR

CIM1137HR

ice-o-maticHalf-cube

973 lbs. 24/HR

WATER-COOLED

CIM1137HW

ice-o-maticHalf-cube

994 lbs. 24/HR

C1030WCRC

Dimensions: 30"W x 24"D x 29"H

Recommended Bin/s:

B842S/B948S/BH1100BB/BH1100SS:

B530P/B530S/B842S

REMOTE-COOLED
(Requires ERC311-32 Condenser)
ModelBrandIce TypeMax Production

C1030SR-32

(Energy Star)

208-230/60/1

Small Cube

996 lbs. 24/HR

C1030SR-3

(Energy Star)

208-230/60/3

Small Cube

996 lbs. 24/HR

High-Volume Modular Half Cube Ice Machines

C1030WCRC

Dimensions: 30"W x 24"D x 29"H

Recommended Bin/s:

B842S/B948S/BH1100BB/BH1100SS:

B530P/B530S/B842S

WATER-COOLED
ModelBrandIce TypeMax Production

C1030SW-32

208-230/60/1

Small Cube

1,029 lbs. 24/HR

CIM1126/1125

Dimensions: 22.25"W x 24.25"D x 26.9"H

REMOTE-COOLED
(Use with RCA-2061 Condenser)
ModelBrandIce TypeMax Production

CIM1125HR

ice-o-maticHalf-cube

1,035 lbs. 24/HR

AIR-COOLED

Model

BrandIce Type

Max Production

CIM1126HA

ice-o-maticHalf-cube

1,035 lbs. 24/HR

WATER-COOLED

Model

BrandIce Type

Max Production

CIM1126HW

ice-o-maticHalf-cube

1,035 lbs. 24/HR

C1030AC

Dimensions: 30"W x 24"D x 29"H

Recommended Bin/s:

B842S/B948S/BH1100BB/BH1100SS

WATER-COOLED
ModelBrandIce TypeMax Production

C1030SA-32

(Energy Star)

208-230/60/1

Small Cube

1,077 lbs. 24/HR

iT1200 INDIGO NXT

Dimensions: 30"W x 24.5"D x 29.5"H

Recommended Bin: D-570

WATER-COOLED
ModelBrandIce TypeMax Production

IYT1200W

Half-Dice

1,138 lbs. 24/HR

AIR-COOLED
ModelBrandIce TypeMax Production

IYT1200A

Half-Dice

1,213 lbs. 24/HR

REMOTE-COOLED
(use with JCT-1200A Condensing Unit)
ModelBrandIce TypeMax Production

IYT1200N

Half-Dice

1,215 lbs. 24/HR

QUIETQUBE® iT1200C

Dimensions: 30"W x 24.5"D x 29.5"H

Recommended Bin:D-970

REMOTE-COOLED

(Use with CVDT1200A Condensing Unit)

ModelBrandIce TypeMax Production

IYT1200C

Half-Dice

1,215 lbs. 24/HR

QUIETQUBE® iF1400C

Dimensions: 30"W x 24.5"D x 25"H

Recommended Bin:

D-970(single)/F-1650(double)

REMOTE-COOLED

(Use with CVDF1400 Condensing Unit)

ModelBrandIce TypeMax Production

IYF1400C

Half-Dice

1,350 lbs. 24/HR

C1448WCRC

Dimensions: 48"W x 24"D x 29"H

Recommended Bin/s:

B948S/BH1100BB/BH1100SS

BH1300BB/BH1300SS

REMOTE-COOLED

(Use with ERC311-32 Condenser)

ModelBrandIce TypeMax Production

C1448SR-32

(Energy Star)

208-230/60/1

Small Cube

1,357 lbs. 24/HR

C1448SR-3

208-230/60/3

Small Cube

1,357 lbs. 24/HR

EH330

Dimensions: 30"W x 24"D x 23"H

Recommended Bin/s: ED200/ED250

Recommended Dispenser/s: IDC255

REMOTE-COOLED

(Use with ECC1200-32 Condenser)

ModelBrandIce TypeMax Production

EH330SL-1

Small Cube

1,411 lbs. 24/HR

EH430

Dimensions: 30"W x 24"D x 23"H

Recommended Bin/s:

B948S/BH1100BB/BH1100SS

BH1300BB/BH1300SS

BH1600BB/BH1600SS

REMOTE-COOLED

(Use with ECC1410-32/ECC1410-3 for 1,425 lbs or

ECC1800-3 for 1,775 lbs)

ModelBrandIce TypeMax Production

EH430SL-1

(Energy Star)

Small Cube

1,425-1,775 lbs. 24/HR

SLIMLINE ICE1506

Dimensions: 30.4"W x 26.3"D x 22.03"H

REMOTE-COOLED

(Use with RCA-2061 Condenser)

ModelBrandIce TypeMax Production

ICE1506HT

ice-o-maticHalf-cube

1,430 lbs. 24/HR

C1448WCRC

Dimensions: 48"W x 24"D x 29"H

Recommended Bin/s:

B948S/BH1100BB/BH1100SS

BH1300BB/BH1300SS

REMOTE-COOLED

(USe with ERC311-32 Condenser)

ModelBrandIce TypeMax Production

C1448SW-32

208-230/60/1

Small Cube

1,444 lbs. 24/HR

C1448SW-3

208-230/60/3

Small Cube

1,444 lbs. 24/HR

SLIMLINE ICE1506

Dimensions: 30.4"W x 26.3"D x 22.03"H

REMOTE-COOLED

(USe with RCA-2061 Condenser)

ModelBrandIce TypeMax Production

ICE1506HR

ice-o-maticHalf-cube

1,450 lbs. 24/HR

High-Volume Ice Machines

C1448AC

Dimensions: 48"W x 24"D x 29"H

Recommended Bin/s:

B948S/BH1100BB/BH1100SS

BH1300BB/BH1300SS

REMOTE-COOLED

(Use with ERC311-32 Condenser)

ModelBrandIce TypeMax Production

C1448SA-6

230/50/1

Small Cube

1,553 lbs. 24/HR

C1448SA-32

(Energy Star)

208-230/60/1

Small Cube

1,553 lbs. 24/HR

C1448SA-3

(Energy Star)

208-230/60/3

Small Cube

1,553 lbs. 24/HR

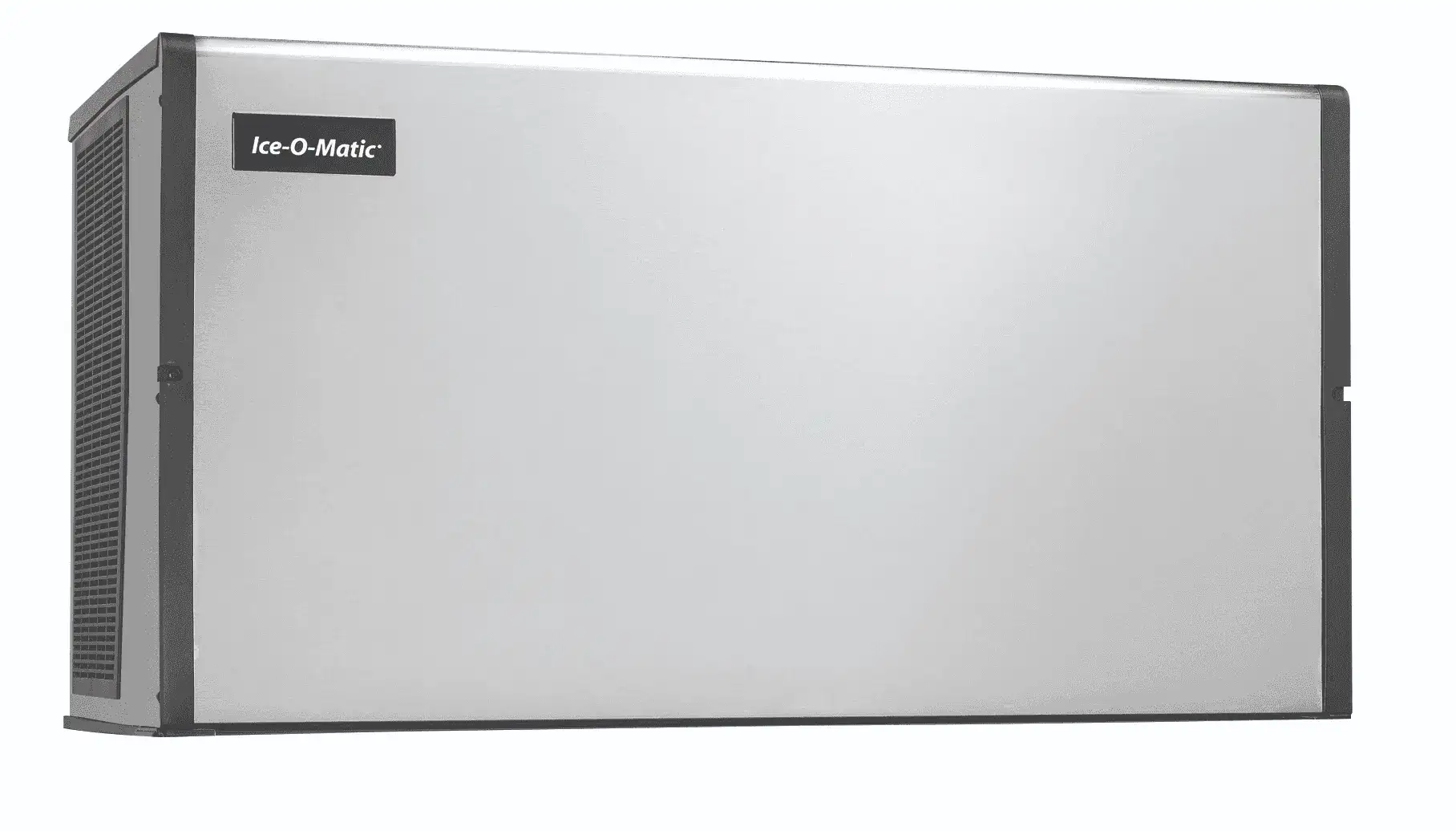

CIM1446/1447


Dimensions: 48.25" W x 24.25"D x 26.8"H

*1446 series require 208-230/60/1 electrical connection with approx. 22,000 BTU/HR

*1447 series require 208-230/60/3 electrical connection with approx. 21,000 BTU/HR

REMOTE-COOLED

Model

Brand

Ice Type

Max Production

CIM1446HR

ice-o-matic

Half-cube

1,560 lbs. 24/HR

CIM1447HR

ice-o-matic

Half-cube

1,560 lbs. 24/HR

AIR-COOLED

Model

Brand

Ice Type

Max Production

CIM1446HA

ice-o-matic

Half-cube

1,560 lbs. 24/HR

CIM1447HA

ice-o-matic

Half-cube

1,560 lbs. 24/HR

WATER-COOLED

Model

Brand

Ice Type

Max Production

CIM1446HW

ice-o-matic

Half-cube

1,560 lbs. 24/HR

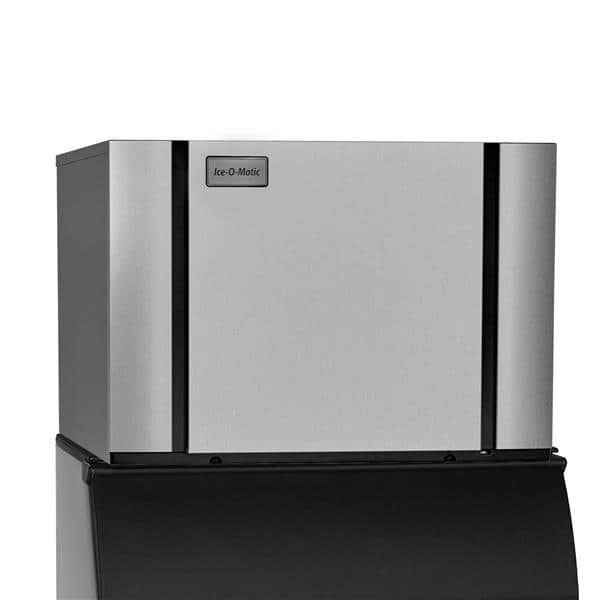

CIM1545

ICE-O-Matic CIM1545HA 48.25" Half-Dice Ice Maker, Cube-Style - 1500-2000 lbs/24 Hr Ice Production, Air-Cooled, 220-240 Volts

Dimensions: 48.25"W x 24.25"D x 26"H



AIR-COOLED

Model

Brand

Ice Type

Max Production

CIM1545HA

ice-o-matic

Half-cube

1,560 lbs. 24/HR

iT1500 INDIGO NXT

Dimensions: 48"W x 24"D x 29.5"H

Recommended Bin: D-970

WATER-COOLED
ModelBrandIce TypeMax Production

IYT1500W

Half-Dice

1,590 lbs. 24/HR

CIM1545

ICE-O-Matic CIM1545HR 48.25" Half-Dice Ice Maker, Cube-Style - 1500-2000 lbs/24 Hr Ice Production, Air-Cooled, 220-240 Volts

Dimensions: 48.25"W x 24.25"D x 26"H

REMOTE-COOLED

Model

Brand

Ice Type

Max Production

CIM1545HR

ice-o-matic

Half-cube

1,598 lbs. 24/HR

WATER-COOLED

Model

Brand

Ice Type

Max Production

CIM1545HW

ice-o-matic

Half-cube

1,605 lbs. 24/HR

QUIETQUBE® iF1800C

Dimensions: 30"W x 24.5"D x 29.5"H

Recommended Bin:

D-970(single)/F-1650(double)

REMOTE-COOLED

(Use with CVDF2100 Condensing Unit)

ModelBrandIce TypeMax Production

IYF1800C

Half-Dice

1,660 lbs. 24/HR

iT1500 INDIGO NXT

Dimensions: 48"W x 24"D x 29.5"H

Recommended Bin: D-970

AIR-COOLED
ModelBrandIce TypeMax Production

IYT1500A

Half-Dice

1,660 lbs. 24/HR

REMOTE-COOLED

(use with JCT-1500 Condensing Unit)

ModelBrandIce TypeMax Production

IYT1500N

Half-Dice

1,700 lbs. 24/HR

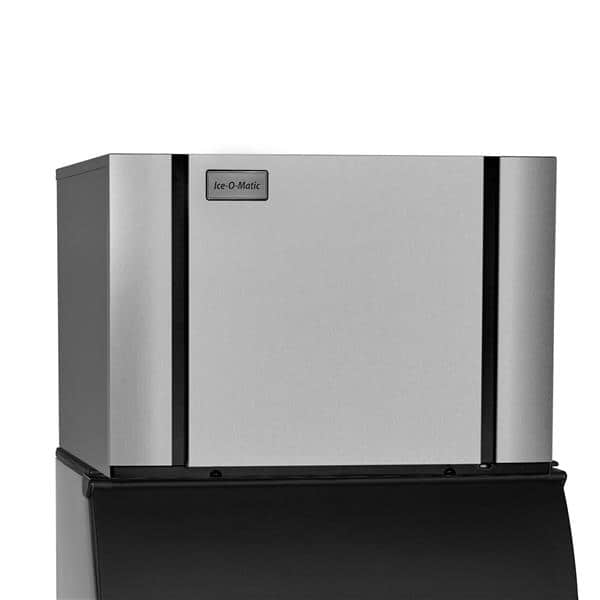

CIM1845

ICE-O-Matic CIM1845HW 48.25" Half-Dice Ice Maker, Cube-Style - 1500-2000 lbs/24 Hr Ice Production, Water-Cooled, 220-240 Volts

Dimensions: 48.25" W x 24.25"D x 26"H



AIR-COOLED

Model

Brand

Ice Type

Max Production

CIM1845HA

ice-o-matic

Half-cube

1,710 lbs. 24/HR

WATER-COOLED

Model

Brand

Ice Type

Max Production

CIM1845HW

ice-o-matic

Half-cube

1,736 lbs. 24/HR

iT1500 INDIGO NXT

Dimensions: 48"W x 24"D x 29.5"H

Recommended Bin: D-970

WATER-COOLED
ModelBrandIce TypeMax Production

IYT1900W

Half-Dice

1,740 lbs. 24/HR

2046/2047


Dimensions: 48.25"W x 24.25"D x 26"H

REMOTE-COOLED

(Use with RCA-3061 Condenser)

ModelBrandIce TypeMax Production

CIM2046HR

ice-o-maticHalf-cube

1,751 lbs. 24/HR

iT1900 INDIGO NXT

Dimensions: 48"W x 24"D x 29.5"H

Recommended Bin:D-970

REMOTE-COOLED

(Use with JCT-1500 Remote Condenser)

ModelBrandIce TypeMax Production

IYT1900N

Half-Dice

1,800 lbs. 24/HR

C1848WCRC

Dimensions: 48"W x 24"D x 29"H

Recommended Bin/s:

BH1300BB/BH1300SS

BH1600BB/BH1600SS

REMOTE-COOLED

(Use with ERC611-32 Condenser)

ModelBrandIce TypeMax Production

C1848SR-32

(Energy Star)

208-230/60/1

Small Cube

1,828 lbs. 24/HR

C1848SR-3

(Energy Star)

208-230/60/3

Small Cube

1,828 lbs. 24/HR

CIM2046/2047

Dimensions: 48.25"W x 24.25"D x 26"H

REMOTE-COOLED

(Use with RCA-3561 Condenser)

ModelBrandIce TypeMax Production

CIM2046HR

ice-o-maticHalf-cube

1,830 lbs. 24/HR

CIM2047HR

ice-o-maticHalf-cube

1,860 lbs. 24/HR

WATER-COOLED
ModelBrandIce TypeMax Production

CIM2046HW

ice-o-maticHalf-cube

1,860 lbs. 24/HR

CIM2047HW

ice-o-maticHalf-cube

1,860 lbs. 24/HR

iT1900 INDIGO NXT

Dimensions: 48"W x 24"D x 29.5"H

Recommended Bin:D-970

AIR-COOLED
ModelBrandIce TypeMax Production

IYT1900A

Half-Dice

1,900 lbs. 24/HR

C1848WCRC

Dimensions: 48"W x 24"D x 29"H

Recommended Bin/s:

BH1300BB/BH1300SS

BH1600BB/BH1600SS

WATER-COOLED
ModelBrandIce TypeMax Production

C1848SW-32

208-230/60/1

Small Cube

1,900 lbs. 24/HR

C1848AC

Dimensions: 48"W x 24"D x 29"H

Recommended Bin/s:

BH1300BB/BH1300SS

BH1600BB/BH1600SS

AIR-COOLED
ModelBrandIce TypeMax Production

C1848SA-6

230/50/1

Small Cube

1,909 lbs. 24/HR

C1848SA-32

208-230/60/1

Small Cube

1,909 lbs. 24/HR

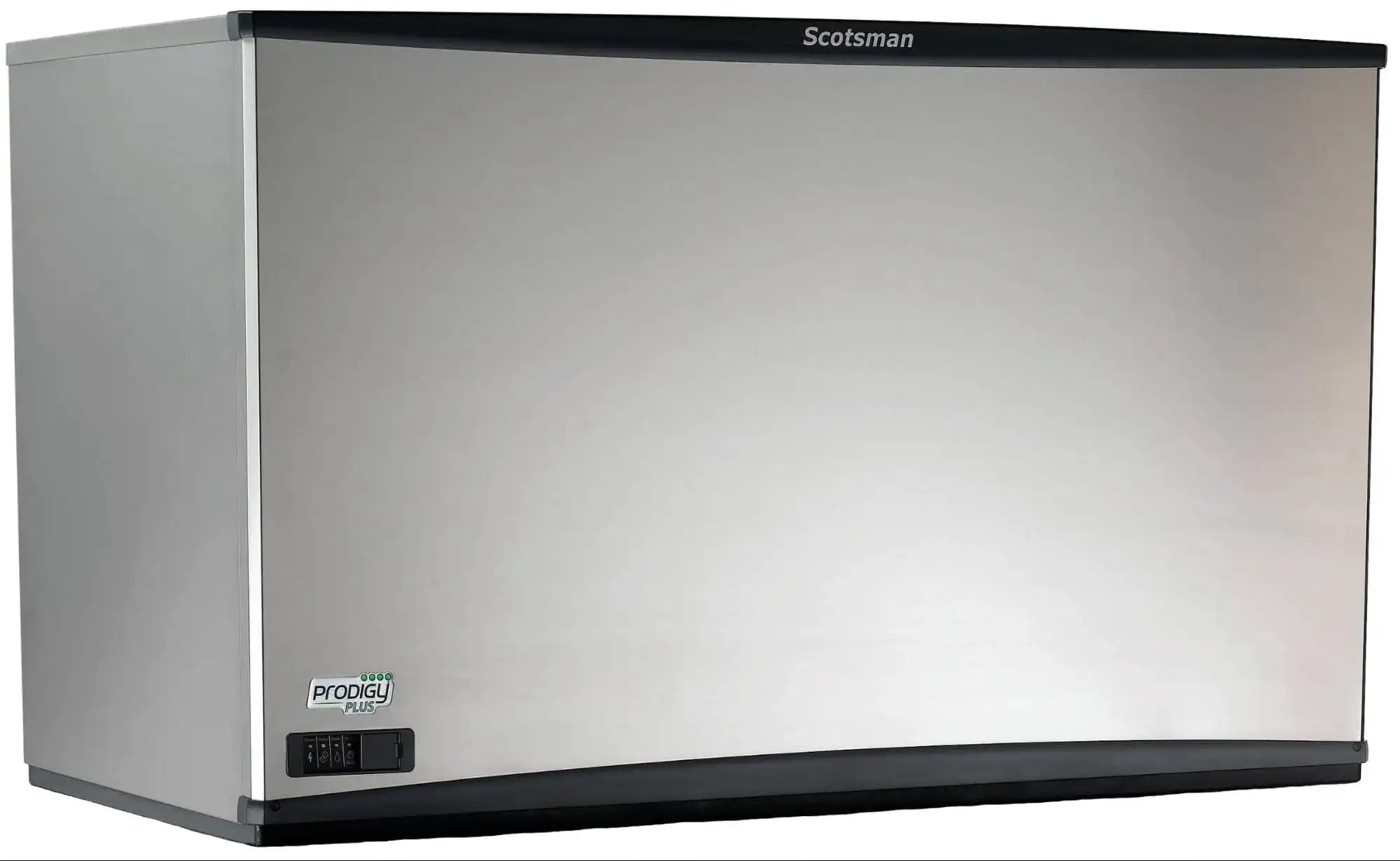

C2148

Dimensions: 48"W x 24"D x 29"H

Recommended Bin/s:

BH1600BB/BH1600SS

REMOTE-COOLED

(Use with  PRC241-32 Condenser)

ModelBrandIce TypeMax Production

C2148SR-32

208-230/60/1

Small Cube

1,965 lbs. 24/HR

C2148SR-3

208-230/60/3

Small Cube

1,965 lbs. 24/HR

C2648

Dimensions: 48"W x 28.5"D x 34"H

Recommended Bin/s:

BH1600BB/BH1600SS

REMOTE-COOLED

(Use with PRC241-32 Condenser)

ModelBrandIce TypeMax Production

C2648SR-3

208-230/60/3

Small Cube

2,630 lbs. 24/HR

QUADZILLA SF-3000C

Dimensions: 48"W x 31"D x  36"H

Recommended Bin/s:

F-1300/F-1325

AIR-COOLED
ModelBrandIce TypeMax Production

SYF-3000C

Half-Dice

2,950 lbs. 24/HR

WATER-COOLED
ModelBrandIce TypeMax Production

SYT-3000W

Half-Dice

3,200 lbs. 24/HR

SPECIALTY HALF-DICE MACHINES

NOTE: Water-cooled commercial ice makers can consume upwards of 200 gallons of water a day. This type of commercial ice maker is generally recommended for facilities located in an environment that is too hot for an air-cooled machine. Hot environments can also benefit from a remote system where the compressor and condenser are placed in another room or outside although this will require the services of a refrigeration technician.

Recommendation: The production level of commercial ice ice maker depends a lot on water temperature. If water is very warm, there is going to be a difference in how much ice it can produce. You need to have cold water and normal ambient temperature to ensure maximum output. A heat exchanger like the System IV ChillTech is a great way to do just that. You can expect a 20% increase in the amount of ice you make for lower energy consumption.

Marine Modular Half-Dice Ice Machines

Designed for use on a yacht, ship, or anywhere near saltwater

IT0900WM

Dimensions: 30"W x 24.5" D x 26.5"H

Recommended Bin: IBW-M4 Marine Bin

WATER-COOLED
ModelBrandIce TypeMax Production

IYT0900WM

Half-dice722 lbs. 24/HR

IT1900WM

Dimensions: 48"W x 24.5"D x 29.5"H

Recommended Bin: IBW-M4 Marine Bin

WATER-COOLED
ModelBrandIce TypeMax Production

IYT1900WM

Half-Dice1,930 lbs. 24/HR

SpaceMaker Marine Series

SpaceMaker™ IT1900W

(bin sold separately)

Dimensions: 48"W x 23.5"D x 29.5"H

Recommended Bin: IBW-M5 Marine Bin

WATER-COOLED
ModelBrandIce TypeMax Production

IYT1900W

Half-Dice1,930 lbs. 24/HR

Ice/Beverage Series

Specifically designed for beverage/soda dispensers

IBF SERIES

Dimensions: 22"W x 14"D x 24" to 26.5"H

Recommended Dispenser: Servend SV-250

REMOTE-COOLED

IBF-0620C requires CVDF-0600 Condenser; CVDF-0900 Condenser for IBF-0820C

ModelBrandIce TypeMax Production

IBF-0620C

(dispenser sold separately)

Half-Dice625 lbs. 24/HR

IBF-0820C

(dispenser sold separately)

Half-Dice825 lbs. 24/HR

IBT SERIES

Dimensions: 22"W x 24"D x 30.5"H

Recommended Dispenser: Servend SV-250

REMOTE-COOLED

Use with CVDT-1200A Condenser

ModelBrandIce TypeMax Production

IBT-1020C

(dispenser sold separately)

Half-Dice1,206 lbs. 24/HR

CUBE ICE MACHINES

NOTE: Water-cooled commercial ice makers can consume upwards of 200 gallons of water a day. This type of commercial ice maker is generally recommended for facilities located in an environment that is too hot for an air-cooled machine. Hot environments can also benefit from a remote system where the compressor and condenser are placed in another room or outside although this will require the services of a refrigeration technician.

Recommendation: The production level of commercial ice maker depends a lot on water temperature. If water is very warm, there is going to be a difference in how much ice it can produce. You need to have cold water and normal ambient temperature to ensure maximum output. A heat exchanger like the System IV ChillTech is a great way to do just that. You can expect a 20% increase in the amount of ice you make for lower energy consumption.

Undercounter Ice Machines

CU0415

Manitowoc SM50A 14.75" Full-Dice Ice Maker With Bin, Cube-Style - 50-100 lbs/24 Hr Ice Production, Air-Cooled, 115 Volts

Dimensions: 14.75"W x 22.75"D x 33.5"H

Storage Bin Capacity: 25 lbs.

AIR-COOLED
ModelBrandIce TypeMax Production

SM50A

Dice53 lbs. 24/HR

CU0415

Dimensions: 15"W x 24"D x 38"H

Storage Bin Capacity: 36 lbs.

AIR-COOLED

Model

Brand

Ice TypeMax Production

CU0415MA-1

115/60/1

Medium Cube58 lbs. 24/HR

CU0415MA-6

220-240/50/1

Medium Cube58 lbs. 24/HR

NEO® 65/80

Dimensions: 19.69"W x 22.34"D x 36"H

Storage Bin Capacity: 31 lbs.

AIR-COOLED
ModelBrandIce TypeMax Production

UDE-0065A

Dice57 lbs. 24/HR

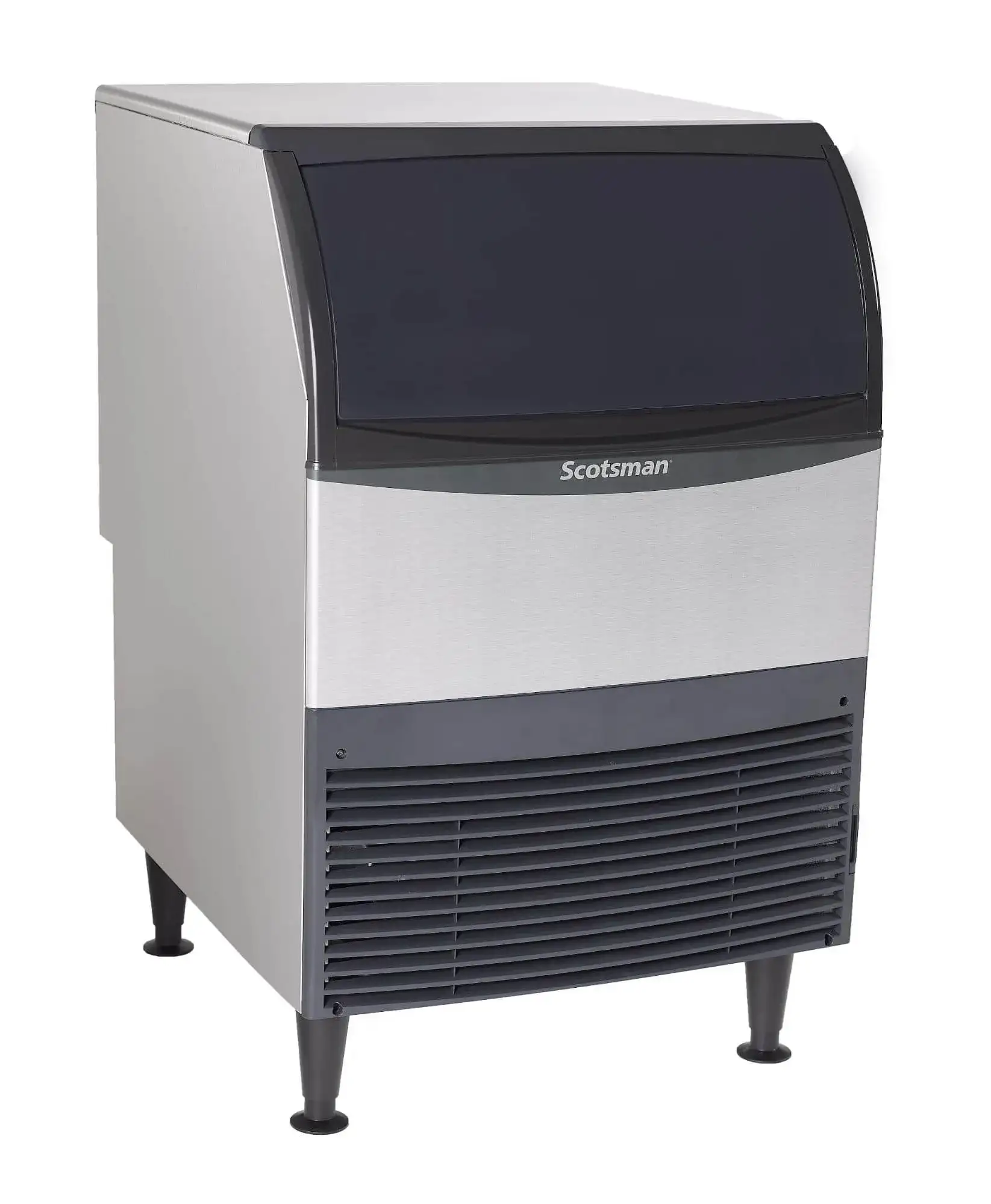

CU0715

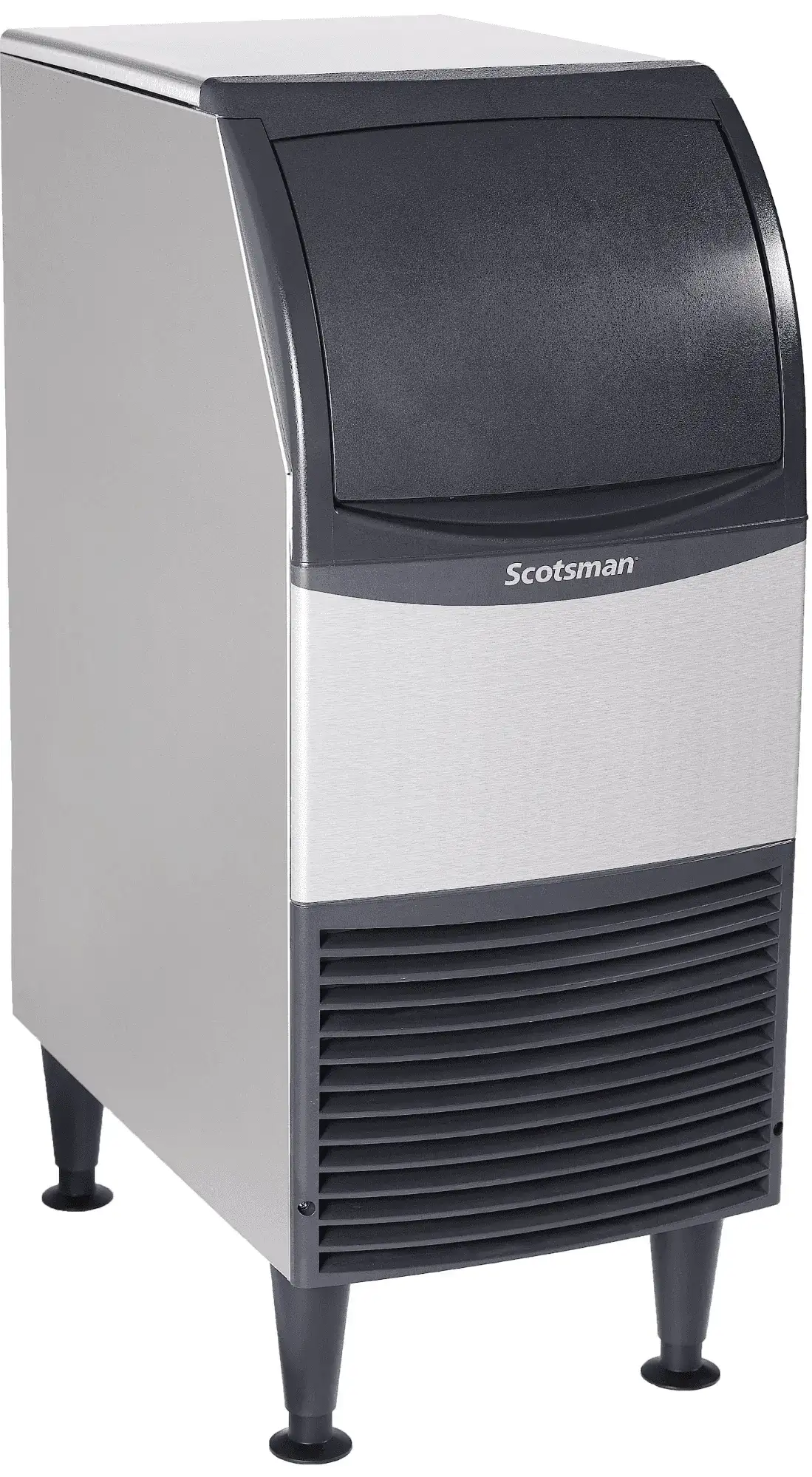

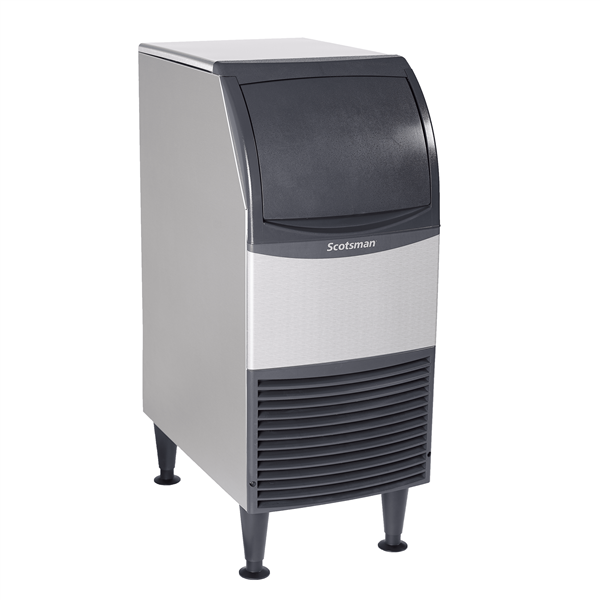

Scotsman CU0715MA-1 15" Full-Dice Ice Maker With Bin, Cube-Style - 50-100 lbs/24 Hr Ice Production, Air-Cooled, 115 Volts

Dimensions: 15"W x 24"D X 38"H

Storage Bin Capacity: 36 lbs.

AIR-COOLED
ModelBrandIce TypeMax Production

CU0715MA-1

115/60/1

Medium Cube80 lbs. 24/HR

CU0715MA-6

230/50/1

Medium Cube80 lbs. 24/HR

CU0515

Dimensions: 15.19"W x 23.63"D x 28.88"H

Storage Bin Capacity: 24 lbs.

AIR-COOLED
ModelBrandIce TypeMax Production

CU0515GA-1

115/60/1

Medium Cube84 lbs. 24/HR

CU0920

Scotsman CU0920MA-1 20" Full-Dice Ice Maker With Bin, Cube-Style - 50-100 lbs/24 Hr Ice Production, Air-Cooled, 115 Volts

Dimensions: 15"W x 24"D X 38"H

Storage Bin Capacity: 36 lbs.

AIR-COOLED
ModelBrandIce TypeMax Production

CU0920MA-1

115/60/1

Medium Cube100 lbs. 24/HR

CU0920MA-6

230/50/1

Medium Cube100 lbs. 24/HR

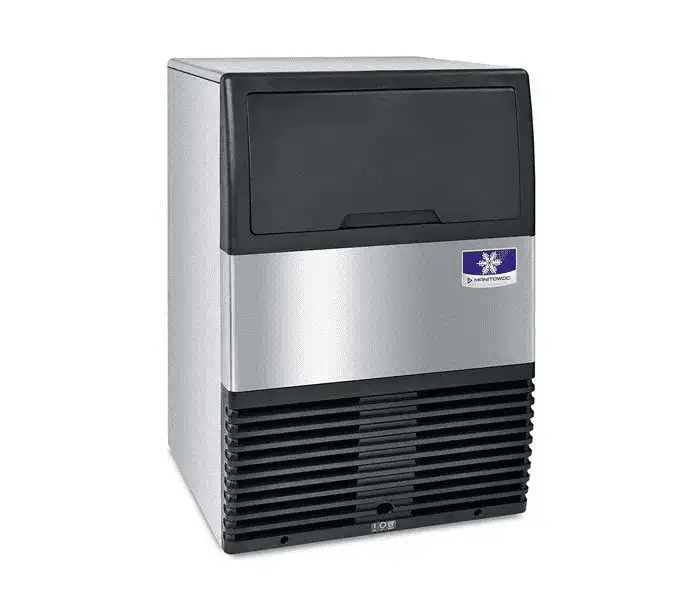

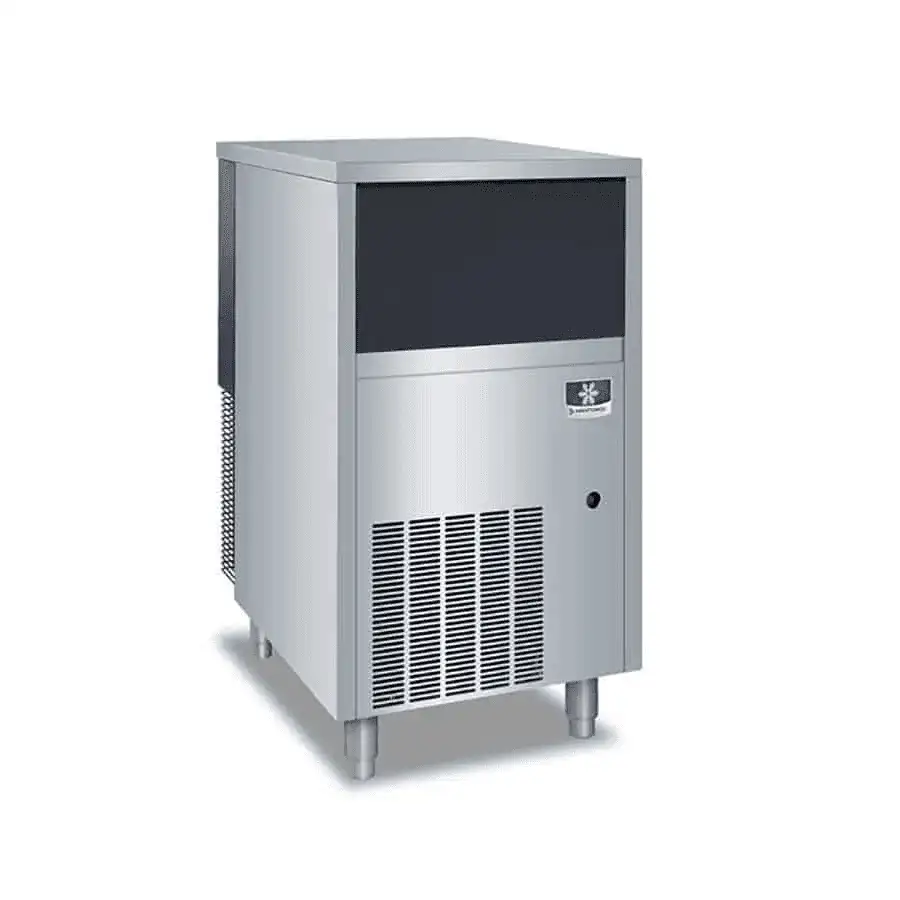

USP0100

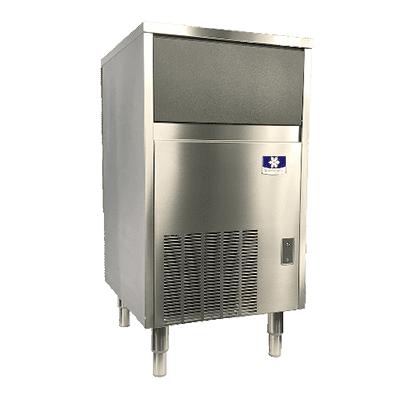

Manitowoc USP0100 CrystalCraft™ Ice Maker

Dimensions: 19.69"W x 22.34"D x 36"H

Storage Bin Capacity: 38 lbs.

AIR-COOLED

Model

Brand

Ice TypeMax Production

USP0100

Dice100 lbs. 24/HR

NEO® 65/80

Dimensions: 19.69"W x 22.34"D x 36"H

Storage Bin Capacity: 31 lbs.

Voltage: 115v/60/1-ph

AIR-COOLED
ModelBrandIce TypeMax Production

UDE-0080A

Dice102 lbs. 24/HR

NEO® 65/80

Dimensions: 19.69"W x 22.34"D x 36"H

Storage Bin Capacity: 31 lbs.

Voltage: 230v/50/1-ph







AIR-COOLED

Model

Brand

Ice TypeMax Production

UDP0080A

Dice102 lbs. 24/HR

NEO® 140/190

Dimensions: 26"W x 28.5"D x 38.5"H

Storage Bin Capacity: 90 lbs.

Voltage: 115v/60/1-ph

AIR-COOLED
ModelBrandIce TypeMax Production

UDF-0140A

Dice135 lbs. 24/HR

NEO 140

Manitowoc UDP0140A NEO?® Undercounter Ice Maker

Dimensions: 26"W x 28.5"D x 38.5"H

Storage Bin Capacity: 90 lbs.

Voltage: 230v/50/1-ph



AIR-COOLED

Model

Brand

Ice TypeMax Production

UDP-0140A

Dice135 lbs. 24/HR

ICEU150

Dimensions: 24.54"W x 26.27"D x 39"H

Storage Bin Capacity: 70 lbs

WATER-COOLED
ModelBrandIce TypeMax Production

ICEU150FW

ice-o-maticFull-cube180 lbs. 24/HR

ICEU150

Dimensions: 24.54"W x 26.27"D x 39"H

Storage Bin Capacity: 70 lbs

AIR-COOLED
ModelBrandIce TypeMax Production

ICEU150FA

(Energy Star)

ice-o-maticFull-cube185 lbs. 24/HR

NEO® 140/190

Dimensions: 26"W x 28.5"D x 38.5"H

Storage Bin Capacity: 90 lbs.

AIR-COOLED
ModelBrandIce TypeMax Production

UDF-0190A

Dice198 lbs. 24/HR

NEO® 240

Dimensions: 26"W x 28.5"D x 38.5"H

Storage Bin Capacity: 90 lbs

WATER-COOLED
ModelBrandIce TypeMax Production

UDF-0240W

Dice197 lbs. 24/HR

NEO® 190

Dimensions: 26"W x 28.5"D x 38.5"H

Storage Bin Capacity: 90 lbs

AIR-COOLED
ModelBrandIce TypeMax Production

UDF-0190A

Dice198 lbs. 24/HR

NEO® 240

Dimensions: 26"W x 28.5"D x 38.5"H

Storage Bin Capacity: 90 lbs

Voltage: 115v/60/1-ph

AIR-COOLED
ModelBrandIce TypeMax Production

UDF-0240A

Dice215 lbs. 24/HR

NEO 240

Dimensions: 26"W x 28.5"D x 38.5"H

Storage Bin Capacity: 90 lbs

Voltage: 230v/50/1-ph

AIR-COOLED

Model

Brand

Ice TypeMax Production

UDP0240A

Dice215 lbs. 24/HR

ICEU220/225/226

Dimensions: 24.54"W x 26.27"D x 39"H

AIR-COOLED
ModelBrandIce TypeMax Production

ICEU220FA

(Energy Star)

ice-o-maticFull-cube238 lbs. 24/HR

ICEU226FA

(Energy Star)

ice-o-maticFull-cube241 lbs. 24/HR
WATER-COOLED
ModelBrandIce TypeMax Production

ICEU226FW

ice-o-maticFull-cube232 lbs. 24/HR

ICEU220FW

ice-o-maticFull-cube251 lbs. 24/HR

NEO® 310

Dimensions: 30"W x 28.5"D x 38.5"H

Storage Bin Capacity: 90 lbs.

Voltage: 115v/60/1-ph

AIR-COOLED
ModelBrandIce TypeMax Production

UDF-0310A

Dice286 lbs. 24/HR


NEO® 310

Dimensions: 30"W x 28.5"D x 38.5"H

Storage Bin Capacity: 90 lbs.

Voltage: 230v/50/1-ph


AIR-COOLED

Model

Brand

Ice TypeMax Production

UDP-0310A

Dice286 lbs. 24/HR

CU3030

Dimensions: 30"W x 30"D x 33"H

Storage Bin Capacity: 110 lbs

AIR-COOLED
ModelBrandIce TypeMax Production

CU3030MA-6

230/50/1

Medium Cube287 lbs. 24/HR

NEO® 310

Dimensions: 30"W x 28.5"D x 38.5"H

Storage Bin Capacity: 90 lbs.

WATER-COOLED
ModelBrandIce TypeMax Production

UDF-0310W

Dice295 lbs. 24/HR

IDT0300A








IDT0300A

(Energy Star)

Dice295 lbs. 24/HR

ICEU300/305

Dimensions: 30.34"W x 29.97"D x 39"H

Storage Bin Capacity: 97 lbs.

AIR-COOLED
ModelBrandIce TypeMax Production

ICEU305FA

ice-o-maticFull-cube299 lbs. 24/HR

ICEU300FA

ice-o-maticFull-cube309 lbs. 24/HR

CU3030

Dimensions: 30"W x 30"D x 33"H

Storage Bin Capacity: 110 lbs

AIR-COOLED
ModelBrandIce TypeMax Production

CU3030MA-1

(Energy Star)

115/60/1

Medium Cube313 lbs. 24/HR

CU3030MA-32

(Energy Star)

208-230/60/1

Medium Cube313 lbs. 24/HR

ICEU300/305

Dimensions: 30.34"W x 29.97"D x 39"H

Storage Bin Capacity: 97 lbs.

AIR-COOLED
ModelBrandIce TypeMax Production

ICEU305FW

ice-o-maticFull-cube314 lbs. 24/HR

ICEU300FW

ice-o-maticFull-cube356 lbs. 24/HR
Modular Ice Machines

CIM0330/0335

Dimensions: 30.25"W x 24.25"D x 21.25"H

ModelBrandIce TypeMax Production

CIM0335FA

ice-o-maticFull-cube290 lbs. 24/HR

IDT-0300 INDIGO NXT


Dimensions: 30"W x 24.5"D x 16.5"H

Recommended Bin: D-400

*Bin sold separately

WATER-COOLED
ModelBrandIce TypeMax Production

IDT-0300W

Dice305 lbs. 24/HR

AIR-COOLED

Model

Brand

Ice TypeMax Production

IDT-0300A

Dice305 lbs. 24/HR

IDP0320A

Manitowoc IDP0320A 22" Full-Dice Ice Maker, Cube-Style - 300-400 lb/24 Hr Ice Production, Air-Cooled, 230 Volts

Dimensions: 22"W x 24.5"D x 21.5"H

Recommended Bin: D-400

*Bin sold separately

Voltage: 230v/50/1-ph

AIR-COOLED

Model

Brand

Ice TypeMax Production

IDP0320A

Dice305 lbs. 24/HR

CIM0320/0325/0326

Dimensions: 22.25"W x 24.25"D x 21.25"H

AIR-COOLED
ModelBrandIce TypeMax Production

CIM0320FA

ice-o-maticFull-cube313 lbs. 24/HR

CIM0330/0335

Dimensions: 30.25"W x 24.25"D x 21.25"H

AIR-COOLED
ModelBrandIce TypeMax Production

CIM0330FA

ice-o-maticFull-cube313 lbs. 24/HR

CIM0320/0325/0326

Dimensions: 22.25"W x 24.25"D x 21.25"H

WATER-COOLED
ModelBrandIce TypeMax Production

CIM0320FW

ice-o-maticFull-cube316 lbs. 24/HR

CIM0330/0335

Dimensions: 30.25"W x 24.25"D x 21.25"H

WATER-COOLED
ModelBrandIce TypeMax Production

CIM0330FW

ice-o-maticFull-cube316 lbs. 24/HR

CIM0320/0325/0326

Dimensions: 22.25"W x 24.25"D x 21.25"H

AIR-COOLED
ModelBrandIce TypeMax Production

CIM0326FA

ice-o-maticFull-cube330 lbs. 24/HR

C0322AC

Dimensions: 22"W x 24"D x 23"H

Recommended Bin/s: B322S

AIR-COOLED
ModelBrandIce TypeMax Production

C0322MA-6

230/50/1

Medium Cube356 lbs. 24/HR

C0322MA-1

(Energy Star)

115/60/1

Medium Cube356 lbs. 24/HR

C0322MA-32

(Energy Star)

208-230/60/1

Medium Cube356 lbs. 24/HR

C0322WC

Dimensions: 22"W x 24"D x 23"H

Recommended Bin/s: B322S

WATER-COOLED
ModelBrandIce TypeMax Production

C0322MW-1

115/60/1

Medium Cube366 lbs. 24/HR

C0330AC

Dimensions: 30"W x 24"D x 23"H

Recommended Bin/s: B330P/B530S/B530P

AIR-COOLED
ModelBrandIce TypeMax Production

C0330MA-1

(Energy Star)

115/60/1

Medium Cube400 lbs. 24/HR

C0330MA-32

(Energy Star)

208-230/60/1

Medium Cube400 lbs. 24/HR

C0330WC

Dimensions: 30"W x 24"D x 23"H

Recommended Bin/s: B330P/B530S/B530P

WATER-COOLED
ModelBrandIce TypeMax Production

C0330MW-1

115/60/1

Medium Cube420 lbs. 24/HR

IDP0500

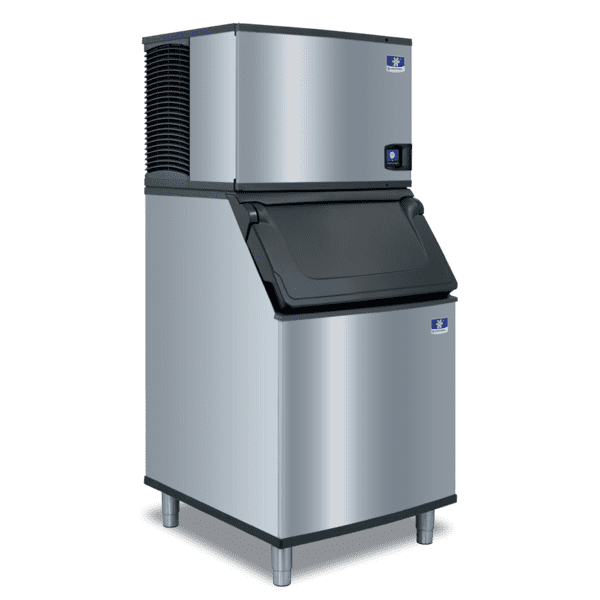

Manitowoc IDP0500A 30" Full-Dice Ice Maker, Cube-Style - 400-500 lbs/24 Hr Ice Production, Air-Cooled, 230 Volts

Dimensions: 30"W x 24"D x 21.5"H

Recommended Bin: D-400/D-570

*Bin sold separately

AIR-COOLED

Model

Brand

Ice TypeMax Production

IDP0500A

Dice420 lbs. 24/HR

iT0450 INDIGO NXT

Dimensions: 30"W x 24"D x 21.5"H

Recommended Bin: D-400

WATER-COOLED
ModelBrandIce TypeMax Production

IDT0450W

Dice430 lbs. 24/HR

CIM0320/0325/0326

Dimensions: 22.25"W x 24.25"D x 21.25"H

AIR-COOLED
ModelBrandIce TypeMax Production

CIM0430FA

(Energy Star)

ice-o-maticFull-cube435 lbs. 24/HR

iT0420 INDIGO NXT

Dimensions: 22"W x 24.5"D x 21.5"H

Recommended Bin: D-320

Recommended Ice Dispenser: SPA-160

WATER-COOLED
ModelBrandIce TypeMax Production

IDT0420W

Dice454 lbs. 24/HR

CIM0430/0436/0435

Dimensions: 30.25"W x 24.25"D x 21.25"H

WATER-COOLED
ModelBrandIce TypeMax Production

CIM0430FW

ice-o-maticFull-cube460 lbs. 24/HR
AIR-COOLED
ModelBrandIce TypeMax Production

CIM0436FA

(Energy Star)

ice-o-maticFull-cube465 lbs. 24/HR

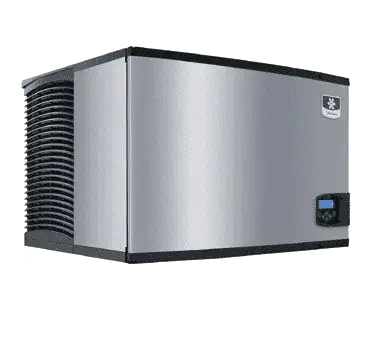

iT0450 INDIGO NXT

Dimensions: 30"W x 24"D x 21.5"H

Recommended Bin: D-400

AIR-COOLED
ModelBrandIce TypeMax Production

IDT0450A

(Energy Star)

Dice470 lbs. 24/HR

iT0420 INDIGO NXT

Dimensions: 22"W x 24.5"D x 21.5"H

Recommended Bin: D-320

Recommended Ice Dispenser: SPA-160

AIR-COOLED
ModelBrandIce TypeMax Production

IDT0420A

(Energy Star)

Dice470 lbs. 24/HR

C0330WC

Dimensions: 30"W x 24"D x 23"H

Recommended Bin/s: B330P/B530S/B530P

WATER-COOLED
ModelBrandIce TypeMax Production

C0522MA-6

230/50/1

Medium Cube471 lbs. 24/HR

C0522MA-1

115/60/1

Medium Cube475 lbs. 24/HR

C0522MA-32

208-230/60/1

Medium Cube475 lbs. 24/HR

C0530AC

Dimensions: 30"W x 24"D x 23"H

Recommended Bin/s:

B330P/B530S/B530P

WATER-COOLED
ModelBrandIce TypeMax Production

C0530MA-6

230/50/1

Medium Cube477 lbs. 24/HR

C0522WC

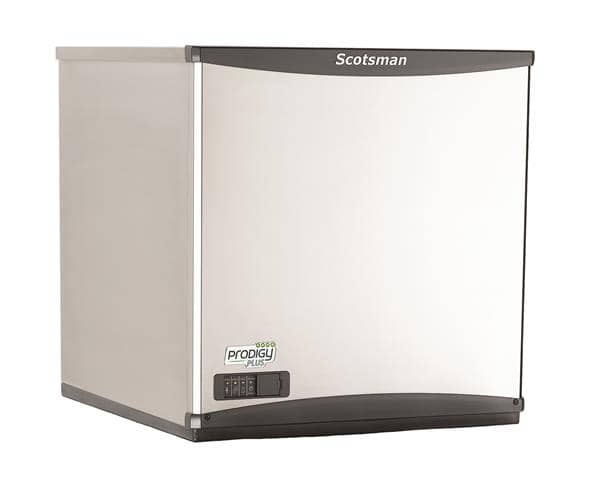

Scotsman C0522MW-1 22" Full-Dice Ice Maker, Cube-Style - 400-500 lbs/24 Hr Ice Production, Water-Cooled, 115 Volts

Dimensions: 22"W x 24"D x 23"H

Recommended Bin/s: B330P/B530S/B530P

WATER-COOLED
ModelBrandIce TypeMax Production

C0522MW-1

115/60/1

Medium Cube480 lbs. 24/HR

CIM0530FR

ICE-O-Matic CIM0530FR 30.25" Full-Dice Ice Maker, Cube-Style - 500-600 lb/24 Hr Ice Production, Air-Cooled, 115 Volts

Dimensions: 30.25"W x 24.25"D x 21.25"H

AIR-COOLED

ModelBrandIce TypeMax Production

CIM0530FR

ice-o-matic

Full-cube490 lbs. 24/HR

CIM0430/0436/0435

Dimensions: 30.25"W x 24.25"D x 21.25"H

WATER-COOLED
ModelBrandIce TypeMax Production

CIM0436FW

ice-o-maticFull-cube500 lbs. 24/HR

C0530WCRC

Dimensions: 30"W x 24"D x 23"H

Recommended Bin/s:

B330P/B530S/B530P

WATER-COOLED
ModelBrandIce TypeMax Production

C0530MW-1

115/60/1

Medium Cube500 lbs. 24/HR

REMOTE-COOLED

(Use with ERC111-1 Condenser)

ModelBrandIce TypeMax Production

C0530MR-1

115/60/1

Medium Cube500 lbs. 24/HR

IDF0500

Manitowoc IDF0500N 30" Full-Dice Ice Maker, Cube-Style - 500-600 lb/24 Hr Ice Production, Air-Cooled, 115 Volts

Dimensions: 30"W x 24"D x 21.5"H

Recommended Bin: D-400/D-570

*Bin sold separately

REMOTE-COOLED

Model

Brand

Ice TypeMax Production

IDF0500N

Dice510 lbs. 24/HR

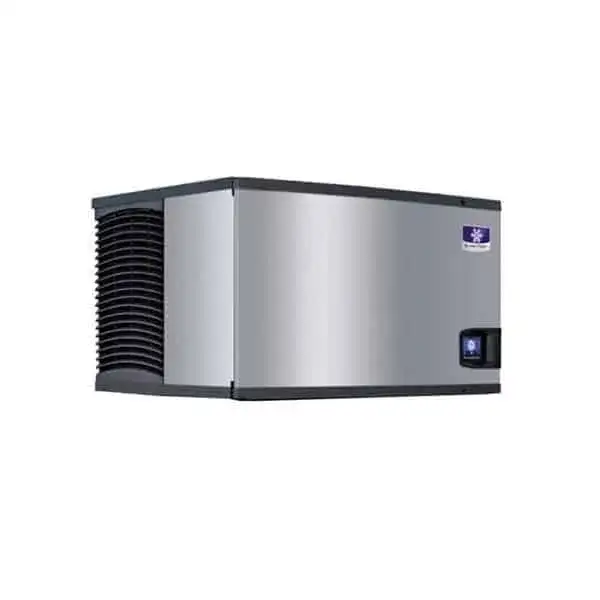

IDT0500

Manitowoc IDT0500A 30" Full-Dice Ice Maker, Cube-Style - 500-600 lb/24 Hr Ice Production, Air-Cooled, 115 Volts

Dimensions: 30"W x 24"D x 21.5"H

Recommended Bin: D-400/D-570

AIR-COOLED

Model

Brand

Ice TypeMax Production

IDT0500A

Dice520 lbs. 24/HR

C0530AC

Dimensions: 30"W x 24"D x 23"H

Recommended Bin/s: B330P/B530S/B530P

AIR-COOLED
ModelBrandIce TypeMax Production

C0530MA-1

(Energy Star)

115/60/1

Medium Cube525 lbs. 24/HR

C0530MA-32

(Energy Star)

208-230/60/1

Medium Cube525 lbs. 24/HR

CIM0530/0535

Dimensions: 30.25"W x 24.25"D x 21.25"H

AIR-COOLED
ModelBrandIce TypeMax Production

CIM0535FA

ice-o-maticFull-cube529 lbs. 24/HR

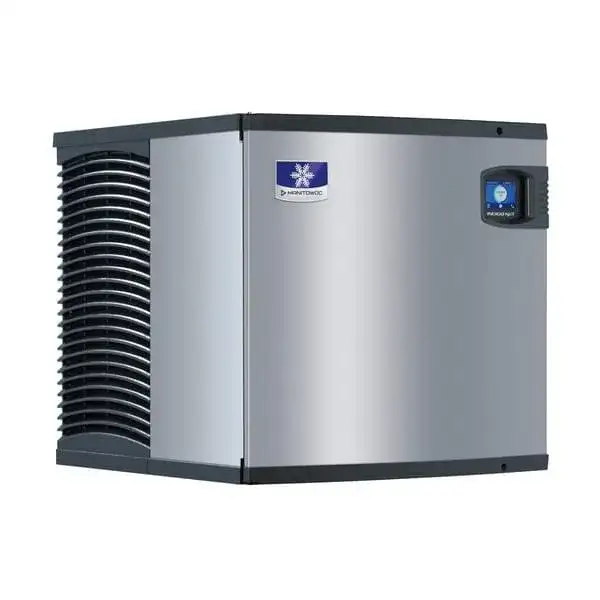

iT0620 INDIGO NXT

Dimensions: 22"W x 24.5"D x 21.5"H

Recommended Bin: D-420

Recommended Ice Dispenser: SFA-191

WATER-COOLED
ModelBrandIce TypeMax Production

IDT0620W

Dice530 lbs. 24/HR

CIM0530/0535

Dimensions: 30.25"W x 24.25"D x 21.25"H

WATER-COOLED
ModelBrandIce TypeMax Production

CIM0535FW

ice-o-maticFull-cube531 lbs. 24/HR

iT0620 INDIGO NXT

Dimensions: 22"W x 24.5"D x 21.5"H

Recommended Bin: D-420

Recommended Ice Dispenser: SFA-191

WATER-COOLED
ModelBrandIce TypeMax Production

IDT0620A

(Energy Star)

Dice560 lbs. 24/HR

CIM0520

ICE-O-Matic CIM0520FA 22.25" Full-Dice Ice Maker, Cube-Style - 500-600 lb/24 Hr Ice Production, Air-Cooled, 115 Volts

Dimensions: 30.25"W x 24.25"D x 21.25"H



AIR-COOLED

ModelBrandIce TypeMax Production

CIM0520FA

ice-o-matic

Full-cube561 lbs. 24/HR

CIM0530/0535

Dimensions: 30.25"W x 24.25"D x 21.25"H

AIR-COOLED
ModelBrandIce TypeMax Production

CIM0530FA

ice-o-maticFull-cube561 lbs. 24/HR

CIM0636/0635

Dimensions: 30.25"W x 24.25"D x 21.25"H

AIR-COOLED
ModelBrandIce TypeMax Production

CIM0635FA

ice-o-maticFull-cube585 lbs. 24/HR

CIM0520

ICE-O-Matic CIM0520FW 22.25" Full-Dice Ice Maker, Cube-Style - 500-600 lb/24 Hr Ice Production, Water-Cooled, 115 Volts

Dimensions: 22.25"W x 24.25"D x 21.25"H

WATER-COOLED

ModelBrandIce TypeMax Production

CIM0520FW

ice-o-maticFull-cube586 lbs. 24/HR

CIM0526


Dimensions: 22.25"W x 24.25"D x 21.25"H


AIR-COOLED

ModelBrandIce TypeMax Production

CIM0526FA

ice-o-maticFull-cube586 lbs. 24/HR

CIM0530/0535

Dimensions: 30.25"W x 24.25"D x 21.25"H

WATER-COOLED
ModelBrandIce TypeMax Production

CIM0530FW

ice-o-maticFull-cube586 lbs. 24/HR

CIM0636/0635

Dimensions: 30.25"W x 24.25"D x 21.25"H

AIR-COOLED
ModelBrandIce TypeMax Production

CIM0636FA

ice-o-maticFull-cube600 lbs. 24/HR

IDF0600

Manitowoc IDF0600N 30" Full-Dice Ice Maker, Cube-Style - 600-700 lbs/24 Hr Ice Production, Air-Cooled, 208-230 Volts

Dimensions: 30"W x 24"D x 21.5"H

Recommended Bin: D-400/D-570


REMOTE-COOLED

Model

BrandIce TypeMax Production

IDF0600N

Dice612 lbs. 24/HR

C0630WCRC

Dimensions: 30"W x 24"D x 23"H

Recommended Bin/s: B530P/B530S/B842S

REMOTE-COOLED

(Use with ERC311-32 Condenser)

ModelBrandIce TypeMax Production

C0630MR-32

(Energy Star)

208-230/60/1

Medium Cube614 lbs. 24/HR

CIM0636/0635

Dimensions: 30.25"W x 24.25"D x 21.25"H

REMOTE-COOLED

(Use with RCA-1061 Condenser)

ModelBrandIce TypeMax Production

CIM0636FR

(Energy Star)

ice-o-maticFull-cube615 lbs. 24/HR
WATER-COOLED
ModelBrandIce TypeMax Production

CIM0636FW

ice-o-maticFull-cube620 lbs. 24/HR

iF0600 INDIGO NXT

Dimensions: 30"W x 24"D x 21.5"H

Recommended Bin: D-570

AIR-COOLED
ModelBrandIce TypeMax Production

IDF-0600A

Dice632 lbs. 24/HR

C0630WCRC

Dimensions: 30"W x 24"D x 23"H

Recommended Bin/s: B530P/B530S/B842S

WATER-COOLED
ModelBrandIce TypeMax Production

C0630MW-32

208-230/60/1

Medium Cube633 lbs. 24/HR

C0630AC

Dimensions: 30"W x 24"D x 23"H

Recommended Bin/s: B530P/B530S/B842S

AIR-COOLED
ModelBrandIce TypeMax Production

C0630MA-32

208-230/60/1

Medium Cube640 lbs. 24/HR

C0630MA-6

230/50/1

Medium Cube660 lbs. 24/HR

IDT0750

Manitowoc IDT0750A 30" Full-Dice Ice Maker, Cube-Style - 600-700 lbs/24 Hr Ice Production, Air-Cooled, 208-230 Volts

Dimensions: 30"W x 24"D x 21.5"H

Recommended Bin/s: D-400/D-570

*Bin sold separately

AIR-COOLED

Model

Brand

Ice TypeMax Production

IDT0750A

(Energy Star)

Dice680 lbs. 24/HR

WATER-COOLED

Model

Brand

Ice TypeMax Production

IDT0750W

Dice703 lbs. 24/HR

C0722

Dimensions: 22"W x 24"D x 29"H

Recommended Bin/s: B842S/B948S

Recommended Dispenser/s: ID150

AIR-COOLED
ModelBrandIce TypeMax Production

C0722MA-6

230/50/1

Medium Cube725 lbs. 24/HR

C0722MA-32

208-230/60/1

Medium Cube758 lbs. 24/HR

IDT0900W


Dimensions: 30" W x 24.5"D x 26.5"H


WATER-COOLED

Model

Brand

Ice TypeMax Production

IDT0900W

Dice780 lbs. 24/HR

C0830AC

Dimensions: 30"W x 24"D x 29"H

Recommended Bin/s: B530P/B530S/B842S

AIR-COOLED
ModelBrandIce TypeMax Production

C0830MA-6

230/50/1

Medium Cube792 lbs. 24/HR

iF0900 INDIGO NXT

Dimensions: 30"W x 24.5"D x 26.5"H

Recommended Bin: D-570

REMOTE-COOLED

(Use with JC-0995 Condensing Unit)

ModelBrandIce TypeMax Production

IDF-0900N

(Energy Star)

Dice821 lbs. 24/HR

IDT0900

IDT0900

Dimensions: 30"W x 24.5"D x 26.5"H

Recommended Bin: D-570/D-970

*Bin sold separately

AIR-COOLED

Model

Brand

Ice TypeMax Production

IDT0900A

Dice851 lbs. 24/HR

C0830WCRC

Dimensions: 30"W x 24"D x 29"H

Recommended Bin/s: B530P/B530S/B842S

REMOTE-COOLED

(Use with ERC311-32 Condenser)

ModelBrandIce TypeMax Production

C0830MR-32

(Energy Star)

208-230/60/1

Medium Cube870 lbs. 24/HR

CIM0826/0825

Dimensions: 22.25"W x 24.25"D x 26.9"H

AIR-COOLED
ModelBrandIce TypeMax Production

CIM0826FA

ice-o-maticFull-cube896 lbs. 24/HR

CIM0836/0835

Dimensions: 30.25"W x 24.25"D x 26.9"H

WATER-COOLED
ModelBrandIce TypeMax Production

CIM0836FW

ice-o-maticFull-cube896 lbs. 24/HR

CIM0835FW

ice-o-maticFull-cube901 lbs. 24/HR
AIR-COOLED
ModelBrandIce TypeMax Production

CIM0836FA

ice-o-maticFull-cube896 lbs. 24/HR

C0830AC

Dimensions: 30"W x 24"D x 29"H

Recommended Bin/s: B530P/B530S/B842S

AIR-COOLED
ModelBrandIce TypeMax Production

C0830MA-3

208-230/60/3

Medium Cube905 lbs. 24/HR

C0830MA-32

(Energy Star)

208-230/60/1

Medium Cube905 lbs. 24/HR

CIM0836/0835

Dimensions: 30.25"W x 24.25"D x 26.9"H

REMOTE-COOLED

(Use with RCA-2061 Condenser)

ModelBrandIce TypeMax Production

CIM0836FR

ice-o-maticFull-cube906 lbs. 24/HR

CIM0835FR

ice-o-maticFull-cube912 lbs. 24/HR

C1030AC

Dimensions: 30"W x 24"D x 29"H

Recommended Bin/s:

B842S/B948S/BH1100BB/BH1100SS

AIR-COOLED
ModelBrandIce TypeMax Production

C1030MA-6

230/50/1

Medium Cube915 lbs. 24/HR

CIM1136/1135/1137

Dimensions: 30.25"W x 24.25"D x 26.9"H

AIR-COOLED
ModelBrandIce TypeMax Production

CIM1137FA

ice-o-maticFull-cube917 lbs. 24/HR

CIM0826


Dimensions: 22.25"W x 24.25"D x 26.9"H






REMOTE-COOLED

ModelBrandIce TypeMax Production

CIM0826FR

ice-o-maticFull-cube922 lbs. 24/HR

WATER-COOLED

Model

BrandIce TypeMax Production

CIM0826FW

ice-o-maticFull-cube922 lbs. 24/HR

CIM0836/0835

Dimensions: 30.25"W x 24.25"D x 26.9"H

AIR-COOLED
ModelBrandIce TypeMax Production

CIM0835FA

ice-o-maticFull-cube922 lbs. 24/HR

C0830WCRC

Dimensions: 30"W x 24"D x 29"H

Recommended Bin/s: B530P/B530S/B842S

AIR-COOLED
ModelBrandIce TypeMax Production

C0830MW-32

208-230/60/1

Medium Cube924 lbs. 24/HR

CIM1136/1135/1137

Dimensions: 30.25"W x 24.25"D x 26.9"H

AIR-COOLED
ModelBrandIce TypeMax Production

CIM1136FA

ice-o-maticFull-cube932 lbs. 24/HR
WATER-COOLED
ModelBrandIce TypeMax Production

CIM1136FW

ice-o-maticFull-cube968 lbs. 24/HR

CIM1137FW

ice-o-maticFull-cube994 lbs. 24/HR

REMOTE-COOLED

(Use with RCA-2061 Condenser)

ModelBrandIce TypeMax Production

CIM1136FR

ice-o-maticFull-cube968 lbs. 24/HR

CIM1137FR

ice-o-maticFull-cube973 lbs. 24/HR

CIM1126/1125

Dimensions: 22.25"W x 24.25"D x 26.9"H

REMOTE-COOLED

(Use with RCA-2061 Condenser)

ModelBrandIce TypeMax Production

CIM1126FR

ice-o-maticFull-cube968 lbs. 24/HR

C1030WCRC

Dimensions: 30"W x 24"D x 29"H

Recommended Bin/s:

B842S/B948S/BH1100BB/BH1100SS

REMOTE-COOLED

ModelBrandIce TypeMax Production

C1030MR-32

(Energy Star)

208-230/60/1

Medium Cube996 lbs. 24/HR

C1030MR-3

208-230/60/3

Medium Cube996 lbs. 24/HR
AIR-COOLED
ModelBrandIce TypeMax Production

C1030MW-32

208-230/60/1

Medium Cube1,029 lbs. 24/HR
High-Volume Modular Ice Machines

C1030WCRC

Dimensions: 30"W x 24"D x 29"H

Recommended Bin/s:

B842S/B948S/BH1100BB/BH1100SS

AIR-COOLED
ModelBrandIce TypeMax Production

C1030MW-32

208-230/60/1

Medium Cube1,029 lbs. 24/HR

CIM1126

Dimensions: 22.25"W x 24.25"D x 26.9"H

AIR-COOLED

ModelBrandIce TypeMax Production

CIM1126FA

ice-o-maticFull-cube1,035 lbs. 24/HR

WATER-COOLED

ModelBrandIce TypeMax Production

CIM1126FW

ice-o-maticFull-cube1,035 lbs. 24/HR

C1030AC

Dimensions: 30"W x 24"D x 29"H

Recommended Bin/s:

B842S/B948S/BH1100BB/BH1100SS

AIR-COOLED
ModelBrandIce TypeMax Production

C1030MA-32

(Energy Star)

208-230/60/1

Medium Cube1,077 lbs. 24/HR

iT1200 INDIGO NXT

Dimensions: 30"W x 24.5"D x 29.5"H

Recommended Bin: D-570

WATER-COOLED
ModelBrandIce TypeMax Production

IDT1200W

Dice1,078 lbs. 24/HR

REMOTE-COOLED

(Use with JCT-1200 Condensing Unit)

ModelBrandIce TypeMax Production

IDT1200N

Dice1,127 lbs. 24/HR
AIR-COOLED
ModelBrandIce TypeMax Production

IDT1200A

Dice1,196 lbs. 24/HR

QUIETQUBE® iT1200C

Dimensions: 30"W x 24.5"D x 29.5"H

Recommended Bin: D-970

REMOTE-COOLED

(Use with CVDT-1200A Condenser Unit)

ModelBrandIce TypeMax Production

IDT1200C

Dice1,140 lbs. 24/HR

QUIETQUBE iF1400C

Dimensions: 30"W x 24.5"D x 25"H

Recommended Bin:

D-970(single)/F-1650(double)

REMOTE-COOLED

(Use with CVDT-1200A Condenser Unit)

ModelBrandIce TypeMax Production

IDF1400C

Dice1,350 lbs. 24/HR

C1448WCRC

Dimensions: 48"W x 24"D x 29"H

Recommended Bin/s:

B948S/BH1100BB/BH1100SS

BH1300BB/BH1300SS

REMOTE-COOLED

(Use with ERC311-32 Condenser)

ModelBrandIce TypeMax Production

C1448MR-32

(Energy Star)

208-230/60/1

Medium Cube1,357 lbs. 24/HR

C1448MR-3

208-230/60/3

Medium Cube1,357 lbs. 24/HR

EH330

Dimensions: 30"W x 24"D x 23"H

Recommended Condenser/s:

ECC0800-3/ECC0800-6

ECC1410-32/ECC1410-3

Recommended Dispenser/s: ID250

REMOTE-COOLED

ModelBrandIce TypeMax Production

EH430ML-1

(Energy Star)

115/60/1

Medium Cube1,425-1,775 lbs. 24/HR

C1448WCRC

Dimensions: 48"W x 24"D x 29"H

Recommended Bin/s:

B948S/BH1100BB/BH1100SS

BH1300BB/BH1300SS

WATER-COOLED
ModelBrandIce TypeMax Production

C1448MW-32

208-230/60/1

Medium Cube1,444 lbs. 24/HR

C1448MW-3

208-230/60/3

Medium Cube1,444 lbs. 24/HR

SLIMLINE ICE1506

Dimensions: 30.4"W x 26.3"D x 22.03"H

REMOTE-COOLED

(Use with RCA-2061 Condenser)

ModelBrandIce TypeMax Production

ICE1506FR

(Energy Star)

ice-o-maticFull-cube1,450 lbs. 24/HR

C1448AC

Dimensions: 48"W x 24"D x 29"H

Recommended Bin/s:

B948S/BH1100BB/BH1100SS

BH1300BB/BH1300SS

AIR-COOLED
ModelBrandIce TypeMax Production

C1448MA-6

230/50/1

Medium Cube1,553 lbs. 24/HR

C1448MA-32

(Energy Star)

208-230/60/1

Medium Cube1,553 lbs. 24/HR

C1448MA-3

208-230/60/3

Medium Cube1,553 lbs. 24/HR

CIM1446/1447

Dimensions: 48.25"W x 24.25"D x 26"H

*1446 series require 208-230/60/1 electrical connection with approx. 22,000 BTU/HR

*1447 series require 208-230/60/3 electrical connection with approx. 21,000 BTU/HR

AIR-COOLED
ModelBrandIce TypeMax Production

CIM1446FA

ice-o-maticFull-cube1,560 lbs. 24/HR

CIM1447FA

ice-o-maticFull-cube1,560 lbs. 24/HR
WATER-COOLED
ModelBrandIce TypeMax Production

CIM1446FW

ice-o-maticFull-cube1,560 lbs. 24/HR

CIM1447FW

ice-o-maticFull-cube1,560 lbs. 24/HR

REMOTE-COOLED

(Use with RCA-2061 Condenser)

ModelBrandIce TypeMax Production

CIM1446FR

ice-o-maticFull-cube1,560 lbs. 24/HR
CIM1447FRice-o-maticFull-cube1,560 lbs. 24/HR

CIM1545

ICE-O-Matic CIM1545FA 48.25" Full-Dice Ice Maker, Cube-Style - 1500-2000 lbs/24 Hr Ice Production, Air-Cooled, 220-240 Volts

Dimensions: 48.25"W x 24.25"D x 26"H

AIR-COOLED

ModelBrandIce TypeMax Production

CIM1545FA

ice-o-maticFull-cube1,560 lbs. 24/HR

REMOTE-COOLED

Model

BrandIce TypeMax Production

CIM1545FR

ice-o-maticFull-cube1,598 lbs. 24/HR
WATER-COOLED
ModelBrandIce TypeMax Production

CIM1545FW

ice-o-maticFull-cube1,605 lbs. 24/HR

iT1500 INDIGO NXT

Dimensions: 48"W x 24"D x 29.5"H

Recommended Bin: D-970

WATER-COOLED
ModelBrandIce TypeMax Production

IDT1500W

Dice1,615 lbs. 24/HR

QUIETQUBE iF1800C

Dimensions: 30"W x 24.5"D x 29.5"H

Recommended Bin:

D-970(single)/F-1650(double)

REMOTE-COOLED

(Use with CVDF1800 Condenser Unit)

ModelBrandIce TypeMax Production

IDF1800C

Dice1,660 lbs. 24/HR

iT1500 INDIGO NXT

Dimensions: 48"W x 24"D x 29.5"H

Recommended Bin:  D-970

REMOTE-COOLED

(Use with JCT-1500 Condensing Unit)

ModelBrandIce TypeMax Production

IDT1500N

(Energy Star)

Dice1,675 lbs. 24/HR
WATER-COOLED
ModelBrandIce TypeMax Production

IDT1500A

Dice1,688 lbs. 24/HR

CIM1845

ICE-O-Matic CIM1845FR 48.25" Full-Dice Ice Maker, Cube-Style - 1500-2000 lbs/24 Hr Ice Production, Air-Cooled, 220-240 Volts

Dimensions: 48.25"W x 24.25"D x 26"H

AIR-COOLED
ModelBrandIce TypeMax Production


CIM1845FA

ice-o-matic

Full-cube1,710 lbs. 24/HR
REMOTE-COOLED
ModelBrandIce TypeMax Production

CIM1845FR

ice-o-matic

Full-cube1,720 lbs. 24/HR

WATER-COOLED

ModelBrandIce TypeMax Production

CIM1845FW

ice-o-matic

Full-cube1,736 lbs. 24/HR

iT1900 INDIGO NXT

Dimensions: 48"W x 24"D x 29.5"H

Recommended Bin: D-970

WATER-COOLED
ModelBrandIce TypeMax Production

IDT1900W

Dice1,900 lbs. 24/HR

iT1900 INDIGO NXT

Dimensions: 48"W x 24"D x 29.5"H

Recommended Bin: D-970

REMOTE-COOLED

(Use with JCT-1500 Condensing Unit)

ModelBrandIce TypeMax Production

IDT1900N

(Energy Star)

Dice1,915 lbs. 24/HR

C1848WCRC

Dimensions: 48"W x 24"D x 29"H

Recommended Bin/s:

BH1300BB/BH1300SS

BH1600BB/BH1600SS

REMOTE-COOLED

(Use with ERC611-32 Condenser)

ModelBrandIce TypeMax Production

C1848MR-32

(Energy Star)

208-230/60/1

Medium Cube1,828 lbs. 24/HR

C1848MR-3

(Energy Star)

208-230/60/3

Medium Cube1,828 lbs. 24/HR

2046/2047

Dimensions: 48.25"W x 24.25"D x 26"H

REMOTE-COOLED

(Use with RCA-3561 Condenser)

ModelBrandIce TypeMax Production

CIM2046FR

ice-o-maticFull-cube1,830 lbs. 24/HR

CIM2047FR

ice-o-maticFull-cube1,860 lbs. 24/HR
WATER-COOLED
ModelBrandIce TypeMax Production

CIM2046FW

ice-o-maticFull-cube1,860 lbs. 24/HR


CIM2047FW

ice-o-maticFull-cube1,860 lbs. 24/HR

iT1900 INDIGO NXT

Dimensions: 48"W x 24"D x 29.5"H

Recommended Bin: D-970

REMOTE-COOLED

(Use with JCT-1500 Condensing Unit)

ModelBrandIce TypeMax Production

IDT1900A

Dice1,900 lbs. 24/HR

C1848WCRC

Dimensions: 48"W x 24"D x 29"H

Recommended Bin/s:

BH1300BB/BH1300SS

BH1600BB/BH1600SS

REMOTE-COOLED

(Use with ERC611-32 Condenser)

ModelBrandIce TypeMax Production

C1848MW-32

208-230/60/1

Medium Cube1,900 lbs. 24/HR

C1848AC

Dimensions: 48"W x 24"D x 29"H

Recommended Bin/s:

BH1300BB/BH1300SS

BH1600BB/BH1600SS

AIR-COOLED
ModelBrandIce TypeMax Production

C1848MA-6

230/50/1

Medium Cube1,909 lbs. 24/HR

C1848MA-32

208-230/60/1

Medium Cube 1,909 lbs. 24/HR

C2148

Dimensions: 48"W x 24"D x 29"H

Recommended Bin/s:

BH1600BB/BH1600SS

REMOTE-COOLED

(Use with PRC241-32 Condenser)

ModelBrandIce TypeMax Production

C2148MR-32

208-230/60/1

Medium Cube1,965 lbs. 24/HR

C2148MR-3

208-230/60/3

Medium Cube1,965 lbs. 24/HR

C2648

Dimensions: 48"W x 28.5"D x 34"H

Recommended Bin/s: BH1600BB/BH1600SS

REMOTE-COOLED

(Use with PRC241-32 Condenser)

ModelBrandIce TypeMax Production

C2648MR-3

208-230/60/3

Medium Cube2,630 lbs. 24/HR

SF-3000C

Dimensions: 48"W x 31"D x 36"H

Recommended Bin/s:  F-1300/F-1325

REMOTE-COOLED

(Use with CVDF-3000 Condensing Unit)

ModelBrandIce TypeMax Production

SDF-3000C

Dice2,850 lbs. 24/HR
WATER-COOLED
ModelBrandIce TypeMax Production

SDT-3000W

Dice3,000 lbs. 24/HR

SPECIALTY DICE ICE MACHINES

NOTE: Water-cooled commercial ice machines can consume upwards of 200 gallons of water a day. This type of ice machine is generally recommended for facilities located in an environment that is too hot for an air-cooled machine. Hot environments can also benefit from a remote system where the compressor and condenser are placed in another room or outside although this will require the services of a refrigeration technician.

Recommendation: The production level of the ice machine depends a lot on water temperature. If water is very warm, there is going to be a difference in how much ice it can produce. You need to have cold water and normal ambient temperature to ensure maximum output. A heat exchanger like the System IV ChillTech is a great way to do just that. You can expect a 20% increase in the amount of ice you make for lower energy consumption.

 Marine Series Modular Dice Ice Makers

Designed for use on a yacht, ship, or anywhere near saltwater

IT0750WM

Dimensions: 30"W x 24.5"D x 21.5"H

Recommended Bin: IBW-M4 Marine Bin

WATER-COOLED

Model

Brand

Ice Type

Max Production

IDT0750WM

Dice

703 lbs. 24/HR

IT0900WM

Dimensions: 30"W x 24.5"D x 26.5"H

Recommended Bin: IBW-M4 Marine Bin

WATER-COOLED

Model

Brand

Ice Type

Max Production

IDT0900WM

Dice

780 lbs. 24/HR

IT1900WM

Dimensions: 48"W x 24.5"D x 29.5"H

Recommended Bin: IBW-M4 Marine Bin

WATER-COOLED

Model

Brand

Ice Type

Max Production

IDT1900WM

Dice

1,870 lbs. 24/HR

SpaceMaker Marine Ice Machines

SpaceMaker™ IT0900W

(bin sold separately)

Manitowoc IDT0900W-SPACE MAKER    30"  Full-Dice Ice Maker, Cube-Style - 700-900 lb/24 Hr Ice Production,  Water-Cooled, 208-230 Volts

Dimensions: 48"W x 23.5"D x 29.5"H

Recommended Bin: IBW-M5 Marine Bin

WATER-COOLED

Model

Brand

Ice Type

Max Production

IDT0900W-SPACE MAKER

Dice

839 lbs. 24/HR

SpaceMaker™ IT1900W

(bin sold separately)

Dimensions: 48"W x 23.5"D x 29.5"H

Recommended Bin: IBW-M5 Marine Bin

WATER-COOLED

Model

Brand

Ice Type

Max Production

IDT1900W

Dice

1,870 lbs. 24/HR

Correctional Ice Machines

IDT0450

Manitowoc IDT0450AP Indigo NXT?„? Series Correctional Ice Maker

Dimensions: 30"W x 24"D x 21.5"H

Recommended Bin/s: D-400/D-570

WATER-COOLED

Model

Brand

Ice Type

Max Production

IDT0450AP

(Energy Star)

IDT0450WP

Dice

430 lbs. 24/HR

AIR-COOLED

Model

Brand

Ice Type

Max Production


IDT0450AP

(Energy Star)

Dice

470 lbs. 24/HR

IDT0620 INDIGO NXT

Manitowoc IDT0620WP Indigo NXT?„? Series Correctional Ice Maker

Dimensions: 30"W x 24"D x 21.5"H

Recommended Bin/s: D-400/D-420

WATER-COOLED

Model

Brand

Ice Type

Max Production

IDT0620WP

Dice

530 lbs. 24/HR

AIR-COOLED

Model

Brand

Ice Type

Max Production

IDT0620AP

(Energy Star)

Dice

560 lbs. 24/HR

IDT0750 INDIGO NXT



Dimensions: 30"W x 24"D x 21.5"H

Recommended Bin/s: D-400/D-570

AIR-COOLED

Model

Brand

Ice Type

Max Production

IDT0750AP

(Energy Star)

Dice

680 lbs. 24/HR

IDT1200 INDIGO NXT

Manitowoc IDT1200WP Indigo NXT™ Series Correctional Ice Maker


Dimensions: 30"W x 24.5"D x 29.5"H

Recommended Bin: D-570/D-970

 WATER-COOLED

Model

Brand

Ice Type

Max Production

IDT1200WP

Dice

1,078 lbs. 24/HR

 AIR-COOLED

Model

Brand

Ice Type

Max Production

IDT1200AP

Dice

1,196 lbs. 24/HR

IDT1500 INDIGO NXT



Dimensions: 30"W x 24.5"D x 29.5"H

Recommended Bin: D-970

REMOTE-COOLED

Model

Brand

Ice Type

Max Production

IDT1500NP

(Energy Star)

Dice

1,675 lbs. 24/HR

AIR-COOLED

Model

Brand

Ice Type

Max Production

IDT1500AP

Dice

1,688 lbs. 24/HR

IDT1900 INDIGO NXT


Dimensions: 48"W x 24"D x 29.5"H

Recommended Bin: D-970

REMOTE-COOLED

Model

Brand

Ice Type

Max Production

IDT1900NP

(Energy Star)

Dice

1,915 lbs. 24/HR

AIR-COOLED

Model

Brand

Ice Type

Max Production

IDT1900AP

Dice

1,965 lbs. 24/HR

GOURMET ICE MACHINES

NOTE: Water-cooled commercial ice maker can consume upwards of 200 gallons of water a day. This type of ice machine is generally recommended for facilities located in an environment that is too hot for an air-cooled machine. Hot environments can also benefit from a remote system where the compressor and condenser are placed in another room or outside although this will require the services of a refrigeration technician.

Recommendation: The production level of the commercial ice maker depends a lot on water temperature. If water is very warm, there is going to be a difference in how much ice it can produce. You need to have cold water and normal ambient temperature to ensure maximum output. A heat exchanger like the System IV ChillTech is a great way to do just that. You can expect a 20% increase in the amount of ice you make for lower energy consumption.

Undercounter Gourmet Ice Machines

CU50

Dimensions: 14.875"W x 22"D x 34.375"H

Storage Bin Capacity: 26 lbs.

Electrical Connection: 115/60/1

AIR-COOLED

Model

Brand

Ice Type

Max Production

CU50GA-1

(Energy Star)

Gourmet

65 lbs. 24/HR

AIR-COOLED

Model

Brand

Ice Type

Max Production

CU50PA-1

(w/ pump and 10’ drain tube)

(Energy Star)

Gourmet

65 lbs. 24/HR

UCG06A

ICE-O-Matic UCG060A Cube Ice Maker

Dimensions: 15.25"W x 25.25."H x 20"D

Storage Bin Capacity: 17 lbs.




AIR-COOLED

Model

Brand

Ice Type

Max Production

UCG060A

ice-o-matic

Gourmet

69 lbs. 24/HR

UCG068A

ICE-O-Matic UCG080A Cube Ice Maker

Dimensions: 18.25"W x 27.25"H x 22.25"D

Storage Bin Capacity: 33 lbs.


AIR-COOLED

Model

Brand

Ice Type

Max Production

UCG080A

ice-o-matic

Gourmet

99 lbs. 24/HR

UCG100A

ICE-O-Matic UCG100A Cube Ice Maker

Dimensions: 18.25"W x 31"H x 22.25"D

Storage Bin Capacity: 48 lbs.


AIR-COOLED

Model

Brand

Ice Type

Max Production

UCG100A

ice-o-matic

Gourmet

119 lbs. 24/HR

UCG130A

ICE-O-Matic UCG130A Cube Ice Maker

Dimensions: 18.25"W x 31"H x 22.25"D

Storage Bin Capacity: 48 lbs.


AIR-COOLED

Model

Brand

Ice Type

Max Production

UCG130A

ice-o-matic

Gourmet

126 lbs. 24/HR

NUGGET/PEARL ICE MACHINES

NOTE: Water-cooled commercial ice makers can consume upwards of 200 gallons of water a day. This type of ice machine is generally recommended for facilities located in an environment that is too hot for an air-cooled machine. Hot environments can also benefit from a remote system where the compressor and condenser are placed in another room or outside although this will require the services of a refrigeration technician.

Recommendation: The production level of the commercial ice maker depends a lot on water temperature. If water is very warm,there is going to be a difference in how much ice it can produce. You need to have cold water and normal ambient temperature to ensure maximum output. A heat exchanger like the System IV ChillTech is a great way to do just that. You can expect a 20% increase in the amount of ice you make for lower energy consumption.

Undercounter Nugget/PearlIce Machines

GEMU090

Dimensions: 14.875"W x 23.625"D x 33.375"H

Bin Storage Capacity: 22 lbs.

AIR-COOLED
ModelBrandIce TypeMax Production

GEMU090

ice-o-maticPearl85 lbs. 24/HR

UNK0200AZ

Manitowoc UNK0200AZ Ice Maker with Bin

Dimensions: 19.69"W x 25.98"D x 33.17"H

Voltage: 230v/50/1-ph

AIR-COOLED

Model

BrandIce TypeMax Production

UNK0200AZ

Nugget145 lbs. 24/HR

UNF-0200

Dimensions: 19.69"W x 25.98"D x 33.17"H

Bin Storage Capacity: 20 lbs.

AIR-COOLED
ModelBrandIce TypeMax Production

UNF0200A

(Energy Star)

Nugget187 lbs. 24/HR

UNF-0300

Dimensions: 29.06"W x 27.17"D x 39.52"H

Bin Storage Capacity: 50lbs.

AIR-COOLED
ModelBrandIce TypeMax Production

UNF0300A

(Energy Star)

Nugget300 lbs. 24/HR

UNK0300

Dimensions: 29.06"W x 27.17"D x 39.52"H

Bin Storage Capacity: 50lbs.

AIR-COOLED

Model

Brand

Ice TypeMax Production

UNK0300AZ

Nugget302 lbs. 24/HR
Countertop Nugget Ice Machines

HID312

Dimensions: 16.25 to 18.25"W x24.38"D x 35"H

Bin Storage Capacity: 40 lbs.

AIR-COOLED
ModelBrandIce TypeMax Production

HID312A-1

Nugget260 lbs. 24/HR

HID312AW-1

(w/ wall mount)

Nugget260 lbs. 24/HR

GEMD270

Dimensions: 15.3"W x 26.1"D x 34.4"H

Bin Storage Capacity: 12 lbs.

AIR-COOLED
ModelBrandIce TypeMax Production

GEMD270

ice-o-maticPearl273 lbs. 24/HR

CNF0201A

Dimensions: 16.25"W x 24"D x 35"H

Bin Storage Capacity: 10lbs.

AIR-COOLED
ModelBrandIce TypeMax Production

CNF0201A

Touchless

Nugget315 lbs. 24/HR

CNF0201AL

Lever-activated

Nugget315 lbs. 24/HR

CNF0202A

Dimensions: 16.25"W x 24"D x 42"H

Bin Storage Capacity: 20 lbs.

AIR-COOLED
ModelBrandIce TypeMax Production

CNF0202A

Touchless

Nugget315 lbs. 24/HR

CNF0202AL

Lever-activated

Nugget315 lbs. 24/HR

HID525

Dimensions: 21.25 to 23.25"W x 24.38"D x 35"H

Bin Storage Capacity: 25 lbs.

AIR-COOLED
ModelBrandIce TypeMax Production

HID525A-1

Nugget500 lbs. 24/HR

HID525AW-1

(w/ wall mount)

Nugget500 lbs. 24/HR
WATER-COOLED
ModelBrandIce TypeMax Production

HID525W-1

Nugget500 lbs. 24/HR

HID540

Dimensions: 21.25 to 23.25"W x 24.38"D x 41"H

Bin Storage Capacity: 40 lbs.

AIR-COOLED
ModelBrandIce TypeMax Production

HID540A-1

Nugget500 lbs. 24/HR

HID540AW-1

(w/ wall mount)

Nugget500 lbs. 24/HR
WATER-COOLED
ModelBrandIce TypeMax Production

HID540W-1

Nugget500 lbs. 24/HR
Modular Nugget Ice Machines

RNF0320

Dimensions: 22"W x 26.63"D x 26"H

Recommended Bin: D-420

AIR-COOLED
ModelBrandIce TypeMax Production

RNF0320A

Nugget308 lbs. 24/HR

N0422

Dimensions: 22.9"W x 24"D x 23"H

Recommended Bin/s: B322S/B530P/B530S

Recommended Dispenser/s:

ID150/ID200/ID250

AIR-COOLED
ModelBrandIce TypeMax Production

NS0422A-1

115/60/1

Nugget420 lbs. 24/HR

N0422

Dimensions: 22.9"W x 24"D x 23"H

Recommended Bin/s: B322S/B530P/B530S

Recommended Dispenser/s:

ID150/ID200/ID250

WATER-COOLED
ModelBrandIce TypeMax Production

NS0422W-1

115/60/1

Nugget455 lbs. 24/HR

GEM0450

Dimensions: 21"W x 24"D x 27"H

Recommended Dispenser/s:

IOD200/IOD250

AIR-COOLED
ModelBrandIce TypeMax Production

GEM0450A

(Energy Star)

ice-o-maticPearl464 lbs. 24/HR
WATER-COOLED
ModelBrandIce TypeMax Production

GEM0450W

ice-o-maticPearl508 lbs. 24/HR

RNF0620

Dimensions: 22"W x 23.63"D x 26"H

Recommended Bin: D-420

AIR-COOLED
ModelBrandIce TypeMax Production

RNF0620A

Nugget591 lbs. 24/HR
WATER-COOLED
ModelBrandIce TypeMax Production

RNF0620W

Nugget613 lbs. 24/HR

N0622AC

Scotsman NS0422W-1 Prodigy Plus® Ice Maker

Dimensions: 22.9"W x 24"D x 23"H

Recommended Bin/s: B322S/B530P/B530S

Recommended Dispenser/s:

ID150/ID200/ID250

AIR-COOLED
ModelBrandIce TypeMax Production

NS0622A-6

230/50/1

Nugget643 lbs. 24/HR

NS0622A-1

115/60/1

Nugget643 lbs. 24/HR

NS0622A-32

208-230/60/1

Nugget643 lbs. 24/HR

N0622WC

Scotsman NS0622R-1 Prodigy Plus® Ice Maker

Dimensions: 22.9"W x 24"D x 23"H

Recommended Bin/s: B322S/B530P/B530S

Recommended Dispenser/s: ID150/ID200/ID250

REMOTE-COOLED

(Use with ERC111-1 Condenser Unit)

ModelBrandIce TypeMax Production

NS0622R-1

115/60/1

Nugget660 lbs. 24/HR

N0622WC

Scotsman NS0622W-1 Prodigy Plus® Ice Maker

Dimensions: 22.9"W x 24"D x 23"H

Recommended Bin/s: B322S/B530P/B530S

Recommended Dispenser/s: ID150/ID200/ID250

WATER-COOLED
ModelBrandIce TypeMax Production

N0622W-1

115/60/1

Nugget715 lbs. 24/HR

GEM0650/0655

Dimensions: 21"W x 24"D x 27"H

Recommended Dispenser/s: IOD200/IOD250

AIR-COOLED
ModelBrandIce TypeMax Production

GEM0650A

(Energy Star)

ice-o-maticPearl740 lbs. 24/HR
WATER-COOLED
ModelBrandIce TypeMax Production

GEM0650W

ice-o-maticPearl770 lbs. 24/HR

REMOTE-COOLED

(Use with GRC1061 Condenser)

ModelBrandIce TypeMax Production

GEM0650R

ice-o-maticPearl770 lbs. 24/HR

N0922AC

Scotsman NS0922A-32 Prodigy Plus® Ice Maker

Dimensions: 22.9"W x 24"D x 27"H

Recommended Bin/s: B530P/B948S/B842S

Recommended Dispenser/s: ID200/ID250

AIR-COOLED
ModelBrandIce TypeMax Production

N0922A-32

(Energy Star)

208-230/60/1

Nugget956 lbs. 24/HR

N0922A-6

230/50/1

Nugget956 lbs. 24/HR
High-Volume Modular Nugget Ice Machines

GEM0956/0955

Dimensions: 21"W x 24"D x 27"H

Recommended Dispenser/s: IOD200/IOD250

AIR-COOLED
ModelBrandIce TypeMax Production

GEM0956R

(Energy Star)

ice-o-maticPearl1,011 lbs. 24/HR

NS0922

Dimensions: 22.9"W x 24"D x 27"H

Recommended Bin/s: B530P/B948S/B842S

Recommended Dispenser/s: ID200/ID250

REMOTE-COOLED

(Use with ERC311-32 Condenser)

ModelBrandIce TypeMax Production

NS0922R-32

(Energy Star)

208-230/60/1

Nugget1,044 lbs. 24/HR

GEM0956/0955

Dimensions: 21"W x 24"D x 27"H

Recommended Dispenser/s: IOD200/IOD250

AIR-COOLED
ModelBrandIce TypeMax Production

GEM0956A

(Energy Star)

ice-o-maticPearl1,053 lbs. 24/HR

GEM0955A

ice-o-maticPearl1,053 lbs. 24/HR
WATER-COOLED
ModelBrandIce TypeMax Production

GEM0956W

Pearl1,053 lbs. 24/HR

RNF1100

Dimensions: 30"W x 23.62"D x 27.40"H

Recommended Bin: D-570

Height with bin: 77.40"

Depth with bin: 34"

AIR-COOLED
ModelBrandIce TypeMax Production

RNF1100A

Nugget1,078 lbs. 24/HR

NS0922L

Dimensions: 22.9"W x 24"D x 27"H

Recommended Bin/s: B530P/B948S/B842S

Recommended Dispenser/s: ID200/ID250

REMOTE-COOLED LOW SIDE

ModelBrandIce TypeMax Production

NS0922L-1

115/60/1

Nugget1,090 lbs. 24/HR

NS0922

Dimensions: 22.9"W x 24"D x 27"H

Recommended Bin/s: B530P/B948S/B842S

Recommended Dispenser/s:

ID200/ID250

REMOTE-COOLED

(Use with ERC311-32 Condenser)

ModelBrandIce TypeMax Production

NS0922W-32

208-230/60/1

Nugget1,094 lbs. 24/HR

GEM0956/0955

Dimensions: 21"W x 24"D x 27"H

Recommended Dispenser/s:

IOD200/IOD250

WATER-COOLED
ModelBrandIce TypeMax Production

GEM0955W

ice-o-maticPearl1,128 lbs. 24/HR

RNF1100

Dimensions: 30"W x 23.62"D x 27.40"H

Recommended Bin: D-570

Height with bin: 77.40"

Depth with bin: 34"

WATER-COOLED
ModelBrandIce TypeMax Production

RNF1100W

Nugget1,158 lbs. 24/HR

GEM1306

Dimensions: 21"W x 24"D x 27"H

AIR-COOLED
ModelBrandIce TypeMax Production

GEM1306A

(Energy Star)

ice-o-maticPearl1,350 lbs. 24/HR

REMOTE-COOLED

(Use with RGA-1061-HM Condenser)

ModelBrandIce TypeMax Production

GEM1306R

(Energy Star)

ice-o-maticPearl1,350 lbs. 24/HR

N1322WCRC

Dimensions: 22.9"W x 24"D x 27"H

Recommended Bin/s:

B948S/BH1100BB-A/BH1100SS-A

BH1300BB-A/BH1300SS-A

BH1600BB-A/BH1600SS-A

REMOTE-COOLED

(Use with ERC311-32 Condenser)

ModelBrandIce TypeMax Production

N1322R-32

(Energy Star)

208-230/60/1

Nugget1,360 lbs. 24/HR

N1322WCRC

Dimensions: 22.9"W x 24"D x 27"H

Recommended Bin/s:

B948S/BH1100BB-A/BH1100SS-A

BH1300BB-A/BH1300SS-A

BH1600BB-A/BH1600SS-A

WATER-COOLED
ModelBrandIce TypeMax Production

NS1322W-32

208-230/60/1

Nugget1,513 bs. 24/HR

NME1854

Dimensions: 42"W x 24"D x 27"H

Recommended Bin/s: B842S/B948S

BH1100BB/BH1100SS

BH1300BB/BH1300SS

BH1600BB/BH1600SS

REMOTE-COOLED

(Use with PR2C240-32 Condenser)

ModelBrandIce TypeMax Production

NME1854RS-32

208-230/60/1

Nugget2,185 lbs. 24/HR

FLAKE ICE MACHINES

NOTE: Water-cooled commercial ice makers can consume upwards of 200 gallons of water a day. This type of commercial ice maker is generally recommended for facilities located in an environment that is too hot for an air-cooled machine. Hot environments can also benefit from a remote system where the compressor and condenser are placed in another room or outside although this will require the services of a refrigeration technician.

Recommendation: The production level of the commercial ice maker depends a lot on water temperature. If water is very warm,there is going to be a difference in how much ice it can produce. You need to have cold water and normal ambient temperature to ensure maximum output. A heat exchanger like the System IV ChillTech is a great way to do just that. You can expect a 20% increase in the amount of ice you make for lower energy consumption.

Undercounter Flake Ice Machines

UFF0200A

Dimensions: 19.69"W x 25.98"D x 37.50"H

Bin Storage Capacity: 50 lbs.

AIR-COOLED
ModelBrandIce TypeMax Production

UFF0200A

(Energy Star)

Flake257 lbs. 24/HR

UFK0200AZ

Manitowoc UFK0200AZ Ice Maker with Bin

Dimensions: 19.69"W x 25.98"D x 37.5"H

Voltage: 230v/50/1-ph

AIR-COOLED

Model

Brand

Ice TypeMax Production

UFK0200AZ

(Energy Star)

Flake257 lbs. 24/HR

UFF0350A

Dimensions: 29.06"W x 25.98"D x 39.52"H

Bin Storage Capacity: 90 lbs.

AIR-COOLED
ModelBrandIce TypeMax Production

UFF0350A

(Energy Star)

Flake350 lbs. 24/HR

UFK0350AZ

Manitowoc UFK0350AZ Ice Maker with Bin

Dimensions: 29.06"W x 27.17"D x 39.52"H

Voltage: 230v/50/1-ph

AIR-COOLED

Model

Brand

Ice TypeMax Production

UFK0350AZ

(Energy Star)

Flake398 lbs. 24/HR

UF424

Dimensions: 24"W x 28.5"D x 39"H

Storage Bin Capacity: 80 lbs.

AIR-COOLED
ModelBrandIce TypeMax Production

UF424A-6

230/50/1

Flake370 lbs. 24/HR

UF424A-1

115/60/1

Flake440 lbs. 24/HR
WATER-COOLED
ModelBrandIce TypeMax Production

UF424W-1

115/60/1

Flake440 lbs. 24/HR
Modular Flake Ice Machines

RFF0320

Dimensions: 22"W x 23.63"D x 26"H

Recommended Bin: D-420

Voltage: 115v/60/1-ph

AIR-COOLED
ModelBrandIce TypeMax Production

RFF0320A

Flake370 lbs. 24/HR

RFK0320AZ

RFK0320AZ

Dimensions: 22"W x 23.63"D x 26"H

Recommended Bin: D-420

Voltage: 230v/50/1-ph

AIR-COOLED

Model

Brand

Ice TypeMax Production

RFK0320AZ

Flake370 lbs. 24/HR

F0522AC

Dimensions: 22.9"W x 24"D x 23"H

Recommended Bin/s:

B322S/B330P/B530P/B530S/B842S

AIR-COOLED
ModelBrandIce TypeMax Production

FS0522A-1

115/60/1

Flake450 lbs. 24/HR

F0522WC

Dimensions: 22.9"W x 24"D x 23"H

Recommended Bin/s:

B322S/B330P/B530P/B530S/B842S

WATER-COOLED
ModelBrandIce TypeMax Production

FS0522W-1

115/60/1

Flake530 lbs. 24/HR

MFI0500

Dimensions: 21"W x 24"D x 27"H

AIR-COOLED
ModelBrandIce TypeMax Production

MFI0500A

(Energy Star)

ice-o-maticFlake540 lbs. 24/HR
WATER-COOLED
ModelBrandIce TypeMax Production

MFI0500W

ice-o-maticFlake541 lbs. 24/HR

RFF0620

Dimensions: 22"W x 23.63"D x 26"H

Recommended Bin: D-420

Voltage: 115v/60/1-ph

WATER-COOLED
ModelBrandIce TypeMax Production

RFF0620W

Flake730 lbs. 24/HR

RFK0620

RFK0620

Dimensions: 22"W x 23.63"D x 26"H

Recommended Bin: D-420

Voltage: 230v/50/1-ph

AIR-COOLED

Model

Brand

Ice TypeMax Production

RFK0620AZ

Flake730 lbs. 24/HR
WATER-COOLED

Model

Brand

Ice TypeMax Production

RFK0620WZ

Flake740 lbs. 24/HR

MFI0800/0805

Dimensions: 21"W x 24"D x 27"H

AIR-COOLED
ModelBrandIce TypeMax Production

MFI0805A

ice-o-maticFlake735 lbs. 24/HR
WATER-COOLED
ModelBrandIce TypeMax Production

MFI0805W

ice-o-maticFlake737 lbs. 24/HR

RFF0620

Dimensions: 22"W x 23.63"D x 26"H

Recommended Bin: D-420

Height with bin: 76"

Depth with bin: 34"

AIR-COOLED
ModelBrandIce TypeMax Production

RFF0620A

Flake760 lbs. 24/HR

F0822WCRC

Dimensions: 22.9"W x 24"D x 23"H

Recommended Bin/s:

B322S/B330P/B530P/B530S

B842S/B948S

REMOTE-COOLED

(Use with ERC111-1 Condenser)

ModelBrandIce TypeMax Production

FS0822R-1

115/60/1

Flake760 lbs. 24/HR
WATER-COOLED
ModelBrandIce TypeMax Production

FS0822W-1

115/60/1

Flake775 lbs. 24/HR

FS0822W-32

208-230/60/1

Flake775 lbs. 24/HR

MFI0800/0805

Dimensions: 21"W x 24"D x 27"H

AIR-COOLED
ModelBrandIce TypeMax Production

MFI0800A

(Energy Star)

ice-o-maticFlake900 lbs. 24/HR

REMOTE-COOLED

(Use with GRC 1001 Remote Condenser)

ModelBrandIce TypeMax Production

MFI0800R

(Energy Star)

ice-o-maticFlake925 lbs. 24/HR
WATER-COOLED
ModelBrandIce TypeMax Production

MFI0800W

ice-o-maticFlake940 lbs. 24/HR
High-Volume Flake Ice Machines

MFI1256/1255

Dimensions: 21"W x 24"D x 27"H

REMOTE-COOLED

(Use with RGA-1061-HM Condenser)

ModelBrandIce TypeMax Production

MFI1256R

(Energy Star)

ice-o-maticFlake1,054 lbs. 24/HR

F1222AC

Dimensions: 22.9"W x 24"D x 27"H

Recommended Bin/s:

B948S/BH1100BB-A/BH1100SS-A

BH1300BB-A/BH1300SS-A

BH1600BB-A/BH1600SS-A

AIR-COOLED
ModelBrandIce TypeMax Production

FS1222A-6

230/50/1

Flake1,100 lbs. 24/HR

FS1222A-32

(Energy Star)

208-230/60/1

Flake1,100 lbs. 24/HR

FS1222A-3

(Energy Star)

208-230/60/3

Flake1,100 lbs. 24/HR

MFI1256/1255

Dimensions: 21"W x 24"D x 27"H

WATER-COOLED
ModelBrandIce TypeMax Production

MFI1256W

ice-o-maticFlake1,137 lbs. 24/HR

MFI1255W

ice-o-maticFlake1,230 lbs. 24/HR

REMOTE-COOLED

(Use with RGA-1061-HM Condenser)

ModelBrandIce TypeMax Production

MFI1256A

(Energy Star)

ice-o-maticFlake1,149 lbs. 24/HR

QUIETQUBE RFF1220C

Manitowoc RFF1220C 22" Flake Ice Maker, Flake-Style, 1000-1500 lbs/24 Hr Ice Production, 208-230 Volts , Air-Cooled

Dimensions: 22"W x 23.63"D x 26"H

Recommended Bin: D-570

REMOTE-COOLED

Model

Brand Ice TypeMax Production

RFF1220C

(Energy Star)

Flake1,152 lbs. 24/HR

F1222WCRC

Dimensions: 22.9"W x 24"D x 27"H

Recommended Bin/s:

B948S/BH1100BB-A/BH1100SS-A

BH1300BB-A/BH1300SS-A

BH1600BB-A/BH1600SS-A

WATER-COOLED
ModelBrandIce TypeMax Production

FS1222W-32

208-230/60/1

Flake1,240 lbs. 24/HR

REMOTE-COOLED

(Use with ERC311-32 Condenser)

ModelBrandIce TypeMax Production

FS1222R-32

(Energy Star)

208-230/60/1

Flake1,250 lbs. 24/HR

FS1222R-3

(Energy Star)

208-230/60/3

Flake1,250 lbs. 24/HR

MFI1256/1255

Dimensions: 21"W x 24"D x 27"H

AIR-COOLED
ModelBrandIce TypeMax Production

MFI1255A

ice-o-maticFlake1,260 lbs. 24/HR

RFK1300AZ

RFK1300AZ

Dimensions: 30"W x 23.63"D x 267.40"H

Recommended Bin: D-570

Voltage: 230v/50/1-ph

AIR-COOLED

Model

BrandIce TypeMax Production

RFK1300AZ

Flake1,264 lbs. 24/HR

RFF1300

Dimensions: 22"W x 23.63"D x 27.40"H

Recommended Bin: D-570

Height with bin: 77.40"

Depth with bin: 34"

AIR-COOLED
ModelBrandIce TypeMax Production

RFF1300A

Flake1,287 lbs. 24/HR
WATER-COOLED
ModelBrandIce TypeMax Production

RFF1300W

Flake1,339 lbs. 24/HR

RFK1300

RFK1300

Dimensions: 30"W x 23.63"D x 267.40"H

Recommended Bin: D-570

Voltage: 230v/50/1-ph

WATER-COOLED

Model

Brand

Ice TypeMax Production

RFK1300WZ

Flake1,365 lbs. 24/HR

MFI1506

Dimensions: 21"W x 24"D x 27"H

REMOTE-COOLED

(Use with RGA-1061-HM Condenser)

ModelBrandIce TypeMax Production

MFI1506R

(Energy Star)

ice-o-maticFlake1,390 lbs. 24/HR

F1522L

Dimensions: 22.9"W x 24"D x 27"H

Recommended Bin/s:

B948S/BH1100BB-A/BH1100SS-A

BH1300BB-A/BH1300SS-A

BH1600BB-A/BH1600SS-A

REMOTE-COOLED LOW SIDE

ModelBrandIce TypeMax Production

FS1522L-1

115/60/1

Flake1,445 lbs. 24/HR

MFI1506

Dimensions: 21"W x 24"D x 27"H

AIR-COOLED
ModelBrandIce TypeMax Production

MFI1506A

(Energy Star)

ice-o-maticFlake1,450 lbs. 24/HR

F1522

Dimensions: 22.9"W x 24"D x 27"H

Recommended Bin/s:

B948S/BH1100BB-A/BH1100SS-A

BH1300BB-A/BH1300SS-A

BH1600BB-A/BH1600SS-A

AIR-COOLED
ModelBrandIce TypeMax Production

FS1522A-32

(Energy Star)

208-230/60/1

Flake1,612 lbs. 24/HR

RFF2200

Dimensions: 30"W x 23.63"D x 27.40"H

Recommended Bin/s: D-570/D-970/F-700F-1325/FC-1350

REMOTE-COOLED

(Use with RCUF-2200 Condensing Unit)

ModelBrandIce TypeMax Production

RFF2200C

Flake2,169 lbs. 24/HR

ICE-O-Matic MFI2306R 30" Flake Ice Maker, Flake-Style, 2000+ lbs/24 Hr Ice Production, 208-230 Volts , Air-Cooled

Dimensions: 30"W x 24"D x 27"H

*Bin sold separately

REMOTE-COOLED

Model

Brand

Ice TypeMax Production

MFI2306R

ice-o-matic

Flake2,250 lbs. 24/HR

FME2404RLS

Dimensions: 42"W x 24"D x 27"H

Recommended Bin/s:

B842S/B948S/BH1100BB/BH1100SS/

BH1300BB/BH1300SS/BH1600BB/BH1600SS

REMOTE-COOLED LOW SIDE

ModelBrandIce TypeMax Production

FME2404RLS-32

208-230/60/1

Flake2,365 lbs. 24/HR

FME2404

Dimensions: 42"W x 24"D x 27"H

Recommended Bin/s:

B842S/B948S/BH1100BB/BH1100SS

BH1300BB/BH1300SS/BH1600BB/BH1600SS

AIR-COOLED
ModelBrandIce TypeMax Production

FME2404AS-32

(Energy Star)

208-230/60/1

Flake2,455 lbs. 24/HR

REGULAR ICE MACHINES


Undercounter Regular Ice Machines

NEO® 140/190

Dimensions: 26"W x 28.5"D x 38.5"H

Bin Storage Capacity: 90 lbs.

AIR-COOLED
ModelBrandIce TypeMax Production

URF-0140A

Regular127 lbs. 24/HR

NEO® 310

Dimensions: 30"W x 28.5"D x 38.5"H

Bin Storage Capacity: 90 lbs.

AIR-COOLED
ModelBrandIce TypeMax Production

URF-0310A

Regular278 lbs. 24/HR
Modular Regular Ice Machines

iT0500 INDIGO NXT

Dimensions: 30"W x 24"D x 21.5"H

Recommended Bin: D-570

WATER-COOLED
ModelBrandIce TypeMax Production

IRT0620W

Regular485 lbs. 24/HR

iT0500 INDIGO NXT

Dimensions: 30"W x 24"D x 21.5"H

Recommended Bin: D-570

 AIR-COOLED

Model

Brand

Ice TypeMax Production

IRT0500A

(Energy Star)

Regular500 lbs. 24/HR

WATER-COOLED

Model

Brand

Ice Type

IRT0500W

Regular500 lbs. 24/HR

iT0620 INDIGO NXT

Performance Improvements

(vs previous models):

31% lower energy consumption

16% lower potable water usage

32% lower condenser water usage

Dimensions: 22"W x 24.5"D x 21.5"H

Recommended Bin: D-420

Recommended Ice Dispenser: SFA-191

AIR-COOLED
ModelBrandIce TypeMax Production

IRT0620A

(Energy Star)

Regular525 lbs. 24/HR

iT0900 INDIGO NXT

Dimensions: 30"W x 24.5"D x 26.5"H

Recommended Bin: D-570



WATER-COOLED
ModelBrandIce TypeMax Production

IRT0900W

Regular748 lbs. 24/HR
AIR-COOLED
ModelBrandIce TypeMax Production

IRT0900A

Regular797 lbs. 24/HR

CIM0836/0835

Dimensions: 30.25"W x 24.25"D x 26.9"H

AIR-COOLED
ModelBrandIce TypeMax Production

CIM0836GA

ice-o-maticGrande800 lbs. 24/HR
High-Volume Modular Regular Ice Machines

iT1900 INDIGO NXT

Dimensions: 48"W x 24"D x 29.5"H

Recommended Bin: D-970

REMOTE-COOLED

(Use with JCT-1500 Condenser)

ModelBrandIce TypeMax Production

IRT1900N

Regular1,715 lbs. 24/HR
AIR-COOLED
ModelBrandIce TypeMax Production

IRT1900A

Regular1,800 lbs. 24/HR
