Vulcan VHFA18 Glass Door Mobile Heated Holding Cabinet, 120 Volts

Name: Vulcan VHFA18 Glass Door Mobile Heated Holding Cabinet, 120 Volts
Brand: Vulcan
SKU: VHFA18
Price: 3005.0 USD
Availability: InStock

(1)

SKU#: VHFA18

Vulcan VHFA18 Glass Door Mobile Heated Holding Cabinet, 120 Volts

Free Freight?

Quick Ship

$3,005.00

Lowest Price Guarantee
Chat Now

Product Protection

Starting at

View all Vulcan Holding Cabinets

Vulcan VHFA18 Specifications

Control Type	Dial
Size	Full Height
Type	Holding Cabinets
Insulated	No
Interior Construction	Pan/Tray Slides
Brand	Vulcan
Made in	USA
Certifications	5-20P
Exterior Finish	Stainless Steel
Category	Heated Mobile Cabinet, Single Section
Door Type	Clear
Style	Mobile
Voltage	120 Volts
Width (in)	25.25
Height (in)	71
Depth (in)	30.75
Weight	220.00

Additional Information on Vulcan VHFA18

vul1210e.pdf

parts-catalog.pdf

sell-sheet.pdf

parts-list.pdf

warranty-sheet.pdf

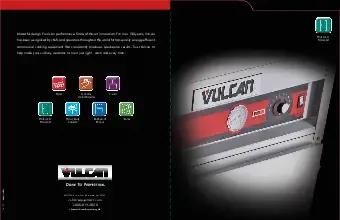

brochure.pdf

service-manual.pdf

vulcan-vhfa18.specsheet.pdf

owner-s-manual.pdf

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Vulcan VHFA18 Certifications

5-20P

Plug has the neutral blade rotated 90° and shifted so its inner edge is approximately 1⁄2 in (12.7 mm) from the hot blade

cULus

UL (Underwriters Laboratories) approval for the US and Canada

UL

UL has tested representative samples of this product and determined that the product meets specific, defined requirements.

UL EPH

Certifies that the goods conform to public health and environmental quality compatibility requirements.

Vulcan VHFA18 Description

Heated Cart, mobile, non-insulated, capacity (18) 18" x 26" x 1" sheet pans or (36) 12" x 20" 2-1/2" steam table pans, fan & air tunnel, fixed tray slides 3" OC, glass door, stainless steel construction, 5" casters; 2 swivel, 2 rigid with locks, 120v/60/1-ph, 2.0kW, 16.7 amp, cord with NEMA 5-20P, cULus, UL EPH

Standard Features:

Requires 120 volt, single phase power supply.
Fan and air tunnel provide even heat distribution.
Heavy duty 20 gauge polished stainless steel cabinet.
Set of 5" casters, two swivel with brakes and two rigid.
Two 600 watt metal sheathed heating elements,10 amps total draw.
Furnished with top mounted 8 foot power cord with strain relief and NEMA 5-15 plug.
Full size glass door with field reversible heavy duty hinges, door latch mechanism, and gaskets.
One year limited parts and labor warranty. After the first year, lifetime parts warranty on the heating elements.
Fixed interior pan supports are designed to accommodate pan covers for transporting, and are removable for easy cleaning.
Nine level holding and transport cabinet accepts nine 18" x 26" pans or eighteen 12" x 20" pans, pans may be up to 2 3⁄4" tall.
Top mounted, recessed control panel includes power “on” and heater “on” indicator lights, dial thermostat adjustable from ambient to 190°F, and temperature read-out dial.
Top mounted control panel is easy to use and out of the way of brooms, mops, and feet when transporting. Control panel on top eliminates removing control panel for cleaning.

Specifications
Nine level holding and transport cabinet, Vulcan Hart Model No. VHFA9. Heavy duty 20 gauge polished stainless steel cabinet. Four 5" casters, 2 swivel with brakes, 2 rigid. Glass door with heavy duty hinges, door latch mechanism, and gaskets. Interior pan supports are designed to accommodate pan covers for transporting, and are removable for easy cleaning. Accepts nine 18" x 26" pans or eighteen 12" x 20" x 2 3⁄4" pans. Top mounted, recessed control panel includes power “on” and heater “on” indicator lights, dial thermostat adjusts from ambient to 190°F, and temperature read-out dial. Two 600 watt metal sheathed heating elements, 10 amps total draw. One year limited parts and labor warranty. After the first year, lifetime parts warranty on the heating elements. Requires 120 volt, single phase power supply. Furnished with top mounted 8 foot power cord with strain relief and NEMA 5-15 plug. Classified by UL to NSF Std. #4.
