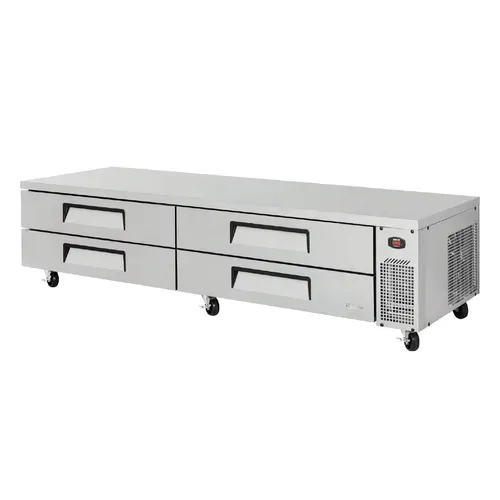

Turbo Air TCBE-96SDR-N 96.38" 4 Drawer Refrigerated Chef Base with Insulated Top - 115 Volts

MPN#: TCBE-96SDR-N
Free Freight?
Quick Ship
Retail Price:$20,651.00 $7,713.15 /
Retail Price:$20,651.00 $7,713.15 /
or enjoy small payments $165.76/mo.
Lease Payment Calculate
Product Protection
Product Protection
Starting at
Reward Points
Reward Points
You will earn 7713
  • Standard 3 year parts & labor warranty
  • 2023 model, meets the newest EPA and DOE codes.
Additional Options and Accessories are Available.
Please call:
1 (800) 555-0666

Turbo Air TCBE-96SDR-N Specifications

Width Range95 to 120 Inches
Control TypeDigital
Top StyleInsulated
ConstructionStainless Steel
BrandTurbo Air
Refrigerant TypeR-290
Certifications5-15P
Refrigeration SystemSelf-contained
Capacity13 - 20 cu. ft.
Compressor LocationSide Mounted
Number of Drawers4
Sections2
Voltage115 Volts
Width (in)96.38
Height (in)25.25
Depth (in)32
Weight517.00

Additional Information on Turbo Air TCBE-96SDR-N

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Turbo Air TCBE-96SDR-N Certifications

5-15P

5-15P

Two-pole with ground pin plug

ETL

ETL

The ETL Mark is proof of product compliance to North American safety standards.

ETL-Sanitation

ETL-Sanitation

This item meets the sanitation standards imposed by the ETL, a division of the Intertek Group.

Turbo Air TCBE-96SDR-N Description

Super Deluxe Chef Base Refrigerator, 96-3/8"W x 32"D x 20-1/4"H, 18.6 cu. ft. side mounted self-contained refrigeration system, self-cleaning condenser device, (4) durable drawers with recessed handles, accommodates pans up to 6" deep, capacity: (3) full size pans per drawer (NOT included) 16 ga. stainless steel one-piece reinforced insulated top, stainless steel front & sides, digital temperature display, R290 Hydrocarbon refrigerant, 2/5 HP, 115v/60/1-ph, 6.3 amps, NEMA 5-15P, cETLus, ETL-Sanitation

The Turbo-Air TCBE-94SDR-N is a super deluxe refrigerated base designed to support 1,192 lbs. of equipment. This front-breathing side-mount unit provides a sturdy base to mount your kitchen equipment while opening up extra refrigerated space for your food items.

Robust Construction

To ensure that the Turbo-Air TCBE-94SDR-N can provide maximum support for your range, griddle, or broiler, this refrigerated base is built with 16-gauge stainless steel front and side panels for ultimate durability.

Ergonomic Door Handles

Each of the 4 stainless steel drawers has easy-grip handles that are recessed into the panels, allowing you to grip them with ease and comfort.

Spacious Refrigerated Storage Space

This unit can handle a total of 18.6 cu. ft. of ingredients, providing plenty of space for keeping additional food items under your kitchen equipment. The interior can hold up to (72) 1/6 size food pans with a depth of 4”.

Powerful Insulation

The Turbo-Air TCBE-96SDR-N has a one-piece stainless steel top that is fully insulated to prevent the refrigerated base from absorbing heat from the cooking equipment. The entire cabinet uses foamed-in-place polyurethane insulation to ensure that the low temperatures remain inside. This unit has a temperature range of 33° F to 38° F.

Easy Maintenance

To reduce time during cleanup and maintenance, this refrigerated base uses Turbo-Air’s patent-pending self-cleaning condenser. The condenser uses a rotating brush, which automatically moves up and down 2 to 3 times every day to remove dust and prevent buildup.

Movable Refrigerated Base

The Turbo-Air TCBE-96SDR-N has 5” durable casters that allow you to move it easily around the kitchen. Stainless steel legs are also available for an additional fee if you prefer a stationary unit.

Environment-Friendly Refrigerant

To ensure that your business complies with all environmental requirements, this unit runs on R290 refrigerant. This refrigerant is a hydrocarbon refrigerant that does not harm the ozone layer and has minimal impact on global warming.

Energy Requirements

The Turbo-Air TCBE-96SDR-N is powered by a 1/3 HP compressor. It has a voltage of 115v/60/1-ph.

Approved by Certification Bodies

This unit is certified by cETLus and ETL-Sanitation


Standard Features and Benefits:
  • Countertops
  • Self-contained system
  • Side mount compressor unit
  • Durable stainless steel drawers
  • Hydrocarbon refrigerants (R-290)
  • High-density polyurethane insulation
  • Strong body and durable construction
  • Digital temperature display on front panel
  • Refrigerator holds 33°F ~ 38°F for the best in food preservation
  • Top is insulated to eliminate heat transfer to the interior of cabinet
Other Features
  • Self-Cleaning Condenser
  • 4” dia. swivel casters standard
  • Anti-corrosion coated evaporator

Options for Turbo Air TCBE-96SDR-N

Additional freight options
Mounting options
What is included
  • Compressor warranty: 7 year compressor warranty (self-contained only),
  • Standard warranty: 5 year parts & labor warranty, standard
