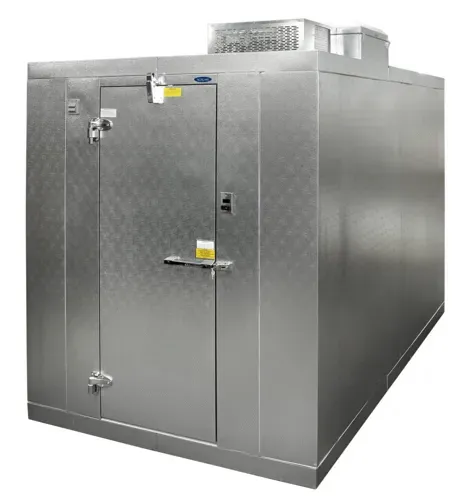

Nor-Lake KLB77614-C Walk-In Cooler & Top Mounted Compressor
- A refrigeration Technician is not required.
- 2023 model, meets the newest EPA and DOE codes.
- Our Exclusive FREE extras:
- Stainless Steel 30'' x 36'' door kick-plate
- Standard features
- Full 4” thick panels foamed-in-place with HFC-245fa polyurethane insulation which is CFC and HCFC free
- Free electronic controls and digital thermometer
- Note! Refrigeration systems weigh 175lbs to 350lbs. and may require a hoist. The electrical hook-up may require a licensed electrician.
Nor-Lake KLB77614-C Specifications
Nominal Depth | 14 Feet |
---|---|
Nominal Width | 6 Feet |
Brand | Nor-Lake |
Refrigerant Type | R-290 |
Refrigeration Mounted | Top |
Made in | USA |
Shipping | Quick Ship Model |
Category | Walk In Cooler, Modular, Self-Contained |
Compressor Location | Top Mounted |
With Floor | Floor Included |
Usage | Indoor |
Voltage | 115 Volts |
Width (in) | 72 |
Height (in) | 91 |
Depth (in) | 168 |
Weight | 1922.00 |
Additional Information on Nor-Lake KLB77614-C
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Nor-Lake KLB77614-C Description
To store and access large stores of refrigerated goods reliably and efficiently an indoor walk-in cooler like the KLB77614-C 6' x 14' x 7'-7" H Kold Locker from NorLake is the best option. A total of 490 cu. ft. of refrigerated space is offered by this walk-in coolers with top mounted compressor .
The 4” thick wall panels feature 26 gauge steel on both sides protected by stucco-embossed corrosion-resistant coatings. To achieve an R-value of 25 foamed-in-place polyurethane insulation makes up the majority of each panel. Connecting panels together is easy with female and male rails that provide a perfect fit that allows the foamed-in-place cam locking fasteners to fully tighten to make an airtight connection. Around the outer perimeter, a continuous panel gasket provides a barrier that is free from cuts or breaks. The edge caps on the ceiling and floor panels are foamed-in-place to secure them for the life of the walk-in unit.
To prevent airflow, the door has a stepped profile to keep the heat out efficiently. At 26 inches wide, the standard door provides easy access to the interior. The door can have its two cam-lift hinges installed on either the right or left. These hinges are field-adjustable to make sure the door opens and closes smoothly while providing a secure seal. A spring-assisted door closer is included to make sure the door is never left ajar. The pre-hung door comes in a 4’ wide panel complete with magnetic stainless steel trim, vapor proof LED lighting with a switch connected to an external indicator light, perimeter heater wire (replaceable), and a digital thermometer. To keep the contents secure, this walk-in comes with an NL 9800 deadbolt handle with an independent key/padlock feature. To make sure workers never get locked in the interior of the door panel has a safety release.
To keep items inside between 35°F and 38°F this walk-in features the RCPB075JC-S-4-EV Capsule Pak Refrigeration system that produces 6250 BTU/hr. To control the temperature precisely the Capsule Pak refrigeration unit comes with the Enviro-Control™ electronic controller. This electronic control is used to set the temperature, defrost timer, and can also be used to manually defrost the unit. A condensate vaporizer is included with the unit (shipped loose and requires field wiring) to eliminate the need for a drain line.
Standard Features:
- STANDARD MODELS SHIP THE SAME DAY
- DOE compliant
- USDA accepted
- Magnetic gasket
- 15 year panel warranty
- Cooler or freezer models
- Indoor or outdoor models
- 26" wide, self-closing door
- CN UL flame spread listed
- Perimeter door heater wire
- Floor double sweep gasket
- Spring actuated door closer
- Sizes from 4' x 6' to 10' x 14'
- Two temperatures: +35°F, -10°F
- 18 months parts & labor warranty
- Digital thermometer and light switch
- Heavy duty adjustable cam-lift hinges
- Three heights: 6'7" & 7'7" with floor; 7'4" floorless
- Air-cooled condensing unit (wall mount - 10 day ship)
- Smooth aluminum interior floor (on models with floor)
- Floorless models supplied with NSF listed vinyl sealers
- Oregon State listed, City of Houston listed & California State listed
- Automatic condensate vaporizer. No drain line required on indoor units
- Capsule Pak™ refrigeration system (ceiling or wall mount) (ordered separately)
- Full 4" thick panels foamed-in-place with EPA-compliant polyurethane insulation
- Deadbolt locking handle with independent key/padlock feature and inside safety release
- Time clock or electronic control provided for automatic defrost on both coolers and freezers
- 26 gauge corrosion resistant stucco embossed coated steel on all surfaces except interior floor
- NSF, UL flame spread 25 or less on all foam cores; UL and CSA electrical listing on door sections
- UL, C-UL listing on complete Capsule Pak™ refrigeration systems (see page 11 for listed components)
- High output low profile LED light positioned above the door to prevent interference with shelving or product
- Hot gas condensate vaporizer available on many models
- Refrigeration hood
- -20°F ambient controls
- White membrane roof and trim
- Exterior ramp
- Electric vaporizer
- Floor tread plate kit
- U-shaped shelving system
- Door hood (outdoor models)
- Five year compressor warranty
- Condensing unit air deflector kit
- Heights: 8'7" with floor, 8'4" without floor
- Leak detector/alarm (may be a requirement in some areas)
- Heater kit for outdoor use where ambient conditions may go below 32°F
- Note: (Most options are available two weeks from receipt of order. Please contact us for specific questions)
