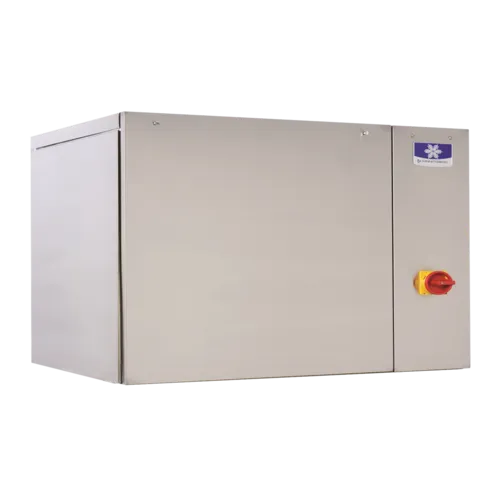

Manitowoc IDT1900WM 48" Full-Dice Ice Maker, Cube-Style - 1500-2000 lbs/24 Hr Ice Production, Water-Cooled, 208-230 Volts

Indigo NXT™ Series Marine Ice Maker, cube-style, water-cooled, self-contained condenser, 48"W x 24"D x 29-1/2"H, production capacity up to 1770 lb/24 hours at 70°/50° (1575 lb AHRI certified at 90°/70°), isolation switch, removable top cover, back & sides, stainless steel bulkhead, stainless steel exterior, dice size cubes, R410 refrigerant, NSF, cULus

The IDT-1900WM Marine from the popular Indigo NXT™ Series by Manitowoc Ice is a specialty water-cooled ice machine perfect for operators that need to produce up to 1,870 lbs of full dice ice on board a yacht or other similar locations with challenging environments. This cubes commercial ice machine boasts improved performance levels, using 10 % less potable water, 23 % less in condenser water usage, and 10-15% less energy in comparison with previous models.

Designed to withstand heavy use and harsher environments, this Indigo Series ice machine features a high-grade stainless steel exterior that minimizes corrosion to prolong the service life of the unit. The condenser is made of cupro-nickel for superior resistance to saltwater damage. This Manitowoc Ice unit comes completely sealed from the front, top, bottom, and sides for added protection.

An isolation switch enables you to immediately cut the power off the unit as needed. This assures the safety of your staff when doing electrical work and servicing. You won't have to manually operate this ice machine to do important tasks; it can initiate a cleaning cycle automatically and then resume ice production after.

The Manitowoc IDT-1900WM Marine is an ice machine head only unit that features a self-contained refrigeration system and comes with NSF and cULus certifications.

Less Energy and Water Consumption For Greater Production

• 23% reduction in condenser water usage
• 10% reduction in potable water usage
• 10-15% less energy consumption

Simple Operation and Reduced Labor

• Goes into cleaning mode and returns to ice production on its own
• Isolation switch on the side isolates power during maintenance and service

Dice Ice Fast Facts

• Dimensions: 7/8" x 7/8" x 7/8"
• 48 rhomboid-shaped cubes per pound of ice
• Fast and low-cost to produce
• Slow melt rate for reduced ice consumption
• Close to perfect ice-to-water ratio for maximum cooling
• Drinks and bulk cooling

Specifications:

• Production: Up to 1,870 lbs of dice ice every 24 hours
• Ambient Temperature Range: 40-110  °F
• Water Temperature Range for Potable Water: 40-90  °F
• Water Pressure Ice Maker Water In: 20 psi (137.9 kPA) to 80 psi (551.1 kPA)
• Condenser Inlet Water In: 20 psi (137.9 kPA) to 150 psi (1,034.2 kPA)
• Refrigerant: CFC-Free R404A
• Overall Dimensions: 47" x 24 1/2" x 29 1/2"
• Electrical Connection: 208-230/60/1 available
• Minimum Circuit Ampacity: 16.5/1ph, 12.8/3ph
• Maximum Fuse Size: 25 amps/1ph, 20 amps/3ph
• BTUH: 26,100 (average) 30,500 (Peak)
• Safety Certifications: NSF, cULus
• AHRI Certification at 90°/70°
