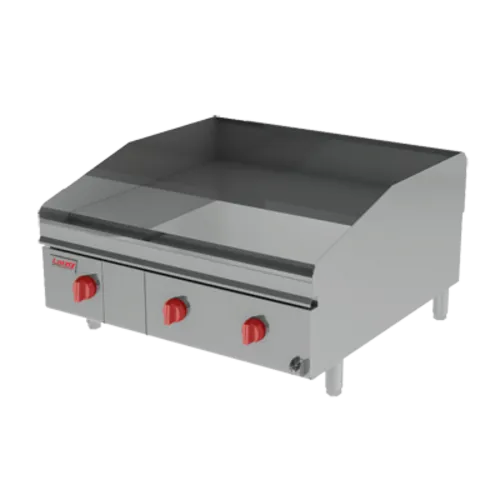

Lang Manufacturing 236ZSD LG Series 36'' Countertop Gas Griddle with Thermostatic Controls - 105,000 BTU
MPN#: 236ZSD
1/5
Free Freight?
Quick Ship
$13,122.00
Calculate
Product Protection
Starting at
Lang Manufacturing 236ZSD Specifications
| Plate Thickness | 1 Inch |
|---|---|
| Total BTU | 105000 - 156000 |
| Installation Type | Countertop |
| Series | LG Series |
| Power Type | Natural or Propane Gas |
| Construction | Stainless Steel |
| Cooking Surface Material | Stainless Steel |
| With Griddle | Yes |
| Brand | Lang Manufacturing |
| BTU | 105,000 BTU |
| Certifications | 5-15P |
| Number of Burners | 3 |
| Control Type | Thermostatic |
| Heat | Gas |
| Usage | Standard Duty |
| Voltage | 120 Volts |
| Width (in) | 36 |
| Height (in) | 16.4 |
| Depth (in) | 37.25 |
| Weight | 500.00 |
Additional Information on Lang Manufacturing 236ZSD
warrantysheet.pdf
buyingguide.pdf
middlebyfinancialflyer.pdf
installationoperation.pdf
lang-manufacturing-236zsdspecsheet.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Lang Manufacturing 236ZSD Certifications
5-15P
Two-pole with ground pin plug
ETL
The ETL Mark is proof of product compliance to North American safety standards.
ETL-Sanitation
This item meets the sanitation standards imposed by the ETL, a division of the Intertek Group.
Lang Manufacturing 236ZSD Description
LG Series Commercial Griddle, gas, countertop, 36" W x 30" D cooking surface, 1" thick smooth steel griddle plate, 175° - 450° F solid state thermostats with pilot safety, welded steel frame with stainless steel exterior, 5" tapered wrap-around splash guard, 3-1/2" front grease trough, 8 qt. stainless steel grease drawer, 4" stainless steel legs with 1-5/8" adjustment, 105,000 BTU, 120v/60/1-ph, NEMA 5-15P, cETLus, ETL-Sanitation
LG Series Commercial Countertop Griddle, gas, 36" W x 30" D cooking surface, 1" thick smooth steel griddle plate, 175° - 450° F solid state thermostats with pilot safety, welded steel frame with stainless steel exterior, 5" tapered wrap-around splash guard, 3-1/2" front grease trough, 8 qt. stainless steel grease drawer, 4" stainless steel legs with 1-5/8" adjustment, 105,000 BTU, 120v/60/1-ph, NEMA 5-15P, cETLus, ETL-Sanitation (more commercial grills, commercial restaurant ranges, and cooking equipment available)
Construction Features
Construction Features
- Double wall base construction
- Heat shield provided below burners
- Aluminized burner system spaced every 12”
- 4” adjustable legs provided (Stand option available)
- 1” thick precision machined, polished steel cooking surface
- Full front 3-1/2” wide X 1” deep stainless steel grease trough
- Continuously bottom welded 5-1/2” high rear & side splash shields
- One or two (48”, 60” & 72” models) drops provided to one or two grease drawers
Performance Features
- Thick griddle plate reduces hot & cold spots and retains heat Highly
- Double wall construction and heat shells reduce side, back and bottom clearances
- Polished surface and continuously welded splash and grease trough speed cleanup
- Electronic spark ignition, double wall construction and heats shields increase operating efficiency
Control Package (Specify One)
- ACCU-TEMP™ Thermostat Controls (-ZTD)
- Snap-action thermostats
- Electronic ignition, griddle-ON switch
- 200˚ and 550˚F temperature control range
- Independent temperature control every 12”
- SELECTRONIC™ Solid State Controls (-ZSD)
- 175˚ to 450˚F temperature control
- Control for every 12” of cook surface
- RTD probe reacts to a 1˚F temperature change
- Area sensitive Resistance Temperature Detector system
