John Boos E3S8-24-14T24-X Commercial Sink, (3) Three Compartment, 18 Gauge Stainless Steel Construction with Galvanized Steel Legs and with 2 Drainboards - 120" W
MPN#: E3S8-24-14T24-X

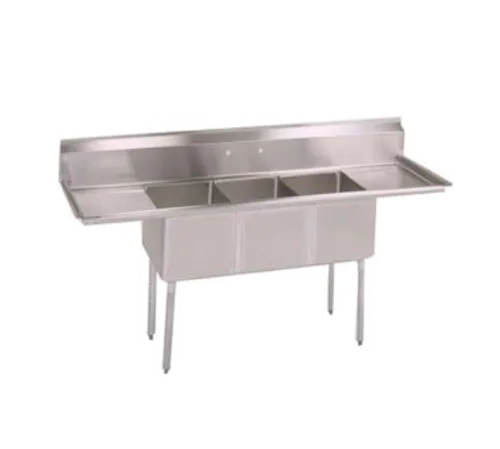

Photo may not represent the actual product.
Always refer to the description and spec sheet (if available).
Free Freight?
Quick Ship
$1,454.13
Product Protection
Starting at
John Boos E3S8-24-14T24-X Accessories
John Boos PRW15-X Pot Rack
$366.45
John Boos PRW14-X Pot Rack
$330.75
John Boos PRW13-X Pot Rack
$176.40
John Boos PRW12-X Pot Rack
$144.90
John Boos PRW11-X Pot Rack
$129.15
John Boos PRW21-X Pot Rack
$320.25
John Boos PRW22-X Pot Rack
$360.15
John Boos PRW23-X Pot Rack
$403.20
John Boos PRW24-X Pot Rack
$523.95
John Boos PRW25-X Pot Rack
$718.20
Description
John Boos E3S8-24-14T24-X Description
E-Series Sink, 3-compartment,120"W x 29-1/2"D x 43-3/4"H overall size, (3) 24"W x 24" front-to-back x 14" deep compartments, (2) 24" left & right drainboards, 9-3/4"H boxed backsplash with 45° top and 2" return, (2) sets of splash mount faucet holes with 8" centers, 3-1/2" diameter die-stamped drain openings, 18/300 stainless steel, galvanized legs & gussets, adjustable plastic bullet feet, NSF, CSA-Sanitation (Available in Effingham)
Standard Features:
- 18ga Stainless Steel
- 1 1/8" Faucet Holes in Backsplash
- Standard Stainless Steel Legs 1-5/8" Diameter
- 12" & T14" Deep Three Compartment Sink Bowls
- Type 300 Stainless Steel With #4 Polish, Satin Finish
- All Corners, both Vertical and Horizontal, Coved at 3/4" Radius
- All Outside Corners of Assembly are Bullnosed to Provide Safe, Clean, and Polished Edge
- Full Length 9 3/4" High Boxed Backsplash, with 2" Return to Wall at 45 Degree & 1" Tile Edge
- Bottoms of Commercial Sink Bowls Formed for Drainage to 3-1/2" Diameter Die Stamped Opening
- Note: More Restaurant Equipment, Compartment Sinks & Underbar Sinks are available
Construction
- Base: Galvanized Base
- Top: Stainless Steel Sinks are TIG Welded, Exposed welds are Polished to Match Adjacent Surface
Material
- Gussets: Galvanized Steel
- Feet: 1" AdjustablePlastic Bullet Feet
- Legs: 1-5/8" Round O.D. Galvanized Steel
- Bowls & Top: 18ga Type 300 Stainless Steel with #4 Polish, Satin Finish
Options
Q & A
John Boos E3S8-24-14T24-X Specifications
| Leg Construction | Galvanized Steel Legs |
|---|---|
| Drainboard Types | Left & Right |
| Construction | Stainless and Galvanized Steel |
| Drainboards | with 2 Drainboards |
| Brand | John Boos |
| Number of Drainboards | 2 |
| Certifications | NSF |
| Number of Compartments | 3 |
| Gauge | 18 Gauge |
| Material | Stainless Steel |
| Width (in) | 120 |
| Height (in) | 43.75 |
| Depth (in) | 29.50 |
| Weight | 140.00 |
Additional Information on John Boos E3S8-24-14T24-X
John Boos E3S8-24-14T24-X Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
Compare John Boos E3S8-24-14T24-X to Other Products
Rating
Price
Width (in)
Depth (in)
Height (in)
Gauge
Material
Number of Drainboards
Drainboard Types
Price
$1,454.13 120
29.50
43.75
18 Gauge
Stainless Steel
2
Left & Right
Price
$3,733.00 84
25.50
43.75
18 Gauge
Stainless Steel
2
Left & Right
Price
$1,428.00 96
26
42
16 Gauge
Stainless Steel
2
Left & Right
Price
$1,428.00 102
24
43
16 Gauge
Stainless Steel
2
Left & Right
Price
$3,700.00 102
23.50
43.75
18 Gauge
Stainless Steel
2
Left & Right
Price
$1,436.82 61.38
25
43.5
16 Gauge
Stainless Steel
0
