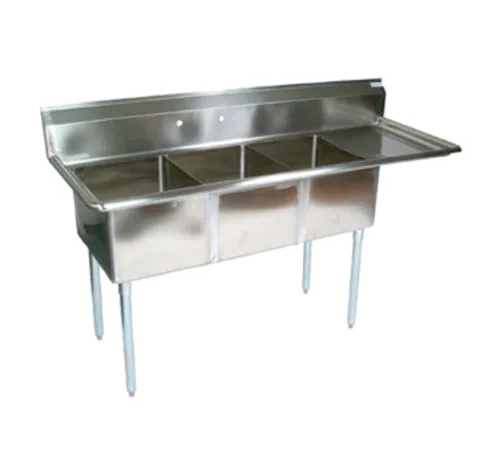

John Boos E3S8-1824-14R24-X Commercial Sink, (3) Three Compartment, 18 Gauge Stainless Steel Construction with Galvanized Steel Legs and With Right-hand Drainboard - 80.5" W
MPN#: E3S8-1824-14R24-X
Free Freight?
Quick Ship
$1,136.34
Calculate
Product Protection
Starting at
John Boos E3S8-1824-14R24-X Specifications
| Leg Construction | Galvanized Steel Legs |
|---|---|
| Drainboard Types | Right |
| Construction | Stainless and Galvanized Steel |
| Brand | John Boos |
| Number of Drainboards | 1 |
| Certifications | NSF |
| Number of Compartments | 3 |
| Drainboards | With Right-hand Drainboard |
| Gauge | 18 Gauge |
| Material | Stainless Steel |
| Width (in) | 80.5 |
| Height (in) | 43.75 |
| Depth (in) | 29.50 |
| Weight | 111.00 |
Additional Information on John Boos E3S8-1824-14R24-X
caremaintenance.pdf
john-boos-e3s8-1824-14r24-x.specsheet.pdf
instructions.pdf
john-boos-e3s8-1824-14r24-x.specsheet.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
John Boos E3S8-1824-14R24-X Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
John Boos E3S8-1824-14R24-X Description
E-Series Sink, 3-compartment, 80-1/2"W x 29-1/2"D x 43-3/4"H overall size, (3) 18"W x 24" front-to-back x 14" deep compartments, (1) 24" right drainboard, 9-3/4"H boxed backsplash with 45° top and 2" return, (1) set of splash mount faucet holes with 8" centers, 3-1/2" diameter die-stamped drain openings, 18/300 stainless steel, galvanized legs & gussets, adjustable plastic bullet feet, NSF, CSA-Sanitation (Available in Effingham)
Standard Features:
- 18ga Stainless Steel
- 1 1/8" Faucet Holes in Backsplash
- 14" Deep Three Compartment Sink Bowls
- Standard Stainless Steel Legs 1-5/8" Diameter
- Type 300 Stainless Steel With #4 Polish, Satin Finish
- All Corners, both Vertical and Horizontal, Coved at 3/4" Radius
- All Outside Corners of Assembly are Bullnosed to Provide Safe, Clean, and Polished Edge
- Full Length 9 3/4" High Boxed Backsplash, with 2" Return to Wall at 45 Degree & 1" Tile Edge
- Bottoms of Commercial Sink Bowls Formed for Drainage to 3-1/2" Diameter Die Stamped Opening
- Note: More Restaurant Equipment, Compartment Sinks & Underbar Sinks are available
Construction
- Base: Galvanized Base
- Top: Stainless Steel Sinks are TIG Welded, Exposed welds are Polished to Match Adjacent Surface
Material
- Gussets: Galvanized Steel
- Feet: 1" AdjustablePlastic Bullet Feet
- Legs: 1-5/8" Round O.D. Galvanized Steel
- Bowls & Top: 18ga Type 300 Stainless Steel with #4 Polish, Satin Finish
John Boos E3S8-1824-14R24-X Accessories
$191.53
$170.13
$148.73
$128.40
$107.00
$85.60
$242.89
$215.07
$182.97
$164.78
$120.91
John Boos E3S8-1824-14R24-X Reviews
There are no reviews yet for this product.
