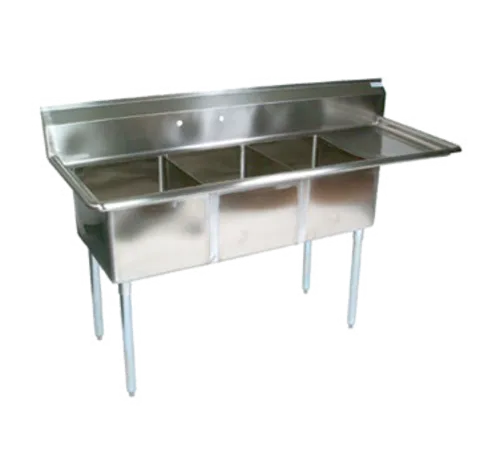

John Boos E3S8-18-12R18 Commercial Sink, (3) Three Compartment, 18 Gauge Stainless Steel Construction with Galvanized Steel Legs and With Right-hand Drainboard - 74.5" W
MPN#: E3S8-18-12R18
Free Freight?
Quick Ship
$3,028.00 /
Calculate
Product Protection
Starting at
John Boos E3S8-18-12R18 Specifications
| Leg Construction | Galvanized Steel Legs |
|---|---|
| Drainboard Types | Right |
| Construction | Stainless and Galvanized Steel |
| Brand | John Boos |
| Number of Drainboards | 1 |
| Certifications | NSF |
| Number of Compartments | 3 |
| Drainboards | With Right-hand Drainboard |
| Gauge | 18 Gauge |
| Material | Stainless Steel |
| Width (in) | 74.5 |
| Height (in) | 43.75 |
| Depth (in) | 23.50 |
| Weight | 88.00 |
Additional Information on John Boos E3S8-18-12R18
caremaintenance.pdf
john-boos-e3s8-18-12r18.specsheet.pdf
instructions.pdf
john-boos-e3s8-18-12r18.specsheet.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
John Boos E3S8-18-12R18 Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
John Boos E3S8-18-12R18 Description
E-Series Sink, 3-compartment, 74-1/2"W x 23-1/2"D x 43-3/4"H overall size, (3) 18"W x 18" front-to-back x 12" deep compartments, (1) 18" right drainboard, 9-3/4"H boxed backsplash with 45° top and 2" return, (1) set of splash mount faucet holes with 8" centers, 3-1/2" diameter die-stamped drain openings, 18/300 stainless steel, galvanized legs & gussets, adjustable plastic bullet feet, NSF, CSA-Sanitation
Standard Features:
- 18ga Stainless Steel
- 1 1/8" Faucet Holes in Backsplash
- 14" Deep Three Compartment Sink Bowls
- Standard Stainless Steel Legs 1-5/8" Diameter
- Type 300 Stainless Steel With #4 Polish, Satin Finish
- All Corners, both Vertical and Horizontal, Coved at 3/4" Radius
- All Outside Corners of Assembly are Bullnosed to Provide Safe, Clean, and Polished Edge
- Full Length 9 3/4" High Boxed Backsplash, with 2" Return to Wall at 45 Degree & 1" Tile Edge
- Bottoms of Commercial Sink Bowls Formed for Drainage to 3-1/2" Diameter Die Stamped Opening
- Note: More Restaurant Equipment, Compartment Sinks & Underbar Sinks are available
Construction
- Base: Galvanized Base
- Top: Stainless Steel Sinks are TIG Welded, Exposed welds are Polished to Match Adjacent Surface
Material
- Gussets: Galvanized Steel
- Feet: 1" AdjustablePlastic Bullet Feet
- Legs: 1-5/8" Round O.D. Galvanized Steel
- Bowls & Top: 18ga Type 300 Stainless Steel with #4 Polish, Satin Finish
