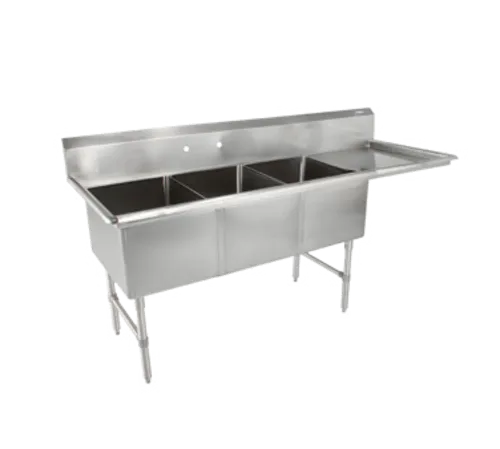

John Boos 3B16204-1D18R-X Commercial Sink, (3) Three Compartment, 16 Gauge Stainless Steel Construction with Stainless Steel Legs and With Right-hand Drainboard - 70" W
MPN#: 3B16204-1D18R-X
Free Freight?
Quick Ship
$1,336.65 /
Calculate
Product Protection
Starting at
John Boos 3B16204-1D18R-X Specifications
| Drainboard Types | Right |
|---|---|
| Leg Construction | Stainless Steel Legs |
| Brand | John Boos |
| Number of Drainboards | 1 |
| Gauge | 16 Gauge |
| Certifications | NSF |
| Number of Compartments | 3 |
| Drainboards | With Right-hand Drainboard |
| Material | Stainless Steel |
| Width (in) | 70 |
| Height (in) | 44.00 |
| Depth (in) | 25.50 |
| Weight | 113.00 |
Additional Information on John Boos 3B16204-1D18R-X
caremaintenance.pdf
john-boos-3b16204-1d18r-x.specsheet.pdf
instructions.pdf
john-boos-3b16204-1d18r-x.specsheet.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
John Boos 3B16204-1D18R-X Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
John Boos 3B16204-1D18R-X Description
"B" Series Sink, 3-compartment, 70"W x 25-1/2"D x 44"H overall size, (3) 16"W x 20" front-to-back x 14" deep compartments, (1) 18" right drainboard, 10"H boxed backsplash with 45° top and 2" return, (1) set of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain openings, 16/300 stainless steel construction, stainless steel legs, adjustable side bracing, adjustable bullet feet, NSF, CSA-Sanitation (Available in Effingham and Nevada)
Standard Features:
- 16ga Stainless Steel
- 1" Faucet Holes in Backsplash
- 14" Deep Three Compartment Sink Bowls
- Standard Stainless Steel Legs 1-5/8" Diameter
- Type 300 Stainless Steel With #4 Polish, Satin Finish
- All Corners, both Vertical and Horizontal, Coved at 3/4" Radius
- All Outside Corners of Assembly are Bullnosed to Provide Safe, Clean, and Polished Edge
- Bottoms of Commercial Sink Bowls Formed for Drainage to 3-1/2" Diameter Die Stamped Opening
- Full Length 10" High Boxed Backsplash, with 2" Return to Wall at 45 Degree and 1" Turned Down Rear Lip
- Note: More Restaurant Equipment, Compartment Sinks & Underbar Sinks are available
Construction
- Base: Stainless Steel Bases are MIG Welded
- Top: Stainless Steel Sinks are TIG Welded, Exposed welds are Polished to Match Adjacent Surface
Material
- Gussets: Stainless Steel
- Legs: 1-5/8" Round O.D. Stainless Steel
- Bracing: 1-1/4" Round O.D. Stainless Steel
- Feet: 1" Adjustable Stainless Steel Bullet Feet
- Bowls & Top: 16ga Type 300 Stainless Steel with #4 Polish, Satin Finish
John Boos 3B16204-1D18R-X Accessories
$191.53
$170.13
$148.73
$128.40
$107.00
$85.60
$242.89
$215.07
$182.97
$164.78
$120.91
John Boos 3B16204-1D18R-X Reviews
There are no reviews yet for this product.
