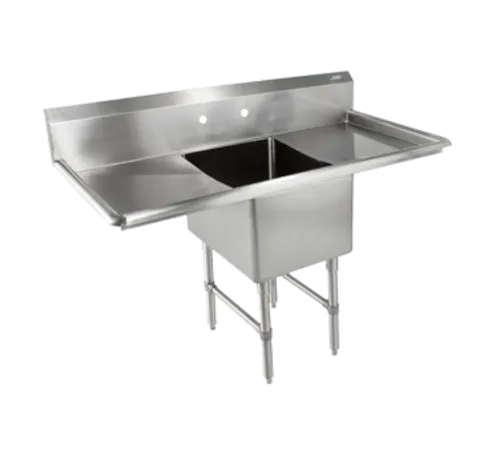

John Boos 1B16204-2D18-X Commercial Sink, (1) One Compartment, 16 Gauge Stainless Steel Construction with Stainless Steel Legs and with 2 Drainboards - 55.00" W
MPN#: 1B16204-2D18-X
Photo may not represent the actual product.
Always refer to the description and spec sheet (if available).
Free Freight?
Quick Ship
$771.75
Product Protection
Starting at
John Boos 1B16204-2D18-X Accessories
John Boos PRW15-X Pot Rack
$366.45
John Boos PRW14-X Pot Rack
$330.75
John Boos PRW13-X Pot Rack
$176.40
John Boos PRW12-X Pot Rack
$144.90
John Boos PRW11-X Pot Rack
$129.15
John Boos PRW21-X Pot Rack
$320.25
John Boos PRW22-X Pot Rack
$360.15
John Boos PRW23-X Pot Rack
$403.20
John Boos PRW24-X Pot Rack
$523.95
John Boos PRW25-X Pot Rack
$718.20
Description
John Boos 1B16204-2D18-X Description
"B" Series Sink, 1-compartment, 55"W x 25-1/2"D x 44"H overall size, (1) 16"W x 20" front-to-back x 14" deep compartment, (2) 18" left & right drainboards, 10"H boxed backsplash with 45° top and 2" return, (1) set of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain opening, 16/300 stainless steel construction, stainless steel legs, adjustable side bracing, adjustable bullet feet, NSF, CSA-Sanitation (Available in Effingham and Nevada)
Standard Features:
- 1" Faucet Holes in Backsplash
- 16ga Stainless Steel Commercial Sink
- 14" Deep One Compartment Sink Bowls
- Standard Stainless Steel Legs 1-5/8" Diameter
- Type 300 Stainless Steel with #4 Polish, Satin Finish
- More Restaurant Equipment & Underbar Sink Are Available
- All Corners, both Vertical and Horizontal, Coved At 3/4" Radius
- Bottoms of Bowls Formed for Drainage to 3-1/2" Diameter Die Stamped Opening
- All Outside Corners of Assembly are Bullnosed to Provide Safe, Clean, and Polished Edge
- Full Length 10" High Boxed Backsplash, with 2" Return to Wall at 45 Degree and 1" Turned Down Rear Lip
Construction:
- Base: Stainless Steel Frame is MIG Welded
- Top: Stainless Steel Sinks are TIG Welded, Exposed Welds are Polished to Match Adjacent Surface
Material:
- Gussets: Stainless Steel
- Legs: 1-5/8" Round O.D. Stainless Steel
- Bracing: 1-1/4" Round O.D. Stainless Steel
- Feet: 1" Adjustable Stainless Steel Bullet Feet
- Bowls & Top: 16ga Type 300 Stainless Steel with #4 Polish, Satin Finish
Options
Q & A
John Boos 1B16204-2D18-X Specifications
| Drainboard Types | Left & Right |
|---|---|
| Leg Construction | Stainless Steel Legs |
| Drainboards | with 2 Drainboards |
| Brand | John Boos |
| Number of Compartments | 1 |
| Stainless Steel Type | Type 300 |
| Gauge | 16 Gauge |
| Number of Drainboards | 2 |
| Certifications | NSF |
| Material | Stainless Steel |
| Width (in) | 55.00 |
| Height (in) | 44.00 |
| Depth (in) | 25.50 |
| Weight | 68.00 |
Additional Information on John Boos 1B16204-2D18-X
John Boos 1B16204-2D18-X Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
Compare John Boos 1B16204-2D18-X to Other Products
Rating
Price
Width (in)
Depth (in)
Height (in)
Gauge
Stainless Steel Type
Material
Number of Drainboards
Drainboard Types
Price
$771.75 55.00
25.50
44.00
16 Gauge
Type 300
Stainless Steel
2
Left & Right
Price
$771.57 24.00
27
37.00
16 Gauge
Type 430
Stainless Steel
0
Price
$770.23 25.38
25
43.5
16 Gauge
Type 304
Stainless Steel
0
Price
$773.80 18
21.5
41
16 Gauge
Type 300
Stainless Steel
0
Price
$769.65 29
30
43
16 Gauge
Type 304
Stainless Steel
0
Price
$775.95 24
27.5
39
16 Gauge
Type 300
Stainless Steel
0
