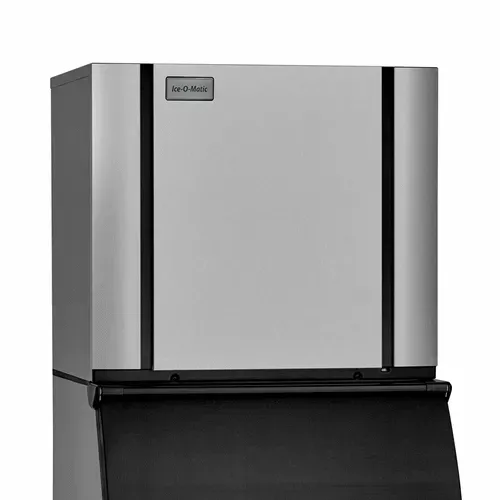

ICE-O-Matic CIM1136HA 30.25" Half-Dice Ice Maker, Cube-Style - 900-1000 lbs/24 Hr Ice Production, Air-Cooled, 208-230 Volts
Calculate
- Exclusive offer: 50% OFF (already discounted price) Ice-O-Matic matching filter.
- Better tasting ice
- 7 Year evaporator warranty w/filter purchase (see below)
- Reduce service calls by up to 65%
- 2023 model, meets the newest EPA and DOE codes.
ICE-O-Matic CIM1136HA Specifications
| Type of Cooling | Air-Cooled |
|---|---|
| 24 Hr Production | 900-1000 lbs |
| Type of Ice | Half-Dice |
| Brand | Ice-O-Matic |
| Made in | USA |
| Certifications | CE |
| Vendor | Ice-O-Matic |
| Voltage | 208-230 Volts |
| Width (in) | 30.25 |
| Height (in) | 26.9 |
| Depth (in) | 24.25 |
| Weight | 230.00 |
Additional Information on ICE-O-Matic CIM1136HA
warrantysheet.pdf
servicemanual.pdf
slopefrontstoragebins.pdf
ownersmanual.pdf
ice-o-matic-cim1136haspecsheet.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
ICE-O-Matic CIM1136HA Certifications
CE
The product complies with the essential requirements of the relevant European health, safety and environmental protection legislations.
cULus
UL (Underwriters Laboratories) approval for the US and Canada
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
ICE-O-Matic CIM1136HA Description
This Ice-O-Matic Ice Machine Elevation Series™ Modular Cube Ice Maker is rated to produce 932 lbs in a 24-hour period at an air and water temperature of 70°F and 50°F, respectively. This ice machine is self-contained and the condenser is air cooled. The half-dice ice produced by this cuber measures 7/8”x7/8”x3/8”. 5.1 kWh of power and 19 gallons of water are consumed for every 100 pounds of ice made. The power configuration of this unit is 208-230v/60/1-ph at 12.2 amps.
Ice production occurs inside the unit’s Plastic Food Zone which is made up of recyclable BPA-free parts. These parts are dishwasher safe making them easy to clean. The parts do not require tools to remove thanks to the snap-together construction. Accessing these parts for cleaning and maintenance is made convenient through the removable front panel. Agion® technology is included in this model to prevent microbial growth between cleaning sessions.
Ice-O-Matic Air Cooled Ice Machines provides crystal-clear ice with a full line of cubers, flakers and the patented Pearl Ice Machine. A premier manufacturer, distributor and supplier of commercial ice machines & ice machine head only.
- 30.25" (768 mm) wide space-saving design.
- Produces up to 1035 lbs (469 kg) of ice per day.
- Universal Smart Harness™ control board simplifies installation and servicing with better access, digital diagnostics, universal components and common configuration.
- Unique Dual Exhaust - Air-cooled machines are designed to discharge hot air from both the side and top of the unit, increasing installation flexibility and reducing the potential of obstructed exhaust.
- Energy and Environment
- Up to 20% more energy efficient than other models.
- Exceeds new 2018 DOE (Department of Energy) regulations.
- Environmentally friendly, including BPA-free plastic and recyclable parts.
- Sanitation
- Simple, one-touch controls for sanitization and descaling.
- BPA-free snap-in, snap-out dishwasher-safe components.
- Built in Agion® ensures unbeatable antimicrobial protection.
- Smart LED light indicates machine status and when cleaning is required.
- Plastic Food Zone eliminates hard-to-clean nooks and crannies, allowing for effortless wipe down and easy, long-lasting sanitation.
NOTE! This is a general product line video and does not necessarily reflect the listed model.
