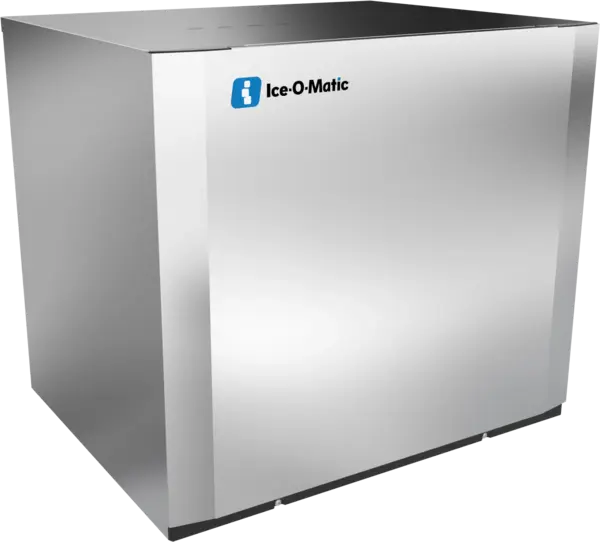

ICE-O-Matic CIM0836HW 30.25" Half-Dice Ice Maker, Cube-Style - 700-900 lb/24 Hr Ice Production, Water-Cooled, 208-230 Volts
Calculate
- 7 Year evaporator warranty w/filter purchase (see below)
- Exclusive offer: 50% OFF (already discounted price) Ice-O-Matic matching filter.
- Better tasting ice
- Reduce service calls by up to 65%
- 2023 model, meets the newest EPA and DOE codes.
ICE-O-Matic CIM0836HW Specifications
| Type of Cooling | Water-Cooled |
|---|---|
| 24 Hr Production | 700-900 lbs |
| Type of Ice | Half-Dice |
| Model | Elevation Series™ |
| Brand | Ice-O-Matic |
| Refrigerant Type | R-404A |
| Made in | USA |
| Certifications | CE |
| Vendor | Ice-O-Matic |
| Voltage | 208-230 Volts |
| Width (in) | 30.25 |
| Height (in) | 26.9 |
| Depth (in) | 24.25 |
| Weight | 210.00 |
Additional Information on ICE-O-Matic CIM0836HW
owner-s-manual.pdf
diagram.pdf
slope-front-storage-bins.pdf
brochure.pdf
service-manual.pdf
warranty-sheet.pdf

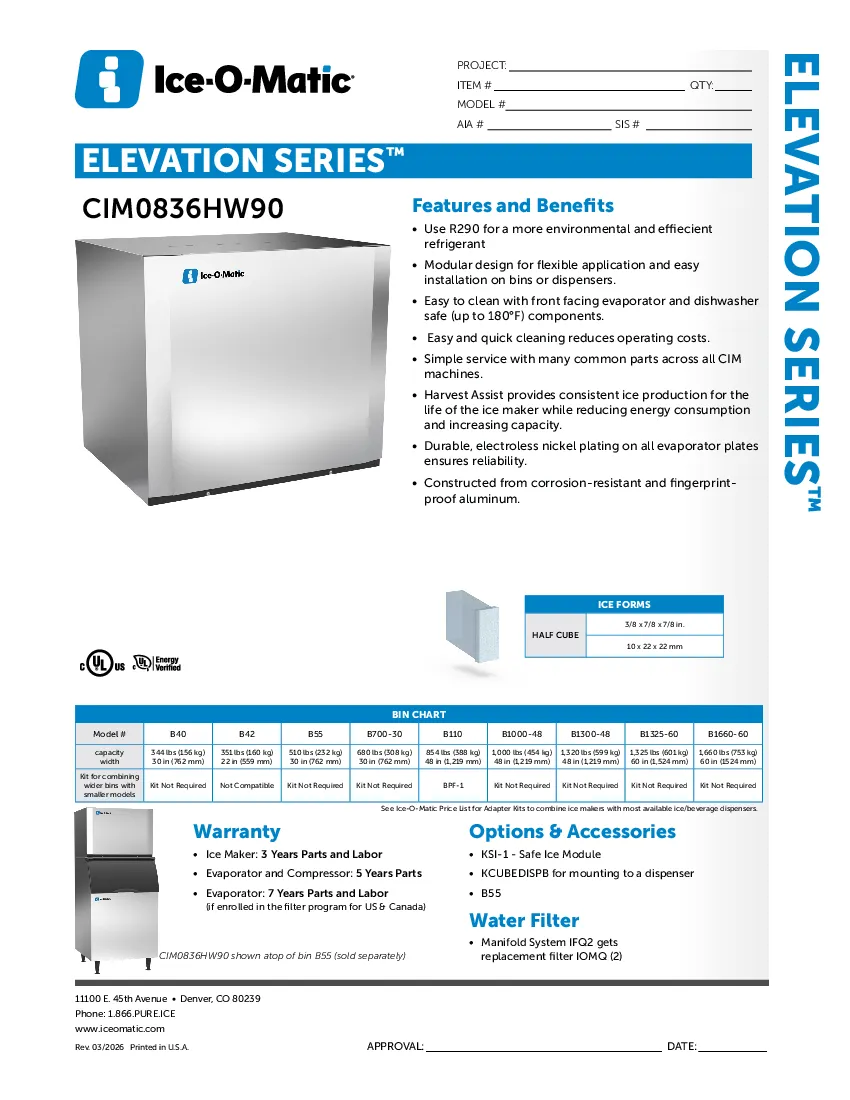

ice-o-matic-cim0836hw.specsheet.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
ICE-O-Matic CIM0836HW Certifications
CE
The product complies with the essential requirements of the relevant European health, safety and environmental protection legislations.
cULus
UL (Underwriters Laboratories) approval for the US and Canada
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
ICE-O-Matic CIM0836HW Description
This Ice-O-Matic Ice Machine is a Elevation Series Modular Cube Ice Maker that features a water cooled condenser that can produce up to 896 lbs every 24 hours under ideal conditions. This model produces half-dice ice with the dimensions 3/8” x7/8”x7/8”. Every 100 lbs of ice this unit produces requires 140 gallons of water for condenser cooling, 4.2 kWh of power, and 19 gallons of drinkable water.
This ice cuber features a Plastic Food Zone made up of recyclable BPA-free snap-together parts. Cleaning these parts is simple since they are safe to put in the dishwasher. The front panel is easy to remove with a minimal number of screws granting complete access to the Plastic Food Zone. Access through the front panel makes cleaning and maintenance convenient since the cuber does not need t ob e moved. An Agion® treatment protects components from bacteria to make sure ice is as pure as possible.
Ice-O-Matic Water Cooled Ice Machines provides crystal-clear ice with a full line of cubers, flakers and the patented Pearl Ice Machine. A premier manufacturer, distributor and supplier of commercial ice machines & ice machine head only.
- 30.25" (768 mm) wide space-saving design.
- Produces up to 922 lbs (418 kg) of ice per day.
- Universal Smart Harness™ control board simplifies installation and servicing with better access, digital diagnostics, universal components and common configuration.
- Unique Dual Exhaust - Air-cooled machines are designed to discharge hot air from both the side and top of the unit, increasing installation flexibility and reducing the potential of obstructed exhaust.
- Energy and Environment
- Up to 20% more energy efficient than other models.
- Exceeds new 2018 DOE (Department of Energy) regulations.
- Environmentally friendly, including BPA-free plastic and recyclable parts.
- Sanitation
- Simple, one-touch controls for sanitization and descaling.
- BPA-free snap-in, snap-out dishwasher-safe components.
- Built in Agion® ensures unbeatable antimicrobial protection.
- Smart LED light indicates machine status and when cleaning is required.
- Plastic Food Zone eliminates hard-to-clean nooks and crannies, allowing for effortless wipe down and easy, long-lasting sanitation.
NOTE! This is a general product line video and does not necessarily reflect the listed model.
