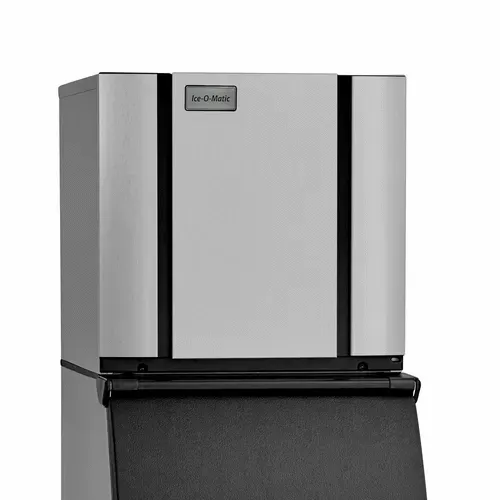

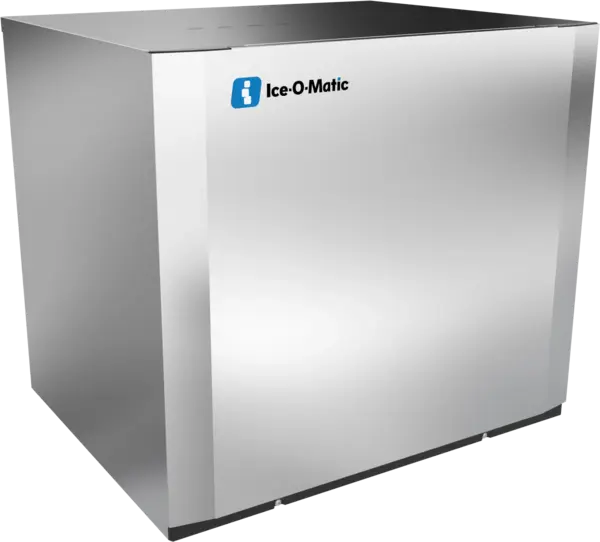

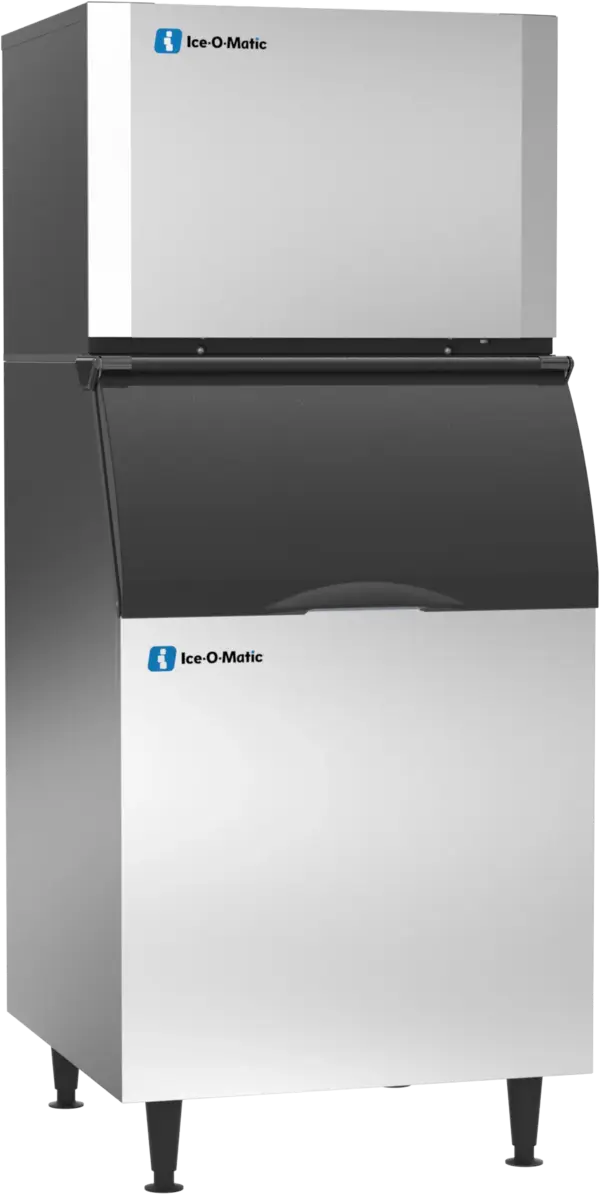

ICE-O-Matic CIM0836FW 30.25" Full-Dice Ice Maker, Cube-Style - 700-900 lb/24 Hr Ice Production, Water-Cooled, 208-230 Volts
Calculate
- Reduce service calls by up to 65%
- Better tasting ice
- Exclusive offer: 50% OFF (already discounted price) Ice-O-Matic matching filter.
- 7 Year evaporator warranty w/filter purchase (see below)
- 2023 model, meets the newest EPA and DOE codes.
ICE-O-Matic CIM0836FW Specifications
| Type of Cooling | Water-Cooled |
|---|---|
| 24 Hr Production | 700-900 lbs |
| Type of Ice | Full-Dice |
| Model | Elevation Series™ |
| Brand | ICE-O-Matic |
| Refrigerant Type | R-404A |
| Made in | USA |
| Certifications | CE |
| Vendor | Ice-O-Matic |
| Voltage | 208-230 Volts |
| Width (in) | 270 |
| Height (in) | 330 |
| Depth (in) | 330 |
| Weight | 270 |
Additional Information on ICE-O-Matic CIM0836FW
warrantysheet.pdf
ownersmanual.pdf
slopefrontstoragebins.pdf
servicemanual.pdf
ice-o-matic-cim0836fwspecsheet.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
ICE-O-Matic CIM0836FW Certifications
CE
The product complies with the essential requirements of the relevant European health, safety and environmental protection legislations.
cULus
UL (Underwriters Laboratories) approval for the US and Canada
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
ICE-O-Matic CIM0836FW Description
This Ice-O-Matic Ice Machine is a Elevation Series Modular Cube Ice Maker that produces full-dice ice cubes in capacity up to 896 lbs per 24 hours. Every 100 lbs of pounds created by this water cooled ice machine requires 140 gallons of cooling water, 4.2 kWh of power, and 19 gallons of potable water. This model is wired up to utilize 208-230v/60/1-ph power and draws 11.3 amps.
Water cooled ice machines usually consume less power than a similar air-cooled model since there’s no power used for fans to cool the condenser. This also eliminates one more mechanical part that can fail. One other benefit of water-cooled units is that heat is not exhausted into the air around the ice maker.
This unit features a Plastic Food Zone around the ice making core. All these parts can be serviced without tools thanks to the snap-together construction. These BPA-free plastic parts are dishwasher safe and easily accessed after removing the unit’s front panel.
Ice-O-Matic Water Cooled Ice Machines provides crystal-clear ice with a full line of cubers, flakers and the patented Pearl Ice Machine. A premier manufacturer, distributor and supplier of commercial ice machines & ice machine head only.
- 30.25" (768 mm) wide space-saving design.
- Produces up to 922 lbs (418 kg) of ice per day.
- Universal Smart Harness™ control board simplifies installation and servicing with better access, digital diagnostics, universal components and common configuration.
- Unique Dual Exhaust - Air-cooled machines are designed to discharge hot air from both the side and top of the unit, increasing installation flexibility and reducing the potential of obstructed exhaust.
- Energy and Environment
- Up to 20% more energy efficient than other models.
- Exceeds new 2018 DOE (Department of Energy) regulations.
- Environmentally friendly, including BPA-free plastic and recyclable parts.
- Sanitation
- Simple, one-touch controls for sanitization and descaling.
- BPA-free snap-in, snap-out dishwasher-safe components.
- Built in Agion® ensures unbeatable antimicrobial protection.
- Smart LED light indicates machine status and when cleaning is required.
- Plastic Food Zone eliminates hard-to-clean nooks and crannies, allowing for effortless wipe down and easy, long-lasting sanitation.
NOTE! This is a general product line video and does not necessarily reflect the listed model.
