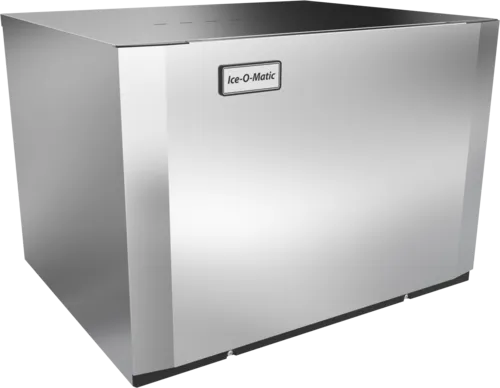

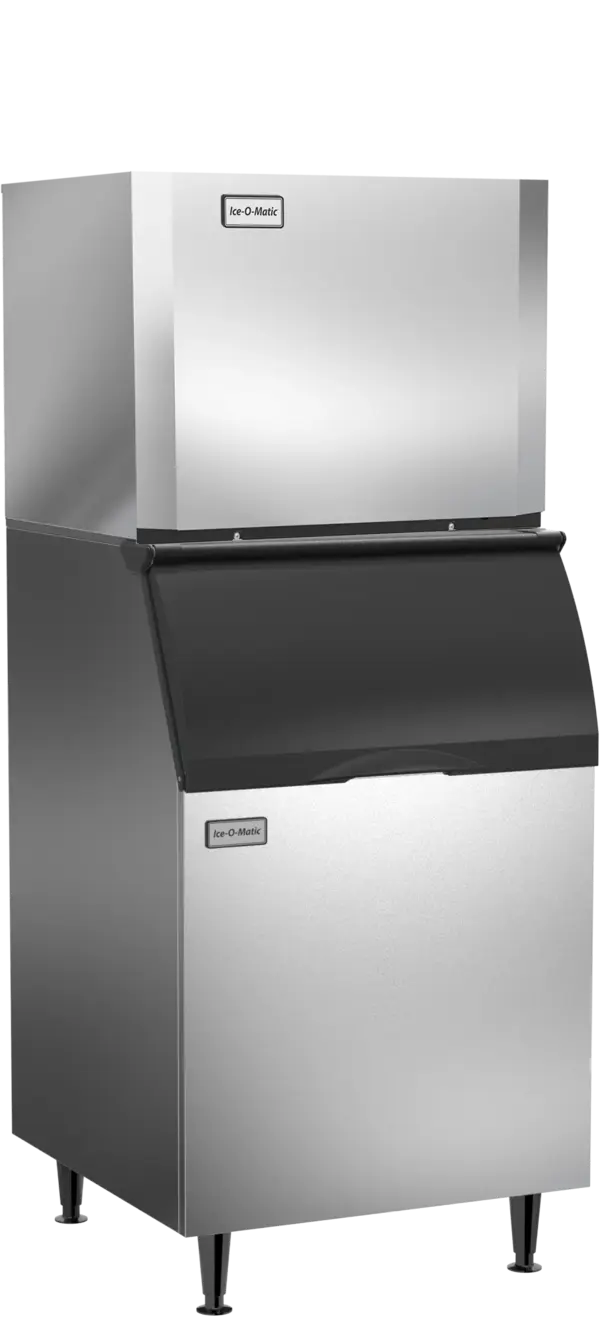

ICE-O-Matic CIM0520FW 22.25" Full-Dice Ice Maker, Cube-Style - 500-600 lb/24 Hr Ice Production, Water-Cooled, 115 Volts
Calculate
- 7 Year evaporator warranty w/filter purchase (see below)
- Exclusive offer: 50% OFF (already discounted price) Ice-O-Matic matching filter.
- Better tasting ice
- Reduce service calls by up to 65%
- 2023 model, meets the newest EPA and DOE codes.
ICE-O-Matic CIM0520FW Specifications
| Type of Cooling | Water-Cooled |
|---|---|
| 24 Hr Production | 500-600 lbs |
| Type of Ice | Full-Dice |
| Model | Elevation Series™ |
| Brand | ICE-O-Matic |
| Refrigerant Type | R-404A |
| Made in | USA |
| Certifications | CE |
| Vendor | Ice-O-Matic |
| Voltage | 115 Volts |
| Width (in) | 270 |
| Height (in) | 270 |
| Depth (in) | 250 |
| Weight | 270 |
Additional Information on ICE-O-Matic CIM0520FW
warrantysheet.pdf
servicemanual.pdf
ownersmanual.pdf
slopefrontstoragebins.pdf
diagram.pdf

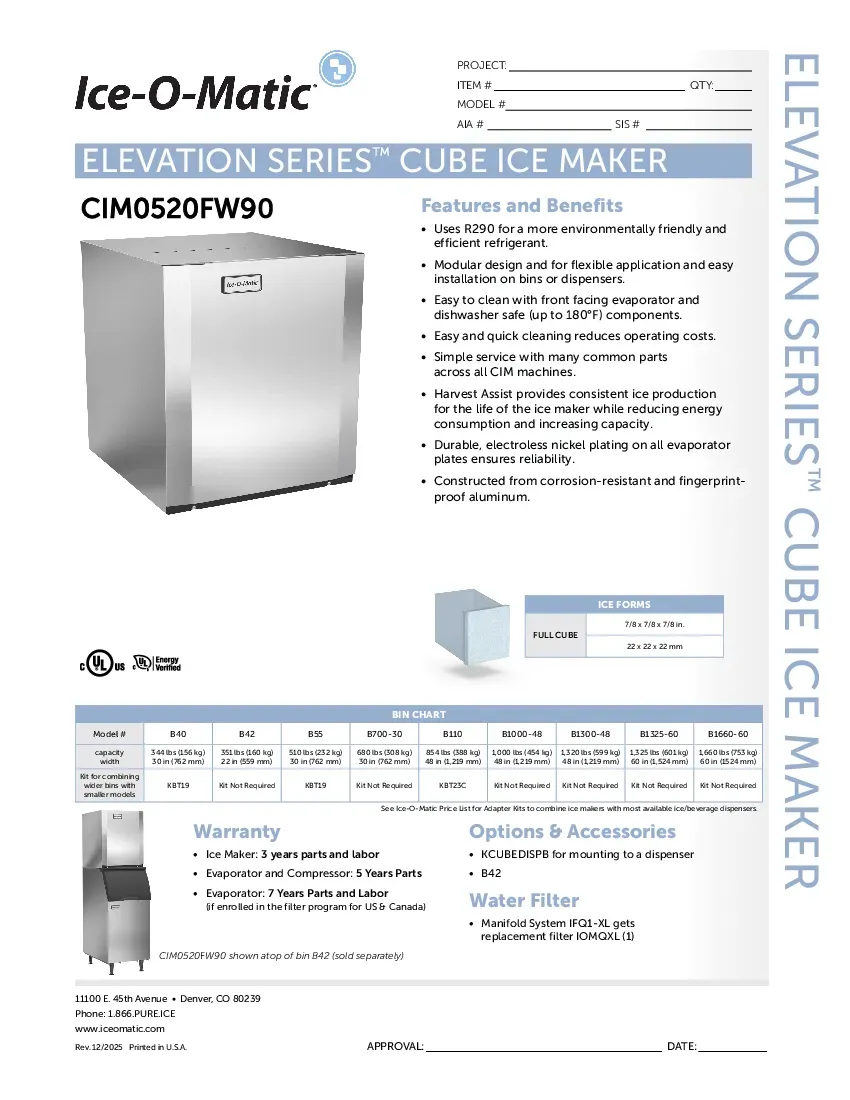

ice-o-matic-cim0520fwspecsheet.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
ICE-O-Matic CIM0520FW Certifications
CE
The product complies with the essential requirements of the relevant European health, safety and environmental protection legislations.
cULus
UL (Underwriters Laboratories) approval for the US and Canada
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
ICE-O-Matic CIM0520FW Description
This Ice-O-Matic Ice Machine is a Elevation Series Modular Cube Ice Maker is a water cooled ice machine unit rated to produce 586 lbs of ice in a 24 hour period (tested with a constant water temperature of 50°F and ambient air temperature of 70°F). To produce 100 lbs of ice this model requires 181 gallons of water to cool the condenser, 20 gallons of potable water to freeze into ice and 4.7 kWh of power. The power configuration of this unit is 115v/60/1-ph at 17.4 amps.
The interior parts are made from BPA-free plastic and are dishwasher safe. These parts are designed to be snapped out and snapped back into place thanks to the tool-free construction. Microbial growth is thwarted by the included Agion® technology. Maintenance and cleaning tasks are done by removing the front panel of the device for easy access.
Installation and service of the ice maker are both really simple with the Universal Smart Harness™ which provides digital diagnostics for simple troubleshooting.
- 22.25" (565 mm) wide space-saving design.
- Produces up to 586 lbs (266 kg) of ice per day.
- Universal Smart Harness™ control board simplifies installation and servicing with better access, digital diagnostics, universal components and common configuration.
- Unique Dual Exhaust - Air-cooled machines are designed to discharge hot air from both the side and top of the unit, increasing installation flexibility and reducing the potential of obstructed exhaust.
- Energy and Environment
- Up to 20% more energy efficient than other models.
- Exceeds new 2018 DOE (Department of Energy) regulations.
- Environmentally friendly, including BPA-free plastic and recyclable parts.
- Sanitation
- Simple, one-touch controls for sanitization and descaling.
- BPA-free snap-in, snap-out dishwasher-safe components.
- Built in Agion® ensures unbeatable antimicrobial protection.
- Smart LED light indicates machine status and when cleaning is required.
- Plastic Food Zone eliminates hard-to-clean nooks and crannies, allowing for effortless wipe down and easy, long-lasting sanitation.
NOTE! This is a general product line video and does not necessarily reflect the listed model.
