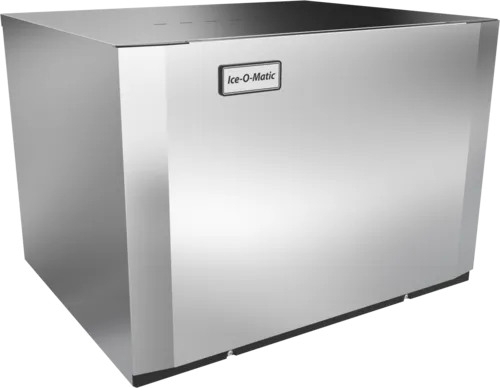

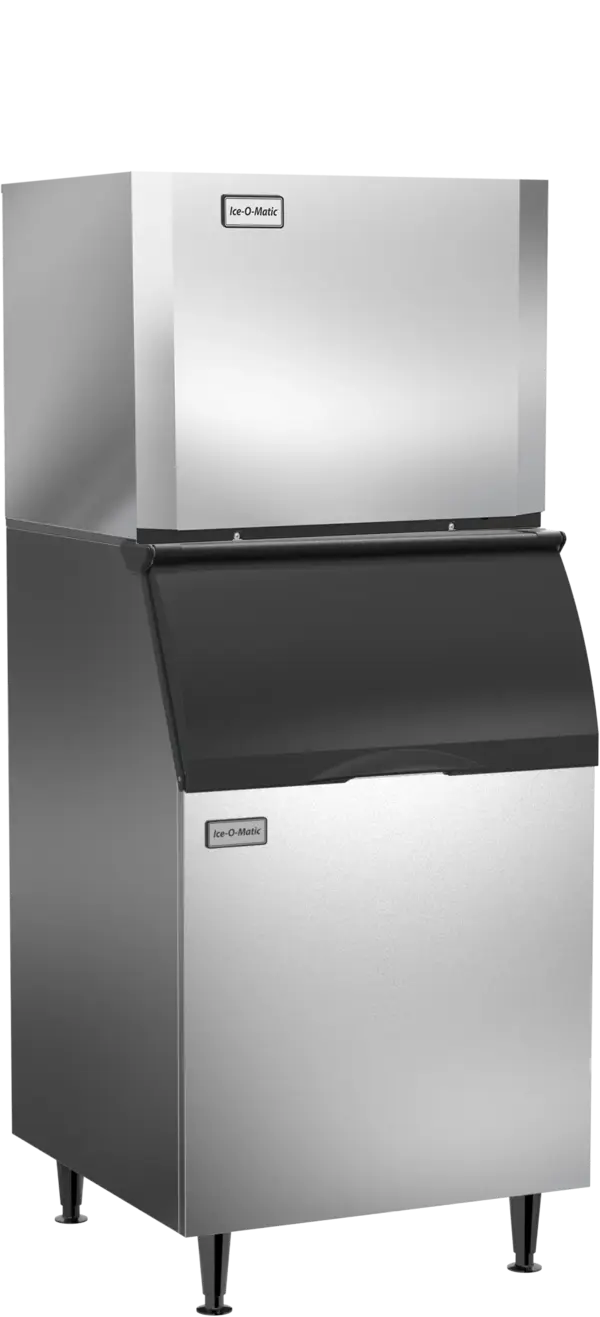

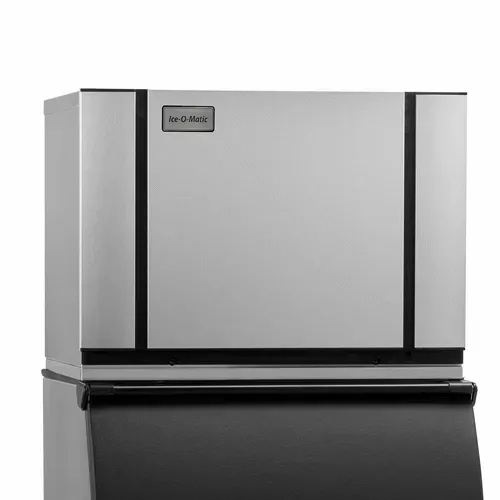

ICE-O-Matic CIM0530HW 30.25" Half-Dice Ice Maker, Cube-Style - 500-600 lb/24 Hr Ice Production, Water-Cooled, 115 Volts

MPN#: CIM0530HW
Made in USA
Free Freight?
Quick Ship
$4,481.12
$4,481.12
or enjoy small payments $96.30/mo.
Product Protection
Product Protection
Starting at
Reward Points
Reward Points
You will earn 4481
  • Exclusive offer: 50% OFF (already discounted price) Ice-O-Matic matching filter.
  • Reduce service calls by up to 65%
  • 2023 model, meets the newest EPA and DOE codes.
  • Better tasting ice
  • 7 Year evaporator warranty w/filter purchase (see below)

Description

ICE-O-Matic CIM0530HW Description

Elevation Series™ Modular Cube Ice Maker, water-cooled, self-contained condenser, 30" W, approximately 586 lb production/24 hours at 70°/50° (533 lb at 90°/70°), half-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free

This Ice-O-Matic Ice Machine is a Elevation Series™ Modular Cube Ice Maker that features a water cooled condenser and is rated to produce up to 586 lbs of ice every 24 hours under ideal water and air temperatures. For this model, the production of 100 lbs of ice requires 181 gallons of water for cooling the condenser, 20 gallons of water to freeze into ice, and 4.7 kWh of power. The ice produced by this unit is half-dice ice in size and is ideal for a myriad of different cooling tasks from ice displays to being served with beverages.

BPA-free parts in the Plastic Food Zone utilize snap-together construction for easy maintenance without any tools. These plastic parts are recyclable and dishwasher safe. Key components are coated with Agion® to prevent bacteria from taking over and adding a strange taste to ice. The protective coating also allows this ice cuber to go for longer periods of time between cleanings.

ICE-O-Matic CIM0530HW 30.25 Half-Dice Ice Maker, Cube-Style - 500-600 lb/24 Hr Ice Production, Water-Cooled, 115 Volts

Standard Features:
 Ice-O-Matic Water Cooled Ice Machines provides crystal-clear ice with a full line of cubers, flakers and the patented Pearl Ice Machine. A premier manufacturer, distributor and supplier of commercial ice machines & ice machine head only.
  • 30" (768 mm) wide space-saving design.
  • Produces up to 620 lbs (281 kg) of ice per day.
  • Universal Smart Harness™ control board simplifies installation and servicing with better access, digital diagnostics, universal components and common configuration.
  • Unique Dual Exhaust - Air-cooled machines are designed to discharge hot air from both the side and top of the unit, increasing installation flexibility and reducing the potential of obstructed exhaust.
  • Energy and Environment
    • Up to 20% more energy efficient than other models.
    • Exceeds new 2018 DOE (Department of Energy) regulations.
    • Environmentally friendly, including BPA-free plastic and recyclable parts.
  • Sanitation
    • Simple, one-touch controls for sanitization and descaling.
    • BPA-free snap-in, snap-out dishwasher-safe components.
    • Built in Agion® ensures unbeatable antimicrobial protection.
    • Smart LED light indicates machine status and when cleaning is required.
    • Plastic Food Zone eliminates hard-to-clean nooks and crannies, allowing for effortless wipe down and easy, long-lasting sanitation.

Options

Options for ICE-O-Matic CIM0530HW

Ice-O-Matic Ice Machine water filters can reduce service calls by 60% and will produce better tasting ice
Optional: ChillTech water chilling system. Increases ice yields
Voltage
What is included
  • Compressor warranty: 5 yr. parts on the compressor warranty, standard
  • Parts & labor warranty: 3 yr. parts & labor warranty, standard
  • Evaporator warranty: 5 yr. evaporator warranty, standard

Q & A

Videos

ICE-O-Matic CIM0530HW 30.25" Half-Dice Ice Maker, Cube-Style - 500-600 lb/24 Hr Ice Production, Water-Cooled, 115 Volts
ICE-O-Matic CIM0530HW 30.25" Half-Dice Ice Maker, Cube-Style - 500-600 lb/24 Hr Ice Production, Water-Cooled, 115 Volts
ICE-O-Matic CIM0530HW 30.25" Half-Dice Ice Maker, Cube-Style - 500-600 lb/24 Hr Ice Production, Water-Cooled, 115 Volts
ICE-O-Matic CIM0530HW 30.25" Half-Dice Ice Maker, Cube-Style - 500-600 lb/24 Hr Ice Production, Water-Cooled, 115 Volts

NOTE! This is a general product line video and does not necessarily reflect the listed model.

ICE-O-Matic CIM0530HW 30.25" Half-Dice Ice Maker, Cube-Style - 500-600 lb/24 Hr Ice Production, Water-Cooled, 115 Volts

ICE-O-Matic CIM0530HW Specifications

Type of CoolingWater-Cooled
24 Hr Production500-600 lbs
Type of IceHalf-Dice
ModelElevation Seriesâ„¢
BrandICE-O-Matic
Refrigerant TypeR-404A
Made inUSA
CertificationsCE
VendorIce-O-Matic
Voltage115 Volts
Width (in)270
Height (in)270
Depth (in)330
Weight270

Additional Information on ICE-O-Matic CIM0530HW

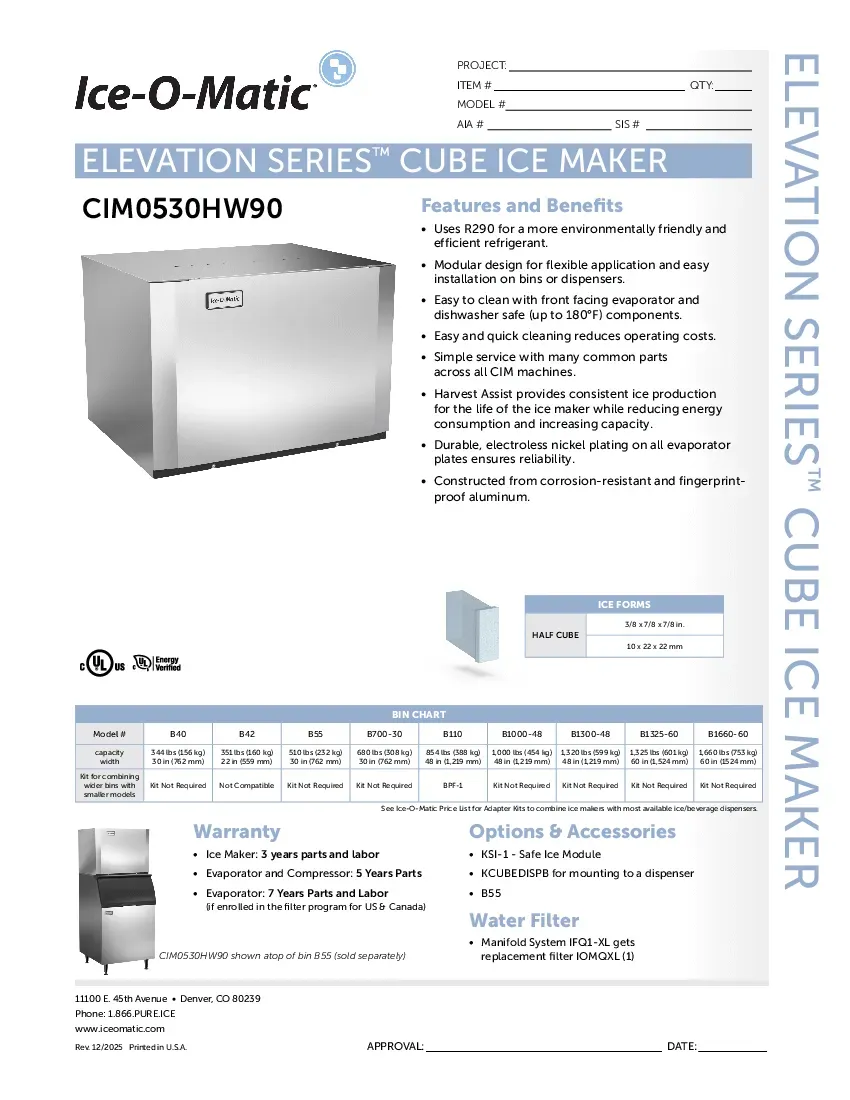

warrantysheet.pdf ownersmanual.pdf brochure.pdf slopefrontstoragebins.pdf servicemanual.pdf diagram.pdf ice-o-matic-cim0530hwspecsheet.pdf

ICE-O-Matic CIM0530HW Certifications

CE

CE

The product complies with the essential requirements of the relevant European health, safety and environmental protection legislations.

cULus

cULus

UL (Underwriters Laboratories) approval for the US and Canada

NSF

NSF

This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
