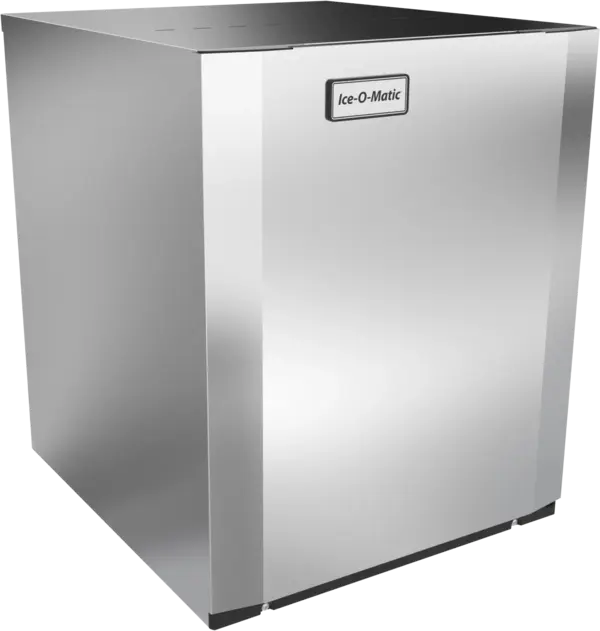

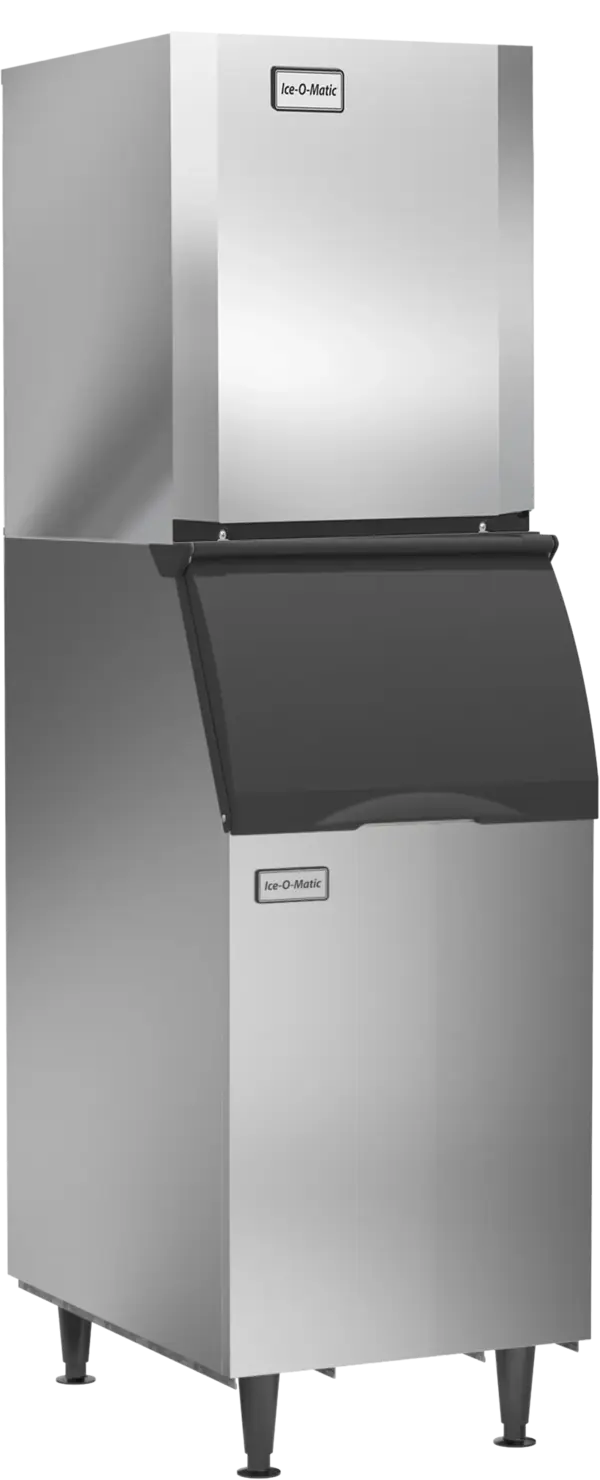

ICE-O-Matic CIM0330FW 30.25" Full-Dice Ice Maker, Cube-Style - 300-400 lb/24 Hr Ice Production, Water-Cooled, 115 Volts
Calculate
- 7 Year evaporator warranty w/filter purchase (see below)
- Reduce service calls by up to 65%
- Exclusive offer: 50% OFF (already discounted price) Ice-O-Matic matching filter.
- Better tasting ice
- 2023 model, meets the newest EPA and DOE codes.
ICE-O-Matic CIM0330FW Specifications
| Type of Cooling | Water-Cooled |
|---|---|
| 24 Hr Production | 300-400 lbs |
| Type of Ice | Full-Dice |
| Model | Elevation Series™ |
| Brand | Ice-O-Matic |
| Refrigerant Type | R-404A |
| Made in | USA |
| Certifications | CE |
| Vendor | Ice-O-Matic |
| Voltage | 115 Volts |
| Width (in) | 30.25 |
| Height (in) | 21.25 |
| Depth (in) | 24.25 |
| Weight | 145.00 |
Additional Information on ICE-O-Matic CIM0330FW
diagram.pdf
owner-s-manual.pdf
service-manual.pdf
brochure.pdf
slope-front-storage-bins.pdf
warranty-sheet.pdf

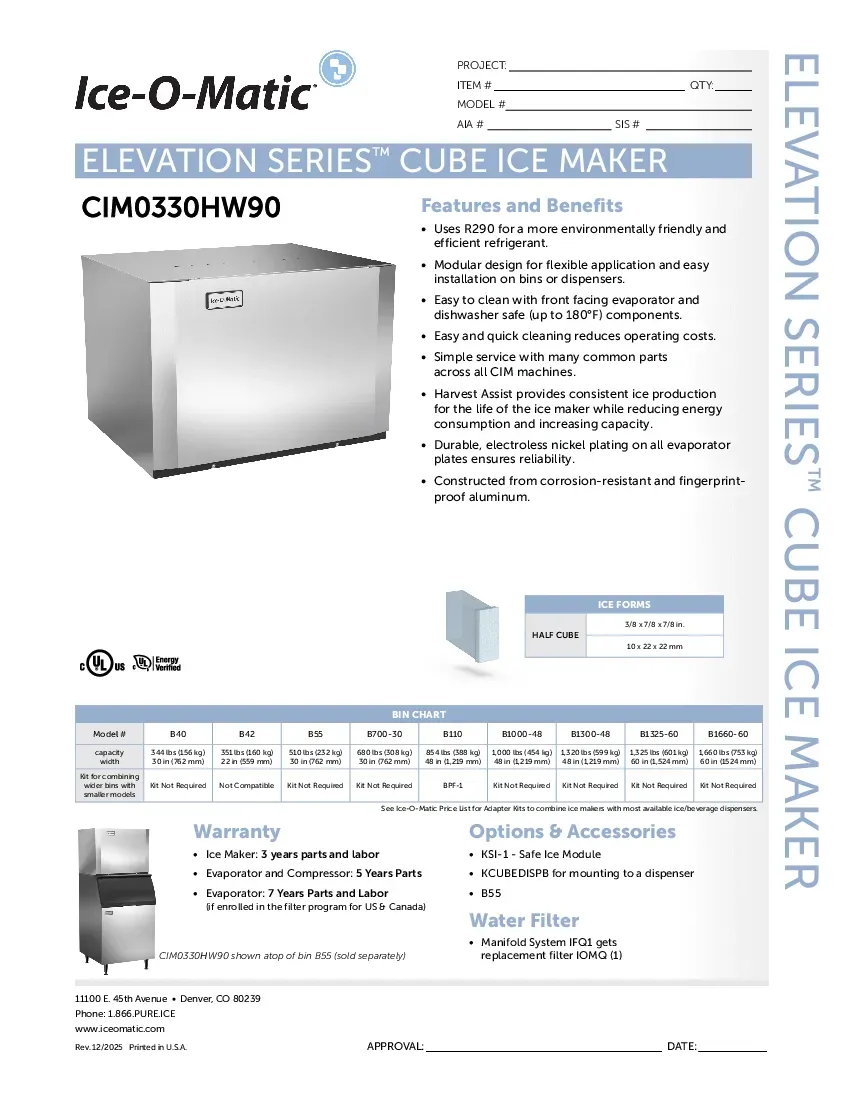

ice-o-matic-cim0330fw.specsheet.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
ICE-O-Matic CIM0330FW Certifications
CE
The product complies with the essential requirements of the relevant European health, safety and environmental protection legislations.
cULus
UL (Underwriters Laboratories) approval for the US and Canada
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
ICE-O-Matic CIM0330FW Description
This Ice-O-Matic Ice Machine is a Elevation Series Modular Cube Ice Maker that can produce up to 316 lbs of ice every 24 hours (This figure is based on tests with controlled temperatures of 70°F for the ambient air and 50°F for the water). A water cooled ice machine like this model is ideal for use in environments where a self-contained air-cooled model is either infeasible or counter-intuitive to the establishment’s cooling system. Each edge of the ice cubes made by this Cubes Ice Machine unit measure 7/8 inch. For every 100 lbs of ice, this machine requires 179 gallons of cooling water, 19.6 gallons of potable water, and 5.19 kWh of power are consumed. This Full Dice Ice Machine unit is designed to use standard 115v/60/1-ph power at 10.7 amps.
Cleaning the BPA Free Plastic Food Zone is easy since the parts simply snap apart and can be put in the dishwasher. The Plastic Food Zone of this cubes ice machine is accessed by removing the front panel for convenient servicing. For extended periods between cleanings the unit features Agion® technology that inhibits microbial growth from occurring to make sure ice coming out of this ice maker is pure.
- 30" (768 mm) wide space-saving design.
- Produces up to 310 lbs (141 kg) of ice per day.
- Universal Smart Harness™ control board simplifies installation and servicing with better access, digital diagnostics, universal components and common configuration.
- Unique Dual Exhaust - Air-cooled machines are designed to discharge hot air from both the side and top of the unit, increasing installation flexibility and reducing the potential of obstructed exhaust.
- Energy and Environment
- Up to 20% more energy efficient than other models.
- Exceeds new 2018 DOE (Department of Energy) regulations.
- Environmentally friendly, including BPA-free plastic and recyclable parts.
- Sanitation
- Simple, one-touch controls for sanitization and descaling.
- BPA-free snap-in, snap-out dishwasher-safe components.
- Built in Agion® ensures unbeatable antimicrobial protection.
- Smart LED light indicates machine status and when cleaning is required.
- Plastic Food Zone eliminates hard-to-clean nooks and crannies, allowing for effortless wipe down and easy, long-lasting sanitation.
NOTE! This is a general product line video and does not necessarily reflect the listed model.
