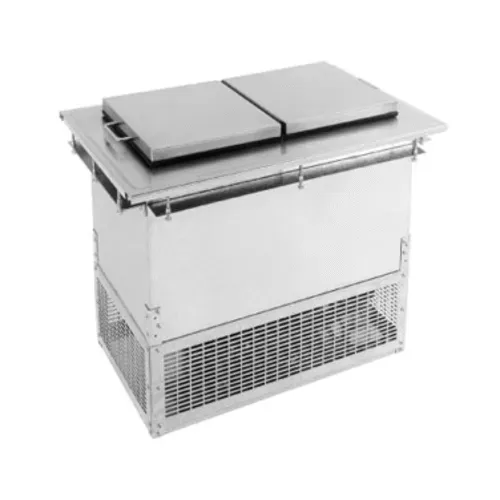

Glastender DI-FR36-FL Ice Cream Freezer
Calculate
- 2023 model, meets the newest EPA and DOE codes.
Warranty
1 year parts & labor warranty, 5 year compressor warranty
2 year parts and labor warranty for self-contained refrigeration product (NOTE: applies to units sold and installed within the US & Canada)
Glastender DI-FR36-FL Specifications
| Total Container Capacity | 2 Cans |
|---|---|
| Type | Drop-In Dipping Cabinets |
| Cabinet Type | Flip Top |
| Front Style | No Sneeze Guard |
| Construction | Stainless and Galvanized Steel |
| Brand | Glastender |
| Refrigerant Type | R-290 |
| Certifications | ETL |
| Capacity | 1 - 10 cu. ft. |
| Width (in) | 28 |
| Depth (in) | 18 |
| Weight | 135.00 |
Additional Information on Glastender DI-FR36-FL
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Glastender DI-FR36-FL Certifications
ETL
The ETL Mark is proof of product compliance to North American safety standards.
ETL-Sanitation
This item meets the sanitation standards imposed by the ETL, a division of the Intertek Group.
Glastender DI-FR36-FL Description
Ice Cream Freezer, drop-in, 24"W x 18"D, self-contained refrigeration, -5°F (-20°C) to 10°F (-12°C) temperature range, (2) 3-gallon can capacity, stainless steel flip lid, includes mounting hardware, stainless steel top & interior liner, galvanized steel exterior wrap, 24-3/4" x 14-3/4" cutout required, R290 Hydrocarbon refrigerant, 1/4 HP, cETLus, ETL-Sanitation, ETL VerifiedThe Glastender DI-FR36-FL Ice Cream Freezer is an in counter drop-in self-contained ice cream station. This unit can hold 2 3-gallon ice cream containers (6 gallons in total) in its 10-1/8″ x 20-1/8″ x 12 1/2″ interior. It features a flip lid with hinges in the middle, this basically means there are 2 doors leading to the same cavity from either side. Having 2 smaller doors is more efficient for cooling since less warm air can reach the cool interior.
The unit operates from -5°F to 10°F and uses a ¼ HP self-contained cooling system that utilizes R404A refrigerant and foamed-in-place CFC free insulation.
The lids, interior and working surface are all made from stainless steel while the condensing unit base plate and exterior wrap are made from galvanized steel.
Hardware (mounting bolts, angle brackets, and U-channels) is included for simple installation, the unit is also easily removed when necessary. A 24-¾” x 14-¾” cutout must be made into the counter where the unit will be installed. The external dimensions of the unit are 14” front to back, 24” wide and 23” deep. The unit requires 5” of clearance on all sides and at least 150 CFM of airflow to operate properly.
120v/60/1-ph power is used, the unit should be plugged into its own 15 amp circuit via its 6-foot power cord and NEMA 5-15P grounded plug.
The Glastender DI-FR36-FL Ice Cream Freezer has cETLus and ETL-Sanitation certification.
Standard Features:
- CFC Free foamed-in-place insulation
- Six foot grounded cord and plug provided
- Refer to reverse side for mounting instructions
- Available sizes for one or two 3-gallon containers
- All faucets are NSF/ANSI 372 low lead compliant
- Available with integral 6″ diameter draining dipper well and faucet
- Stainless steel work surface, lid, and interior liner with galvanized steel exterior wrap
- Special angle brackets, U-channels, and mounting bolts provided for easy installation and allows unit to be removed if necessary.
