Glastender DI-FR-DW Ice Cream Freezer with Dipper Well
Calculate
- 2023 model, meets the newest EPA and DOE codes.
Warranty
1 year parts & labor warranty, 5 year compressor warranty
2 year parts and labor warranty for self-contained refrigeration product (NOTE: applies to units sold and installed within the US & Canada)
Glastender DI-FR-DW Specifications
| Total Container Capacity | 1 Can |
|---|---|
| Type | Drop-In Dipping Cabinets |
| Cabinet Type | Flip Top |
| Front Style | No Sneeze Guard |
| Construction | Stainless and Galvanized Steel |
| Brand | Glastender |
| Refrigerant Type | R-290 |
| Certifications | ETL |
| Capacity | 1 - 10 cu. ft. |
| Width (in) | 24 |
| Depth (in) | 18 |
| Weight | 120.00 |
Additional Information on Glastender DI-FR-DW
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Glastender DI-FR-DW Certifications
ETL
The ETL Mark is proof of product compliance to North American safety standards.
ETL-Sanitation
This item meets the sanitation standards imposed by the ETL, a division of the Intertek Group.
Glastender DI-FR-DW Description

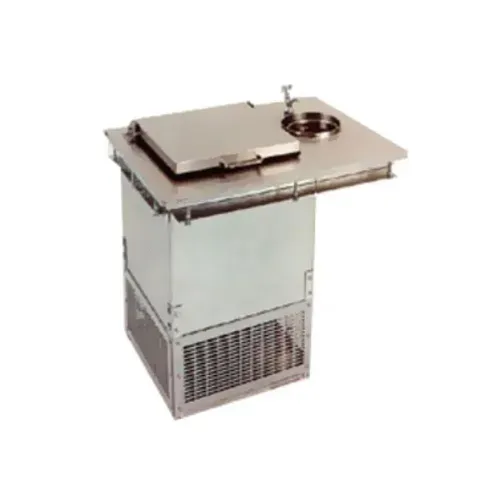

The Glastender DI-FR-DW Ice Cream Freezer with Dipper Well is an drop-in counter installed model that can hold a single 3-gallon tub of ice cream. All exposed parts, the lid, working surface, and dipping well are made from attractive and easy to clean stainless steel. Glastender's Commercial Dipping Cabinets are some of the best in-counter solutions available on the market.
The internal cavity is also made from stainless steel it is 12-½” deep, 10-⅛” wide and 10-⅛” long. The ice cream is stored at an optimal temperature between -5°F and 10°F, which keeps it easy to dip and ready to serve. Everything’s kept cold with a ¼ HP self-contained unit with 1,945 BTU/hr of heat rejection and foamed-in-place CFC free insulation.
For convenience, ease of sanitation and dipping, a dipper well is integrated into this model. The faucet uses a ⅜” cold water lead and is NSF/ANSI 72 compliant. The drain for the dipper well uses a 1-½” I.P.S. threaded drain.
When installing this ice cream freezer into your counter you will need a 22-¾” wide and 14-¾” front to back cutout. The exterior portion hidden beneath the counter is 14” wide, 14” from front to back and 23” deep and is made from galvanized steel. The unit requires 5” of clearance on all sides and at least 150 CFM of airflow to operate properly. For ease of installation mounting hardware is included. The included mounting hardware makes it simple to remove the unit if necessary.
This ice cream freezer uses 120/60/1-ph power and the manufacturer recommends that it is plugged into its own dedicated 15 amp circuit through its 6 cord with NEMA 5-15P plug.
The Glastender DI-FR-DW Ice Cream Freezer with Dipper Well has cETLus and ETL-Sanitation certification.
Standard Features:
- CFC Free foamed-in-place insulation
- Six foot grounded cord and plug provided
- Refer to reverse side for mounting instructions
- Available sizes for one or two 3-gallon containers
- All faucets are NSF/ANSI 372 low lead compliant
- Available with integral 6″ diameter draining dipper well and faucet
- Stainless steel work surface, lid, and interior liner with galvanized steel exterior wrap
- Special angle brackets, U-channels, and mounting bolts provided for easy installation and allows unit to be removed if necessary.
