Glastender DI-FR Ice Cream Freezer
Calculate
- 2023 model, meets the newest EPA and DOE codes.
Warranty
1 year parts & labor warranty, 5 year compressor warranty
2 year parts and labor warranty for self-contained refrigeration product (NOTE: applies to units sold and installed within the US & Canada)
Glastender DI-FR Specifications
| Total Container Capacity | 1 Can |
|---|---|
| Type | Drop-In Dipping Cabinets |
| Cabinet Type | Flip Top |
| Front Style | No Sneeze Guard |
| Construction | Stainless and Galvanized Steel |
| Brand | Glastender |
| Refrigerant Type | R-290 |
| Certifications | ETL |
| Capacity | 1 - 10 cu. ft. |
| Width (in) | 18 |
| Depth (in) | 18 |
| Weight | 115.00 |
Additional Information on Glastender DI-FR
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Glastender DI-FR Certifications
ETL
The ETL Mark is proof of product compliance to North American safety standards.
ETL-Sanitation
This item meets the sanitation standards imposed by the ETL, a division of the Intertek Group.
Glastender DI-FR Description

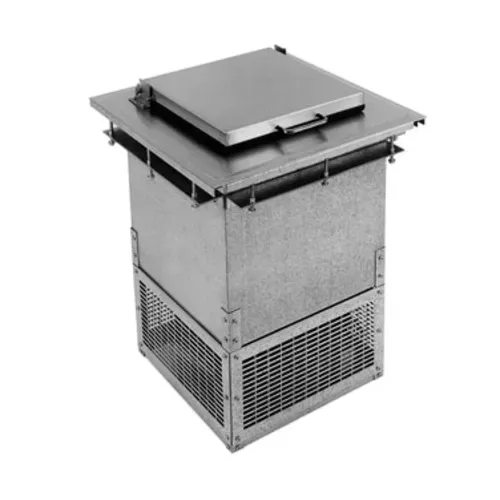

Ice Cream Freezer, drop-in, 18"W x 18"D, self-contained refrigeration, -5°F (-20°C) to 10°F (-12°C) temperature range, (1) 3-gallon can capacity, hinged stainless steel lid, includes mounting hardware, stainless steel top & interior liner, galvanized steel exterior wrap, 14-3/4" x 14-3/4" cutout required, R290 Hydrocarbon refrigerant, 1/4 HP, cETLus, ETL-Sanitation, ETL VerifiedThe Glastender DI-FR Ice Cream Freezer is a self-contained ice cream station designed to be installed into a counter. Its 12 1/2″ x 10-1/8″ x 10-1/8″ stainless steel interior has a 3-gallon capacity and keeps ice cream cold at -5°F to 10°F. This temperature is maintained efficiently with CFC-free foamed-in-place insulation. The stainless steel lid is hinged at the rear and remains open when dipping. The exterior wrap is made from galvanized steel. The ¼ HP cooling unit uses R404a coolant.
Installation of the unit into a counter requires a 14-¾” x 14-¾” cutout and 23” of depth. When installing this unit make sure the location you are installing it into provides at least 5” of clearance on all sides to allow for airflow to the cooling system. The condenser requires airflow of at least 150 CFM to operate properly, so make sure that your planned installation counter meets these requirements. This ice cream freezer uses 120v/60/1-ph and it is recommended that it has its own dedicated 15 amp circuit. The unit comes with a 6-foot NEMA 5-15P cord plug and cord. Mounting hardware including U-channels, mounting bolts and angle brackets are included for easy installation.
The Glastender DI-FR Ice Cream Freezer is certified by both ETL and ETL-Sanitation.
Standard Features:
- CFC Free foamed-in-place insulation
- Six foot grounded cord and plug provided
- Refer to reverse side for mounting instructions
- Available sizes for one or two 3-gallon containers
- All faucets are NSF/ANSI 372 low lead compliant
- Available with integral 6″ diameter draining dipper well and faucet
- Stainless steel work surface, lid, and interior liner with galvanized steel exterior wrap
- Special angle brackets, U-channels, and mounting bolts provided for easy installation and allows unit to be removed if necessary.
