Garland US Range M4S Master Series Heavy Duty Range

MPN#: M4S
Garland US Range M4S Master Series Heavy Duty Range
Free Freight?
Quick Ship
$3,083.00 /

Contact us for details

$2,523.00 /
or enjoy small payments $54.22/mo.
Lease Payment Calculate
Product Protection
Product Protection
Starting at
Reward Points
Reward Points
You will earn 3083
  • Please see specification sheet for installation clearance requirements
  • Additional required flue riser sold separately

Garland US Range M4S Specifications

BTU 35,000 BTU
Number of Burners1 - 2
Total BTU16000 - 130000
Burner Type35,000 BTU open burners
Installation TypeFreestanding
Burner StyleGrates
Range Base StyleStorage Base
BrandGarland/US Range
CertificationsNSF
Exterior FinishStainless Steel Front & Sides
BaseStorage
Gas TypeLP
HeatGas
Number of OvensNone
Range ConfigurationBurners
Width (in)17
Height (in)36.38
Depth (in)38
Weight190.00

Additional Information on Garland US Range M4S

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Garland US Range M4S Certifications

NSF

NSF

This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.

Garland US Range M4S Description

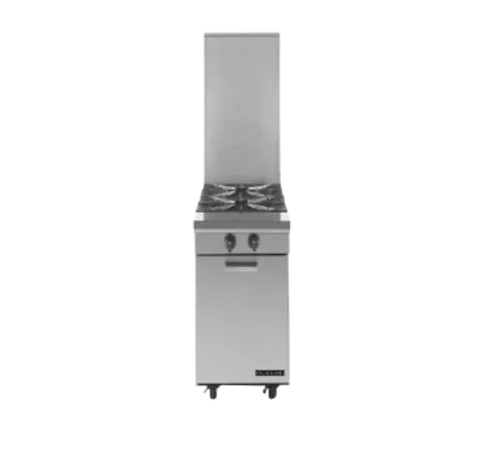

Master Series Heavy Duty Range, gas, 17", Add-A-Unit, (2) 35,000 BTU open burners, cast iron grates, storage base, stainless steel front, sides & door, 6" adjustable legs, 70,000 BTU, CSA Flame, CSA Star, NSF (Garland)
With its set of two (2) 35,000 BTU open burners and storage base, this heavy-duty commercial gas range lets you upgrade your existing production line quickly. Each open burner comes with cast-iron grates that create a flat surface where pots and pans can be safely and ergonomically moved around. They also have removable ring grate bowls that allow for thorough cleaning and maintenance.

This commercial range is stainless steel on the front and sides so it doesn't rust or stain easily even with daily heavy use. The cabinet base with a stainless steel door adds convenient storage space that can help you make the cooking sessions smoother. The entire unit is mounted on 6" adjustable chrome steel legs.

This heavy-duty range comes with CSA Flame, CSA Star, and NSF certifications.

Need more restaurant and heavy-duty ranges and other commercial cooking equipment for your business? CKitchen has an excellent selection!

Standard Features:
  • Stainless steel door
  • Cast iron top grates
  • Stainless steel front and sides
  • One piece stainless steel drip tray
  • 7-1/2" (191mm) stainless steel front rail
  • Storage base interior of aluminized steel
  • 6" (152mm) chrome steel adjustable legs
  • Removable ring grate bowl over each burner
  • Two (2) 35,000 BTU (10.25 kW), (natural gas), 32,000 BTU (9.37 kw) (propane); two -piece Starfire burners with removable heads
Optional Features:
  • Dais base, (S model)
  • Stainlesssteelmainback
  • Modular stand, (T model)
  • Gas regulator 3/4" or 1-1/4"
  • Rear gas connection, 3/4" NPT
  • End caps and cover (NC, Specify)
  • Gas shut off valve; 3/4", 1" or 1-1/4" NPT
  • 6" (152mm) stainless steel adjustable legs
  • Stainless steel tubular high shelf, single or double deck
  • Set of (4) Polyurethane non‑marking swivel casters w/front brakes
  • Stainless steel backguard: 10" (354mm), 17" (432mm) or 33" (838mm) high
  • Stainless steel common front rail up to 102" (2591mm) wide (two or more units in a battery)
  • Gas flex hose & quick disconnect (3/4", 1" or 1-1/4" NPT x 5') w/restraining device, please specify
Specifications:
Heavy‑duty gas range attachment with storage base, Model M4S. Two (2) 35,000 BTU (10.25 kW) two piece Starfire burners. Heavy‑duty cast iron top grate/ ring grates. 17" (432mm) wide x 38" (965mm) deep, including 7-1/2" (191 mm) deep stainless steel front rail. Stainless steel front and sides. 70,000 BTU (20.51 kW) total. Natural or propane gas available. Also available with modular top, suffix T. NOTE: Attachments supplied with casters must be installed with an approved restraining device.

Options for Garland US Range M4S

Range finishes
Common front rail
Gas connection
Security options
Oven options
Extended warranty
Gas type
Mounting options
What is included
  • Standard parts/labor warranty: Two year limited parts and labor warranty, covers products purchased and installed in the USA only, standard
  • NOTE: Note: All Master Series Ranges, storage, modular, fryers, attachment & under-fired char broilers require a high shelf or back guard attachment
