Garland US Range M7T Master Series Heavy Duty Range
MPN#: M7T
Free Freight?
Quick Ship
$3,259.00 /
Contact us for details
Calculate
Product Protection
Starting at
- Please see specification sheet for installation clearance requirements
- Additional required flue riser sold separately
Garland US Range M7T Specifications
| BTU | 33,000 BTU |
|---|---|
| Number of Burners | 1 - 2 |
| Total BTU | 16000 - 130000 |
| Burner Style | Hot top |
| Installation Type | Modular |
| Range Base Style | Modular Base |
| Brand | Garland/US Range |
| Certifications | NSF |
| Control Type | Manual |
| Base | Modular |
| Controls | Manual |
| Gas Type | LP |
| Heat | Gas |
| Number of Ovens | None |
| Range Configuration | Griddle |
| Width (in) | 17 |
| Height (in) | 36.38 |
| Depth (in) | 38 |
| Weight | 155.00 |
Additional Information on Garland US Range M7T
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Garland US Range M7T Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
Garland US Range M7T Description
Master Series Heavy Duty Range, gas, 17", modular, Add-A-Unit, griddle, 1" thick steel plate, manual controls, stainless steel front, sides & splashguards, 33,000 BTU, CSA Flame, CSA Star, NSF (Garland)
With its modular design, this heavy-duty commercial gas range allows you to instantly add a griddle to your existing lineup. The steel plate is 1" thick so the heat is retained for longer periods, making recovery faster and cooking batch after batch much faster. The griddle is packing an H-shaped burner with a 33,000 BTU cooking power so you can make use of every inch of the plate. It is manually controlled for easy operation. It has a stainless steel splash guard that ensures no oil or food debris escapes the cooking surface.
The front and sides of this commercial range is stainless steel, which makes them invulnerable to rust and corrosion, but also very sleek and easy to keep clean. This heavy-duty range comes with CSA Flame, CSA Star, and NSF certifications.
Get the best restaurant and heavy-duty ranges and commercial cooking equipment at the best prices only here at CKitchen!
The front and sides of this commercial range is stainless steel, which makes them invulnerable to rust and corrosion, but also very sleek and easy to keep clean. This heavy-duty range comes with CSA Flame, CSA Star, and NSF certifications.
Get the best restaurant and heavy-duty ranges and commercial cooking equipment at the best prices only here at CKitchen!
Standard Features:
- Hi‑Lo valve control
- Stainless steel door
- Stainless steel front and sides
- 33,000 BTU (9.67 kW), "H" type burner
- Storage base interior of aluminized steel
- 6" (152mm) chrome steel adjustable legs
- Removable stainless steel grease drawer
- Aluminized steel under all cooking surface
- Clip on stainless steel backsplash for griddle plate
- 1" (25mm) thick Steel griddle plate 2-5/16” (59mm) high welded stainless steel splash guards, sides & back
- Dais base, (S model)
- Modular stand, (T model)
- Stainless steel main back
- Gas regulator 3/4" or 1-1/4"
- End caps and cover (NC, specify)
- Rear gas connection, 3/4" or 1‑1/4" NPT
- Gas shut off valve; 3/4", 1" or 1‑1/4" NPT
- 6" (152mm) stainless steel adjustable legs
- Storage base shelf of aluminized or stainless steel
- Stainless steel tubular high shelf, single or double deck
- Set of (4) Polyurethane non‑marking swivel casters w/ front brakes
- Stainless steel backguard: 10" (354mm), 17" (432mm) or 33" (838mm) high
- Stainless steel common front rail up to 102" (2591mm) wide (two or more units in a battery)
- Gas flex hose & quick disconnect (3/4", 1" or 1-1/4" NPT x 5') w/restraining device, please specify
The 1" (25mm) thick steel griddle plate is 17" wide x 24-3/4"deep, (433mm x 629mm) and bordered by side and rear continious‑welded stainless steel splash guards. The 33,000 BTU, (9.67 kW), "H" burner controlled by a Hi‑Lo valve provides uniform heat. Heavy guage aluminized steel radiation baffle requires no Fire brick, heats evenly, increases thermal efficiency. Natural or propane gas. Also available with modular top, suffix T. NOTE: Attachments supplied with casters must be installed with an approved restraining device.

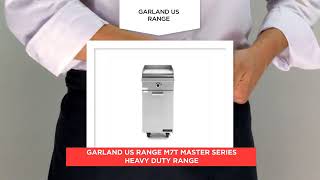

Videos
