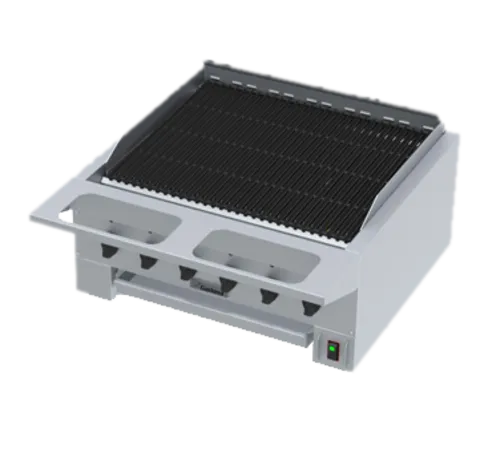

Garland US Range Garland/US Range HEEGM36CL 34" Gas Countertop Standard Duty Radiant Charbroiler with Infinite Control - 87,000 BTU

MPN#: HEEGM36CL
Free Freight?
Quick Ship
$8,185.00 /

Contact us for details

$6,696.00 /
or enjoy small payments $143.90/mo.
Lease Payment Calculate
Product Protection
Product Protection
Starting at
Reward Points
Reward Points
You will earn 8185
  • Free after installation performance check
  • Please see specification sheet for installation clearance requirements

Garland US Range HEEGM36CL Specifications

Total BTU56000 - 104000
Burner TypeCast iron burners
Installation TypeCountertop
Burner StyleGrates
Power TypeNatural Gas
With GriddleNo
Heating SourceRadiant
BrandGarland/US Range
Certifications5-15P
Burner6
Number of Burners6
Control TypeInfinite
Exterior FinishStainless Steel
BTU87,000 BTU
BTU per Burner14,500 BTU
HeatGas
UsageStandard Duty
Voltage120 Volts
Width (in)34
Height (in)18.06
Depth (in)38.06
Weight420.00

Additional Information on Garland US Range HEEGM36CL

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Garland US Range HEEGM36CL Certifications

5-15P

5-15P

Two-pole with ground pin plug

NSF

NSF

This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.

Garland US Range HEEGM36CL Description

Broiler, 3/4" gas regulator, generic version, 34" W x 38-1/16" D x 18-1/16" H, (6) cast iron burners with individual cast iron radiants, cast iron grates, spark ignition, front rail with removable 1/3 size food pan cut-outs, large capacity removable drip pans/water pans, power switch, stainless steel exterior, 87,000 BTU, 9 ft cord & NEMA 5-15P, NSF, CSABroiler, 3/4" gas regulator, generic version, 34" W x 38-1/16" D x 18-1/16" H, (6) cast iron burners with individual cast iron radiants, cast iron grates, spark ignition, front rail with removable 1/3 size food pan cut-outs, large capacity removable drip pans/water pans, power switch, stainless steel exterior, 87,000 BTU, 9 ft cord & NEMA 5-15P, NSF, CSA

Standard Features:
  • 3/4" gas regulator
  • Large capacity, removable grease trays
  • 9' cord & NEMA 5-15P plug standard for 120V models
  • Cast iron energy efficient burners with each burner having a cast iron radiant
  • Combination wire broiler rack cleaning brush and scraper for cleaning cooking grates
  • Stainless steel construction and front rail with cut outs to hold 1/3 size food pans (pans not included)
  • Heavy duty removable cast iron grates, reversible with wide brand edge on one side & fine edge on the other
  • Each burner, rated 14,500 BTU for natural gas &13,000 BTU for propane gas, and is individually controlled by a two position hi-lo valve
  • Complete system on/off power switch(s), which operate main gas burner ignition & main burner shut down: HEEGM-24CL & 36CL models have one switch HEEGM-48CL and 60CL have two
Optional Features:
  • 220-240V model available (comes without cord & plug)
  • 2 1/8" (54mm) stub solid front rail in lieu of 1/3 front rail
  • Fajita pan rack holder in lieu of two broiler rack sections, N/C. Using only one fajita pan rack holder per broiler is recommended
  • Stainless steel stands with or without casters. See form HEMST. Broiler may be required to be silicone sealed onto non-combustible surfaces to meet NSF agency approvals
Specifications:
Garland High Efficiency (HE) Char-Broiler with natural gas. Finish is to be stainless steel construction and front rail with 1/3 size food pan cut-outs. Available in 24" (610mm) [HEEGM-24CL], 34" (864mm) [HEEGM-36CL], 48" (1219mm) [HEEGM-48CL] and 58" (1473mm) [HEEGM-60CL] widths.

Options for Garland US Range HEEGM36CL

Options and accessories
Gas type
What is included
  • Standard parts/labor warranty: One year limited parts and labor warranty, covers products purchased and installed in the USA only, standard
Voltage

Garland US Range HEEGM36CL Accessories

Garland US Range HEMST-36 Equipment Stand HEMST-36
$1,480.00
