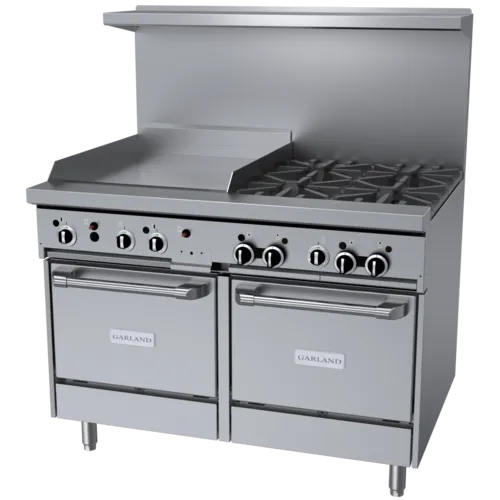

Garland US Range Garland/US Range GF48-4G24LL Restaurant Gas Range, 48" W with 4 (2) Space Saver Ovens (1) 24" Griddle and Manual Controls, - 204,000 BTU
SKU#: GF48-4G24LL
1/2
Free Freight?
Quick Ship
$14,014.00
Contact us for details
Product Protection
Starting at
- Please see specification sheet for installation clearance requirements
Garland US Range GF48-4G24LL Specifications
Total BTU | 131000 - 224000 |
---|---|
BTU | 204,000 BTU |
Burner Type | 26,000 BTU open burners |
Number of Burners | 3 - 5 |
Burner Style | Grates |
Range Base Style | Space Saver Oven |
Brand | Garland/US Range |
Certifications | CE |
Quantity of Burners | 4 |
48" Griddle options | (1) 24" Griddle |
Oven Type | Space Saver |
Control Type | Thermostatic |
Legs | 6" stainless steel legs |
Base | Space Saver Oven |
Gas Type | LP |
Heat | Gas |
Range Configuration | Burners & (1) 24" Griddle |
Width (in) | 48 |
Height (in) | 45.38 |
Depth (in) | 34.5 |
Weight | 667.00 |
Additional Information on Garland US Range GF48-4G24LL
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Garland US Range GF48-4G24LL Certifications
CE
The product complies with the essential requirements of the relevant European health, safety and environmental protection legislations.
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
Garland US Range GF48-4G24LL Description
GF Starfire Pro Series Restaurant Range, gas, 48", (4) 26,000 BTU open burners, cast iron top & ring grates,(1) 24" grilddle, 5/8" thick smooth steel plate, thermostatic controls, flame failure, (2) space saver ovens, 3 position rack guides, (1) rack per oven, stainless steel front, sides, plate rail & 10" low profile back guard, 6" stainless steel legs, adjustable feet, 204,000 BTU, CSA Flame, CSA Star, cCSAus, CE, NSF (Garland)GF Starfire Pro Series Restaurant Range, gas, 48", (4) 26,000 BTU open burners, cast iron top & ring grates,(1) 24" grilddle, 5/8" thick smooth steel plate, thermostatic controls, flame failure, (2) space saver ovens, 3 position rack guides, (1) rack per oven, stainless steel front, sides, plate rail & 10" low profile back guard, 6" stainless steel legs, adjustable feet, 204,000 BTU, CSA Flame, CSA Star, cCSAus, CE, NSF (Garland)Standard Features:
- Stainless steel front and sides
- Large easy-to-use control knobs
- Flame failure protection: all burners
- 6" (152mm) adj. stainless steel legs
- Stainless steel 5" (127mm) plate rail
- Large 27" (686mm) work top surface
- Stainless steel low profile back guard
- Gas regulator, 1" NPT rear gas connection
- 12" (305mm) section stamped drip trays w/ dimpled bottom
- Spark ignition on all concealed burners (open top burners manual ignition)
- 4-1/4" (108mm) wide grease trough
- Strong, keep-cool oven door handle
- Ergonomic split cast iron top ring grates
- Two space saver ovens w/porcelain interior
- 32,000 Btuh/ 9.38 kW cast iron "H" style oven burner
- Snap action modulating oven thermostat low to 500° F
- Nickel plated oven rack and 3-position removable oven rack guide
- 26,000 Btuh/ 7.61 kW 2 piece cast iron Starfire- Pro open top burner
- 18,000 Btuh/5.27 kW cast iron "H" style griddle burner per 12"(305mm) width of griddle
- Electric spark ignition on all burners, requiring single phase 115V 60Hz or 240V 50Hz (specify) prefix GFE models
- 5/8" (15mm) thick steel griddle plate with snap action modulating griddle control 175° to 425° F ( 79° to 218°C), 23” (584mm) working depth surface, on right; optional on left
- Additional oven racks
- Flanged deck mount legs
- Celsius temperature dials
- Stainless steel back panels for backguards or range
- 6” (152mm) leveling swivel casters (4), w/front locking
- Stainless steel backguard, w/removable stainless shelf
- Hot top 12" (305mm) plate in lieu of two open burners, manual valve controlled w/ 18,000 Btuh/5.27 kW cast iron "H" burner standard on left side
Gas restaurant series range with two space saver ovens. 47-1/4" (1200mm) wide and 27" (686mm) deep work top surfaces. Total flame failure protection for all burners. Stainless steel front, sides and 5” (127mm) wide front rail. 6" (152mm) legs with adjustable feet. Eight Starfire-Pro 2 piece, 26.000 Btuh/7.61 kW, cast open burners set in split cast iron ergonomic grates. Griddle or optional hot top with cast iron "H" style burners. Porcelain oven interior with ribbed oven bottom and door. "Keep cool" oven door handle. Heavy cast iron "H" 32,000 Btuh/ 9.38kW (natural gas) oven burner controlled by even bake, fast recovery snap action modulating oven thermostat. Electrical Supply: GFE models with 115V, 60 Hz, 1 phase, 0.1 amps; 6’ (1829mm) power cord with NEMA 5-15P plug. Power cord not supplied with 240V, 50 Hz, 1 phase 0.05 amps models. NOTE: Ranges supplied with casters must be installed with an approved restraining device.
