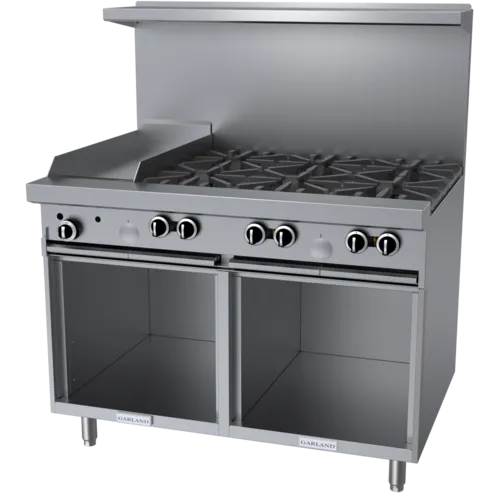

Garland US Range Garland/US Range G48-6G12SS Restaurant Gas Range, 48" W with 6 (2) Storage Bases (1) 12" Griddle and Manual Controls, - 216,000 BTU

Standard Features:

• Gas regulator
• Stainless steel front and sides
• Large easy-to-use control knobs
• 6" (152mm) adj. stainless steel legs
• Stainless steel 5" (127mm) plate rail
• Large 27" (686mm) work top surface
• 12" (305mm) section stamped drip trays w/ dimpled bottom
• Stainless steel backguard, w/ removable stainless steel shelf

Standard on Applicable Models:

• Open storage base in lieu of oven.
• 4-1/4" (108mm) wide grease trough
• Strong, keep-cool oven door handle
• Ergonomic split cast iron top ring grates
• Snap action modulating oven thermostat low to 500° F
• Nickel plated oven rack and 3-position removable oven rack guide
• 33,000 Btuh/ 9.67 kW 2 piece cast iron Starfire- Pro open top burner
• Porcelain oven interior, std. oven fits sheet pans 18x26 in both directions
• 18,000 Btuh/5.27 kW cast iron "H" style griddle burner per 12"(305mm) width of griddle
• 32,000 Btuh/ 9.38 kW (space saver) or 38,000 Btuh/ 11.13 kW cast iron “H” style oven burner
• 5/8" (15mm) thick steel griddle plate w/ manual hi/lo valve control, 23" (584mm) working depth surface, Standard on right, optional on left
• Convection oven w/3 nickel plated oven racks and removable rack guides in lieu of standard oven w/ 1/3HP 120v 60 Hz single phase fan motor; change Suffix RS to CS

Optional Features:

• Additional oven racks
• Flanged deck mount legs
• Celsius temperature dials
• Piezo spark ignition for pilots on griddles
• Convection oven motor 240v 50/60HZ single phase
• 6” (152mm) leveling swivel casters (4), w/front locking
• Snap action modulating griddle control 175° to 425° F
• Low profile 9-3/8" (238mm) backguard stainless steel front and sides
• Hot top 12" (305mm) plate in lieu of two open burners, manual valve controlled w/18,000 Btuh/5.27 kW cast iron "H" burner standard on left side

Specifications:
Gas restaurant series range with 2 space saver ovens, 20" (508mm) wide or large capacity oven 26-1/4" (667mm) wide. 47-1/4" wide, 27" (686mm) deep work top surfaces. Stainless steel front, sides and 5" wide front rail. 6" (152mm) legs with adjustable feet. Eight StarfirePro 2 piece, 33,000 Btuh/ 9.67 kW (natural gas), cast open burners set in split cast iron ergonomic grates. Griddle or optional hot top with cast iron "H" style burners, 18,000 Btuh/5.27 kW (natural gas), in lieu of open burners. One piece oven with porcelain interior and heavy duty, "keep cool" door handle. Heavy cast iron "H" oven burner rated 32,000 Btuh/ 9.38 kW (natural gas) for space saver oven, and 38,000 Btuh/11.13 kW (natural gas) for standard oven Oven controlled by even bake, fast recovery snap action modulating oven thermostat. Available with convection oven in lieu of standard oven or storage base in lieu of oven(s). Convection ovens with 120V, 60 Hz, 1 phase, 3.4 amps motors are supplied with 6’/1829mm cord and plug (NEMA 5-15P); 240V, 50/60 Hz, 1 phase motors are not supplied with cord and plug and must have direct connect. Gas input ratings shown for installations up to 2000 ft.,(610m) above sea level. Please specify altitudes over 2000 ft. This product is not approved for residential use. NOTE: Ranges supplied with casters must be installed with an approved restraining device.
