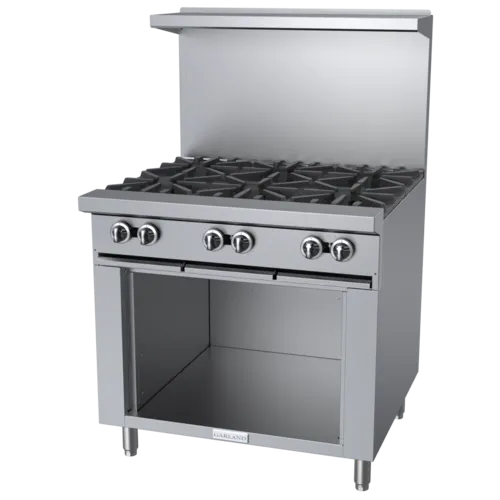

Garland US Range Garland/US Range G36-6S Restaurant Gas Range, with 6 Burners Burners and Storage Base - 198,000 BTU
SKU#: G36-6S
1/24
Free Freight?
Quick Ship
$4,498.00
Contact us for details
Product Protection
Starting at
- Please see specification sheet for installation clearance requirements
Garland US Range G36-6S Specifications
Total BTU | 131000 - 224000 |
---|---|
Burner Type | 33,000 BTU open burners |
Number of Burners | 6 - 8 |
Burner Style | Grates |
Range Base Style | Storage Base |
Brand | Garland/US Range |
Certifications | NSF |
Quantity of Burners | 6 |
Control Type | Manual |
Oven Type | Storage |
BTU | 198,000 BTU |
Legs | 6" stainless steel legs |
Exterior Finish | Stainless Steel Front & Sides |
Base | Storage |
Gas Type | LP |
Heat | Gas |
Range Configuration | Burners |
Width (in) | 36 |
Height (in) | 57 |
Depth (in) | 34.5 |
Weight | 310.00 |
Additional Information on Garland US Range G36-6S
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Garland US Range G36-6S Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
Garland US Range G36-6S Description
G Starfire Pro Series Restaurant Range, gas, 36", (6) 33,000 BTU open burners, cast iron top & ring grates, storage base, stainless steel front, sides, plate rail, 2-piece back guard and shelf, 6" stainless steel legs with adjustable feet, 198,000 BTU, CSA Flame, CSA Star, cCSAus, NSF (Garland)
G Starfire Pro Series Restaurant Range, gas, 36", (6) 33,000 BTU open burners, cast iron top & ring grates, storage base, stainless steel front, sides, plate rail, 2-piece back guard and shelf, 6" stainless steel legs with adjustable feet, 198,000 BTU, CSA Flame, CSA Star, cCSAus, NSF (Garland)
Gas restaurant series range with large capacity (standard) oven. 35 7/16" (900mm) wide, 27" (686mm) deep work top surfaces. Stainless steel front, sides and 5" wide front rail. 6" (152mm) legs with adjustable feet. Six Starfire-Pro 2 piece, 33,000 Btuh/ 9.67 kW (natural gas), cast open burners set in split cast iron ergonomic grates. Griddle or optional hot-top with cast iron "H" style burners, 18,000 Btuh/5.27 kW (natural gas), in lieu of open burners. One piece oven with porcelain interior and heavy duty, "keep cool" door handle. Heavy cast iron "H" oven burner rated 38,000 Btuh/11.13 kW (natural gas) Oven controlled by even bake, fast recovery snap action modulating oven thermostat. Available with convection oven, storage base or modular top model in lieu of oven. NOTE: Ranges supplied with casters must be installed with an approved restraining device.
Standard Features:
- Gas regulator
- Stainless steel front and sides
- Large easy-to-use control knobs
- 6" (152mm) adj. stainless steel legs
- Stainless steel 5" (127mm) plate rail
- Large 27" (686mm) work top surface
- 12" (305mm) section stamped drip trays w/ dimpled bottom
- Stainless steel backguard, w/ removable stainless steel shelf
- 4-1/4" (108mm) wide grease trough
- Strong, keep-cool oven door handle
- Open storage in lieu of oven, suffix S
- Ergonomic split cast iron top ring grates
- 38,000 Btuh/ 11.13 kW cast iron “H” style oven burner
- Snap action modulating oven thermostat low to 500° F
- Nickel plated oven rack and 3-position removable oven rack guide
- 33,000 Btuh/9.67 kW 2 piece cast iron Starfire- Pro open top burner
- 18,000 Btuh/5.27 kW cast iron "H" style griddle burner per 12"(305mm) width of griddle
- Large porcelain oven interior, fits standard sheet pans in both directions for standard ovens
- Modular top (Suffix T) with stainless steel low profile backguard & 4" (102mm) adjustable metal legs
- 5/8" (15mm) thick steel griddle plate w/ manual hi/lo valve control, 23" (584mm) working depth surface, Standard on right, optional on left
- Convection oven w/3 nickel plated oven racks and removable rack guides in lieu of standard oven w/ 1/3HP 120v 60 Hz single phase fan motor; change suffix R to C
- Additional oven racks
- Flanged deck mount legs
- Celsius temperature dials
- Piezo spark ignition for pilots on griddles
- Convection oven motor 240v 50/60HZ single phase
- 6” (152mm) levelling swivel casters (4), w/front locking
- Snap action modulating griddle control 175° to 425° F
- Low profile 9-3/8" (238mm) backguard stainless steel front and sides
- Range mount salalamnders and cheesemelters are available for the oven and storage base models but not modular top (T) models
- Hot top 12" (305mm) plate in lieu of two open burners, manual valve controlled w/ 18,000 Btuh/5.27 kW cast iron "H" burner standard on left side
Gas restaurant series range with large capacity (standard) oven. 35 7/16" (900mm) wide, 27" (686mm) deep work top surfaces. Stainless steel front, sides and 5" wide front rail. 6" (152mm) legs with adjustable feet. Six Starfire-Pro 2 piece, 33,000 Btuh/ 9.67 kW (natural gas), cast open burners set in split cast iron ergonomic grates. Griddle or optional hot-top with cast iron "H" style burners, 18,000 Btuh/5.27 kW (natural gas), in lieu of open burners. One piece oven with porcelain interior and heavy duty, "keep cool" door handle. Heavy cast iron "H" oven burner rated 38,000 Btuh/11.13 kW (natural gas) Oven controlled by even bake, fast recovery snap action modulating oven thermostat. Available with convection oven, storage base or modular top model in lieu of oven. NOTE: Ranges supplied with casters must be installed with an approved restraining device.
