Beverage Air HBR23HC-1 27.25'' 23.1 cu. ft. Bottom Mounted 1 Section Solid Door Reach-In Refrigerator
- 2023 model, meets the newest EPA and DOE codes.
Beverage Air HBR23HC-1 Specifications
Refrigerator Capacity | 23.1 cu. ft. |
---|---|
Amps | 5.8 Amps |
Door Size | Full |
Half Doors | No |
Hinge Location | Right |
Construction | Steel |
Brand | Beverage Air |
Refrigerant Type | R-290 |
Number of Doors | 1 |
Made in | USA |
Certifications | cULus |
Refrigeration System | Self-contained |
Capacity | 11 - 30 cu. ft. |
Compressor Location | Bottom Mounted |
Door Type | Solid |
Sections | 1 |
Temperature Range | 36 - 38 Degrees F |
Voltage | 115 Volts |
Width (in) | 27.25 |
Height (in) | 84.25 |
Depth (in) | 33.75 |
Weight | 400.00 |
Additional Information on Beverage Air HBR23HC-1

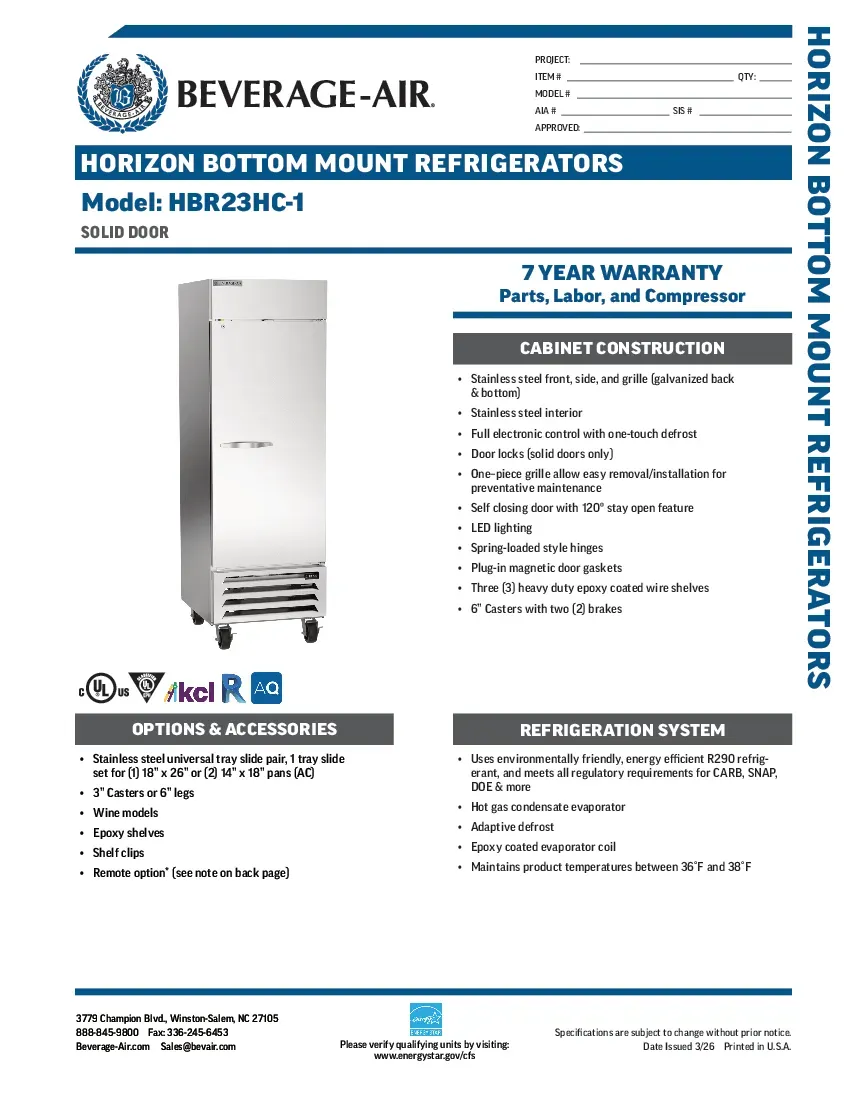

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Beverage Air HBR23HC-1 Certifications
cULus
UL (Underwriters Laboratories) approval for the US and Canada
UL
UL has tested representative samples of this product and determined that the product meets specific, defined requirements.
UL EPH
Certifies that the goods conform to public health and environmental quality compatibility requirements.
UL EPH Classified
This product complies with UL EPH standards and meets ANSI/NSF requirements.
UL-Sanitation
This item has been tested and meets the sanitation hazard standards imposed by the Underwriters Laboratories (UL).
Beverage Air HBR23HC-1 Description
Horizon Series Refrigerator, reach-in, one-section, 23.32 cu. ft. capacity, (1) right-hand solid hinged door (lockable), (3) adjustable shelves, electronic control, LED interior lighting, digital display, adaptive defrost, stainless steel interior & exterior, bottom mounted self-contained refrigeration, R290 Hydrocarbon refrigerant, 1/4 HP, cULus, UL EPH Classified, UL-Sanitation, Made in USADependable refrigeration is essential for any commercial kitchen and the HBR23HC-1 Horizon Series Refrigerator from Beverage Air is a solid investment that will prevent spoilage and maintain food safety for many years. This unit is designed to hold up to 23.1 cu. ft. of food.
Food is stored on four epoxy-coated wire shelves that maximize the available space. The interior liner is made from stainless steel for easy cleaning and maintenance and everything is lit with dependable LED lighting that stays cool. The interior is accessed through an anti-microbial handle that swiftly opens the stainless steel door. A self-closing feature and plug-in magnetic gasket make sure that it is never left ajar and maintain a cold temperature while minimizing power costs. When accessing multiple items the door can be opened to 120º and it will remain open allowing users to use both hands.
The self-contained refrigeration system at the bottom of the unit saves on space while keeping access to items higher to keep users from needing to bend over too far when accessing items. It uses a ¼ HP compressor that produces 1480 BTU/hr of cooling. Food inside the refrigerator is kept between 36ºF and 38ºF to maximize the shelf life. This temperature is maintained with full electronic control for efficiency. An epoxy-coated evaporator coil will make sure efficient cooling will be maintained reliably for many years. To keep the refrigeration system running as efficiently as possible while minimizing downtime an automatic non-electric defrost cycle is used by this unit. R290 Hydrocarbon refrigerant is used for efficient cooling that doesn’t harm the environment.
The unit conveniently comes with 6” casters from the factory, this allows it to be easily moved into and out of place. The front casters are locking which keeps it in place when it’s in use. Power is supplied to the unit with a factory wired 8-foot power cord with a NEMA 5-15P plug set to connect it to a standard outlet that provides 115v/60/1-ph power at 3.0 amps.
Horizon Series Refrigerator, reach-in, one-section, 23 cu. ft., (1) right-hand hinged solid door, (3) adjustable shelves, electronic control, LED interior lighting, digital display, stainless steel interior and exterior, 6" casters, bottom-mounted self-contained refrigeration, R290 Hydrocarbon refrigerant, 1/3 hp, UL, cUL, UL EPH, MADE IN USAStandard Features:
- Cabinet Construction
- Door locks, standard
- Full electronic control
- LED lighting standard
- Anti-microbial door handle
- Spring-loaded style hinges
- Plug-in magnetic door gaskets
- Stainless steel exterior and interior
- 6” Casters standard with two (2) brakes
- Self closing door with 120º stay open feature
- Refrigerator maintains temperature at 36°-38°F
- Three (3) heavy duty epoxy coated wire shelves standard
- One-piece grille allow easy removal/installation for preventative maintenance
- Refrigeration System
- Epoxy coated evaporator coil
- Automatic, non-electric evaporator
- Bottom mount balanced refrigeration system
- Refrigeration system uses R290 refrigerant to comply with all environmental concerns
- Forced-air system ensures uniform distribution of airflow throughout the entire cabinet for even product temperature
- Options & Accessories
- Remote option
- 3” caster or 6” legs
- Chrome plated shelves
- Additional epoxy shelves
- Half solid door models available
- Flat wine racks with bottle support
- Stainless steel universal tray slides
- Wine temperature models available
- Glass and half glass door models available
