Beverage Air BB72HC-1-GS-PT-S Refrigerated Back Bar Pass-Thru Storage Cabinet

SKU#: BB72HC-1-GS-PT-S
Made in USA
Free Freight?
Quick Ship
$7,581.78
$6,615.88
or enjoy small payments $142.18/mo.
Lease Payment Calculate
Product Protection
Product Protection
Starting at
Reward Points
Reward Points
You will earn 7582
  • 2023 model, meets the newest EPA and DOE codes.

Beverage Air BB72HC-1-GS-PT-S Specifications

Number of Kegs3 Kegs
Interior ConstructionShelves
ConstructionStainless and Galvanized Steel
Cabinet TypeStorage Cabinets
BrandBeverage Air
Refrigerant TypeR-290
Made inUSA
CertificationscULus
Door StyleSliding
Control TypeManual
Number of Doors6
Capacity22.1 cu. ft.
ColorStainless Steel
Door TypeGlass
Sections3
Voltage115 Volts
Width (in)72
Height (in)34
Depth (in)25.75
Weight366.00

Additional Information on Beverage Air BB72HC-1-GS-PT-S

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Beverage Air BB72HC-1-GS-PT-S Certifications

cULus

cULus

UL (Underwriters Laboratories) approval for the US and Canada

UL

UL

UL has tested representative samples of this product and determined that the product meets specific, defined requirements.

UL EPH

UL EPH

Certifies that the goods conform to public health and environmental quality compatibility requirements.

UL EPH Classified

UL EPH Classified

This product complies with UL EPH standards and meets ANSI/NSF requirements.

UL-Sanitation

UL-Sanitation

This item has been tested and meets the sanitation hazard standards imposed by the Underwriters Laboratories (UL).

Beverage Air BB72HC-1-GS-PT-S Description

Refrigerated Back Bar Pass-Thru Storage Cabinet, three-section, 72"W, 34" H, 22.1 cu. ft. capacity, (6) black-framed locking sliding glass doors, (6) epoxy coated steel shelves, (3) 1/2 barrel kegs, LED interior lighting with manual on/off switch, galvanized sub-top, galvanized interior with stainless steel floor, stainless steel exterior, right-mounted self-contained refrigeration, R290 Hydrocarbon refrigerant, 1/3 HP, cULus, UL EPH Classified, UL-Sanitation, Made in USA

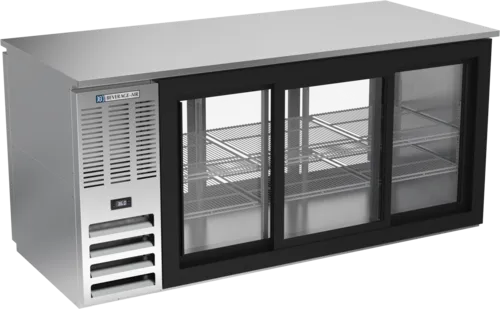

The BB72HC-1-GS-PT-S Refrigerated Back Bar Pass-Thru Storage Cabinet from Beverage Air features a stainless steel finish and sliding glass doors on either side that provide a clear view of the products inside while maintaining a low profile when accessing items in a restrictive back bar environment. With 22.1 cu. ft. of food rated capacity, this unit has plenty of room to stock multiple beverages that are easy to access. Alternatively, the interior can hold up to three ½ kegs.

This unit features sliding glass doors that stay out of the way of other users in a busy back bar environment. To prevent the doors from being left open, they feature a self-closing mechanism but to make accessing multiple items easier the doors also have a stay-open feature for convenience. The interior features LED lighting making items easy to see while producing little to no heat. Items are kept organized with six epoxy-coated shelves to make full use of the available space. This refrigerator uses forced-air refrigeration to quickly and evenly cool products.

A ⅓ HP compressor provides 1942 BTU/hr of efficient cooling and can be ordered installed on either the right or left side of the unit to best fit your establishment’s needs. The interior temperature is kept between 36ºF and 38ºF by the fully electronic controls while an epoxy-coated evaporator makes sure the refrigeration system requires as little maintenance as possible while providing refrigeration you can rely on. This unit defrosts automatically with a non-electric system to reduce downtime while maintaining peak efficiency. To meet all environmental regulations R290 hydrocarbon refrigerant is used.

An 8’ power cord comes factory-wired on this unit with a NEMA 5-15P plug set to connect it to a standard 115v/60/1-ph power outlet that can safely deliver 3.1 amps.

Beverage Air BB72HC-1-GS-PT-S Refrigerated Back Bar Pass-Thru Storage Cabinet

With this state-of-the-art Beverage Air BB72HC-1-GS-PT-S Refrigerated Back Bar Pass-Thru Storage Cabinet, you can keep your bar free of clutter. This backbar storage cabinet is 34 inches tall, 72 inches wide, and 25 inches deep.

Standard Features:
  • Cabinet Construction
    • LED lighting
    • Self-closing doors
    • Full electronic control
    • Galvanized sub-top standard
    • Black or stainless steel exterior
    • Heavy duty stainless steel floor
    • Stay-open feature & lock standard
    • Two (2) epoxy coated shelves per section, standard
    • Interior construction utilizes galvanized steel on walls and ceiling
    • Compressor available on left or right, specify at time of unit order
  • Refrigeration System
    • Epoxy coated evaporator coil
    • Automatic, non-electric evaporator
    • Balanced forced-air refrigeration system provides rapid chilling of product
    • Refrigeration system uses R290 refrigerant to comply with all environmental concerns
  • Options & Accessories
    • Wire shelf dividers
    • Solid or glass door
    • 2” Stainless steel top
    • Foot pedal door opener
    • Food rated models available
    • 3”-6” casters or 6” black legs
    • Wine model (40º-60º models)
  • Electrical Connection
    • Units pre-wired at factory and include 8’ long cord and plug set.

Options for Beverage Air BB72HC-1-GS-PT-S

Export crating
Wine thermostat
Stainless steel options
Delivery
Refrigeration
What is included
  • Voltage: 115v/60/1-ph, 3.1 amps, cord with NEMA 5-15P
  • Warranty: 7 year parts & labor and 7 year compressor warranty (excludes maintenance items)
