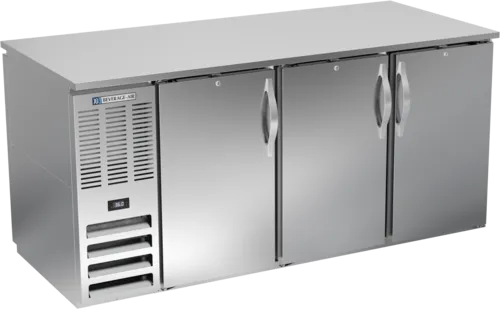

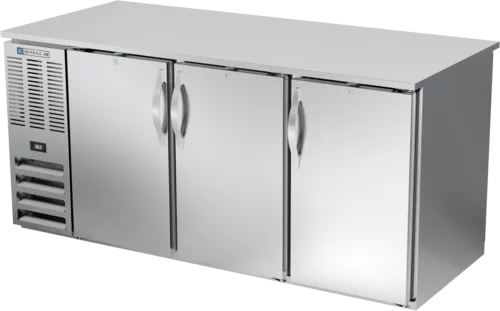

Beverage Air BB72HC-1-F-PT-S Refrigerated Open Food Rated Back Bar Pass-Thru

Description

Beverage Air BB72HC-1-F-PT-S Description

Refrigerated Open Food Rated Back Bar Pass-Thru Storage Cabinet, three-section, 72"W, 34" H, 22.1 cu. ft. capacity, (6) solid doors, (6) epoxy coated steel shelves, (3) 1/2 barrel kegs, LED interior lighting with manual on/off switch, stainless steel exterior construction, galvanized top, stainless steel interior with radius corners is easy to keep clean & meets NSF Standard 7 for open food container, right-mounted self-contained refrigeration, R290 Hydrocarbon refrigerant, 1/3 HP, cULus, UL EPH Classified, UL-Sanitation, Made in USA

• BB Hinged Solid Doors - Pass-Thru Back Bar Refrigerators Open Food Rated
  • Food Rated models are certified for bottled beverages, packaged food, and open food.
  • 23” base Pass-Thru, self-contained refrigerators come in two widths of 48” and 72.”
  • 23” base shallow depth units are available in two heights: 34” height with standard galvanized steel top for under shelf application and 36” height when adapted with a 2” stainless steel top (specify –27). Depth is 23 1/2” from face of door to opposite side of cabinet. Handle projects 1/2.”
• Cabinet Construction
  • Interior, incandescent lighting standard.
  • Two (2) epoxy-coated shelves per section standard.
  • Field-reversible doors with 90° stay-open feature standard.
  • Galvanized sub top standard. 2” stainless steel top optional (specify –27).
  • Hinged solid doors are self-closing and include a stay-open feature and lock.
  • All stainless steel interior with radius corners is easy to keep clean and meets NSF
  • Standard, cabinet exterior construction includes black steel finish. Stainless steel exterior option available (-S models).
  • Standard 7 for open food containers. Reinforced floor made from heavy-duty stainless steel to provide long lasting service.
  • Environmentally friendly foamed-in-place CFC and HCFC-free polyurethane insulation enhances the structural strength of the cabinet and helps increase energy efficiency.
• Refrigeration System
  • Remote refrigeration models available.
  • Evaporator located above condensing unit permits full use of interior spaces.
  • Refrigeration is fully accessible behind grille to right side of cabinet and is 100% front breathing.
  • Refrigeration system uses R134a refrigerant, which is CFC and HCFC-free for compliance with environmental safety concerns.
• Electrical Connection
  • Units are pre- wired at factory and ready for connection to a 115/60/1 phase, 15 amp dedicated outlet. 8’ long cord and plug set included.
• Available Options
  • Wire shelf dividers
  • 3” or 6” casters; 6” legs
  • WINE models available (40°-60°F models)

Close Description
