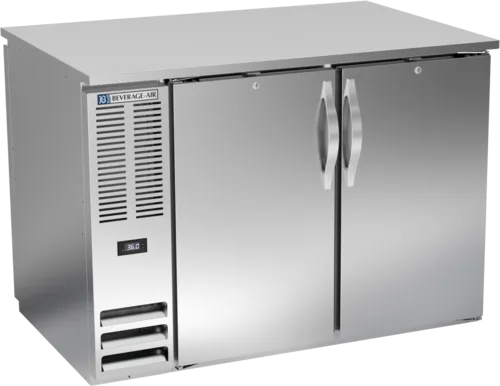

Beverage Air BB48HC-1-F-PT-S Refrigerated Pass-Thru Back Bar Open Food Rated

MPN#: BB48HC-1-F-PT-S
Free Freight?
Quick Ship
$7,166.23 /
$6,253.27 /
or enjoy small payments $134.38/mo.
Lease Payment Calculate
Product Protection
Product Protection
Starting at
Reward Points
Reward Points
You will earn 7166
  • 2023 model, meets the newest EPA and DOE codes.

Beverage Air BB48HC-1-F-PT-S Specifications

Number of Kegs2 Kegs
ConstructionStainless and Galvanized Steel
BrandBeverage Air
Refrigerant TypeR-290
Made inUSA
CertificationscULus
Door StyleSwing
Number of Doors4
Capacity13.6 cu. ft.
ColorStainless Steel
Door TypeSolid
Sections2
Voltage115 Volts
Width (in)48
Height (in)34
Depth (in)27.38
Weight306.00

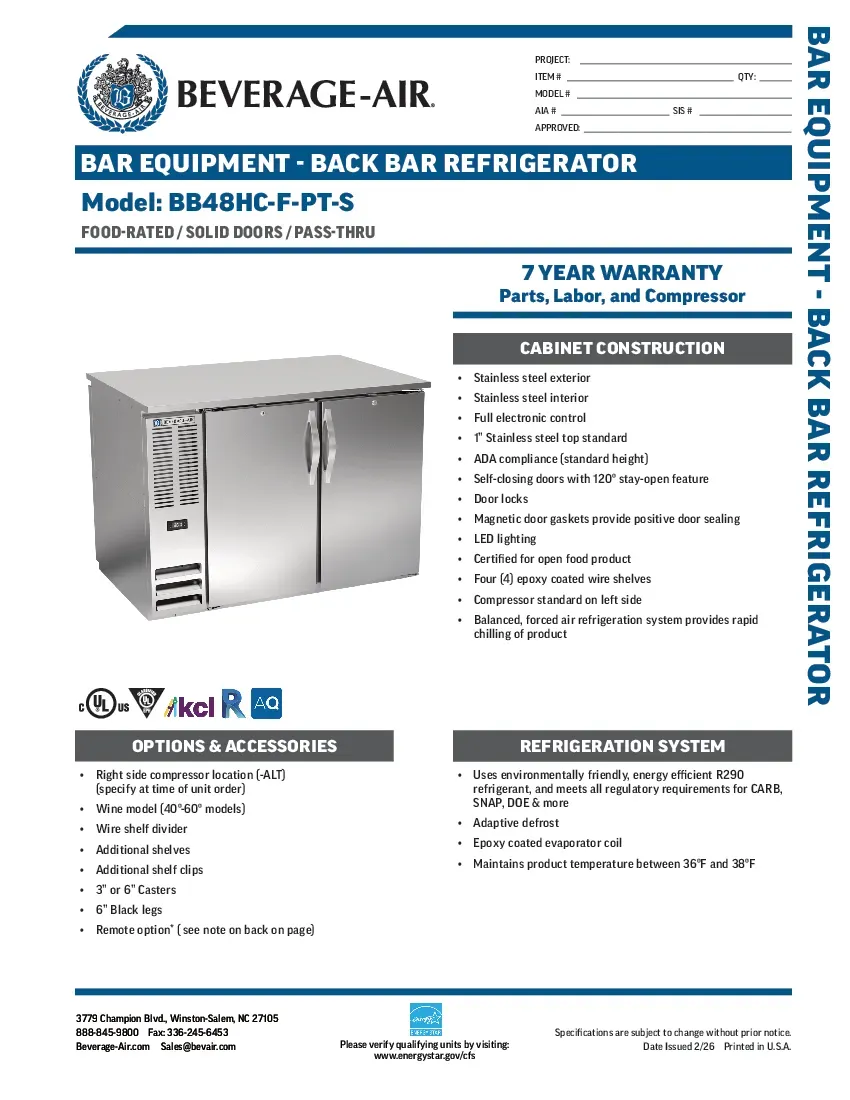

Additional Information on Beverage Air BB48HC-1-F-PT-S

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Beverage Air BB48HC-1-F-PT-S Certifications

cULus

cULus

UL (Underwriters Laboratories) approval for the US and Canada

NSF

NSF

This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.

UL

UL

UL has tested representative samples of this product and determined that the product meets specific, defined requirements.

UL EPH

UL EPH

Certifies that the goods conform to public health and environmental quality compatibility requirements.

UL EPH Classified

UL EPH Classified

This product complies with UL EPH standards and meets ANSI/NSF requirements.

UL-Sanitation

UL-Sanitation

This item has been tested and meets the sanitation hazard standards imposed by the Underwriters Laboratories (UL).

Beverage Air BB48HC-1-F-PT-S Description

Refrigerated Pass-Thru Back Bar Open Food Rated Refrigerator, two-section, 48"W, 34" H, 13.6 cu. ft. capacity, (4) solid doors, (4) epoxy coated steel shelves, (2) 1/2 barrel keg, LED interior lighting, stainless steel exterior, galvanized sub top, stainless steel interior, meets NSF-Standard 7 for open food container, right-mounted self-contained refrigeration, R290 Hydrocarbon refrigerant, 1/3 HP, cULus, UL EPH Classified, UL-Sanitation, Made in USA

If your establishment needs a back bar refrigeration solution that can be accessed from either side the Beverage Air BB48HC-1-F-PT-S Refrigerated Pass-Thru Back Bar Open Food Rated is an ideal solution. With its stainless steel exterior, this unit is easy to maintain and will continue to look great for years to come. The interior is food rated and has a total of 13.6 cu. ft. of capacity, the interior can also be used to store two ½ kegs.

The reach-in section has two epoxy-coated shelves to organize items and maximize the usability of the space. The interior features stainless steel construction and is certified to store open food products. The self-closing door provides convenient access that can reduce power consumption. In a busy establishment, workers need to be able to do work efficiently which is why the doors on this unit have a stay-open feature to allow the use of both hands when accessing multiple items. To keep cold air in, the doors have magnetic gaskets. This back bar refrigerator features a balanced forced-air refrigeration system that can rapidly cool products inside.

Cooling is provided by a side-mounted refrigeration system utilizing a ⅓ HP compressor that provides 1942 BTU/hr of cooling. To best fit your establishment the refrigeration system can be ordered on either side. Items inside are kept between 36ºF and 38ºF by the fully electronic controls. The refrigeration system also features an epoxy-coated evaporator coil to provide reliable refrigeration with minimal maintenance. This unit defrosts automatically with a non-electric system to reduce downtime while maintaining peak efficiency. To meet all environmental regulations R290 hydrocarbon refrigerant is used.

Power is supplied to the unit with a factory wired 8-foot power cord with a NEMA 5-15P plug set to connect it to a standard outlet that provides 115v/60/1-ph power at 3.1 amps.

Beverage Air BB48HC-1-F-PT-S Refrigerated Pass-Thru Back Bar Open Food Rated

Your bar will look better than ever with help from the Beverage Air BB48HC-1-F-PT-S Refrigerated Pass-Thru Back Bar Open Food Rated, which provides shelves and compartments for all your necessities. This backbar storage cabinet is 34 inches tall, 48 inches wide, and 25 inches deep.

Standard Features:
  • BB Hinged Solid Doors
  • Pass-Thru Back Bar Refrigerators Open Food Rated
    • 23” base Pass-Thru, self-contained refrigerators come in two widths of 48” and 72.”
    • Food Rated models are certified for bottled beverages, packaged food, and open food.
    • 23” base shallow depth units are available in two heights:
      • 34” height with standard galvanized steel top for under shelf application and 36” height when adapted with a 2” stainless steel top (specify –27). Depth is 23 1/2” from face of door to opposite side of cabinet. Handle projects 1/2.”
  • Cabinet Construction
    • Interior, incandescent lighting standard.
    • Two (2) epoxy-coated shelves per section standard.
    • Stainless steel exterior option available (-S models).
    • Field-reversible doors with 90° stay-open feature standard.
    • Standard, cabinet exterior construction includes black steel finish.
    • Galvanized sub top standard. 2” stainless steel top optional (specify -27).
    • Hinged solid doors are self-closing and include a stay-open feature and lock.
    • All stainless steel interior with radius corners is easy to keep clean and meets NSF
    • Standard 7 for open food containers. Reinforced floor made from heavy-duty stainless steel to provide long lasting service.
    • Environmentally friendly foamed-in-place CFC and HCFC-free polyurethane insulation enhances the structural strength of the cabinet and helps increase energy efficiency.
  • Refrigeration System
    • Remote refrigeration models available.
    • Evaporator located above condensing unit permits full use of interior spaces.
    • Refrigeration is fully accessible behind grille to right side of cabinet and is 100% front breathing.
    • Refrigeration system uses R134a refrigerant, which is CFC and HCFC-free for compliance with environmental safety concerns.
  • Available Options
    • Wire shelf dividers
    • 3” or 6” casters; 6” legs
    • WINE models available (40°-60°F models)
  • Electrical Connection
    • Units are pre- wired at factory and ready for connection to a 115/60/1 phase, 15 amp dedicated outlet. 8’ long cord and plug set included.

Options for Beverage Air BB48HC-1-F-PT-S

Export crating
Wine thermostat
Stainless steel options
Delivery
Refrigeration
What is included
  • Voltage: 115v/60/1-ph, 3.1 amps, cord with NEMA 5-15P
  • Warranty: 7 year parts & labor and 7 year compressor warranty (excludes maintenance items)
