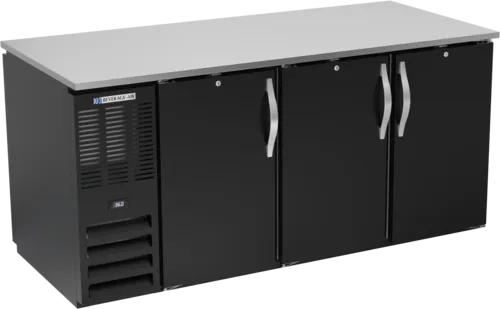

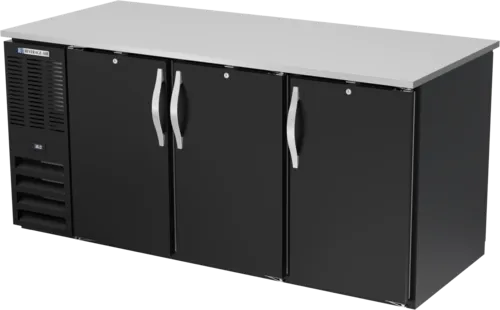

Beverage Air BB72HC-1-PT-B Refrigerated Back Bar Pass-Thru Storage Cabinet

SKU#: BB72HC-1-PT-B
Made in USA
Free Freight?
Quick Ship
$5,732.00
$5,001.76
or enjoy small payments $107.49/mo.
Lease Payment Calculate
Product Protection
Product Protection
Starting at
Reward Points
Reward Points
You will earn 5732
  • 2023 model, meets the newest EPA and DOE codes.

Beverage Air BB72HC-1-PT-B Specifications

Number of Kegs3 Kegs
Interior ConstructionShelves
ConstructionStainless and Galvanized Steel
Cabinet TypeStorage Cabinets
BrandBeverage Air
Refrigerant TypeR-290
Made inUSA
CertificationscULus
Door StyleSwing
Control TypeManual
Number of Doors6
Capacity22.1 cu. ft.
Door TypeSolid
Sections3
Voltage115 Volts
Width (in)72
Height (in)34
Depth (in)27.38
Weight366.00

Additional Information on Beverage Air BB72HC-1-PT-B

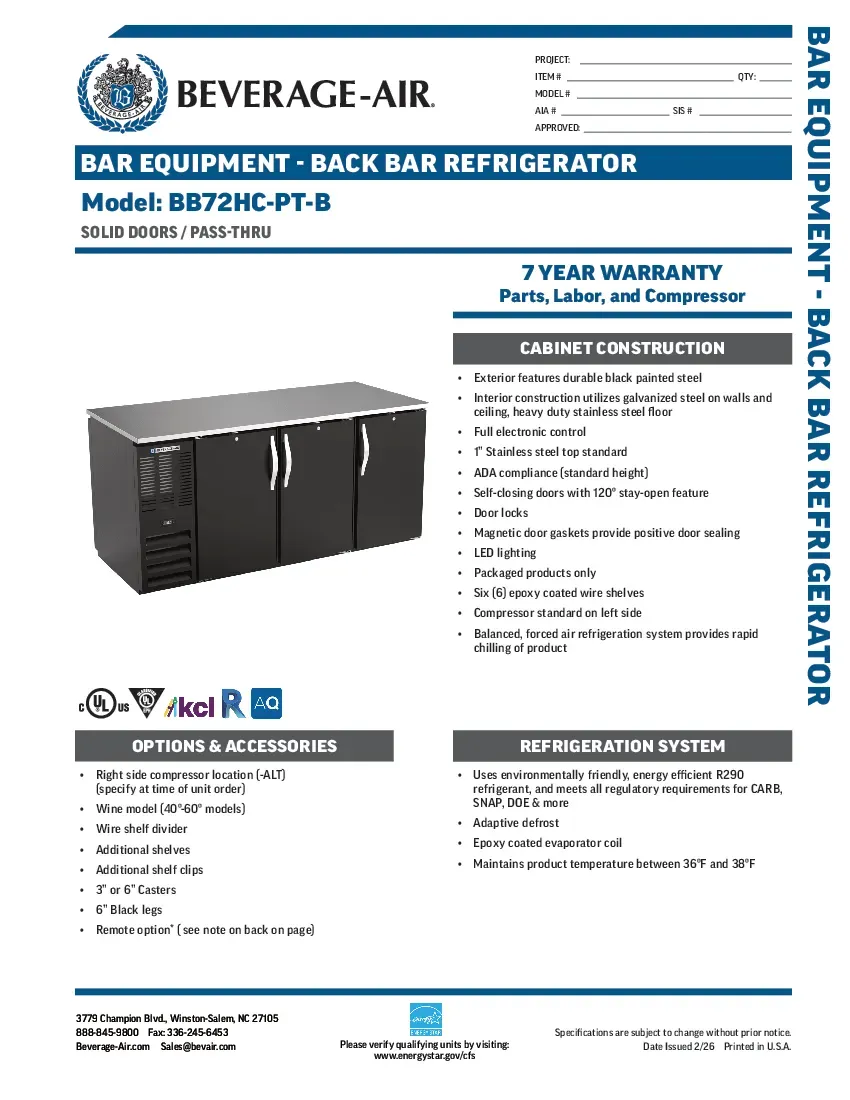

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Beverage Air BB72HC-1-PT-B Certifications

cULus

cULus

UL (Underwriters Laboratories) approval for the US and Canada

UL

UL

UL has tested representative samples of this product and determined that the product meets specific, defined requirements.

UL EPH

UL EPH

Certifies that the goods conform to public health and environmental quality compatibility requirements.

UL EPH Classified

UL EPH Classified

This product complies with UL EPH standards and meets ANSI/NSF requirements.

UL-Sanitation

UL-Sanitation

This item has been tested and meets the sanitation hazard standards imposed by the Underwriters Laboratories (UL).

Beverage Air BB72HC-1-PT-B Description

Refrigerated Back Bar Pass-Thru Storage Cabinet, three-section, 72"W, 34" H, 22.1 cu. ft. capacity, (6) solid doors with locks, (6) epoxy coated steel shelves, (3) 1/2 barrel kegs, LED interior lighting with manual on/off switch, galvanized sub-top, galvanized interior with stainless steel floor, black exterior finish, right-mounted self-contained refrigeration, R290 Hydrocarbon refrigerant, 1/3 HP, cULus, UL EPH Classified, UL-Sanitation, Made in USA

The BB72HC-1-PT-B Refrigerated Back Bar Pass-Thru Storage Cabinet from Beverage Air is a great option if your establishment requires refrigerated back bar storage that does more than just keep beverages cool. This pass-thru unit has three doors on either side giving customers and users a clear view of what’s available. Doors on either side make serving and restocking much more convenient. This refrigerator offers 22.1 cu. ft. of cold storage and can hold three ½ kegs.

The reach-in sections each have two epoxy-coated shelves to organize items and maximize the usability of the space. The self-closing doors provide convenient access that can reduce power consumption. When users need to access multiple items the doors have a stay-open feature. To ensure an airtight seal, the doors feature a magnetic gasket. The forced-air refrigeration system provides balanced cooling that can quickly make the mercury plummet.

On the side of this back bar refrigerator is a self-contained refrigeration system featuring a ⅓ HP compressor that puts out 1942 BTU/hr of cooling. The compressor can be located on either the left or right side of the unit to best fit your needs. The temperature inside is maintained between 36ºF and 38ºF by the fully electronic controls. An epoxy-coated evaporator coil makes sure efficient cooling will be provided for many years with minimal service. Environmentally-friendly R290 refrigerant provides efficient cooling while meeting all environmental regulations. Automatic non-electric defrosting makes sure there’s very little downtime while keeping the inside from frosting over.

An 8’ power cord comes factory-wired on this unit with a NEMA 5-15P plug set to connect it to a standard 115v/60/1-ph power outlet that can safely deliver 3.1 amps.

Beverage Air BB72HC-1-PT-B Refrigerated Back Bar Pass-Thru Storage Cabinet

Easily locate all your supplies in an instant with the Beverage Air BB72HC-1-PT-B Refrigerated Back Bar Pass-Thru Storage Cabinet, perfect for a fast-paced bar. This backbar storage cabinet is 34 inches tall, 72 inches wide, and 25 inches deep.

Standard Features:
  • BB Hinged Solid Doors - Pass-Thru Back Bar Refrigerators
    • 23” base Pass-Thru, self-contained refrigerators come in two widths of 48” and 72.”
    • 23” base shallow depth units are available in two heights: 34” height with standard galvanized steel top for under shelf application and 36” height when adapted with a 2” stainless steel top (specify –27). Depth is 23 1/2” from face of door to opposite side of cabinet. Handle projects 1/2.”
  • Cabinet Construction
    • Galvanized sub top standard.
    • Interior, incandescent lighting standard.
    • 2” Stainless steel top optional (specify –27).
    • Two (2) epoxy-coated shelves per section standard.
    • Stainless steel exterior option available (-S models).
    • Field-reversible doors with 90° stay-open feature standard.
    • Standard, cabinet exterior construction includes black steel finish.
    • Standard interior construction utilizes galvanized steel walls and ceiling.
    • Hinged solid doors are self-closing and include a stay-open feature and lock.
    • Reinforced floor made from heavy-duty stainless steel to provide long lasting service.
    • Environmentally friendly foamed-in-place CFC and HCFC-free polyurethane insulation enhances the structural strength of the cabinet and helps increase energy efficiency.
  • Refrigeration System
    • Remote refrigeration models available.
    • Evaporator located above condensing unit permits full use of interior spaces.
    • Refrigeration is fully accessible behind grille to right side of cabinet and is 100% front breathing.
    • Refrigeration system uses R134a refrigerant, which is CFC and HCFC-free for compliance with environmental safety concerns.
  • Available Options
    • Wire shelf dividers
    • 3” or 6” casters; 6” legs
    • Open-Food Rated models available
    • WINE models available (40°-60°F models)
  • Electrical
    • Units are pre- wired at factory and ready for connection to a 115/60/1 phase, 15 amp dedicated outlet. 8’ long cord and plug set included.

Options for Beverage Air BB72HC-1-PT-B

Export crating
Wine thermostat
Stainless steel options
Delivery
Refrigeration
What is included
  • Voltage: 115v/60/1-ph, 3.1 amps, cord with NEMA 5-15P
  • Warranty: 7 year parts & labor and 7 year compressor warranty (excludes maintenance items)
