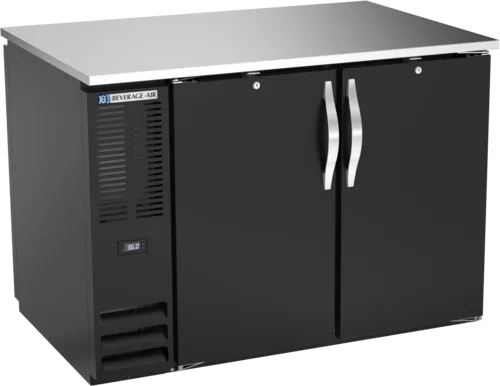

Beverage Air BB48HC-1-F-PT-B Refrigerated Pass-Thru Back Bar Open Food Rated

SKU#: BB48HC-1-F-PT-B
Made in USA
Free Freight?
Quick Ship
$6,968.80
$6,080.99
or enjoy small payments $130.68/mo.
Lease Payment Calculate
Product Protection
Product Protection
Starting at
Reward Points
Reward Points
You will earn 6969
  • 2023 model, meets the newest EPA and DOE codes.

Beverage Air BB48HC-1-F-PT-B Specifications

Number of Kegs2 Kegs
ConstructionStainless and Galvanized Steel
BrandBeverage Air
Refrigerant TypeR-290
Made inUSA
CertificationscULus
Door StyleSwing
Number of Doors4
Capacity13.6 cu. ft.
Door TypeSolid
Sections2
Voltage115 Volts
Width (in)48
Height (in)34
Depth (in)27.38
Weight306.00

Additional Information on Beverage Air BB48HC-1-F-PT-B

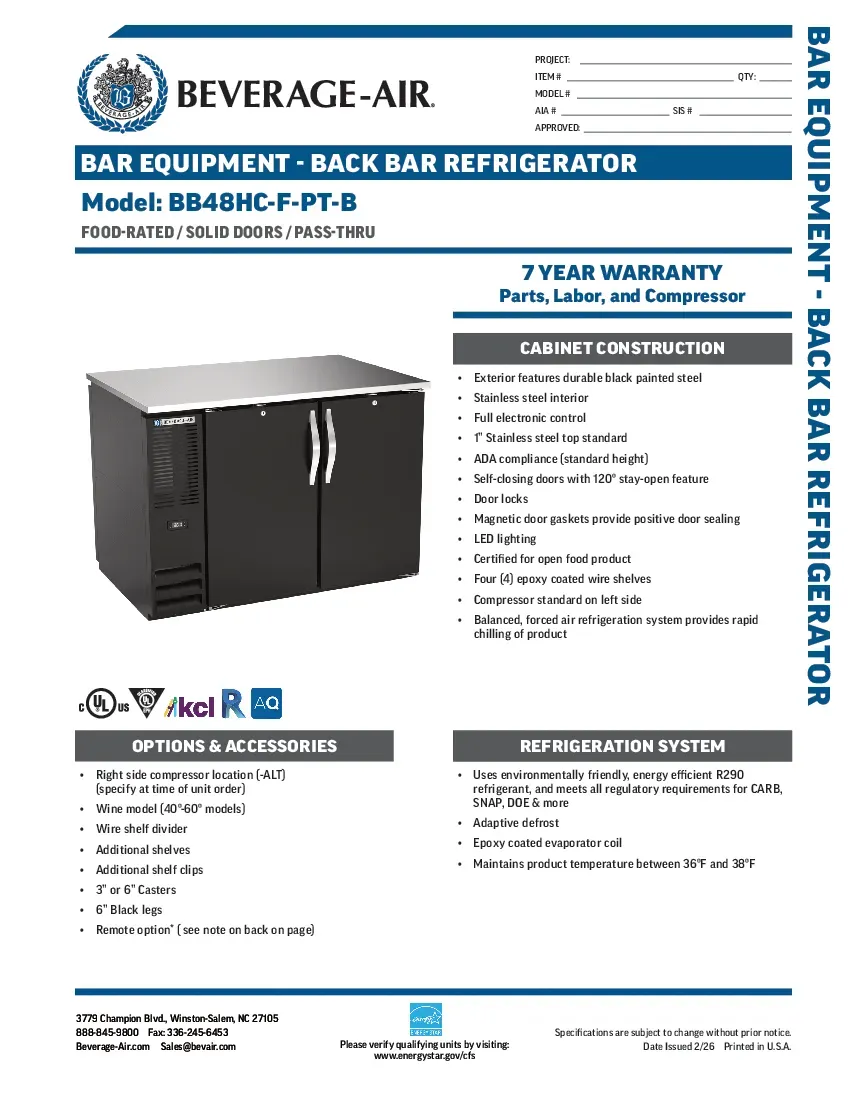

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Beverage Air BB48HC-1-F-PT-B Certifications

cULus

cULus

UL (Underwriters Laboratories) approval for the US and Canada

NSF

NSF

This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.

UL

UL

UL has tested representative samples of this product and determined that the product meets specific, defined requirements.

UL EPH

UL EPH

Certifies that the goods conform to public health and environmental quality compatibility requirements.

UL EPH Classified

UL EPH Classified

This product complies with UL EPH standards and meets ANSI/NSF requirements.

UL-Sanitation

UL-Sanitation

This item has been tested and meets the sanitation hazard standards imposed by the Underwriters Laboratories (UL).

Beverage Air BB48HC-1-F-PT-B Description

Refrigerated Pass-Thru Back Bar Open Food Rated Refrigerator, two-section, 48"W, 34" H, 13.6 cu. ft. capacity, (4) solid doors, (4) epoxy coated steel shelves, (2) 1/2 barrel keg, LED interior lighting, galvanized sub top, black exterior finish, stainless steel interior, meets NSF-Standard 7 for open food container, right-mounted self-contained refrigeration, R290 Hydrocarbon refrigerant, 1/3 HP, cULus, UL EPH Classified, UL-Sanitation, Made in USA

The Beverage Air BB48HC-1-F-PT-B Refrigerated Pass-Thru Back Bar Open Food Rated offers reliable back bar refrigeration that is accessible from either side for quick service and convenient restocking. With 13.6 cu. Ft. this unit has plenty of food rated storage capacity, it can also hold two ½ kegs.

The reach-in section has a self-closing feature to keep it from being left ajar and comes with a standard with a lock for security. Inside the reach-in section, two epoxy-coated wire shelves are included to maximize the usable space. The interior is certified to hold open food products and features a stainless steel interior. To keep the doors’ seals airtight magnetic door gaskets are included. When workers need to access multiple items they can activate the stay-open feature allowing them to use both hands. Products inside this back bar refrigerator can be quickly cooled with the balanced forced-air refrigeration system.

The side-mounted refrigeration system provides efficient cooling and can be located on either the left or right of the unit based on your needs. The ⅓ HP compressor produces 1942 BTU/hr of cooling. The interior is kept at a temperature between 36ºF and 38ºF by the fully electronic controls. An epoxy-coated evaporator coil will make sure reliable refrigeration with minimal maintenance can be provided for years to come. To minimize downtime, this unit features an automatic non-electric defrost cycle. R290 Hydrocarbon refrigerant is used for efficient cooling that has a reduced negative effect on the environment

Connecting this unit to a standard outlet supplying 115v/60/1-ph power at 3.1 amps is simple with the factory-provided 8-foot power cable with a NEMA 5-15P plug set.

Beverage Air BB48HC-1-F-PT-B Refrigerated Pass-Thru Back Bar Open Food Rated

From mixers to martini glasses, this Beverage Air BB48HC-1-F-PT-B Refrigerated Pass-Thru Back Bar Open Food Rated can help organize all sorts of supplies for your bar. This backbar storage cabinet is 34 inches tall, 48 inches wide, and 25 inches deep.

Standard Features:
  • BB Hinged Solid Doors
  • Pass-Thru Back Bar Refrigerators Open Food Rated
    • 23” base Pass-Thru, self-contained refrigerators come in two widths of 48” and 72.”
    • Food Rated models are certified for bottled beverages, packaged food, and open food.
    • 23” base shallow depth units are available in two heights:
      • 34” height with standard galvanized steel top for under shelf application and 36” height when adapted with a 2” stainless steel top (specify –27). Depth is 23 1/2” from face of door to opposite side of cabinet. Handle projects 1/2.”
  • Cabinet Construction
    • Interior, incandescent lighting standard.
    • Two (2) epoxy-coated shelves per section standard.
    • Stainless steel exterior option available (-S models).
    • Field-reversible doors with 90° stay-open feature standard.
    • Standard, cabinet exterior construction includes black steel finish.
    • Galvanized sub top standard. 2” stainless steel top optional (specify -27).
    • Hinged solid doors are self-closing and include a stay-open feature and lock.
    • All stainless steel interior with radius corners is easy to keep clean and meets NSF
    • Standard 7 for open food containers. Reinforced floor made from heavy-duty stainless steel to provide long lasting service.
    • Environmentally friendly foamed-in-place CFC and HCFC-free polyurethane insulation enhances the structural strength of the cabinet and helps increase energy efficiency.
  • Refrigeration System
    • Remote refrigeration models available.
    • Evaporator located above condensing unit permits full use of interior spaces.
    • Refrigeration is fully accessible behind grille to right side of cabinet and is 100% front breathing.
    • Refrigeration system uses R134a refrigerant, which is CFC and HCFC-free for compliance with environmental safety concerns.
  • Available Options
    • Wire shelf dividers
    • 3” or 6” casters; 6” legs
    • WINE models available (40°-60°F models)
  • Electrical Connection
    • Units are pre- wired at factory and ready for connection to a 115/60/1 phase, 15 amp dedicated outlet. 8’ long cord and plug set included.

Options for Beverage Air BB48HC-1-F-PT-B

Export crating
Wine thermostat
Stainless steel options
Delivery
Refrigeration
What is included
  • Voltage: 115v/60/1-ph, 3.1 amps, cord with NEMA 5-15P
  • Warranty: 7 year parts & labor and 7 year compressor warranty (excludes maintenance items)
