Vulcan VP18 Full Height Glass Door Non-Insulated Mobile Proofing and Holding Cabinet, 120 Volts
MPN#: VP18
Calculate
Vulcan VP18 Specifications
| Control Type | Dial |
|---|---|
| Size | Full Height |
| Type | Holding & Proofing Cabinets |
| Insulated | No |
| Insulation Capacity | Non-Insulated |
| Interior Construction | Pan/Tray Slides |
| Cabinet Type | Proofing Cabinets |
| Construction | Stainless Steel |
| Brand | Vulcan |
| Made in | USA |
| Certifications | 5-20P |
| Interior Finish | Stainless Steel |
| Exterior Finish | Stainless Steel |
| Category | Proofer/Holding Cabinet, Mobile |
| Controls | Thermostatic |
| Door Type | Clear |
| Sections | Single Section W/1 Compartment |
| Style | Mobile |
| Voltage | 120 Volts |
| Width (in) | 25.25 |
| Height (in) | 71 |
| Depth (in) | 30.75 |
| Weight | 236.00 |
Additional Information on Vulcan VP18
owner-s-manual.pdf
parts-catalog.pdf
parts-manual.pdf
installation-operation.pdf
warranty-sheet.pdf
sell-sheet.pdf

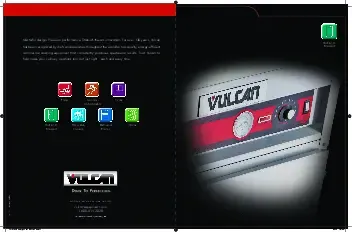

brochure.pdf
vulcan-vp18.specsheet.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Vulcan VP18 Certifications
5-20P
Plug has the neutral blade rotated 90° and shifted so its inner edge is approximately 1⁄2 in (12.7 mm) from the hot blade
cULus
UL (Underwriters Laboratories) approval for the US and Canada
UL
UL has tested representative samples of this product and determined that the product meets specific, defined requirements.
UL EPH
Certifies that the goods conform to public health and environmental quality compatibility requirements.
Vulcan VP18 Description
Proofing Heated Cabinet, mobile, non-insulated, (18) 18" x 26" x 1" sheet pans or (36) 12" x 20" x 2-1/2" steam table pans, fan & air tunnel, includes (10) pair of adjustable tray slides 3" OC, 1/2 gallon water pan, switch can be set to proof or set for heated holding up to 190° F, glass door, stainless steel construction, includes drip trough & removable drip pan, 5" casters; 2 swivel, 2 rigid with locks, 120v/50/60/1-ph, 2.0kW, cord with NEMA 5-20P, cULus, UL EPH
Standard Features:
- Furnished with ten pairs of tray slides.
- Requires 120 volt, single phase power supply.
- Fan and air tunnel provide even heat distribution.
- Heavy duty 20 gauge polished stainless steel cabinet.
- Set of 5" casters, two swivel with brakes and two rigid.
- 2,000 total watt heating elements with stainless steel cover, 16.7 amps total draw.
- Adjustable interior pan supports adjust on 3" centers and are removable for easy cleaning.
- Eighteen level heated holding and proofing cabinet accepts eighteen 18" x 26" pans or thirty-six 12" x 20" pans.
- One year limited parts and labor warranty. After the first year, lifetime parts warranty on the heating elements.
- Includes 1⁄2 gallon water pan for proofing, drip trough and removable condensation pan on the bottom of cabinet.
- Furnished with top mounted power cord with strain relief and NEMA 5-20 plug (except for Canada which comes with a 5-30 plug).
- Full size glass door with field reversible heavy duty hinges, door latch mechanism, and gaskets provide visibility of the contents in the cabinet.
- Top mounted control panel is easy to use and out of the way of brooms, mops, and feet. Control panel on top eliminates removing control panel for cleaning.
- Top mounted, recessed control panel includes fan on/off switch, dial thermostat adjustable from ambient to 190°F, cabinet temperature thermometer, and switch to change from proofing to holding.
Specifications
Eighteen level heated holding and proofing cabinet, Vulcan Hart Model No. VP18. Heavy duty 20 gauge polished stainless steel cabinet. Four 5" casters, two swivel with brakes, two rigid. Glass door with heavy duty hinges, door latch mechanism and gaskets. Adjustable interior pan supports adjust on 3" centers and are removable for easy cleaning. Accommodates up to eighteen 18" x 26" sheet pans and thirty six 12" x 20" x 2 3⁄4" steam table pans. Includes 1⁄2 gallon water pan for proofing, drip trough and removable condensation pan on the bottom of cabinet. Top mounted, recessed control panel includes fan on/off switch, dial thermostat adjustable from ambient to 190°F, cabinet temperature thermometer, and switch to change from proofing to holding. 2,000 total watt heating elements with stainless steel cover, 16.7 total amp draw. One year limited parts and labor warranty. After the first year, lifetime parts warranty on the heating elements. Requires 120 volt single phase power supply. Furnished with top mounted power cord with strain relief and NEMA 5-20 plug. Classified by UL to NSF Std. #4.
