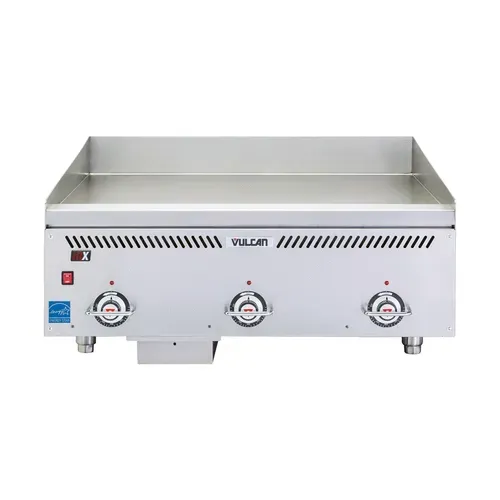

Vulcan VCCG72-IR 72'' Countertop Gas Griddle with Thermostatic Controls - 144,000 BTU
Energy Star ?Chat Now
Calculate
Vulcan VCCG72-IR Specifications
| Plate Thickness | 1 Inch |
|---|---|
| Total BTU | 105000 - 156000 |
| Cooking Surface Material | Chrome |
| Installation Type | Countertop |
| Power Type | Natural or Propane Gas |
| Construction | Stainless and Aluminized Steel |
| With Griddle | Yes |
| Brand | Vulcan |
| Energy Efficiency | Energy Star |
| Made in | USA |
| Certifications | NSF |
| Number of Burners | 6 |
| BTU | 144,000 BTU |
| Control Type | Thermostatic |
| Heat | Gas |
| Usage | Heavy Duty |
| Voltage | 120 Volts |
| Width (in) | 72 |
| Height (in) | 18.8 |
| Depth (in) | 33.1 |
| Weight | 855.00 |
Additional Information on Vulcan VCCG72-IR
installation-operation.pdf
parts-manual.pdf
sell-sheet.pdf
service-manual.pdf
owner-s-manual-french.pdf
owner-s-manual.pdf
vulcan-vccg72-ir.specsheet.pdf
warranty-sheet.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Vulcan VCCG72-IR Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
Vulcan VCCG72-IR Description
To accurately and dependably cook food with a griddle a thermostatic model like the Vulcan VCCG72-IR Heavy Duty Griddle is a great tool that will allow for accurate control over the temperature of the griddle plate. This 72” wide countertop model is designed for heavy-duty use to keep up with the most demanding commercial kitchens. The griddle plate features a chrome finish and is made from 1” thick steel. This provides plenty of thermal mass to evenly distribute heat from the efficient infrared burners.
This griddle features six temperature control knobs that allow the cooking temperature of each zone from 200°F to 550°F. With six infrared burners each requiring 24,000 BTU/hr of input, this model efficiently heats the griddle plate evenly. The pilot protection system and electric ignition make operation simple and safe.
The chassis is made from fully welded aluminized steel and the exterior front, sides, and front top ledge are made from durable stainless steel for easy cleaning. Grease storage is provided by two large 6 qt. stainless steel drawers that hold excess grease and debris from the cooking surface for disposal when it’s convenient to do so.
To make keeping this griddle level on a counter simple it comes on adjustable 4” legs. The cooking height of this model is 14.7”
This griddle requires 144,000 BTU/hr of gas input and comes with a ¾” rear gas connection. 120v power is supplied to the unit with a 6’ power cord with a NEMA 5-15 plug.
Standard Features:
- Chrome plated knob guards.
- 1" thick polished steel griddle plate.
- 14.7" cooking height on 4" adjustable legs.
- One year limited parts and labor warranty.
- Electronic ignition with pilot protection system.
- Stainless steel front, sides and front top ledge.
- Stainless steel 4" back and tapered side splashes.
- Fully welded stainless and aluminized steel chassis.
- 3⁄4" rear gas connection and internal gas pressure regulators.
- 120V 50/60 Hz. 2 Amp single phase with NEMA 5-15 USA plug.
- High capacity, stainless steel grease drawer (6 quart). 60" and 72" models have two grease drawers.
- Energy-efficient 24,000 BTU/hr. infrared burner or 30,000 BTU/hr. atmospheric burner for every 12" of griddle width.
- Every 12" griddle cooking zone is independently controlled by solid state temperature and electronic ignition system with diagnostics.
- Temperature adjusts from 150° to 550° F on Steel or Chrome plate. Temperature adjusts from 150° to 450° F on Rapid Recovery™ plate.
- Top seam welding available on steel plate.
- Side grease models with 3.75 gallon grease drawer.
- Grooved steel plate (available with top seam welding).
- Chrome griddle plate (not available with top seam welding).
- Cutting board, condiment rail, plate rail and banking strip accessories.
- Rapid Recovery™ griddle plate (150-450° F controls, 60" maximum length, standard with top seam welding).
Heavy duty gas griddle. Stainless steel front, sides and front top ledge. Fully welded stainless and aluminized steel chassis. 14.7" cooking height on 4" legs. 1" polished steel griddle plate. Stainless steel back and tapered side splashes. Energy-efficient 24,000 BTU/hr. infrared burner or 30,000 BTU/hr. atmospheric burner for every 12" of griddle width. Every 12" griddle cooking zone is independently controlled by solid state temperature and electronic ignition system with diagnostic feature. Temperature adjusts from 150° to 550° F on Steel or Chrome plate. Temperature adjusts from 150° to 450° F on Rapid Recovery™ plate. Electronic ignition with pilot safety system. High capacity 6 quart stainless steel grease drawer. 120V 50/60Hz 2 amp single phase with NEMA 5-15 USA plug. 3⁄4" rear gas connection and internal gas pressure regulators. CSA Design Certified. NSF Certified.
NOTE! This is a general product line video and does not necessarily reflect the listed model.
