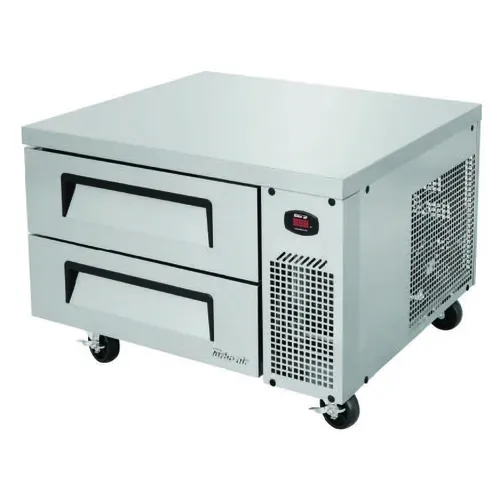

Turbo Air TCBE-36SDR-N6 35.63" 2 Drawer Refrigerated Chef Base with Insulated Top - 115 Volts

MPN#: TCBE-36SDR-N6
Free Freight?
Quick Ship
Retail Price:$11,835.00 $4,420.37 /
Retail Price:$11,835.00 $4,420.37 /
or enjoy small payments $94.99/mo.
Lease Payment Calculate
Product Protection
Product Protection
Starting at
Reward Points
Reward Points
You will earn 4420
  • Standard 3 year parts & labor warranty
  • 2023 model, meets the newest EPA and DOE codes.

Turbo Air TCBE-36SDR-N6 Specifications

Width Range36 to 60 Inches
Control TypeDigital
Top StyleInsulated
ConstructionStainless Steel
BrandTurbo Air
Refrigerant TypeR-600A
Certifications5-15P
Refrigeration SystemSelf-contained
Capacity5 - 12 cu. ft.
Compressor LocationSide Mounted
Number of Drawers2
Sections1
Voltage115 Volts
Width (in)35.63
Height (in)25.25
Depth (in)32
Weight229.00

Additional Information on Turbo Air TCBE-36SDR-N6

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Turbo Air TCBE-36SDR-N6 Certifications

5-15P

5-15P

Two-pole with ground pin plug

ETL

ETL

The ETL Mark is proof of product compliance to North American safety standards.

ETL-Sanitation

ETL-Sanitation

This item meets the sanitation standards imposed by the ETL, a division of the Intertek Group.

Turbo Air TCBE-36SDR-N6 Description

Super Deluxe Chef Base Refrigerator, 35-5/8"W x 32"D x 20-1/4"H, 4.98 cu. ft., side mounted self-contained refrigeration system, self-cleaning condenser device, (2) durable drawers with recessed handles, accommodates accommodates pans up to 6" deep, capacity: (1) full size pan & (3) 1/6 size pans per drawer (NOT included), 16 ga. stainless steel one-piece reinforced insulated top, stainless steel front & sides, digital temperature display, R600a Hydrocarbon refrigerant, 1/5 HP, 115v/60/1-ph, 2.8 amps, NEMA 5-15P, cETLus, ETL-Sanitation

The Turbo-Air TCBE-36SDR-N6 is a stainless steel refrigerated base that can accommodate up to 788 lbs. of equipment. This side-mounted unit is manufactured by Turbo-Air, which has been providing heavy-duty refrigeration solutions for more than 2 decades.

All-Stainless Steel Construction

This unit is made of 16-gauge stainless steel to ensure that it lasts even in the most gruesome commercial kitchen environments while providing stable support for a griddle, broiler, or commercial range. The 2 stainless steel drawers are fitted with recessed handles for easy opening and closing.

Ample Refrigerated Storage Space

To help you make the most of the space underneath your equipment, this refrigerated base offers up to 3.42 cu. ft. of refrigerated storage. Both drawers can accommodate a total of (18) 1/6 size pans or 4”-deep pans to provide sufficient space for storing your food items.

Optimal Temperatures for Food Preservation

This unit can hold temperatures between 33° F to 38° F. A crystal clear temperature display panel is mounted on the front to help you keep an eye on interior temperatures. Foamed-in-place polyurethane insulation provides excellent insulating power to maintain the cold temperatures. The unit’s one-piece stainless steel top is also insulated to eliminate heat transfer.

Self-Cleaning Condenser

The refrigerated base’s condenser is fitted with a rotating brush that automatically moves up and down 2 to 3 times per day to remove dust. This reduces the possibility of dust buildup that can clog the system and cause system failures. A fine mesh wire filter provides an extra layer of protection against dust and debris for the condenser.

Easily Fits Into Narrow Spaces

The Turbo-Air TCBE-36SDR-N6 is a front-breathing unit that allows it to remain efficient even in small spaces. It sits on a set of 5” casters that help you move it around with ease. An optional set of 6” stainless steel legs is also available for an extra fee.

Eco-Friendly Coolant

Eco-friendly R600a, a specialized hydrocarbon refrigerant that complies with the EPA and DOE’s strict rules on refrigerant use, is used as a coolant for this unit. R600a has been proven harmless to the ozone layer because it does not release ozone-depleting chemicals. It also has a minimal contribution to global warming.

Energy Requirements

The Turbo-Air TCBE-36SDR-N6 runs on an oversized 1/4 HP compressor. It has a voltage of 115v/60/1-ph.

Approved by Certification Bodies

This unit is certified by cETLus, and ETL-Sanitation.


Standard Features and Benefits:
  • Countertops
  • Self-contained system
  • Side mount compressor unit
  • Durable stainless steel drawers
  • Hydrocarbon refrigerants (R-600)
  • High-density polyurethane insulation
  • Strong body and durable construction
  • Digital temperature display on front panel
  • Refrigerator holds 33°F ~ 38°F for the best in food preservation
  • Top is insulated to eliminate heat transfer to the interior of cabinet
Other Features
  • Self-Cleaning Condenser
  • 4” dia. swivel casters standard
  • Anti-corrosion coated evaporator

Options for Turbo Air TCBE-36SDR-N6

Additional freight options
Mounting options
What is included
  • Compressor warranty: 7 year compressor warranty (self-contained only),
  • Standard warranty: 5 year parts & labor warranty, standard

Videos

NOTE! This is a general product line video and does not necessarily reflect the listed model.

Turbo Air TCBE-36SDR-N6 Parts
