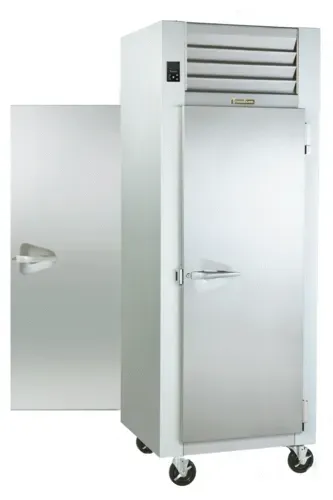

Traulsen RHT132WPUT-FHS 29.88'' 25.2 cu. ft. 1 Section Solid Door Pass-Thru Refrigerator

Standard Features:

The R & A Series represent Traulsen's Top-of-the-Line product offering. The “W-Width” pass-thru refrigerator models are all designed to offer maximum interior storage capacity. Each is supplied standard with such high-quality features as balanced refrigeration systems, microprocessor controls, communications ability and stainless steel exteriors. Additionally, they offer the widest range of optional accessories to choose from, and can be specified for use with many different applications, including: Foodservice, Correctional, Institutional, Export, etc.

• Biased Return Air Duct
• 9' Cord & Plug Attached
• Stainless Steel Breaker Caps
• Five-Year Compressor Warranty
• Scroll Blower Type Evaporator Fan
• Gasket-Protecting Metal Door Liner
• Guaranteed For Life Cam-Lift Hinges
• Three-Year Parts And Labor Warranty
• R-Series: Stainless Steel Exterior & Interior
• Magnetic Snap-In EZ-Clean Door Gasket(s)
• Stainless Steel One-Piece Louver Assembly
• Automatically Activated Incandescent Lights
• Thermostatic Expansion Valve Metering Device
• Automatic Non-Electric Condensate Evaporator
• INTELA-TRAUL® Microprocessor Control System
• Full or Half-Length Stainless Steel Doors With Locks
• Controllable Anti-Condensate Door Perimeter Heaters
• Set of Four (4) 6" High Adjustable Stainless Steel Legs
• Guaranteed For Life Horizontal Work Flow Door Handle
• Self-Closing Doors With Stay-Open Feature At 120 Degrees
• A-Series: Stainless Steel Exterior/Anodized Aluminum Interior
• Balanced, Self-Contained Refrigeration System Using R-134a
• Three Adjustable Wire Shelves Per Section, Supported On Shelf Pins (installed at the factory)
• Standard Door Hinging F & R: 132WP = Right, 232WP = Left/Right, 332WP = Left/Right/Right (other hingings available)

Options & Accessories:

• Kool Klad Exterior Laminate Decor
• Bare Tube Coil (132WP & 232WP only)
• Remote For Use With 20°F Glycol System
• Optional 220/50/1 or 208/115/60/1 Voltages
• EZ-Open Foot Pedal (full height doors only)
• Locking Hasps (padlocks supplied by others)
• Remote Monitoring (monitoring supplied by E-Control)
• Set of Four (4) 4-5/8" or 6" High Casters In Lieu of Legs
• Remote Applications (see form TR35837 for more details)
• Clear Glass Door(s) In Place Of One Or More Solid Door(s)
• Additional Wire Shelves or Optional Stainless Steel Shelves
• Other Support Options: 4-1/2" High Base or 6" High Kickplate
• EZ-Change Interiors (#1, universals, universal heavy duty tray slides and shelves)
• No. 1 Type Tray Slides To Accommodate either (1) 18" x 26" or (2) 14" x 18" Pans
• No. 4 Type Tray Slides To Accommodate (1) 18" x 26" Sheet Pans (rod type, equips 1/2 section)
• Universal Type Tray Slides To Accommodate Either (1) 18" x 26" or (2) 14" x 18", or (2) 12" x 20" Pans

Specifications:
Construction, Hardware, and Insulation

• Cabinet exterior front, one piece sides, louver assembly, and doors are constructed of 20-gauge stainless steel with #4 finish. Cabinet interior and door liners are constructed of stainless steel (anodized aluminum in the A-Series). The exterior cabinet top and bottom are constructed of heavy-gauge aluminized steel. A set of four (4) adjustable 6" high stainless steel legs are included. Doors are equipped with a gasket protecting metal door pan, removable plug cylinder locks and guaranteed for life cam-lift, gravity action, self-closing metal, glide hinges with stay open feature at 120 degrees. Hinges include a concealed switch to automatically activate the interior incandescent lighting. Guaranteed for life, work flow door handles are mounted horizontally over recess in door which limits protrusion from door face into aisleways. Doors have seamless, polished metal corners. Gasket profile and Santoprene® material simplify cleaning and increase overall gasket life. Anti-condensate heaters are located behind each door opening. Both the cabinet and door(s) are insulated with an average of 2" thick high-density, non-CFC, foamed-in-place polyurethane.

Refrigeration System

• A top-mounted, self-contained, balanced refrigeration system using R-134a refrigerant is conveniently located behind the one piece louver assembly. It features an easy to clean front facing condenser, thermostatic expansion valve, air-cooled hermetic compressor, plenum effect blower coil, large, high humidity evaporator coil located outside the food zone and a top mounted non-electric condensate evaporator. Biased return air duct protects against introduction of warm kitchen air, promoting even temperature maintenance and efficient operation. A 9' cord and plug is provided. Standard operating temperature is 34 to 38°F.

Controller

• The easy-to-use water-resistant INTELA-TRAUL® microprocessor control system is supplied standard. RS485 data port enables data communications for remote monitoring such as NAFEM Data Protocol, E-Control Systems® and others. It includes a 3-Digit LED Display and Fahrenheit or Celsius Temperature Scale Display Capability, In addition it includes audio/visual alarms for: Hi/Lo Cabinet Temperature, Door Open, Clean Condenser, Evaporator Coil and Discharge Line Sensor Failures, and Power Supply Interruption.

Interior

• Standard interior arrangements include three (3) wire shelves per section, mounted on shelf pins. Shelves are full-width, and do not have any large gaps between them requiring the use of "bridge" or "junior shelves." Recommended load limit per shelf should not exceed 225 lbs. Optional tray slides may be purchased in combination with, or in lieu of these. Standard interior arrangements are installed at the factory and EZ-Change interior slides (only) are field installed.

Warranties

• Both a three-year parts and labor warranty and a five-year compressor warranty (self-contained models only) are provided standard.
