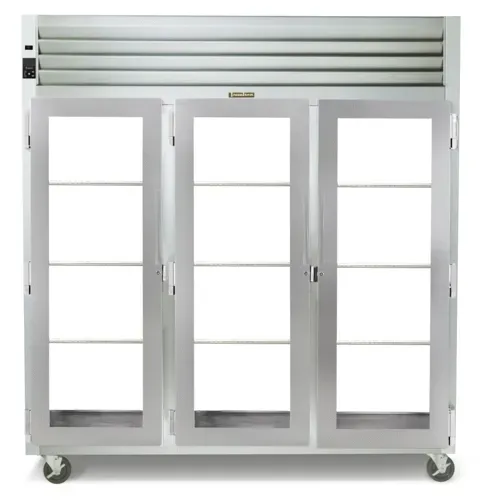

Traulsen RHT332WP-HHG 86.13'' 83.2 cu. ft. 3 Section Glass Half Door Pass-Thru Refrigerator

Standard Features:

The R & A Series represent Traulsen's Top-of-the-Line product offering. These “W-Width” pass-thru refrigerator models are equipped with hinged glass doors in order to maximize product visibility. Each is supplied standard with such high-quality features as balanced refrigeration systems, microprocessor controls, communications ability, and stainless steel exteriors. Additionally, they offer the widest range of optional accessories to choose from, and can be specified for use with many different applications, including: Foodservice, Correctional, Institutional, Export, etc.

• Biased Return Air Duct
• 9' Cord & Plug Attached
• Stainless Steel Breaker Caps
• Five-Year Compressor Warranty
• Magnetic Snap-In Door Gaskets
• Scroll Blower Type Evaporator Fan
• One-Year Parts And Labor Warranty
• Guaranteed For Life Cam-Lift Hinges
• Stainless Steel Vertical Door Handles
• Incandescent Lights With Exterior Switch
• R-Series: Stainless Steel Exterior & Interior
• Stainless Steel One-Piece Louver Assembly
• Two-Year Control Warranty (parts and labor)
• Thermostatic Expansion Valve Metering Device
• Automatic Non-Electric Condensate Evaporator
• INTELA-TRAUL® Microprocessor Control System
• Controllable Anti-Condensate Door Perimeter Heaters
• Set of Four (4) 6" High Adjustable Stainless Steel Legs
• Self-Closing Doors With Stay-Open Feature At 120 Degrees
• A-Series: Stainless Steel Exterior/Anodized Aluminum Interior
• Balanced, Self-Contained Refrigeration System Using R-134a
• Three Adjustable Wire Shelves Per Section, Supported On Shelf Pins (installed at the factory)
• Full or Half Length Hinged Glass Doors With Locks (full length doors n/a for three-section models)
• Standard Door Hinging F & R: 132W = Right, 232W = Left/Right, 332W = Left/Right/Right (other hingings available)

Options & Accessories:

• Fluorescent Lights
• Additional Wire Shelves
• Re-Hinging Feature For Door(s)
• Kool Klad Exterior Laminate Decor
• Two Year Service/Labor Warranty Available
• Set of Four (4) 6" High Casters In Lieu of Legs
• 4-1/2" High Stainless Steel Base In Lieu of Legs
• Set of Four (4) 4-5/8" High Casters In Lieu of Legs
• 208/115/60/1 Voltage In Lieu Of Standard 115/60/1
• Remote Applications (see spec sheet TR35837 for details)
• No. 2 Type Tray Slides To Accommodate (1) 18" x 26" Pans
• No. 3 Type Tray Slides To Accommodate (2) 12" x 20" Pans
• No. 4 Type Tray Slides To Accommodate (1) 18" x 26" Pans
• 6" High Stainless Steel Kickplate (for use with standard legs)
• No. 1 Type Tray Slides To Accommodate either (1) 18" x 26" or (2) 14" x 18" Pans
• Universal Type Tray Slides To Accommodate Either (1) 18" x 26" or (2) 14" x 18" Sheet Pans, or (2) 12" x 20" Steam Table Pans, Adjustable To 4" O.C.

Specifications:
Construction, Hardware, and Insulation

• Cabinet exterior front, one-piece sides, and louver assembly are constructed of 20-gauge stainless steel with a #4 finish. Cabinet interior is constructed of stainless steel (anodized aluminum in the A-Series). The exterior cabinet top and bottom are constructed of heavy-gauge aluminized steel. A set of four (4) adjustable 6" high stainless steel legs is included. Doors are equipped with removable plug cylinder locks and guaranteed for life cam-lift, gravity action, self-closing metal, glide hinges with stay open feature at 120 degrees. An external switch is provided to activate the interior incandescent lighting. Easily removable for cleaning, vinyl magnetic door gasket assures tight door seal. Anti-condensate heaters are located behind each door opening. The cabinet is insulated with an average of 2" thick high-density, non-CFC, foamed-in-place polyurethane.

Refrigeration System

• A top-mounted, self-contained, balanced refrigeration system using R-134a refrigerant is conveniently located behind the one-piece louver assembly. It features an easy-to-clean front-facing condenser, thermostatic expansion valve, air-cooled hermetic compressor, plenum effect blower coil, large, high humidity evaporator coil located outside the food zone, and a top-mounted non-electric condensate evaporator. Biased return air duct protects against introduction of warm kitchen air, promoting even temperature maintenance and efficient operation. A 9' cord and plug are provided. Standard operating temperature is 34 to 38°F.

Controller

• The easy-to-use water-resistant INTELA-TRAUL® microprocessor control system is supplied standard. Unit is NAFEM Data Protocol communication (NDP) ready. Optional hardware required to be NDP compliant. Third-party software required for network connection. It includes a 3-Digit LED Display, Fahrenheit or Celsius Temperature Scale Display Capability, and an RS485 data port. In addition, it includes audio/visual alarms for: Hi/Lo Cabinet Temperature, Door Open, Clean Condenser, Evaporator Coil and Discharge Line Sensor Failures, and Power Supply Interruption.

Interior

• Standard interior arrangements include three (3) wire shelves per section, mounted on shelf pins. Shelves are full-width, and do not have any large gaps between them requiring the use of "bridge" or "junior shelves." Recommended load limit per shelf should not exceed 225 lbs. Optional tray slides may be purchased in combination with, or in lieu of these. Both standard and optional interior arrangements are completely installed at the factory.

Warranties

• Both a one-year parts and labor warranty and a five-year compressor warranty (self-contained models only) are provided standard. An optional 2nd year extended parts and labor warranty is also available. In addition, the INTELA-TRAUL® control is warranted by a two-year parts and labor warranty
