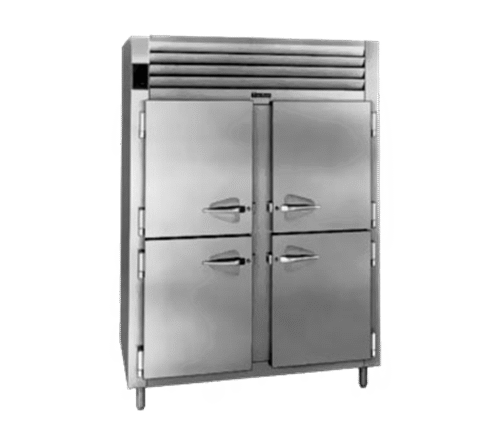

Traulsen ALT232NUT-HHS 52.13'' 46.0 cu. ft. Top Mounted 2 Section Solid Half Door Reach-In Freezer
SKU#: ALT232NUT-HHS
Free Freight?
Quick Ship
Energy Star ?
Products with Energy Star certification are designed to be more energy-efficient to maximize savings.
$21,614.67
Contact us for your price
Call 1 (800) 555-0666
Mon-Fri 9AM-8PM, Sun 12-6PM ET
Mon-Fri 9AM-8PM, Sun 12-6PM ET
Why don't we show the price for this item?
Product Protection
Starting at
- 2023 model, meets the newest EPA and DOE codes.
- Usually ships in 4-6 weeks
Traulsen ALT232NUT-HHS Specifications
Freezer Capacity | 46 cu. ft. |
---|---|
Door Size | Half |
Hinge Location | Left/Right |
Construction | Stainless Steel and Aluminum |
Half Doors | Yes |
Brand | Traulsen |
Refrigerant Type | R-404A |
Energy Efficiency | Energy Star |
Split Doors | No |
Certifications | ETL |
Number of Doors | 4 |
Number of Shelves | 6 |
Refrigeration System | Self-contained |
Capacity | 31 - 46 cu. ft. |
Compressor Location | Top Mounted |
Door Type | Solid |
Door Design | Swing |
Sections | 2 |
Temperature Range | -10 Degrees F |
Voltage | 115 Volts |
Width (in) | 52.13 |
Height (in) | 83.25 |
Depth (in) | 35 |
Weight | 730 |
Additional Information on Traulsen ALT232NUT-HHS
warrantysheet.pdf traulsensmartconnect.pdf exteriorlaminates.pdf trayracks.pdf accessorykits.pdf remotemodels.pdf sellsheet.pdf quick-start-guide.pdf shipping-dimensions-product-weights.pdf traulsen-alt232nut-hhs.specsheet.pdf owner-s-manual.pdf
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Traulsen ALT232NUT-HHS Certifications
ETL
The ETL Mark is proof of product compliance to North American safety standards.
ETL-Sanitation
This item meets the sanitation standards imposed by the ETL, a division of the Intertek Group.
Traulsen ALT232NUT-HHS Description
Spec-Line Freezer, Reach-in, two-section, 46.0 cu. ft., self-contained refrigeration, StayClear™ Condenser, variable speed compressor, stainless steel exterior, aluminum interior, standard depth, narrow half-height door or doors with EZ-Clean Gaskets, (3) adjustable wire shelves per section, microprocessor controls, unit can be programmed to operate at -10°F, R-290 Hydrocarbon refrigerant, 1-1/4 HP, cETLus, ETL-Sanitation, ENERGY STAR®
Spec-Line Reach-In Freezer, two-section, 46.0 cu. ft., self-contained refrigeration, stainless steel exterior, aluminum interior, standard depth, narrow half-height door or doors with Santoprene® EZ-Clean Gaskets, (3) adjustable wire shelves per section, INTELA-TRAUL™ microprocessor controls, unit can be programmed to operate at -10 degrees Fahrenheit (more commercial refrigerators and freezers available)
Standard Features:
The R & A Series represent Traulsen's Top-of-the-Line product offering. The “N-Width” reach-in freezer models are all designed to offer maximum interior storage capacity within a slightly narrower left to right footprint. Each is supplied standard with such high quality features as balanced refrigeration systems, microprocessor controls, communications ability and stainless steel exteriors. Additionally, they offer the widest range of optional accessories to choose from, and can be specified for use with many different applications, including: Foodservice, Correctional, Institutional, Export, etc.
Construction, Hardware and Insulation
- -10°F Capable
- Biased Return Air Duct
- 9' Cord & Plug Attached
- Stainless Steel Breaker Caps
- Five Year Compressor Warranty
- Scroll Blower Type Evaporator Fan
- Gasket-Protecting Metal Door Liner
- Guaranteed For Life Cam-Lift Hinges
- Three Year Parts And Labor Warranty
- R-Series: Stainless Steel Exterior & Interior
- Magnetic Snap-In EZ-Clean Door Gasket(s)
- Stainless Steel One-Piece Louver Assembly
- Automatically Activated Incandescent Lights
- Thermostatic Expansion Valve Metering Device
- Automatic Non-Electric Condensate Evaporator
- INTELA-TRAUL® Microprocessor Control System
- Full or Half Length Stainless Steel Doors With Locks
- Controllable Anti-Condensate Door Perimeter Heaters
- Set of Four (4) 6" High Adjustable Stainless Steel Legs
- Guaranteed For Life Horizontal Work Flow Door Handles
- Self-Closing Doors With Stay Open Feature At 120 Degrees
- A-Series: Stainless Steel Exterior/Anodized Aluminum Interior
- Balanced, Self-Contained Refrigeration System Using R-404A
- Standard Door Hinging: 232N = Left/Right, 332N = Left/Right/Right (other hingings available)
- Three Adjustable Wire Shelves Per Section, Supported On Shelf Pins (installed at the factory)
- Bare Tube Coil (232N only)
- EZ-Open Foot Pedal (full height doors only)
- Optional 220/50/1 or 208/115/60/1 Voltages
- Stainless Steel Finished Back With Rear Louvers
- Remote Monitoring (monitoring supplied by E-Control)
- Kool Klad Exterior Laminate Decor (specify brand/color)
- Set of Four (4) 4-5/8" or 6" High Casters In Lieu of Legs
- Remote Applications (see form TR35837 for more details)
- Additional Wire Shelves or Optional Stainless Steel Shelves
- Other Support Options: 4-1/2" High Base or 6" High Kickplate
- No. 1 Type Tray Slides To Accommodate either (1) 18" x 26" or (2) 14" x 18" Pans
- EZ-Change Interiors (#1, universals, universal heavy duty tray slides and shelves)
- Universal Type Tray Slides To Accommodate Either (1) 18" x 26" or (2) 14" x 18", or (2) 12" x 20" Pans
- No. 4 Type Tray Slides To Accommodate (1) 18" x 26" Sheet Pans (chrome rod type, equips 1/2 section)
Construction, Hardware and Insulation
- Cabinet exterior front, one-piece sides, louver assembly and doors are constructed of 20-gauge stainless steel with a #4 finish. Cabinet interior and door liners are constructed of stainless steel (anodized aluminum in the A-Series). The exterior cabinet top, back and bottom are constructed of heavy gauge aluminized steel. A set of four (4) adjustable 6" high stainless steel legs are included. Doors are equipped with a gasket protecting metal door pan, removable plug cylinder locks and guaranteed for life cam-lift, gravity action, self-closing metal, glide hinges with stay open feature at 120 degrees. Hinges include a concealed switch to automatically activate the interior incandescent lighting. Guaranteed for life, work flow door handles are mounted horizontally over recess in door which limits protrusion from door face into aisleways. Doors have seamless, polished metal corners. Gasket profile and Santoprene® material simplify cleaning and increase overall gasket life. Anti condensate heaters are located behind each door opening. Both the cabinet and door(s) are insulated with an average of 2" thick high density, non-CFC, foamed in place polyurethane.
- A top-mounted, self-contained, balanced refrigeration system using R-404A refrigerant is conveniently located behind the one piece louver assembly. It features an easy to clean front facing condenser, thermostatic expansion valve, air-cooled hermetic compressor, plenum effect blower coil, large, high humidity evaporator coil located outside the food zone and a top mounted non-electric condensate evaporator. Biased return air duct protects against introduction of warm kitchen air, promoting even temperature maintenance and efficient operation. A 9' cord and plug is provided. Standard operating temperature is 0 to -5°F (all models are -10degree F capable in up to 100 degree ambient.
- The easy-to-use water-resistant INTELA-TRAUL® microprocessor control system is supplied standard. RS485 data port enables data communications for remote monitoring such as NAFEM Data Protocol, E-Control Systems® and others. It includes a 3-Digit LED Display and Fahrenheit or Celsius Temperature Scale Display Capability, In addition it includes audio/visual alarms for: Hi/Lo Cabinet Temperature, Door Open, Clean Condenser, Evaporator Coil and Discharge Line Sensor Failures, and Power Supply Interruption.
- Standard interior arrangements include three (3) wire shelves per section, mounted on shelf pins. Shelves are full-width, and do not have any large gaps between them requiring the use of "bridge" or "junior shelves." Recommended load limit per shelf should not exceed 225 lbs. Standard interior arrangements are installed at the factory and EZ-Change interior slides (only) are field installed.
- Both a three-year parts and labor warranty and a five-year compressor warranty (self-contained models only) are provided standard.
Features | |
---|---|
Standard Product Features: | • R-Series: Stainless Steel Exterior & Interior • A-Series: Stainless Steel Exterior/Anodized Aluminum Interior • INTELA-TRAUL® Microprocessor Control System • Balanced, Self-Contained Refrigeration System Using R-404A • -10°F Capable • Scroll Blower Type Evaporator Fan • Biased Return Air Duct • Full or Half Length Stainless Steel Doors With Locks • Self-Closing Doors With Stay Open Feature At 120 Degrees • Guaranteed For Life Cam-Lift Hinges • Guaranteed For Life Horizontal Work Flow Door Handles • Standard Door Hinging: 232N = Left/Right, 332N = Left/Right/Right (other hingings available) • Automatically Activated Incandescent Lights • Stainless Steel Breaker Caps • Three Adjustable Wire Shelves Per Section, Supported On Shelf Pins (installed at the factory) • Automatic Non-Electric Condensate Evaporator • Magnetic Snap-In EZ-Clean Door Gasket(s) • Gasket-Protecting Metal Door Liner • Controllable Anti-Condensate Door Perimeter Heaters • Thermostatic Expansion Valve Metering Device • Stainless Steel One-Piece Louver Assembly • 9' Cord & Plug Attached • Set of Four (4) 6" High Adjustable Stainless Steel Legs • Three Year Parts And Labor Warranty • Five Year Compressor Warranty |
Interior: | Standard interior arrangements include three (3) wire shelves per section, mounted on shelf pins. Shelves are full-width, and do not have any large gaps between them requiring the use of "bridge" or "junior shelves." Recommended load limit per shelf should not exceed 225 lbs. Standard interior arrangements are installed at the factory and EZ-Change interior slides (only) are field installed. |
Options & Accessories: | • Stainless Steel Finished Back With Rear Louvers • Remote Applications (see form TR35837 for more details) • No. 1 Type Tray Slides To Accommodate either (1) 18" x 26" or (2) 14" x 18" Pans • No. 4 Type Tray Slides To Accommodate (1) 18" x 26" Sheet Pans (chrome rod type, equips 1/2 section) • Universal Type Tray Slides To Accommodate Either (1) 18" x 26" or (2) 14" x 18", or (2) 12" x 20" Pans • EZ-Change Interiors (#1, universals, universal heavy duty tray slides and shelves) • EZ-Open Foot Pedal (full height doors only) • Bare Tube Coil (232N only) • Additional Wire Shelves or Optional Stainless Steel Shelves • Optional 220/50/1 or 208/115/60/1 Voltages • Kool Klad Exterior Laminate Decor (specify brand/color) • Set of Four (4) 4-5/8" or 6" High Casters In Lieu of Legs • Other Support Options: 4-1/2" High Base or 6" High Kickplate • Remote Monitoring (monitoring supplied by E-Control) |
Controller: | The easy to use water resistant INTELA-TRAUL® microprocessor control system is supplied standard. RS485 data port enables data communications for remote monitoring such as NAFEM Data Protocol, E-Control Systems® and others. It includes a 3-Digit LED Display and Fahrenheit or Celsius Temperature Scale Display Capability, In addition it includes audio/visual alarms for: Hi/Lo Cabinet Temperature, Door Open, Clean Condenser, Evaporator Coil and Discharge Line Sensor Failures, and Power Supply Interruption. |
Construction, Hardware and Insulation: | Cabinet exterior front, one piece sides, louver assembly and doors are constructed of 20 gauge stainless steel with #4 finish. Cabinet interior and door liners are constructed of stainless steel (anodized aluminum in the A-Series). The exterior cabinet top, back and bottom are constructed of heavy gauge aluminized steel. A set of four (4) adjustable 6" high stainless steel legs are included. Doors are equipped with a gasket protecting metal door pan, removable plug cylinder locks and guaranteed for life cam-lift, gravity action, self-closing metal, glide hinges with stay open feature at 120 degrees. Hinges include a concealed switch to automatically activate the interior incandescent lighting. Guaranteed for life, work flow door handles are mounted horizontally over recess in door which limits protrusion from door face into aisleways. Doors have seamless, polished metal corners. Gasket profile and Santoprene® material simplify cleaning and increase overall gasket life. Anti condensate heaters are located behind each door opening. Both the cabinet and door(s) are insulated with an average of 2" thick high density, non-CFC, foamed in place polyurethane. |
Warranties: | Both a three year parts and labor warranty and a five year compressor warranty (self-contained models only) are provided standard. |
Refrigeration System: | A top mounted, self-contained, balanced refrigeration system using R-404A refrigerant is conveniently located behind the one piece louver assembly. It features an easy to clean front facing condenser, thermostatic expansion valve, air-cooled hermetic compressor, plenum effect blower coil, large, high humidity evaporator coil located outside the food zone and a top mounted non-electric condensate evaporator. Biased return air duct protects against introduction of warm kitchen air, promoting even temperature maintenance and efficient operation. A 9' cord and plug is provided. Standard operating temperature is 0 to -5°F (all models are -10degree F capable in up to 100 degree ambient |
