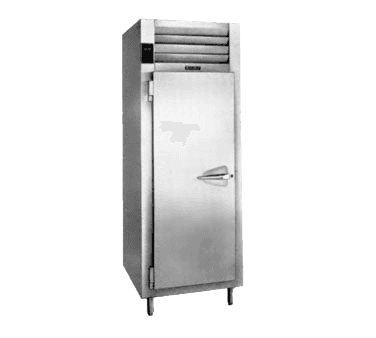

Traulsen ALT132NUT-FHS 26.38'' 21.9 cu. ft. Top Mounted 1 Section Solid Door Reach-In Freezer
MPN#: ALT132NUT-FHS
Free Freight?
Quick Ship
Energy Star ?
Products with Energy Star certification are designed to be more energy-efficient to maximize savings.
$15,675.66 /
Contact us for your price
Call 1 (800) 555-0666
Mon-Fri 9AM-8PM, Sun 12-6PM ET
Mon-Fri 9AM-8PM, Sun 12-6PM ET
Why don't we show the price for this item?
Product Protection
Starting at
- 2023 model, meets the newest EPA and DOE codes.
- Usually ships in 4-6 weeks
Traulsen ALT132NUT-FHS Specifications
Freezer Capacity | 21.9 cu. ft. |
---|---|
Half Doors | No |
Hinge Location | Right |
Construction | Stainless Steel and Aluminum |
Brand | Traulsen |
Refrigerant Type | R-404A |
Number of Doors | 1 |
Energy Efficiency | Energy Star |
Split Doors | No |
Certifications | ETL |
Number of Shelves | 3 |
Refrigeration System | Self-contained |
Capacity | 11 - 30 cu. ft. |
Compressor Location | Top Mounted |
Door Type | Solid |
Door Design | Swing |
Material | Aluminium |
Sections | 1 |
Temperature Range | -10 Degrees F |
Voltage | 115 Volts |
Width (in) | 26.38 |
Height (in) | 83.25 |
Depth (in) | 35 |
Weight | 370 |
Additional Information on Traulsen ALT132NUT-FHS
warrantysheet.pdf sellsheet.pdf remotemodels.pdf accessorykits.pdf traulsensmartconnect.pdf trayracks.pdf exteriorlaminates.pdf traulsen-alt132nut-fhsspecsheet.pdf quick-start-guide.pdf owner-s-manual.pdf shipping-dimensions-product-weights.pdf
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Traulsen ALT132NUT-FHS Certifications
ETL
The ETL Mark is proof of product compliance to North American safety standards.
ETL-Sanitation
This item meets the sanitation standards imposed by the ETL, a division of the Intertek Group.
Traulsen ALT132NUT-FHS Description
Spec-Line Freezer, Reach-in, one-section, 21.9 cu. ft., self-contained refrigeration, variable speed compressor, stainless steel exterior, aluminum interior, standard depth, narrow full-height door, (3) adjustable wire shelves per section, microprocessor controls, unit can be programmed to operate at -10°F, R-290 Hydrocarbon refrigerant, 1/2 HP, cETLus, ETL-Sanitation, ENERGY STAR®
Keep perishables fresher for longer with the help of this one-section reach-in freezer from Traulsen. The interior is 21.9 cubic feet, and you can modify it to suit your storage needs with the help of the three (3) adjustable wire shelves. With its stainless steel exterior and aluminum interior, this commercial freezer can keep up with the busiest, most demanding kitchens. The unit has a narrow full-height door that self-closes to protect your products and prevent unnecessary energy consumption brought about by accidentally leaving the door open for warm air to enter. Your products can be stored at temperatures as low as -10 degrees Fahrenheit. The unit puts you in total control with the microprocessor controls where you can modify and monitor the holding environment according to your specific needs.
Build the best cold storage system for your operation with our commercial refrigerators and freezers.
Build the best cold storage system for your operation with our commercial refrigerators and freezers.
Standard Features:
The R & A Series represent Traulsen's Top-of-the-Line product offering. The one section “N-Width” reach-in refrigerator and freezer models are both designed to offer maximum interior storage capacity, along with wide doors for use of 18" x 26" pans, all within a less than 27" left to right footprint. Each is supplied standard with such high-quality features as balanced refrigeration systems, microprocessor controls, communications ability, and stainless steel exteriors. Additionally, they offer the widest range of optional accessories to choose from, and can be specified for use with many different applications, including: Foodservice, Correctional, Institutional, Export, etc.
Construction, Hardware, and Insulation
- 9' Cord & Plug Attached
- Five Year Compressor Warranty
- Automatic Condensate Evaporator
- Gasket-Protecting Metal Door Liner
- Three Year Parts And Labor Warranty
- R-Series: Stainless Steel Exterior & Interior
- Three Adjustable Wire Shelves Per Section
- Automatically Activated Incandescent Lights
- Magnetic Snap-In EZ-Clean Door Gasket(s)
- Thermostatic Expansion Valve Metering Device
- Balanced, Self-Contained Refrigeration Systems
- INTELA-TRAUL® Microprocessor Control System
- Full or Half Length Stainless Steel Doors With Locks
- Guaranteed For Life Cam-Lift Hinges & Door Handles
- Controllable Anti-Condensate Door Perimeter Heaters
- Set of Four (4) 6" High Adjustable Stainless Steel Legs
- Stainless Steel Breaker Caps & One-Piece Louver Assembly
- Self-Closing Doors With Stay Open Feature At 120 Degrees
- A-Series: Stainless Steel Exterior/Anodized Aluminum Interior
- Standard Door Hinging: 132N = Right (other hingings available)
- Stainless Steel Shelves
- Additional Wire Shelves
- Re-Hinging Feature For Doors
- Kool Klad Exterior Laminate Decor
- EZ-Open Foot Pedal (full height doors only)
- Set of Four (4) 6" High Casters In Lieu of Legs
- 4-1/2" High Stainless Steel Base In Lieu of Legs
- Stainless Steel Finished Back With Rear Louvers
- Set of Four (4) 4-5/8" High Casters In Lieu of Legs
- Remote Monitoring (monitoring supplied by E-Control)
- Remote Applications (see form TR35837 for more details)
- EZ-Change Interiors (#1, universals tray slides and shelves)
- 6" High Stainless Steel Kickplate (for use with standard legs)
- Remote For Use With 20°F Glycol System (refrigerator models only)
- Water Cooled Self-Contained Condenser Suitable for Connection To Glycol (freezer models only)
- No. 1 Type Tray Slides To Accommodate either (1) 18" x 26" or (2) 14" x 18" Sheet Pans, Adjustable To 2" O.C.
Construction, Hardware, and Insulation
- Cabinet exterior front, one-piece sides, louver assembly, and doors are constructed of 20 gauge stainless steel with a #4 finish. Cabinet interior and door liners are constructed of stainless steel (anodized aluminum in the A-Series). The exterior cabinet top, back, and bottom are constructed of heavy gauge aluminized steel. A set of four (4) adjustable 6" high stainless steel legs are included. Doors are equipped with a gasket-protecting metal door pan, removable plug cylinder locks, and guaranteed for life cam-lift, gravity action, self-closing metal, glide hinges with a stay-open feature at 120 degrees. Hinges include a concealed switch to automatically activate the interior incandescent lighting. Guaranteed for life, work flow door handles are mounted horizontally over recess in door which limits protrusion from door face into aisleways. Doors have seamless, polished metal corners. Gasket profile and Santoprene® material simplify cleaning and increase overall gasket life. Anti condensate heaters are located behind each door opening. Both the cabinet and door(s) are insulated with an average of 2" thick high density, non-CFC, foamed in place polyurethane.
- A top-mounted, self-contained, balanced refrigeration system using R-134a refrigerant is conveniently located behind the one-piece louver assembly. It features an easy-to-clean front-facing condenser, thermostatic expansion valve, air-cooled hermetic compressor, plenum effect blower coil, large, high humidity evaporator coil located outside the food zone and a top-mounted non-electric condensate evaporator. Return air duct protects against introduction of warm kitchen air, promoting even temperature maintenance and efficient operation. A 9' cord and plug are provided. Standard operating temperature is 34 to 38°F.
- A top-mounted, self-contained, balanced refrigeration system using R-404A refrigerant is conveniently located behind the one-piece louver assembly. It features an easy-to-clean front-facing condenser, thermostatic expansion valve, air-cooled hermetic compressor, plenum effect blower coil, large, high humidity evaporator coil located outside the food zone and a top-mounted non-electric condensate evaporator. Return air duct protects against introduction of warm kitchen air, promoting even temperature maintenance and efficient operation. A 9' cord and plug are provided. Standard operating temperature is 0 to -5°F.
- The easy-to-use water-resistant INTELA-TRAUL® microprocessor control system is supplied standard. RS485 data port enables data communications for remote monitoring such as NAFEM Data Protocol, E-Control Systems®, and others. It includes a 3-Digit LED Display and Fahrenheit or Celsius Temperature Scale Display Capability, In addition, it includes audio/visual alarms for: Hi/Lo Cabinet Temperature, Door Open, Clean Condenser, Evaporator Coil and Discharge Line Sensor Failures, and Power Supply Interruption.
- Standard interior arrangements include three (3) wire shelves per section. Recommended load limit per shelf should not exceed 225 lbs. Optional tray slides may be purchased in combination with, or in lieu of these. Standard interior arrangements are installed at the factory and EZ-Change interior slides (only) are field installed.
- Both a three-year parts and labor warranty and a five-year compressor warranty (self-contained models only) are provided standard.
Features | |
---|---|
Refrigeration System - Refrigerator Models: | A top mounted, self-contained, balanced refrigeration system using R-134a refrigerant is conveniently located behind the one piece louver assembly. It features an easy to clean front facing condenser, thermostatic expansion valve, air-cooled hermetic compressor, plenum effect blower coil, large, high humidity evaporator coil located outside the food zone and a top mounted non-electric condensate evaporator. Return air duct protects against introduction of warm kitchen air, promoting even temperature maintenance and efficient operation. A 9' cord and plug is provided. Standard operating temperature is 34 to 38°F. |
Standard Product Features: | • R-Series: Stainless Steel Exterior & Interior • A-Series: Stainless Steel Exterior/Anodized Aluminum Interior • INTELA-TRAUL® Microprocessor Control System • Balanced, Self-Contained Refrigeration Systems • Full or Half Length Stainless Steel Doors With Locks • Self-Closing Doors With Stay Open Feature At 120 Degrees • Guaranteed For Life Cam-Lift Hinges & Door Handles • Standard Door Hinging: 132N = Right (other hingings available) • Automatically Activated Incandescent Lights • Three Adjustable Wire Shelves Per Section • Automatic Condensate Evaporator • Magnetic Snap-In EZ-Clean Door Gasket(s) • Gasket-Protecting Metal Door Liner • Controllable Anti-Condensate Door Perimeter Heaters • Thermostatic Expansion Valve Metering Device • Stainless Steel Breaker Caps & One-Piece Louver Assembly • 9' Cord & Plug Attached • Set of Four (4) 6" High Adjustable Stainless Steel Legs • Three Year Parts And Labor Warranty • Five Year Compressor Warranty |
Controller: | The easy to use water resistant INTELA-TRAUL® microprocessor control system is supplied standard. RS485 data port enables data communications for remote monitoring such as NAFEM Data Protocol, E-Control Systems® and others. It includes a 3-Digit LED Display and Fahrenheit or Celsius Temperature Scale Display Capability, In addition it includes audio/visual alarms for: Hi/Lo Cabinet Temperature, Door Open, Clean Condenser, Evaporator Coil and Discharge Line Sensor Failures, and Power Supply Interruption. |
Construction, Hardware and Insulation: | Cabinet exterior front, one piece sides, louver assembly and doors are constructed of 20 gauge stainless steel with #4 finish. Cabinet interior and door liners are constructed of stainless steel (anodized aluminum in the A-Series). The exterior cabinet top, back and bottom are constructed of heavy gauge aluminized steel. A set of four (4) adjustable 6" high stainless steel legs are included. Doors are equipped with a gasket-protecting metal door pan, removable plug cylinder locks and guaranteed for life cam-lift, gravity action, self-closing metal, glide hinges with stay open feature at 120 degrees. Hinges include a concealed switch to automatically activate the interior incandescent lighting. Guaranteed for life, work flow door handles are mounted horizontally over recess in door which limits protrusion from door face into aisleways. Doors have seamless, polished metal corners. Gasket profile and Santoprene® material simplify cleaning and increase overall gasket life. Anti condensate heaters are located behind each door opening. Both the cabinet and door(s) are insulated with an average of 2" thick high density, non-CFC, foamed in place polyurethane. |
Warranties: | Both a three year parts and labor warranty and a five year compressor warranty (self-contained models only) are provided standard. |
Refrigeration System - Freezer Models: | A top mounted, self-contained, balanced refrigeration system using R-404A refrigerant is conveniently located behind the one piece louver assembly. It features an easy to clean front facing condenser, thermostatic expansion valve, air-cooled hermetic compressor, plenum effect blower coil, large, high humidity evaporator coil located outside the food zone and a top mounted non-electric condensate evaporator. Return air duct protects against introduction of warm kitchen air, promoting even temperature maintenance and efficient operation. A 9' cord and plug is provided. Standard operating temperature is 0 to -5°F. |
Options & Accessories: | • Stainless Steel Finished Back With Rear Louvers • Re-Hinging Feature For Doors • No. 1 Type Tray Slides To Accommodate either (1) 18" x 26" or (2) 14" x 18" Sheet Pans, Adjustable To 2" O.C. • Additional Wire Shelves • Stainless Steel Shelves • EZ-Change Interiors (#1, universals tray slides and shelves) • EZ-Open Foot Pedal (full height doors only) • Kool Klad Exterior Laminate Decor • Set of Four (4) 6" High Casters In Lieu of Legs • Set of Four (4) 4-5/8" High Casters In Lieu of Legs • 4-1/2" High Stainless Steel Base In Lieu of Legs • 6" High Stainless Steel Kickplate (for use with standard legs) • Remote Applications (see form TR35837 for more details) • Remote For Use With 20°F Glycol System (refrigerator models only) • Water Cooled Self-Contained Condenser Suitable for Connection To Glycol (freezer models only) • Remote Monitoring (monitoring supplied by E-Control) |
Interior: | Standard interior arrangements include three (3) wire shelves per section. Recommended load limit per shelf should not exceed 225 lbs. Optional tray slides may be purchased in combination with, or in lieu of these. Standard interior arrangements are installed at the factory and EZ-Change interior slides (only) are field installed. |
