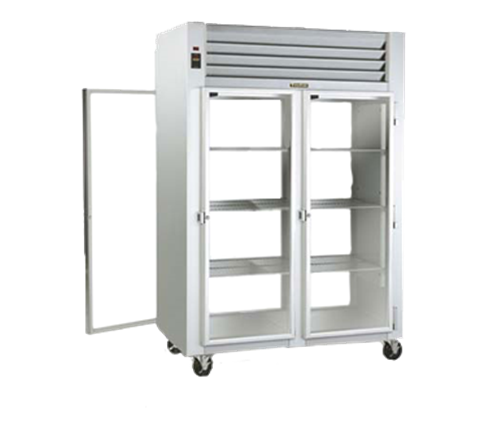

Traulsen AHT232NPUT-FHG 52.13'' 48.3 cu. ft. 2 Section Glass Door Pass-Thru Refrigerator
MPN#: AHT232NPUT-FHG
Free Freight?
Quick Ship
Energy Star ?
Products with Energy Star certification are designed to be more energy-efficient to maximize savings.
$27,858.11 /
Contact us for your price
Call 1 (800) 555-0666
Mon-Fri 9AM-8PM, Sun 12-6PM ET
Mon-Fri 9AM-8PM, Sun 12-6PM ET
Why don't we show the price for this item?
Product Protection
Starting at
- 2023 model, meets the newest EPA and DOE codes.
- Usually ships in 4-6 weeks
Traulsen AHT232NPUT-FHG Specifications
Amps | 11 Amps |
---|---|
Refrigerator Capacity | 48.3 cu. ft. |
Door Size | Full |
Half Doors | No |
Hinge Location | Right |
Door Hinge | Right Hinged |
Construction | Stainless Steel and Aluminum |
Brand | Traulsen |
Refrigerant Type | R-134A |
Energy Efficiency | Energy Star |
Made in | USA |
Certifications | ETL |
Number of Doors | 4 |
Refrigeration System | Self-contained |
Capacity | 47 - 70 cu. ft. |
Compressor Location | Top Mounted |
Door Type | Glass |
Material | Aluminium |
Sections | 2 |
Temperature Range | 34 - 38 Degrees F |
Voltage | 115 Volts |
Width (in) | 52.13 |
Height (in) | 83.25 |
Depth (in) | 37.94 |
Weight | 705 |
Additional Information on Traulsen AHT232NPUT-FHG
warrantysheet.pdf trayracks.pdf remotemodels.pdf traulsensmartconnect.pdf sellsheet.pdf exteriorlaminates.pdf accessorykits.pdf quick-start-guide.pdf owner-s-manual.pdf traulsen-aht232nput-fhg.specsheet.pdf shipping-dimensions-product-weights.pdf
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Traulsen AHT232NPUT-FHG Certifications
ETL
The ETL Mark is proof of product compliance to North American safety standards.
ETL-Sanitation
This item meets the sanitation standards imposed by the ETL, a division of the Intertek Group.
Traulsen AHT232NPUT-FHG Description
Spec-Line Refrigerator, Pass-thru Display, two-section, self-contained refrigeration, StayClear™ Condenser, variable speed compressor, stainless steel exterior, aluminum interior, standard depth, narrow full-height glass doors, interior lights, (3) adjustable wire shelves per section, microprocessor controls, 6" adjustable stainless steel legs, R-290 Hydrocarbon refrigerant, 1/2 hP, cETLus, ETL-Sanitation, ENERGY STAR®
With this spacious two-section pass-through refrigerator from Traulsen, your workstations are guaranteed to become more productive. The front and back access to the interior allows your staff to place food from one side and remove it from the other side without having to leave their spot. This commercial refrigerator features narrow full-height glass doors so that everything inside is also perfectly visible. And with the interior lights, products are presented in their best light, which makes it a great front-of-house asset. Complete your setup with our pass-thru refrigerators and freezers and other commercial foodservice equipment.
Standard Features:
The R & A Series represent Traulsen's Top-of-the-Line product offering. These “N-Width” pass-thru refrigerator models are equipped with hinged glass doors in order to maximize product visibility. Each is supplied standard with such high quality features as balanced refrigeration systems, microprocessor controls, communications ability and stainless steel exteriors. Additionally, they offer the widest range of optional accessories to choose from, and can be specified for use with many different applications, including: Foodservice, Correctional, Institutional, Export, etc.
Construction, Hardware, and Insulation
- Biased Return Air Duct
- 9' Cord & Plug Attached
- Stainless Steel Breaker Caps
- Five Year Compressor Warranty
- Scroll Blower Type Evaporator Fan
- Guaranteed For Life Cam-Lift Hinges
- Three Year Parts And Labor Warranty
- Incandescent Lights With Exterior Switch
- Stainless Steel Vertical Door Handleserior
- R-Series: Stainless Steel Exterior & Interior
- Stainless Steel One-Piece Louver Assembly
- Magnetic Snap-In EZ-Clean Door Gasket(s)
- Thermostatic Expansion Valve Metering Device
- Automatic Non-Electric Condensate Evaporator
- INTELA-TRAUL® Microprocessor Control System
- Controllable Anti-Condensate Door Perimeter Heaters
- Set of Four (4) 6" High Adjustable Stainless Steel Legs
- Self-Closing Doors With Stay Open Feature At 120 Degrees
- A-Series: Stainless Steel Exterior/Anodized Aluminum Interior
- Balanced, Self-Contained Refrigeration System Using R-134a
- Three Adjustable Wire Shelves Per Section, Supported On Shelf Pins (installed at the factory)
- Full or Half Length Hinged Glass Doors With Locks (full length doors n/a for three-section models)
- Standard Door Hinging F & R: 232N = Left/Right, 332N = Left/Right/Right (other hingings available)
- Fluorescent Lights
- Stainless Steel Shelves
- Additional Wire Shelves
- Export 220/50/1 Voltage
- Bare Tube Coil (232NP only)
- Re-Hinging Feature For Door(s)
- Kool Klad Exterior Laminate Decor
- Set of Four (4) 6" High Casters In Lieu of Legs
- 4-1/2" High Stainless Steel Base In Lieu of Legs
- Set of Four (4) 4-5/8" High Casters In Lieu of Legs
- 208/115/60/1 Voltage In Lieu Of Standard 115/60/1
- 6" High Stainless Steel Kickplate (for use with standard legs)
- Remote Applications (see spec sheet TR35837 for more details)
- EZ-Change Interiors (#1, universals, universal heavy duty tray slides and shelves)
- No. 4 Type Tray Slides To Accommodate (1) 18" x 26" Sheet Pans (chrome rod type, equips 1/2 section)
- No. 1 Type Tray Slides To Accommodate either (1) 18" x 26" or (2) 14" x 18" Sheet Pans, Adjustable To 2" O.C.
- Universal Type Tray Slides To Accommodate Either (1) 18" x 26" or (2) 14" x 18" Sheet Pans, or (2) 12" x 20" Steam Table Pans, Adjustable To 4" O.C. (see notes below)
Construction, Hardware, and Insulation
- Cabinet exterior front, one-piece sides and louver assembly are constructed of 20 gauge stainless steel with a #4 finish. Cabinet interior is constructed of stainless steel (anodized aluminum in the A-Series). The exterior cabinet top and bottom are constructed of heavy-gauge aluminized steel. A set of four (4) adjustable 6" high stainless steel legs are included. Doors are equipped with removable plug cylinder locks and guaranteed for life cam-lift, gravity action, self-closing metal, glide hinges with stay open feature at 120 degrees. An external switch is provided to activate the interior incandescent lighting. Gasket profile and Santoprene® material simplify cleaning and increase overall gasket life. Anti condensate heaters are located behind each door opening. The cabinet is insulated with an average of 2" thick high density, non-CFC, foamed-in-place polyurethane.
- A top-mounted, self-contained, balanced refrigeration system using R-134a refrigerant is conveniently located behind the one piece louver assembly. It features an easy to clean front facing condenser, thermostatic expansion valve, air-cooled hermetic compressor, plenum effect blower coil, large, high humidity evaporator coil located outside the food zone and a top mounted non-electric condensate evaporator. Biased return air duct protects against introduction of warm kitchen air, promoting even temperature maintenance and efficient operation. A 9' cord and plug is provided. Standard operating temperature is 34 to 38°F.
- The easy-to-use water-resistant INTELA-TRAUL® microprocessor control system is supplied standard. It includes a 3-Digit LED Display and Fahrenheit or Celsius Temperature Scale Display Capability, In addition, it includes audio/visual alarms for: Hi/Lo Cabinet Temperature, Door Open, Clean Condenser, Evaporator Coil and Discharge Line Sensor Failures, and Power Supply Interruption.
- Standard interior arrangements include three (3) wire shelves per section, mounted on shelf pins. Shelves are full-width, and do not have any large gaps between them requiring the use of "bridge" or "junior shelves." Recommended load limit per shelf should not exceed 225 lbs. Optional tray slides may be purchased in combination with, or in lieu of these. Standard interior arrangements are installed at the factory and EZ-Change interior slides (only) are field installed.
- Both a three-year parts and labor warranty and a five-year compressor warranty (self-contained models only) are provided standard.
Features | |
---|---|
Interior: | Standard interior arrangements include three (3) wire shelves per section, mounted on shelf pins. Shelves are full-width, and do not have any large gaps between them requiring the use of "bridge" or "junior shelves." Recommended load limit per shelf should not exceed 225 lbs. Optional tray slides may be purchased in combination with, or in lieu of these. Standard interior arrangements are installed at the factory and EZ-Change interior slides (only) are field installed. |
Options & Accessories: | • Fluorescent Lights • Re-Hinging Feature For Door(s) • No. 1 Type Tray Slides To Accommodate either (1) 18" x 26" or (2) 14" x 18" Sheet Pans, Adjustable To 2" O.C. • No. 4 Type Tray Slides To Accommodate (1) 18" x 26" Sheet Pans (chrome rod type, equips 1/2 section) • Universal Type Tray Slides To Accommodate Either (1) 18" x 26" or (2) 14" x 18" Sheet Pans, or (2) 12" x 20" Steam Table Pans, Adjustable To 4" O.C. (see notes below) • Additional Wire Shelves • EZ-Change Interiors (#1, universals, universal heavy duty tray slides and shelves) • Bare Tube Coil (232NP only) • Export 220/50/1 Voltage • 208/115/60/1 Voltage In Lieu Of Standard 115/60/1 • Stainless Steel Shelves • Kool Klad Exterior Laminate Decor • Set of Four (4) 6" High Casters In Lieu of Legs • Set of Four (4) 4-5/8" High Casters In Lieu of Legs • 4-1/2" High Stainless Steel Base In Lieu of Legs • 6" High Stainless Steel Kickplate (for use with standard legs) • Remote Applications (see spec sheet TR35837 for more details) • Remote Monitoring (monitoring supplied by E-Control) |
Construction, Hardware and Insulation: | Cabinet exterior front, one piece sides and louver assembly are constructed of 20 gauge stainless steel with #4 finish. Cabinet interior is constructed of stainless steel (anodized aluminum in the A-Series). The exterior cabinet top and bottom are constructed of heavy gauge aluminized steel. A set of four (4) adjustable 6" high stainless steel legs are included. Doors are equipped with removable plug cylinder locks and guaranteed for life cam-lift, gravity action, self-closing metal, glide hinges with stay open feature at 120 degrees. An external switch is provided to activate the interior incandescent lighting. Gasket profile and Santoprene® material simplify cleaning and increase overall gasket life. Anti condensate heaters are located behind each door opening. The cabinet is insulated with an average of 2" thick high density, non-CFC, foamed in place polyurethane. |
Controller: | The easy to use water resistant INTELA-TRAUL® microprocessor control system is supplied standard. RS485 data port enables data communications for remote monitoring such as NAFEM Data Protocol, E-Control Systems® and others. It includes a 3-Digit LED Display and Fahrenheit or Celsius Temperature Scale Display Capability, In addition it includes audio/visual alarms for: Hi/Lo Cabinet Temperature, Door Open, Clean Condenser, Evaporator Coil and Discharge Line Sensor Failures, and Power Supply Interruption. |
Warranties: | Both a three year parts and labor warranty and a five year compressor warranty (self-contained models only) are provided standard. |
Refrigeration System: | A top mounted, self-contained, balanced refrigeration system using R-134a refrigerant is conveniently located behind the one piece louver assembly. It features an easy to clean front facing condenser, thermostatic expansion valve, air-cooled hermetic compressor, plenum effect blower coil, large, high humidity evaporator coil located outside the food zone and a top mounted non-electric condensate evaporator. Biased return air duct protects against introduction of warm kitchen air, promoting even temperature maintenance and efficient operation. A 9' cord and plug is provided. Standard operating temperature is 34 to 38°F |
Standard Product Features: | • R-Series: Stainless Steel Exterior & Interior • A-Series: Stainless Steel Exterior/Anodized Aluminum Interior • INTELA-TRAUL® Microprocessor Control System • Balanced, Self-Contained Refrigeration System Using R-134a • Scroll Blower Type Evaporator Fan • Biased Return Air Duct • Full or Half Length Hinged Glass Doors With Locks (full length doors n/a for three-section models) • Self-Closing Doors With Stay Open Feature At 120 Degrees • Guaranteed For Life Cam-Lift Hinges • Stainless Steel Vertical Door Handles • Standard Door Hinging F & R: 232N = Left/Right, 332N = Left/Right/Right (other hingings available) • Incandescent Lights With Exterior Switch • Stainless Steel Breaker Caps • Three Adjustable Wire Shelves Per Section, Supported On Shelf Pins (installed at the factory) • Automatic Non-Electric Condensate Evaporator • Magnetic Snap-In EZ-Clean Door Gasket(s) • Controllable Anti-Condensate Door Perimeter Heaters • Thermostatic Expansion Valve Metering Device • Stainless Steel One-Piece Louver Assembly • 9' Cord & Plug Attached • Set of Four (4) 6" High Adjustable Stainless Steel Legs • Three Year Parts And Labor Warranty • Five Year Compressor Warranty |
