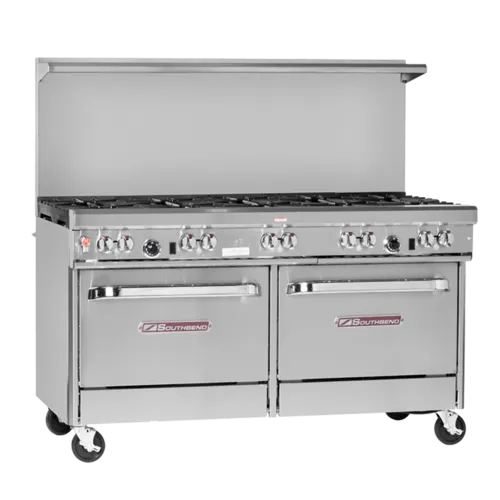

Southbend 4602CC-4TL Restaurant Gas Range, 60" W with 2 Burners (1) 48" Griddle and (2) Cabinet Bases - 134,000 BTU
SKU#: 4602CC-4TL
![Southbend 4602CC-4TL Restaurant Gas Range, 60" W with 2 Burners (1) 48" Griddle and (2) Cabinet Bases - 134,000 BTU](https://cdn.ckitchen.com/pmidimages/southbend-4602cc-4tl-restaurant-gas-range-60-w-with-2-burners-1-48-griddle-and-2-cabinet-bases-134-000-btu.webp)
Free Freight?
Quick Ship
$16,295.00
Product Protection
Starting at
- Please see specification sheet for installation clearance requirements
Southbend 4602CC-4TL Specifications
BTU | 134,000 BTU |
---|---|
Number of Burners | 1 - 2 |
Total BTU | 131000 - 224000 |
Quantity of Burners | 2 Burners |
Range Base Style | Cabinet Base |
Burner Style | Grates |
Burner Type | Non-clog burners |
Brand | Southbend |
Certifications | NSF |
Control Type | Thermostatic |
Heat | Gas |
Range Configuration | (1) 48" Griddle |
Width (in) | 60.75 |
Height (in) | 59.5 |
Depth (in) | 34 |
Weight | 1075.00 |
Additional Information on Southbend 4602CC-4TL
![middleby-financial-flyer.pdf](https://cdn.ckitchen.com/img/product/c2/c283e2d8-f291-47a0-9033-8fda9328630b/preview-image/eda8d9b4-ad3f-4e39-b487-9b2ba43aa3cf-230124qx7jx4.jpeg)
![warranty-sheet.pdf](https://cdn.ckitchen.com/img/product/c2/c283e2d8-f291-47a0-9033-8fda9328630b/preview-image/warranty-sheet-221114kpvykq-221114jbysub.jpg)
![owner-s-manual.pdf](https://cdn.ckitchen.com/img/product/c2/c283e2d8-f291-47a0-9033-8fda9328630b/preview-image/owner-s-manual-221114f9rupq-221114ijyho4.jpg)
![southbend-4602cc-4tl.specsheet.pdf](https://cdn.ckitchen.com/img/product/c2/c283e2d8-f291-47a0-9033-8fda9328630b/preview-image/southbend-4602cc-4tl.specsheet-2211049pem1x-2211040v31d4.jpg)
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Southbend 4602CC-4TL Certifications
![NSF](/crm/userfiles/d048bd9e-5c7b-4786-8534-06e3103044b8-nsf.jpg)
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
Southbend 4602CC-4TL Description
Ultimate Restaurant Range, gas, 60", (2) non-clog burners, wavy grates, (1) 48" griddle left, thermostatic controls, standing pilot, (2) cabinets, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 134,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
Ultimate Restaurant Gas Range, 60", (2) non-clog burners, wavy grates, (1) 48" griddle left, thermostatic controls, standing pilot, (2) cabinets, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 134,000 BTU, cCSAus, CSA Flame, CSA Star, NSF (more commercial restaurant ranges and cooking equipment available)
Standard Features:
Standard Features:
- Factory-installed Regulator
- Standing pilot for open top burners
- Battery spark ignition for oven bases
- Front located manual gas shut-off to entire range
- One year No Quibble, 24/7 parts and labor warranty
- 4” Stainless steel front rail, stainless steel front and sides
- Commercial gas range 60-3/4” wide with a 37” high cooking top
- Four (4) removable, cast iron grate tops (rear holds up to 14” stock pot)
Optional Charbroiler (L or R)
- 24” or 36” Available
- Removable, cast iron grates
Optional Wavy Grates (Burner Option 2)
- Allows full use of entire range top
- Cast bowl design for better efficiency
- Available only with 27K BTU Non-clog burners
Optional Cast Iron Star/Saute' Burners (Burner Option 3)
- (10) 33,000 BTU NAT star burners
- Port arrangement allows for even distribution of flame
Optional 33K Non-clog Burners (Burner Option 1)
- 33,000 BTU NAT
- (10) patented, one-piece, lifetime clog-free, cast iron burners
Optional Split Burner Configuration (Burner Option 4)
- (5) star/saute’ burners in front and (5) standard 33K burners in rear
Optional Pyromax Burners (Burner Option 7)
- 40,000 BTU NAT
- Group of 4 burners available
- Built-in port protection drip ring
- PATENTED high-output, three-piece, easy-clean Non-clog burner
Optional Griddle Top (L or R) or Raised Griddle (R only)
- Manual or thermostatically controlled
- Raised griddle available 24" only, manual control with under broiler
- 1” smooth, polished steel griddle plate with raised sides on 48” wide griddles
- 1/2” smooth, polished steel griddle plate with raised sides on 24” and 36” wide griddles [available in manual or thermostatic]
Optional 5 Burner Configuration (Burner Options 5 and 6)
- Combine (2) Pyromax burners in the rear with either (3) standard 33K burners (Opt 5) or (3) star 33K burners (Opt 6) in the front
Options & Accessories
- 5" flue riser
- 10” Flue Riser
- Extra Oven Racks
- Rear step up burners
- Casters-all swivel-front with locks
- Hot Top plate - plate replaces 2 Open burners
- Cabinet base doors (No Charge) Dimensions -in (mm)
- Flame Failure available (Contact factory for available model numbers)
- Battery spark ignition for open tops, charbroilers, griddles and hot tops
- Various salamander & cheesemelter mounts available. (Please refer to the price list)
- 3/4” quick disconnect with flexible hose complies with ANSI Z 21.69 (specify 3ft, 4ft, 5ft)
Construction Specifications
- Pressure Regulator: Factory installed.
- Oven Door: Spring assisted, counterweight door.
- Exterior Finish: Stainless steel front, sides and shelf standard.
- Legs: 6” stainless steel adjustable legs standard (casters optional)
- Stainless Steel Cabinet: Stainless steel cabinet base. Optional no-charge doors that open from the center.
- Flue Riser: 22.5” flue riser standard with heavy duty shelf. Optional 5” and 10” flue riser available without shelf. 5” and 10” flue riser not available on 2RR models.
- Oven Interior: Double sided, full porcelain enamel oven cavity for superior cleanability and corrosion protection. Coved corners for easy cleaning and enhanced airflow eliminating hot/cold spots.
- RangeTop: 27” deep cooking surface. Center-to-center measurements between burners not less than 12”, side-to-side or front-to-back. Two (2) removable one piece drip trays are provided under burners to catch grease drippings.
