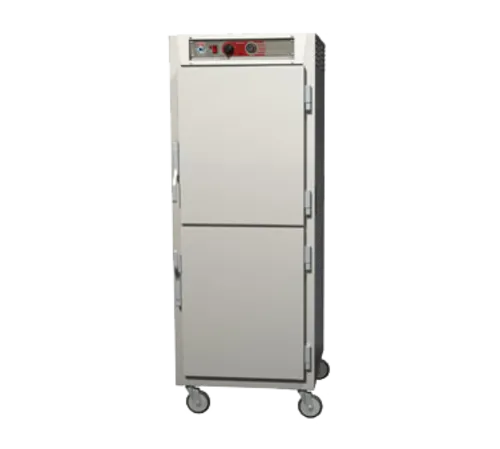

Metro C569L-SDS-LPDC C5™ 6 Series Solid Door Mobile Pass-Thru Heated Holding Cabinet, 120 Volts

C5™ 6 Series Heated Holding Cabinet, mobile, full height, pass thru, insulated (1) solid Dutch & (1) double pane tempered glass Dutch doors, top mount controls & analog thermometer, ducted heating system, thermostat 70° to 200°F temp, lip load (34) 18" x 26" pan capacity, 1-1/2" wire slides, 5" casters (2 with brakes), 304 stainless steel, 120v/60/1-ph, 1440 watts, 12 amps, NEMA 5-15P, cULus, NSF

C5™ 6 Series Heated Holding Cabinet, mobile, full height, pass thru, insulated (1) solid Dutch & (1) double pane tempered glass Dutch doors, top mount controls & analog thermometer, ducted heating system, thermostat 70° to 200°F temp, lip load (34) 18" x 26" pan capacity, 3" OC, 5" casters (2 with brakes), 304 stainless steel, 120v/60/1-ph, 1440 watts, 12 amps, NEMA 5-15P, UL, CUL, NSF

• Performance: Rapid heat-up and recovery times are achieved with a thermostatically controlled ducted heating system.
• Passive Humidity: An integral water pan system can be used to add humidity to the cabinet environment, improving food quality.
• Top-Mounted Controls: Ergonomic user-friendly controls are mounted at the top of the cabinet for easier access, better readability, to prevent damage, and to simplify cleaning.
• Reliability: Reliability and durability are designed into C5 from the ground up. High-quality components and robust construction provide a long life of service and worry-free use.
• ENERGY STAR: Full Height, 3/4 Height, and 1/2 Height Stainless Steel reach-in models with solid doors, and 1 /2 Height Stainless Steel reach-in models with clear doors are ENERGY STAR rated.
• Control: The 6 Series provides control of temperature for safe and hot food. Temperature is displayed on an “always-on” analog thermometer for continuous monitoring of the cabinet temperature, even when turned off or unplugged.
• Configurations:
  • Materials: Stainless Steel and Aluminum.
  • Sizes: Full Height, 3 /4 Height, 1 /2 Height, and Under Counter.
  • Reach-In or Pass-Thru (not available on under counter and 3 /4 height).
  • Doors: Full Length Solid, Full Length Clear, Dutch Solid, Dutch Clear. All are lift off and field reversible.
• 6 Series Controller:
  • Temperature: The easy-to-use dial puts you in control of cabinet temperature.
  • Analog Thermometer: An “always-on” thermometer makes it ideal for transport applications.
  • Reliable Readout: Measures and displays actual cabinet temperature even when the cabinet is off.

• 6" Casters (C5-6CASTER)
• Small Item Shelf (C5-SHELF-S)
• Rear Push Handle (C5-HANDLE)
• Control Panel Cover (C5-COVER)
• Factory Left Hand Hinging (DD3768)
• Flush Door Latch (C5-LATCHFLUSH)
• 6" Stainless Steel Legs (C5-SSLEGS)
• 5" Rear Rigid Casters (C5-5RDGCSTR)
• Bumper & Drip Trough (C5-BUMPDRIP)
• Full Perimeter Bumper (C5-PERMBUMP)
• Key Locking Door Latch (C5-LATCHLOCK)
• Twist Locking Door Latch (C5-LATCHTWST)
• Straight Plug, 20 Amp, 120V (C5-STRPLG-20)
• Straight Plug, 15 Amp, 120V (C5-STRPLG-15)
• Universal Slide Pair, Chrome (C5-USLIDEPR-C)
• Twist Lock Plug, 20 Amp, 120V (C5-RTWSTPLG
• Universal Slide Pair, Stainless (C5-USLIDEPR-S)
• Twist Lock Plug, 15 Amp, 120V (C5-RTWSTPLG-15)
• Factory Same-Side Pass-thru Door Hinging (C5-SAMESIDE)
• Stainless Steel Universal Slide Upgrades
  • 3/4 Height (C5-USLIDE-7S)
  • 1/2 Height (C5-USLIDE-5S)
  • Full Height (C5-USLIDE-9S)
  • Under Counter (C5-USLIDE-3S)

• Handles: Four built-in polymer handles.
• Thermal Performance: 200° F maximum temperature.
• Insulation: Full perimeter, 2.5" thick, high-density fiberglass.
• Gaskets: High temperature, cabinet mounted, Santoprene gaskets.
• Hinges: Self-closing, lift-off, double hinged, with long-life nylon bearings.
• Latches: Chrome plated, high-strength magnetic pull latch with lever-action release.
• Display and Controls: Analog cabinet thermometer with independent thermostat control knob.
• Heat Generation System: Thermostatically controlled 1950 Watt heating element, ball bearing blower motor, and ducted air system.
• Cabinet Material: Type 304 stainless steel; 20-gauge polished exterior; 22-gauge interior, or .063” aluminum, brushed exterior, natural interior.
• Doors: Solid doors are fully insulated, double-panel construction and Clear doors are double-pane, tempered glass. Argon filled with Low-E coating.
• Casters: Four casters with 5" donut neoprene wheel, double ball bearing swivel, ball bearing axle, nickel plated, two with brake. 3" rubber casters on Under Counter models.
