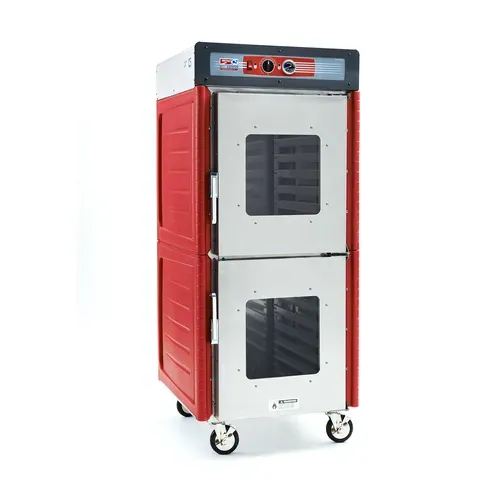

Metro C549-ASDC-L C5™ 4 Series with Insulation Armour™ Plus Full Height Clear Door Mobile Heated Holding Cabinet, 120 Volts
MPN#: C549-ASDC-L
1/2
Free Freight?
Quick Ship
$5,844.00 /
Contact us for your price
Call 1 (800) 555-0666
Mon-Fri 9AM-8PM, Sun 12-6PM ET
Mon-Fri 9AM-8PM, Sun 12-6PM ET
Why don't we show the price for this item?
Calculate
Product Protection
Starting at
Metro C549-ASDC-L Specifications
| Series | C5™ 4 Series with Insulation Armour™ Plus |
|---|---|
| Size | Full Height |
| Type | Holding Cabinets |
| Interior Construction | Lip Load Slides |
| Product Line | Metro C5™ 4 Series |
| Insulated | Yes |
| Brand | Metro |
| Made in | USA |
| Certifications | 5-15P |
| Control Type | Thermostatic |
| Door Type | Clear |
| Style | Mobile |
| Voltage | 120 Volts |
| Width (in) | 30 |
| Height (in) | 69.5 |
| Depth (in) | 33 |
| Weight | 331.00 |
Additional Information on Metro C549-ASDC-L
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Metro C549-ASDC-L Certifications
5-15P
Two-pole with ground pin plug
cULus
UL (Underwriters Laboratories) approval for the US and Canada
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
Metro C549-ASDC-L Description
C5™ 4 Series with Insulation Armour™ Plus, mobile heated holding cabinet, full height, insulated clear Dutch doors, top mount controls, thermostat to 200°F, lip load slides on 1-1/2" centers, (32) 18" x 26" pan capacity, 5" casters, stainless steel, 120V/60/1, 1400 watts, 11.7 amps, NEMA 5-15P, cULus, NSF
C5™ 4 Series with Insulation Armour™ Plus, mobile heated holding cabinet, full height, insulated clear Dutch doors, top mount controls, thermostat to 200°F, lip load slides on 1-1/2" centers, (32) 18" x 26" pan capacity, 5" casters, stainless steel, 120V/60/1, 1400 watts, 11.7 amps, NEMA 5-15P, cULus, NSF
Standard Features:
Standard Features:
- Stainless Steel Construction: High quality, Type 304 stainless steel for easy cleaning and long-term durability.
- Reliability: Reliability and durability are designed from the ground up. High-quality components provide a long life of worry free use.
- Top-Mounted Controls: Ergonomic user-friendly controls are mounted at the top of the cabinet for improved access and readability, to prevent damage, and easy cleaning.
- Performance: Forced convection design gently circulates hot air for improved temperature consistency. Heat is channeled to the bottom of the cabinet, allowing it to rise naturally without it blowing directly over the food. Thermostatically controlled, 200°F (93°C) maximum operating temperature.
- Insulation Armour™ Plus: Patented insulation technology replaces traditional sheet metal exterior with foamed-in-place polyurethane polymer panels, providing improved energy efficiency at a lower initial investment. Armour panels have molded in handles and act as a full body bumper for improved handling and protection in mobile applications.
Options/Accessories
- 6" Casters (C5-6CASTER)
- Small Item Shelf (C5-SHELF-S)
- Travel Latch / Hasp (C54-TRVL)
- Rear Rigid Casters (C5-RDGCSTR)
- Factory Left Hand Hinging (DD3768)
- Straight Plug, 120V (C5-STRPLG-15)
- 6" Stainless Steel Legs (C5-SSLEGS)
- Twist Lock Plug, 120V (C5-RTWSTPLG-15)
- Universal Slide Pair, Chrome (C5-USLIDEPR-C)
- Universal Slide Pair, Stainless (C5-USLIDEPR-S)
- Stainless Steel Universal Slide Upgrades
- 5/6 Height (C5-USLIDE-7S)
- 1/2 Height (C5-USLIDE-5S)
- Full Height (C5-USLIDE-9S)
- Under Counter (C5-USLIDE-3S)
Specifications
- Door Gaskets: High temperature, door mounted, Santoprene gasket.
- Door Hinges: Type 304 stainless steel, 11-gauge heavy-duty pivot hinge with welded pin.
- Door Latch: Chrome plated, high-strength flush mounted magnetic latch with lever-action release.
- Cabinet Material: Type 304 stainless steel, 20-gauge cabinet body with High Density Polyethylene (HDPE) exterior.
- Heat Generation System: Thermostatically controlled 1360W heating element, ball bearing blower motor, and ducted air system.
- Casters: Plate mounted, 2 swivel and 2 swivel with brake. 5" (127mm) diameter donut neoprene wheel on full, 5/6, 1/2 height units. 2" (51mm) diameter polyolifin wheel on under counter units.
- Insulation: Insulation Armour™ Plus HDPE polymer panels with 2" thick CFC free foamed-in-place polyurethane insulation. High density fiberglass insulation on top (3" thick) and bottom (1 1/2" thick).
- Doors: Type 304 stainless steel, 20-gauge insulated, welded doors. Field reversible, 180° swing. Solid doors fully insulated with 2” thick high density fiberglass insulation. Insulated clear doors are double-pane tempered glass and argon filled with Low-E coating.
