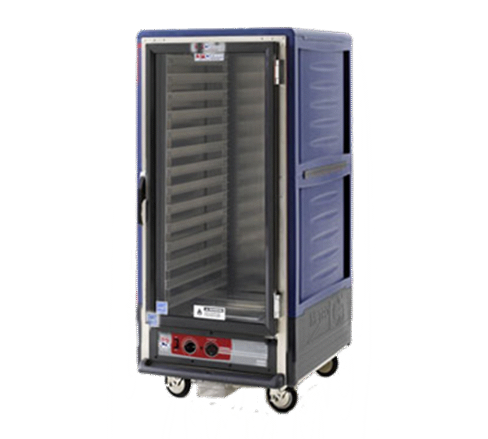

Metro C537-CFC-U-BU C5™ 3 Series with Blue Insulation Armour™ 3/4 Height Clear Door Insulated Mobile Proofing and Holding Cabinet, 120 Volts
![Metro C537-CFC-U-BU C5™ 3 Series with Blue Insulation Armour™ 3/4 Height Clear Door Insulated Mobile Proofing and Holding Cabinet, 120 Volts](https://cdn.ckitchen.com/pmidimages/metro-c537-cfc-u-bu-c5-3-series-with-blue-insulation-armour-3-4-height-clear-door-insulated-mobile-proofing-and-holding-cabinet-120-volts.webp)
Free Freight?
Quick Ship
$3,599.00
Contact us for your price
Call 1 (800) 555-0666
Mon-Fri 9AM-8PM, Sun 12-6PM ET
Mon-Fri 9AM-8PM, Sun 12-6PM ET
Why don't we show the price for this item?
Product Protection
Starting at
Metro C537-CFC-U-BU Specifications
Size | 3/4 Height |
---|---|
Construction | Aluminum |
Series | C5™ 3 Series with Blue Insulation Armour™ |
Cabinet Type | Holding cabinets |
Insulation Capacity | Insulated |
Product Line | Metro C5™ 3 Series |
Type | Proofing Cabinets |
Interior Construction | Universal Slides |
Insulated | Yes |
Brand | Metro |
Made in | USA |
Certifications | cULus |
Control Type | Thermostatic |
Controls | Thermostatic |
Door Type | Clear |
Style | Mobile |
Voltage | 120 Volts |
Width (in) | 27.63 |
Height (in) | 59 |
Depth (in) | 31.5 |
Weight | 144.00 |
Additional Information on Metro C537-CFC-U-BU
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Metro C537-CFC-U-BU Certifications
![cULus](/crm/userfiles/4571eadb-76f9-45bd-b37c-5f06370cc4e8-culus.png)
cULus
UL (Underwriters Laboratories) approval for the US and Canada
![NSF](/crm/userfiles/d048bd9e-5c7b-4786-8534-06e3103044b8-nsf.jpg)
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
Metro C537-CFC-U-BU Description
C5™ 3 Series Heated Holding & Proofing Cabinet, with Blue Insulation Armour™, mobile, 3/4 height, insulated, clear polycarbonate door, removable bottom mount control module, thermostat to 200°F, universal wire slides on 3" centers, adjustable on 1 1/2" increments (14) 18" x 26" or (26) 12" x 20" x 2 1/2" pan capacity, 5" casters (2 with brakes), aluminum, 120v/60/1 ph, 2000 watts, 16.7 amps, NEMA 5 20P, cULus, NSF
C5™ 3 Series Heated Holding & Proofing Cabinet, with Blue Insulation Armour™, mobile, 3/4 height, insulated, clear polycarbonate door, removable bottom mount control module, thermostat to 200°F, universal wire slides on 3" centers, adjustable on 1-1/2" increments (14) 18" x 26" or (26) 12" x 20" x 2-1/2" pan capacity, 5" casters (2 with brakes), aluminum, 120v/60/1-ph, 2000 watts, 16.7 amps, NEMA 5-20P, cULus, NSF
Standard Features:
Standard Features:
- Capacity: Three slide styles provide maximum holding capacity. Choose from Universal Wire, Lip Load, or Fixed Wire.
- Power Options: Choose between standard high wattage or low wattage models based on the specific needs of the application.
- Reliability: Reliability and durability are designed into every C5. High-quality components provide a long life of worry free use.
- Performance: All modules provide fast heat-up and recovery through a thermostatically controlled, forced convection system.
- Colors: Insulation Armour is available in Red, Blue, or Gray standard and in other colors on a promotional basis or upon request.
- Insulation Armour™: Patented insulation technology retains heat, saves energy, and provides a cool-to-touch exterior. Durable polymer construction is dent, impact, and stain resistant. Molded-in hand holds create vertical handles for mobile applications.
- Doors: Solid insulated aluminum or clear polycarbonate doors are available. Full Height cabinets can be configured with full length or dutch-style doors. Clear doors provide visibility of the contents of the cabinet without the heat loss associated with opening the door.
- Control: Three modules are available: Holding, Moisture, and Combination Proof and Hold. All feature an easy-to-read digital thermometer, recessed control dials, a master on/off switch, and power indicator lights. All are removable without tools for easy cleaning, and allow for future upgrades without replacing entire cabinet body.
Options/Accessories
- Travel Latch (C5-TRVL)
- 6" Casters (C5-6CASTER)
- Small Item Shelf (C5-SHELF-S)
- Stainless Steel Legs (C5-SSLEGS)
- Rear Rigid Casters (C5-5RDGCSTR)
- Factory Left-Hand Hinging (DD3768)
- Flush Door Latch (C5-LATCHFLUSH-1)
- Stainless Steel Universal Slides (please call)
- Straight Plug, 20 Amp, 120V (C5-STRPLG-20)
- Straight Plug, 15 Amp, 120V (C5-STRPLG-15)
- Universal Slide Pair, Chrome (C5-USLIDEPR-C)
Specifications
- Insulation Armour™: High Density Polyethylene (HDPE).
- Drip Trough: Smooth polymer drip trough with catch pan.
- Gaskets: High temperature, door mounted, Santoprene gaskets.
- Hand Holds: Molded into the Insulation Armour™ on all four corners.
- Latches: Polymer high-strength magnetic pull latch with lever-action release.
- Hinges: Field reversible, double hinged, 180° swing, with long-life nylon bearings.
- Clear Doors: Extruded aluminum powder coated frame with .090" (2.3mm) polycarbonate window.
- Solid Doors: Fully insulated with 1" (25.4mm) fiberglass, double panel .063" (1.8mm) aluminum, brushed exterior, natural interior.
- Casters: Four casters with 5" (127mm) donut neoprene wheel, double ball bearing swivel, ball bearing axel, nickel plated, two with brake.
- Holding Modules: Removable without tools, digital thermometer, recessed control dials, master on/off switch, “Power On” light, water pan and ball bearing blower forced air system.
