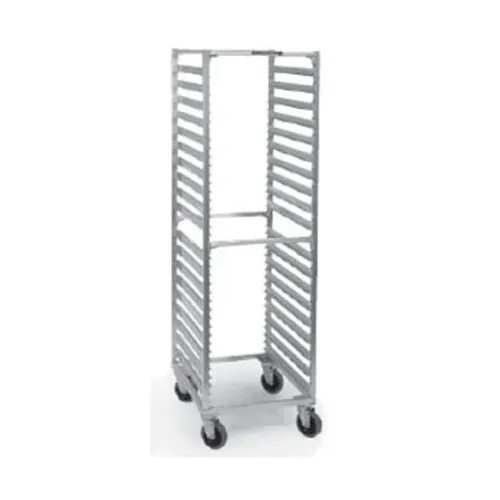

Lakeside Manufacturing 8559 Roll-In Cooler Rack
MPN#: 8559
1/3
Free Freight?
Quick Ship
$907.50 /
Login or add to cart to see our price!
Product Protection
Starting at
Lakeside Manufacturing 8559 Specifications
| Cube | 25.7 |
|---|---|
| Brand | Lakeside Manufacturing |
| Made in | USA |
| Certifications | NSF |
| Type | Roll-In Refrigerator Racks |
| Assembled | Yes |
| Casters | Yes |
| Loading Style | End Load |
| Material | Aluminum |
| Rack Type | Roll-In Cooler Rack |
| Style | Storage |
| Sheet Pan Capacity | 38 Pans |
| Shelf Spacing | 1 1/2 Inches |
| Width (in) | 20.5 |
| Height (in) | 69 |
| Depth (in) | 26 |
| Length (in) | 26 |
| Weight | 56.00 |
Additional Information on Lakeside Manufacturing 8559
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Lakeside Manufacturing 8559 Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
Lakeside Manufacturing 8559 Description
Roll-In Cooler Rack, 69"H, open sides, capacity (38) 18" x 26" pans or (76) half size pans, channel ledge, 1-1/2" spacing, welded aluminum construction, fits low type coolers, NSF, Made in USARoll-In Cooler Rack, 69"H, open sides, capacity (38) 18" x 26" pans or (76) half size pans, channel ledge, 1-1/2" spacing, welded aluminum construction, fits low type coolers, NSF, Made in USAStandard Features:
Durable, efficient storage system with all-welded aluminum construction
- Benefits
- Welded construction
- Light-weight aluminum is rust-proof
- Features
- NSF listed.
- Accommodates 18" x 26" or 14" x 18" pans and trays.
- Reinforced bottom design provides added durability during offsite transport.
- Channel and angle style ledges are continuously welded to the uprights to withstand rugged use.
- Casters
- Heavy-duty 5” plate-mount with non-marking poly wheels
Optional Accessories:
- Pan stop
- Solid sheet base
- Perimeter bumper
- Break casters (set of 2)
- Vertical leg bumpers (set of 4)
- Bottom corner bumpers (set of 4)
Specifications:
Shall be constructed of hi-tensile, corrosion-resistant, rust proof, primary extruded aluminum, Type 6463-T5 alloy. All seams shall be heli-arc welded and sealed (no rivets). Tray ledges 1-¼” x 1-5/8” x .100 extruded aluminum welded to frame on 3” or 5” centers, with channel type ledges to be on 1½” centers. Unit shall have four horizontal supports located at the top and center of 1” x 1” x .070 wall aluminum tube. Corner gussets of 1-½” x 1-½” x 5/8” thick angle shall be welded to the inside angles (bottom side) where horizontal cross bracing meets vertical uprights with a 4½” continuous weld. Unit base shall be constructed of 1” x 1” x .070 wall tube welded into a rectangular frame (20-½” x 26”), with two extra laterals where caster mount reinforcement plates shall be inset. reinforcement caster plates (2-¾” x 4” x 3/8”), pre-tapped for ¼” bolts, shall be welded to this frame. Casters shall be plate mount type, with 5” diameter non-marking polyurethane wheel, full swivel design with sealed ball bearing races.
Lakeside Manufacturing 8559 Reviews
There are no reviews yet for this product.
