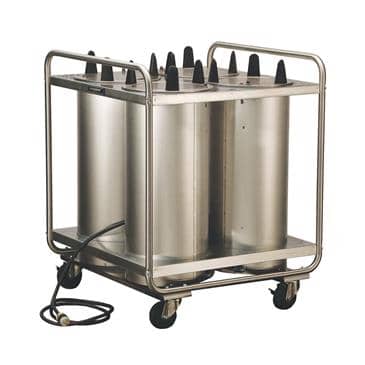

Lakeside Manufacturing 8410 Stainless Steel Open Tubular Frame 4 Stack Heated Mobile Plate Dish Dispenser for 9-1/4" to 10-1/8" Dishes
MPN#: 8410
1/2
Free Freight?
Quick Ship
$6,867.00
Login or add to cart to see our price!
Calculate
Product Protection
Starting at
Lakeside Manufacturing 8410 Specifications
| Dispenser Type | Dish Dispenser |
|---|---|
| Heat Type | Heated |
| Series | Lake-GlideВ® |
| Base Style | Open Frame |
| Model | Tubular Frame |
| Brand | Lakeside Manufacturing |
| Made in | USA |
| Certifications | 5-20P |
| Number of Compartments | 4 |
| Type | Mobile |
| Dish Diameter | 9-1/4" to 10-1/8" |
| Material | Stainless Steel |
| Temperature Range | 100 - 175 Degrees F |
| Voltage | 120 Volts |
| Wattage | 1,800 Watts |
| Width (in) | 31 |
| Height (in) | 38.31 |
| Depth (in) | 31 |
| Length (in) | 31 |
| Weight | 157.00 |
Additional Information on Lakeside Manufacturing 8410
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Lakeside Manufacturing 8410 Certifications
5-20P
Plug has the neutral blade rotated 90° and shifted so its inner edge is approximately 1⁄2 in (12.7 mm) from the hot blade
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
UL
UL has tested representative samples of this product and determined that the product meets specific, defined requirements.
Lakeside Manufacturing 8410 Description
Dish Dispenser, heated, open tubular frame, mobile, (4) self-leveling dish dispensing tubes, Easy-Glide™ design, maximum dish size 10-1/8" diameter, stainless steel construction, 4" swivel casters (2) with brakes, 6' cord with NEMA 5-20P, NSF, UL, Made in USA
Dish Dispenser, heated, open tubular frame, mobile, (4) self-leveling dish dispensing tubes, Easy-Glide™ design, maximum dish size 10-1/8" diameter, stainless steel construction, 4" swivel casters (2) with brakes, 6' cord with NEMA 5-20P, NSF, UL, Made in USA
Standard Features:
Economical Tubular Frame Design
- 4” Lake-Glide® casters - all swivel, 2 each with brake.
- Easy-Glide ™ design provides quiet, nonstick operation.
- Easy field adjustment for plate height, no tools required.
- High-strength easy-to-clean stainless steel tubular frame.
- Each heated dispenser features its own thermostatic control.
- Height adjustment springs detach and attach from inside the dispenser. No need to remove dispenser from mobile unit.
Optional Accessories:
- 220 VAC 50 Hz
- 208/240 VAC 60Hz
- Stainless steel dispenser covers
- Round corner bumpers (set of four)
Specifications:
Mobile Frame: Mobile frame shall be of 18-gauge wall stainless steel 1” tubing. Tubing frame shall be of "U-frame" design with bottom tie bars for extra strength. Units shall have 18-gauge top and bottom shelves to provide dispenser tube stability. Top and bottom shelves shall be bolted to tubular frame. Casters shall be 4” (102 mm) diameter extra-load swivel stem type (two with locking brake). Units shall be NSF listed.
Dispenser Tubes: Dispenser tubes shall be of welded stainless steel construction and shall drop into mobile unit top and bottom shelf openings. Dispensers shall be fully enclosed in 22-gauge stainless steel, shall hang from top shelf opening by an 18-gauge flange ring, and feature three each 22-gauge vertical side supports welded to 20-gauge bottom plate. Self-leveling dish carriage shall be of welded stainless steel construction and shall travel vertically in dispenser tube with nylon guides for smooth operation. Carriage shall have 22-gauge removable dish platform. Dispensers shall feature flange mounted perimeter extension springs, which are detachable from the dish carriage without tools to provide adjustment for different weight dishes. Each dispenser shall have a vertical stacking capacity of 25” (635 mm).
Heating System: Unit shall be 120 VAC 60 Hz and shall have 6’ (1829 mm) power supply cord with 5-15P (5-20P on Models 8409 and 8410) NEMA plug for 120 VAC. Mobile frame shall have electrical junction box mounted under bottom shelf, with hard wired power cable to each dispenser. Dispenser tubes shall have a circular bottom mounted 300 or 450 watt heater element to provide convection heat. Heating system shall feature thermostatic control in a tamper protective location with safe high-end shut off. Control shall have Infinite settings between low and high temperature cut-outs. Thermostat shall be field adjustable for average interior air temperature between 100°F (38°C) and 175°F (79°C) at middle adjustable thermostatic setting. On-off switch and power indicator light shall be mounted on top flange of dispenser. Average dish temperature rise of 40°F (22°C) above ambient shall be achieved within one hour of initial heating cycle at middle adjustable thermostatic setting. Mobile tubular frame and dispenser tubes shall be UL listed.
