John Boos E1S8-1620-12T18-X Commercial Sink, (1) One Compartment, 18 Gauge Stainless Steel Construction with Galvanized Steel Legs and with 2 Drainboards - 52.00" W
SKU#: E1S8-1620-12T18-X
Free Freight?
Quick Ship
$562.82
John Boos E1S8-1620-12T18-X Specifications
| Leg Construction | Galvanized Steel Legs |
|---|---|
| Drainboard Types | Left & Right |
| Construction | Stainless and Galvanized Steel |
| Drainboards | with 2 Drainboards |
| Brand | John Boos |
| Number of Compartments | 1 |
| Stainless Steel Type | Type 300 |
| Number of Drainboards | 2 |
| Certifications | NSF |
| Gauge | 18 Gauge |
| Material | Stainless Steel |
| Width (in) | 52.00 |
| Height (in) | 43.75 |
| Depth (in) | 25.50 |
| Weight | 55.00 |
Additional Information on John Boos E1S8-1620-12T18-X
caremaintenance.pdf
john-boos-e1s8-1620-12t18-x.specsheet.pdf
instructions.pdf
john-boos-e1s8-1620-12t18-x.specsheet.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
John Boos E1S8-1620-12T18-X Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
John Boos E1S8-1620-12T18-X Description

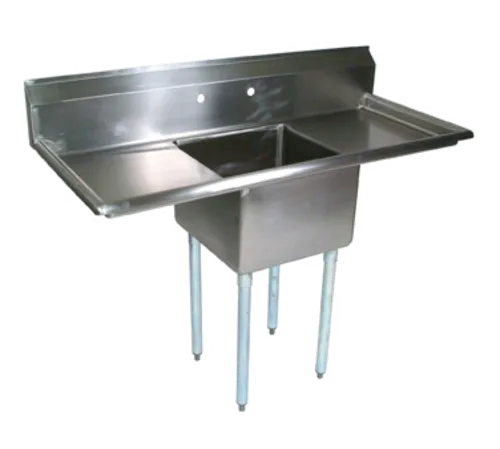

E-Series Sink, 1-compartment, 52"W x 25-1/2"D x 43-3/4"H overall size, (1) 16"W x 20" front-to-back x 12" deep compartment, (2) 18" left & right drainboards, 9-3/4"H boxed backsplash with 45° top and 2" return, (1) set of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain openings, 18/300 stainless steel, galvanized legs & gussets, adjustable plastic bullet feet, NSF, CSA-Sanitation (Available in Effingham)
Standard Features:
- 1 1/8" Faucet Holes in Backsplash
- 18ga Stainless Steel Commercial Sink
- 12" and 14" Deep One Compartment Sink Bowls
- Standard Galvanized Legs 1-5/8" Diameter
- Type 300 Stainless Steel with #4 Polish, Satin Finish
- More Restaurant Equipment & Underbar Sink Are Available
- All Corners, both Vertical and Horizontal, Coved At 3/4" Radius
- Bottoms of Bowls Formed for Drainage to 3-1/2" Diameter Die Stamped Opening
- All Outside Corners of Assembly are Bullnosed to Provide Safe, Clean, and Polished Edge
- Full Length 9-3/4" High Boxed Backsplash, with 2" Return to Wall at 45 Degree and 1" Tile Edge
Construction:
- Base: Galvanized Steel
- Top: Stainless Steel Sinks are TIG Welded, Exposed Welds are Polished to Match Adjacent Surface
Material:
- Gussets: Galvanized Steel
- Feet: 1" Plastic Bullet Feet
- Legs: 1-5/8" Round O.D. Galvanized Steel
- Bowls & Top: 16ga Type 300 Stainless Steel with #4 Polish, Satin Finish
