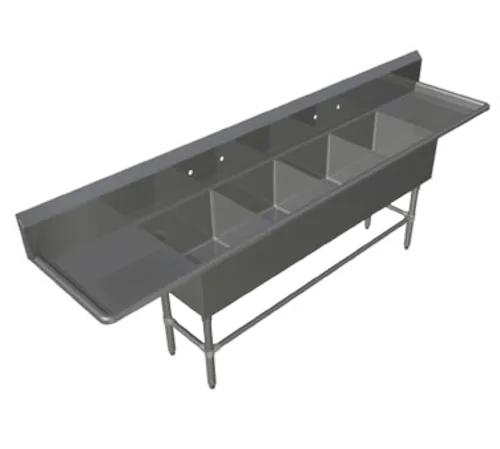

John Boos 4PB3024-2D36 Pro-Bowl Sink
MPN#: 4PB3024-2D36
Photo may not represent the actual product.
Always refer to the description and spec sheet (if available).
Free Freight?
Quick Ship
$14,055.00
Product Protection
Starting at
John Boos 4PB3024-2D36 Accessories
John Boos SD-1LF Sound Deadening
$223.00
John Boos PB-RES-24 Splash Guard
$229.00
John Boos LSS Undershelf
$119.00
John Boos PB-PRW-1LF Prerinse Unit
$1,044.00
John Boos PRW15 Pot Rack
$1,716.00
John Boos PRW14A Pot Rack
$1,559.00
John Boos PRW14 Pot Rack
$1,504.00
John Boos PRW13A Pot Rack
$1,447.00
John Boos PRW13 Pot Rack
$1,244.00
John Boos PRW12 Pot Rack
$1,210.00
John Boos PRW11 Pot Rack
$1,187.00
John Boos PRW11A Pot Rack
$1,010.00
John Boos PRW25 Pot Rack
$2,247.00
John Boos PRW24A Pot Rack
$2,019.00
John Boos PRW24 Pot Rack
$1,932.00
John Boos PRW23A Pot Rack
$1,868.00
John Boos PRW23 Pot Rack
$1,748.00
John Boos PRW22 Pot Rack
$1,627.00
John Boos PRW21 Pot Rack
$1,589.00
John Boos PRW21A Pot Rack
$1,421.00
John Boos BES-L Left End Splash
$457.00
John Boos BES-R Right End Splash
$457.00
John Boos X-0414D Quick Drain Trough
$1,492.00
John Boos WSUG-4 Welded Setup
$198.00
John Boos X-0430CB Modify tub spacing
$2,462.00
John Boos CAS07 Bullet Foot
$23.00
Description
John Boos 4PB3024-2D36 Description
Pro-Bowl Sink, 4-compartment, 195-1/4"W x 29-1/2"D x 44-1/16"H overall size, (4) 30"W x 24" front-to-back x 12" deep compartments, (2) 36" left & right drainboards, 10"H boxed backsplash with 45° top & 2" return, (2) sets of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain openings, 16/300 stainless steel construction, stainless steel legs, adjustable front & side bracing, adjustable bullet feet, NSF, CSA-Sanitation, KD
Standard Features:
- 1" Faucet Holes in Backsplash
- 2 Sets of Faucet Holes 8" On-Center
- 12" & 14" Deep Four Compartment Sink Bowls
- All Corners, both Vertical and Horizontal, Coved At 5/8" Radius
- Standard 16ga Type 300 Stainless Steel with #4 Polish, Satin Finish
- Bottoms of Bowls Formed for Drainage to 3-1/2" Diameter Die Stamped Opening
- All Outside Corners of Assembly are Bullnosed to Provide Safe, Clean and Polished Edge
- Solid Stainless Steel Commercial Sink Front Panel, Type 300 Stainless Steel with #4 Polish, Satin Finish
- Full Length 10" High Boxed Backsplash, with 2" return to wall at 45 Degree and 3/4" turned down Rear Lip
- Note: More Restaurant Equipment & Underbar Sinks are available.
Construction
- Base: Stainless Steel Bases, Standard K.D.
- Top: Stainless Steel Sinks are TIG Welded, Exposed welds are polished to match Adjacent Surface
Material
- Gussets: Stainless Steel
- Legs: 1-5/8" Round O.D. Stainless Steel
- Bracing: 1-1/4" Round O.D. Stainless Steel
- Feet: 1" Adjustable Stainless Steel Bullet Feet
- Bowls & Top: 16ga Type 300 Stainless Steel with #4 Polish, Satin Finish
Options
Q & A
John Boos 4PB3024-2D36 Specifications
| Brand | John Boos |
|---|---|
| Gauge | 16 Gauge |
| Number of Drainboards | 2 |
| Certifications | NSF |
| Number of Compartments | 4 |
| Width (in) | 195.25 |
| Height (in) | 44.06 |
| Depth (in) | 29.50 |
| Weight | 258.00 |
