ICE-O-Matic CIM1136HW 30.25" Half-Dice Ice Maker, Cube-Style - 900-1000 lbs/24 Hr Ice Production, Water-Cooled, 208-230 Volts

SKU#: CIM1136HW
Made in USA
Free Freight?
Quick Ship
$7,283.89
$7,283.89
or enjoy small payments $156.53/mo.
Lease Payment Calculate
Product Protection
Product Protection
Starting at
Reward Points
Reward Points
You will earn 7284
  • Better tasting ice
  • Exclusive offer: 50% OFF (already discounted price) Ice-O-Matic matching filter.
  • Reduce service calls by up to 65%
  • 7 Year evaporator warranty w/filter purchase (see below)
  • 2023 model, meets the newest EPA and DOE codes.

ICE-O-Matic CIM1136HW Specifications

Type of CoolingWater-Cooled
24 Hr Production900-1000 lbs
Type of IceHalf-Dice
ModelElevation Series™
BrandIce-O-Matic
Refrigerant TypeR-404A
Made inUSA
CertificationsCE
VendorIce-O-Matic
Voltage208-230 Volts
Width (in)30.25
Height (in)26.9
Depth (in)24.25
Weight225.00

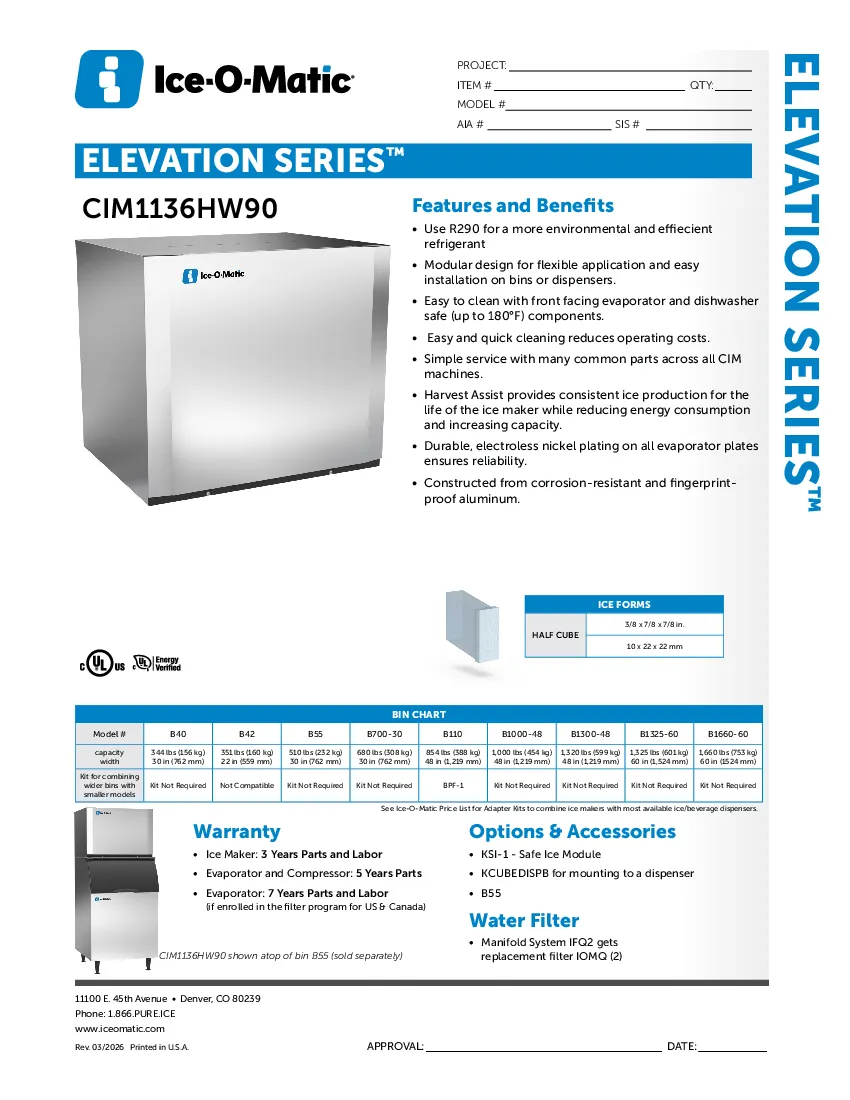

Additional Information on ICE-O-Matic CIM1136HW

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

ICE-O-Matic CIM1136HW Certifications

CE

CE

The product complies with the essential requirements of the relevant European health, safety and environmental protection legislations.

cULus

cULus

UL (Underwriters Laboratories) approval for the US and Canada

NSF

NSF

This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.

ICE-O-Matic CIM1136HW Description

Elevation Series™ Modular Cube Ice Maker, water-cooled, self-contained condenser, 30" W, approximately 968 lb production/24 hours at 70°/50° (896 lb at 90°/70°), half-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free

This Ice-O-Matic Ice Machine is a Elevation Series Modular Cube Ice Maker that features a water cooled condenser that can produce up to 968 lbs every 24 hours under ideal conditions. This ice machine produces half-dice ice with the dimensions 3/8” x7/8”x7/8”. Every 100 lbs of ice this unit produces requires 140 gallons of water for condenser cooling, 4.1 kWh of power, and 19 gallons of drinkable water. This specific model is designed to use 208-230v/60/1-ph power at 11.8 amps.

This ice cuber features a Plastic Food Zone made up of recyclable BPA-free snap-together parts. Cleaning these parts is simple since they are safe to put in the dishwasher. The front panel is easy to remove with a minimal number of screws granting complete access to the Plastic Food Zone. Access through the front panel makes cleaning and maintenance convenient since the cuber does not need to be moved. An Agion® treatment protects components from bacteria to make sure ice is as pure as possible.

ICE-O-Matic CIM1136HW 30.25 Half-Dice Ice Maker, Cube-Style - 900-1000 lbs/24 Hr Ice Production, Water-Cooled, 208-230 Volts

Standard Features:
 Ice-O-Matic Water Cooled Ice Machines provides crystal-clear ice with a full line of cubers, flakers and the patented Pearl Ice Machine. A premier manufacturer, distributor and supplier of commercial ice machines & ice machine head only.
  • 30.25" (768 mm) wide space-saving design.
  • Produces up to 1035 lbs (469 kg) of ice per day.
  • Universal Smart Harness™ control board simplifies installation and servicing with better access, digital diagnostics, universal components and common configuration.
  • Unique Dual Exhaust - Air-cooled machines are designed to discharge hot air from both the side and top of the unit, increasing installation flexibility and reducing the potential of obstructed exhaust.
  • Energy and Environment
    • Up to 20% more energy efficient than other models.
    • Exceeds new 2018 DOE (Department of Energy) regulations.
    • Environmentally friendly, including BPA-free plastic and recyclable parts.
  • Sanitation
    • Simple, one-touch controls for sanitization and descaling.
    • BPA-free snap-in, snap-out dishwasher-safe components.
    • Built in Agion® ensures unbeatable antimicrobial protection.
    • Smart LED light indicates machine status and when cleaning is required.
    • Plastic Food Zone eliminates hard-to-clean nooks and crannies, allowing for effortless wipe down and easy, long-lasting sanitation.

Options for ICE-O-Matic CIM1136HW

Ice-O-Matic Ice Machine water filters can reduce service calls by 60% and will produce better tasting ice
Optional: ChillTech water chilling system. Increases ice yields
Voltage
What is included
  • Compressor warranty: 5 yr. parts on the compressor warranty, standard
  • Parts & labor warranty: 3 yr. parts & labor warranty, standard
  • Evaporator warranty: 5 yr. evaporator warranty, standard

Videos

NOTE! This is a general product line video and does not necessarily reflect the listed model.

ICE-O-Matic CIM1136HW 30.25" Half-Dice Ice Maker, Cube-Style - 900-1000 lbs/24 Hr Ice Production, Water-Cooled, 208-230 Volts
ICE-O-Matic CIM1136HW 30.25" Half-Dice Ice Maker, Cube-Style - 900-1000 lbs/24 Hr Ice Production, Water-Cooled, 208-230 Volts
ICE-O-Matic CIM1136HW 30.25" Half-Dice Ice Maker, Cube-Style - 900-1000 lbs/24 Hr Ice Production, Water-Cooled, 208-230 Volts

ICE-O-Matic CIM1136HW Accessories

Ice-O-Matic B40PS Ice Bin B40PS
$1,321.04
Ice-O-Matic B55PS Ice Bin B55PS
$1,524.38
Ice-O-Matic B110PS Ice Bin B110PS
$2,141.13
Ice-O-Matic B700-30 Ice Bin B700-30
$5,049.84
Ice-O-Matic B1000-48 Ice Bin B1000-48
$5,467.30
Ice-O-Matic B1300-48 Ice Bin B1300-48
$5,781.51
Ice-O-Matic B1325-60 Ice Bin B1325-60
$6,320.16
Ice-O-Matic B1600-60 Ice Bin B1600-60
$6,642.90
Ice-O-Matic CD40030 Cube Ice Dispenser CD40030
$4,678.18
Ice-O-Matic CD40130 Cube Ice Dispenser CD40130
$5,142.31
Ice-O-Matic IOD200 Ice Dispenser IOD200
$5,630.69
Ice-O-Matic IOD250 Ice Dispenser IOD250
$6,762.75
Ice-O-Matic IFQ2 Water Filter Manifold IFQ2
$837.22
Ice-O-Matic KCFS9-30 Installation Kit KCFS9-30
$288.82
Ice-O-Matic KCFS71-30 Ice Control Kit KCFS71-30
$442.21
Ice-O-Matic KCFS91-30 Installation Kit KCFS91-30
$355.51

ICE-O-Matic CIM1136HW Parts

All ICE-O-Matic CIM1136HW Parts

Packages
Buy together & SAVE 50% ON IFQ1 ICE-O-Matic IFQ1 Water Filter Manifold!
SKU#: CIM1136HW_1964
ICE-O-Matic CIM1136HW 30.25
ICE-O-Matic CIM1136HW 30.25" Half-Dice Ice Maker, Cube-Style - 900-1000 lbs/24 Hr Ice Production, Water-Cooled, 208-230 Volts
  • SKU # CIM1136HW
$7,439.43

ICE-O-Matic CIM1136HW Reviews

There are no reviews yet for this product.
